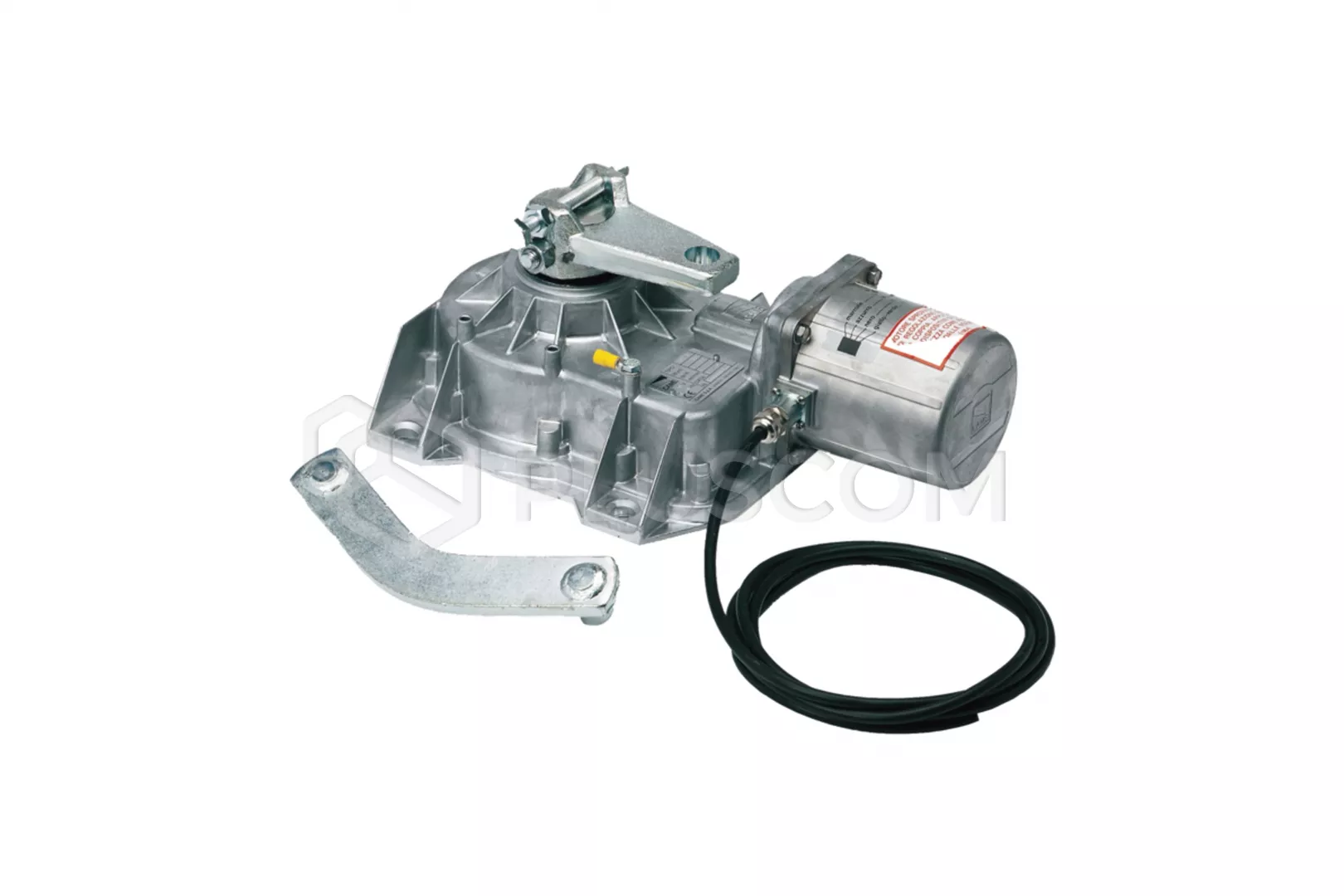

Came FROG-AV underground actuator 230V

561,98 EUR including 20.00% VAT
Product code: #26040
Manufacturer: CAME
  • Max length of the gate leaf: 1.3m
  • Max weight of the gate leaf: 300kg
  • 230V motor
  • Adjustable leaf closing stop
  • Opening time 9s to 90°
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came A4370 Gear that increases the gate opening angle Came LOCK81 One-cylinder electromagnetic lock 12V Came FROG-CFNI Stainless steel housing with galvanized cover Came RLB Card for supplying the system with batteries Came FL-180 Gear that increases the gate opening angle Came A4366 Release system with personal key ''TOP'' Came A4365 Came key release system Came A4364 Release system, lever ''Standard'' Came FROG-CFN Housing with galvanized cover Came ZM3E Control unit for double-leaf gates

CAME FROG-AVunderground irreversible actuator for gates with leaves up to 1.3 m long


GATE PARAMETERS
  • 1.3m/300kg
FROG-AV is a self-locking underground electromechanical actuator for swing gates with a max. leaf length up to 1.3m. New 230 V electronics provide special commands and safety functions in the standard version. Additional control boards are also available, allowing for greater adjustment options and more features that make operation easier.

A simple, patented release which, in the event of a power failure, will enable the actuator to be unlocked.
The release mechanism is available in three versions:
  • basic system based on release lever
  • Two extended versions, in which the clutch is released by using a special three-walled clamp key or personalized DIN cylindrical key
The biggest advantage of underground actuators is the aesthetics and discretion of the drive it is invisible and does not spoil the image of the gate
The second important advantage of underground drives is the possibility of installation in place where because of
  • narrow entrance
  • very narrow posts where dimension A is less than 100mm
There is no room for installing screw drives or drives with a folding arm

TECHNICAL DATA:
  • Power supply: 230V
  • Motor power supply: 230V
  • Max. power consumption: 300 W
  • Current: 2.5A
  • Thrust force: 240 Nm
  • Opening time (up to 90°): 9s
  • Duty cycle: 30%
  • Protection level: IP 67
  • Motor thermal protection: 150 °C
  • Operating temperature: -20 °C to +55 °C
  • Dimensions: 405 x 220 x 330 mm (with housing)
  • Weight: 11 kg
Download
User manual 17.56 MB
CE Declaration 0.49 MB
