Came ZM3E Control unit for double-leaf gates

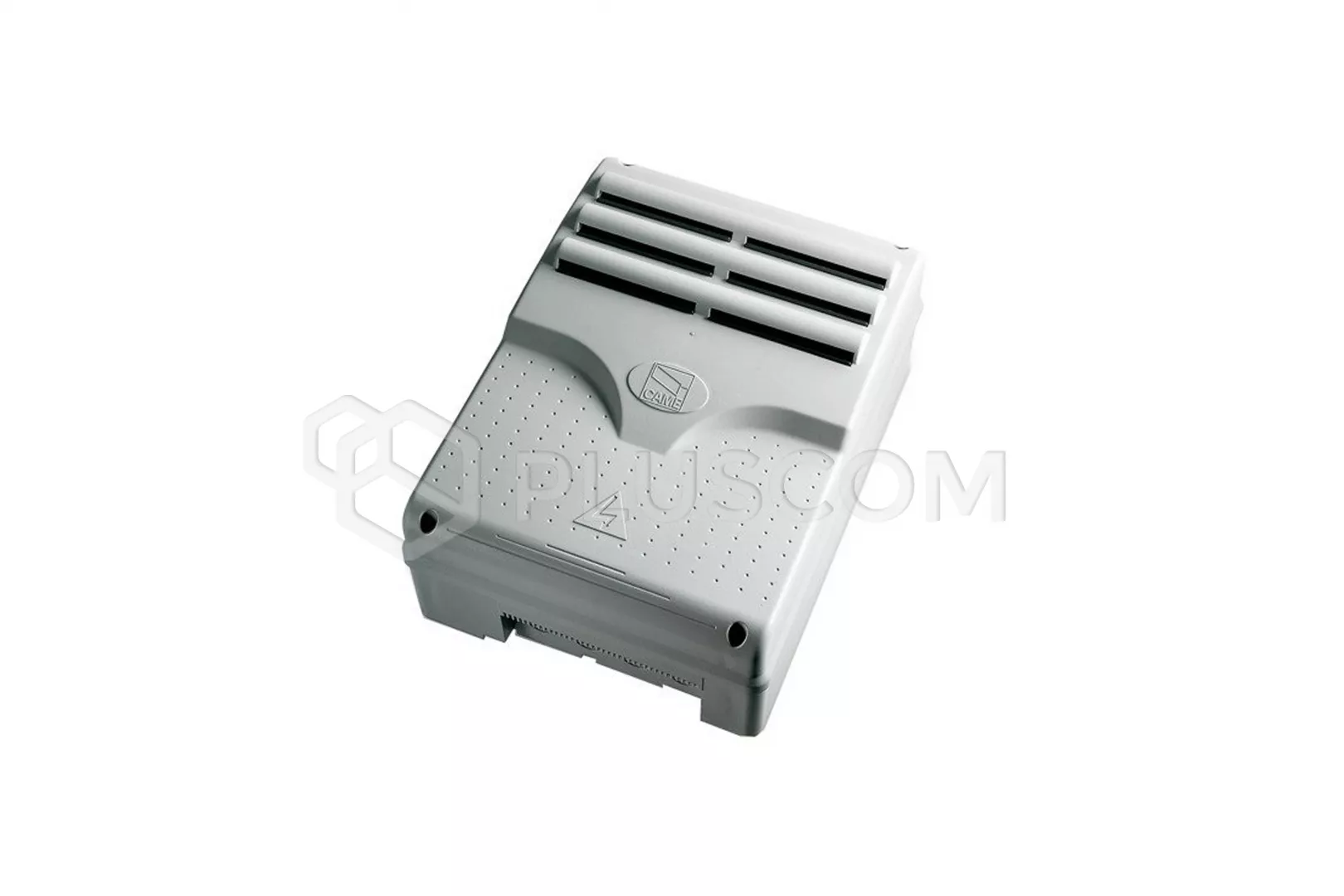

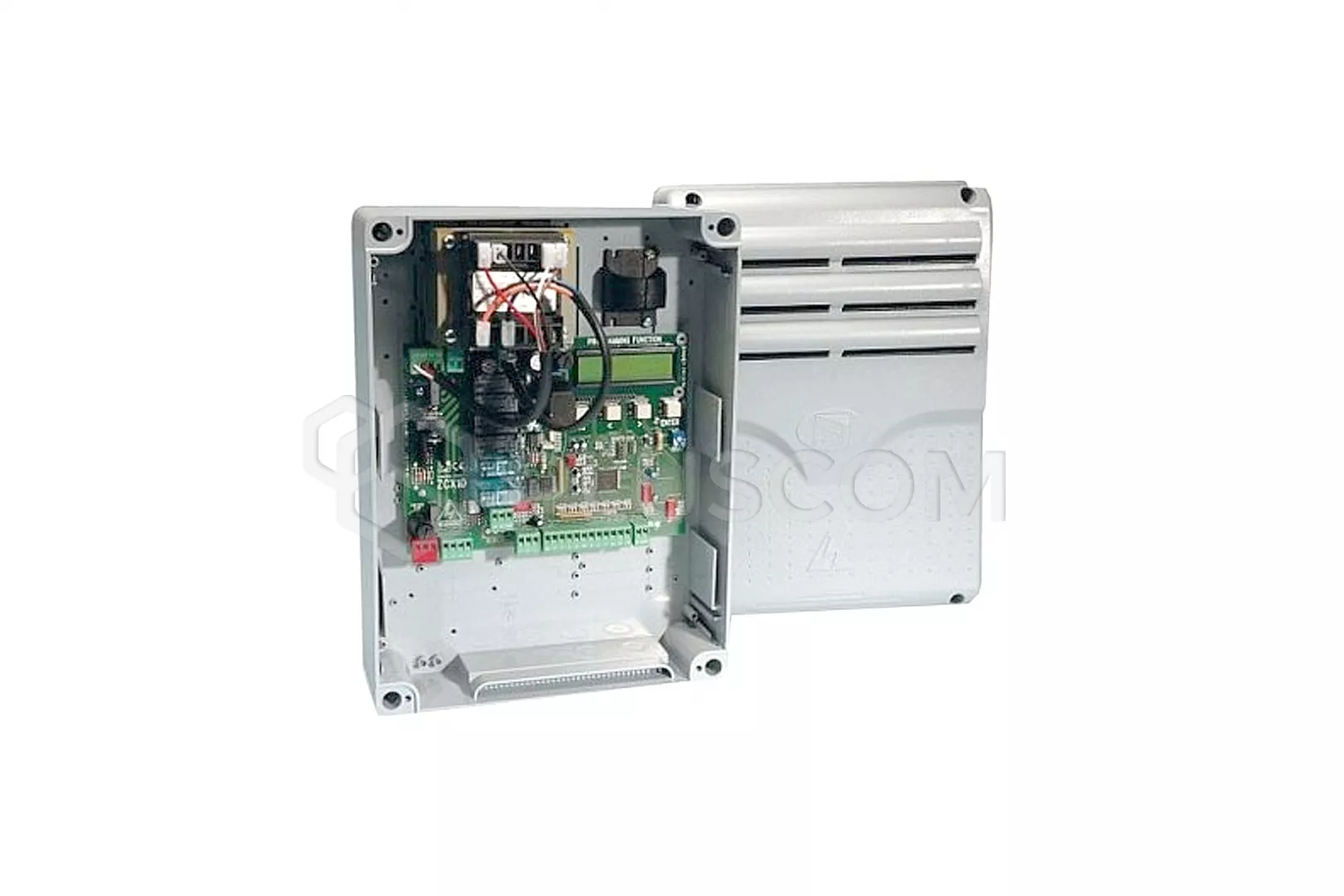

CAME ZM3E Control unit for double-leaf gates with display

The ZM3E control panel for double-leaf gates provides a number of solutions and functions tailored to the specific requirements of the user. It is equipped with two-channel radio decoder and is powered by 230V AC.
It enables the extension of the installation with the necessary control accessories and safety devices such as photocells, flashing light, electric lock, card frequencies, antenna or remote controls. The total power of the accessories must not exceed 35 W.
The ZM3E has an input for two lines of photocells and an output for an electric lock. All connections are protected by fuses.

CONTROL FUNCTIONS OF THE PANEL

• opening one leaf completely
• wicket function
• only CLOSE button
• button OPEN - STOP - CLOSE - STOP
• button OPEN - CLOSE - REVERSE
• delaying the first leaf on opening
• late second leaf closing (adjustable)

CONTROL PANEL SECURITY

• self-diagnosis of security devices
• lamp pre-flashing
• reopen while closing
• re-close while opening
• STOP button
• gate stops while moving, second line of photocells active
• detection of obstacles by safety devices at the fixed gate

TECHNICAL DATA

• Power supply: 230 V 50/60 Hz
• Maximum power: 750 W
• Standby power consumption: 4.7W
• Maximum total power of 24V accessories: 35W
• Fuses:
• • Electronic board (mains powered): 5A-F
  • Control board: 1 A-F
  • Accessories: 1.6 A-F
  • Electric lock: 3.15A-F
• Housing material: ABS
• Degree of protection: IP54
• Working temperature: -20 ° C ~ 55 ° C
• Housing dimensions: 240 × 320 × 145 mm
