Came 806TF-0070 DLX30CIP photocells with synchronization

87,18 EUR including 23.00% VAT
Product code: #26386
Manufacturer: CAME
  • Flush mounting
  • Powered: 12-24V AC-DC
  • Range up to 30m
  • Very small dimensions
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came DOC-LN Column for DLX photocells 0.5m, black Came DOC-L Post for DLX photocells 0.5m, silver Came DELTA-BN Column for DLX photocells 0.5m black Came CSSN Aluminum column 1m black Came CSS Aluminum column 1m silver

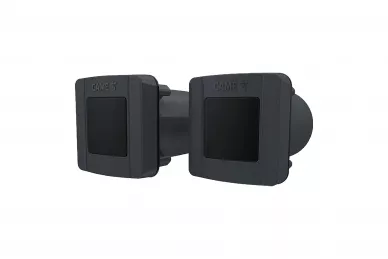

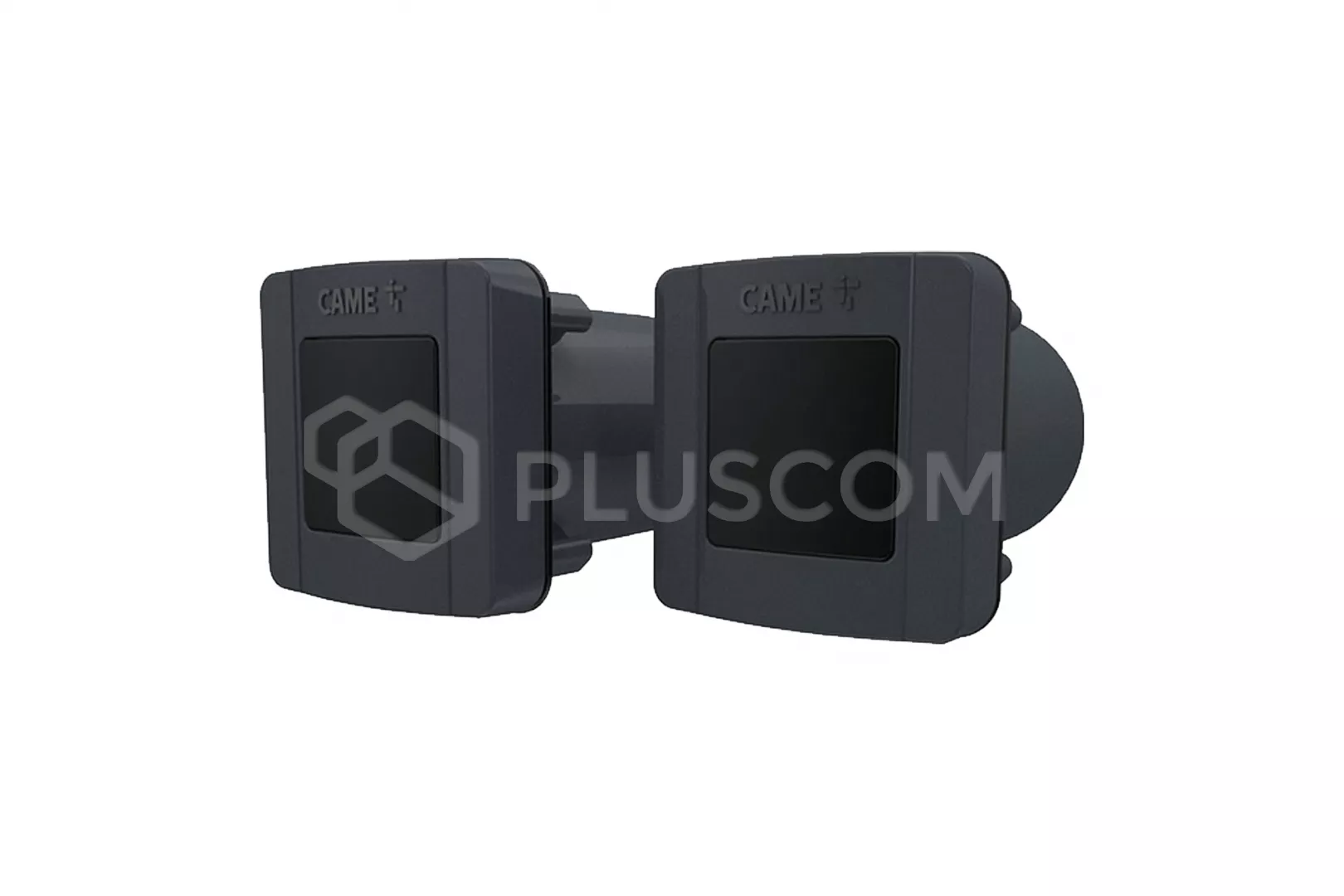

CAME DLX30CIP 806TF-0070 Flush-mounted synchronized photocells for infrared - range 30m


A pair of flush-mounted photocells. Thanks to the most modern electronics have managed to create a device with extremely reduced dimensions - only 30mm.

MAIN CHARACTERISTICS
  • Controls the gate movement area
  • It can synchronize up to eight pairs of photocells without interference and without the need for wiring between the transmitter and receiver
  • Adjustable infrared beam range from 10 to 30 meters
  • Filter function to prevent false detections due to bad weather or direct sunlight
  • Adjustable contact output so that the photocell can be used as a controlling device
  • Alignment function between transmitter and receiver

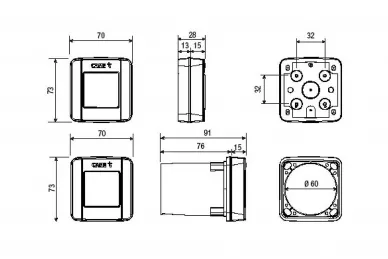

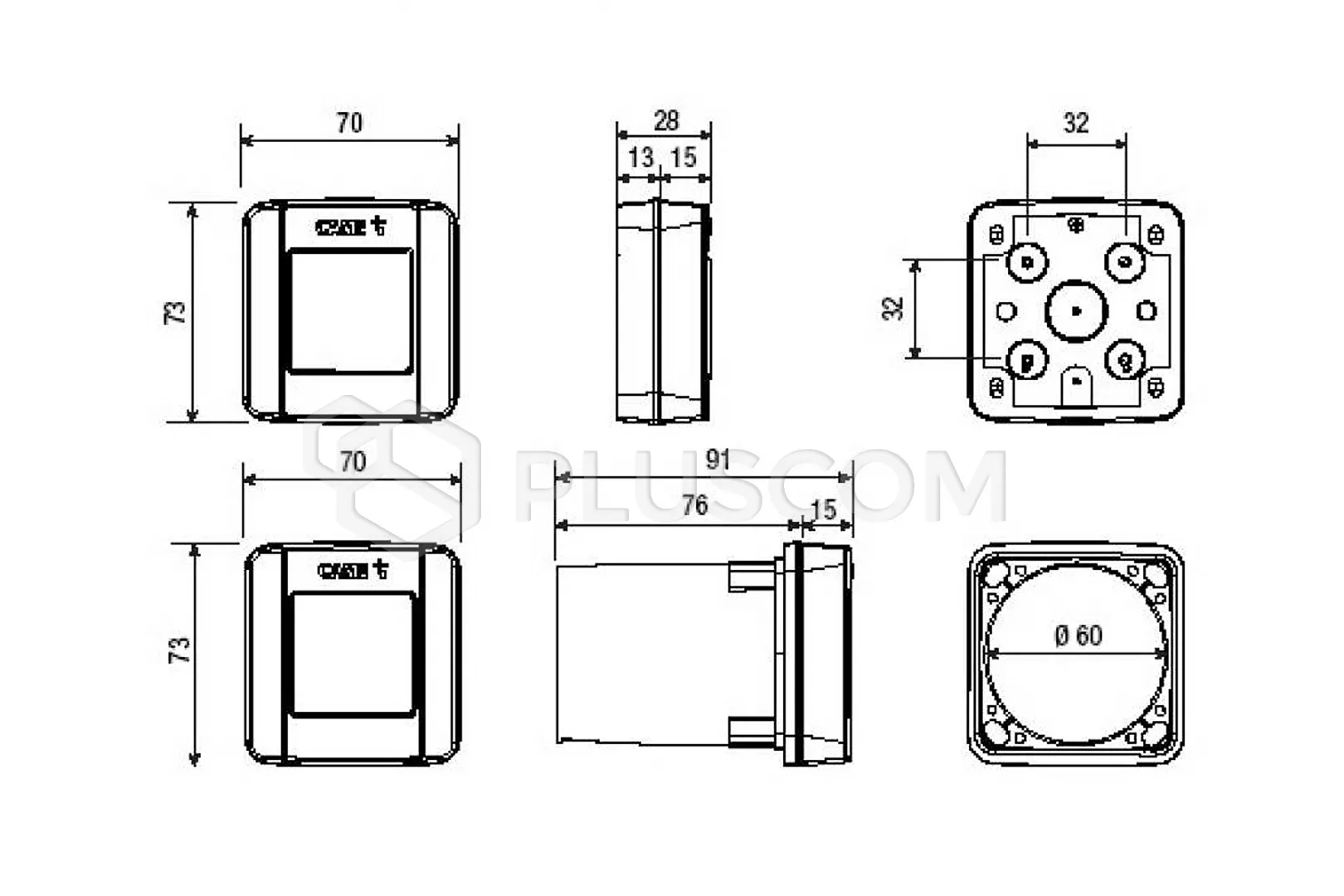

Dimensions:

Dimensions:


TECHNICAL DATA:
  • Power: 12-24V AC-DCS
  • Maximum range of the infrared beam: 30m
  • Absorbed current: 40mA
  • Working temperature: -20 ° C ÷ + 55 ° C
  • Degree of protection: 54IP
  • Dimensions: 73x30x70mm
