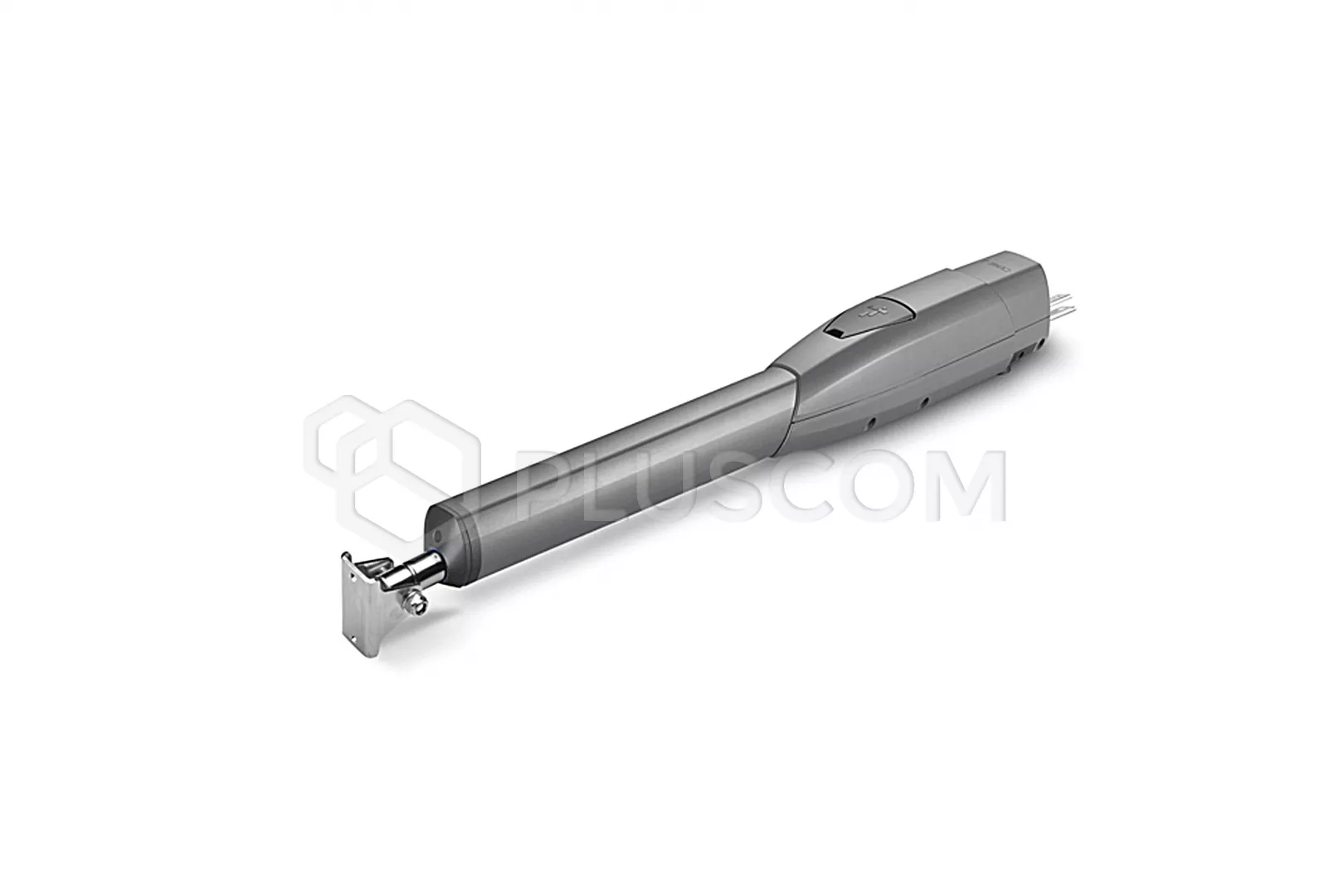

Came ATS50DGS Actuator 24V wing up to 5m / 1000kg

CAME ATS50DGS Gearmotor for single or double-leaf gates up to 5m

Self-locking electromechanical actuator that combines advanced performance with the need for a good appearance. It is made for intensive work and has built-in limit switches for opening and closing. Additionally, thanks to the drive the axial actuator is slim and its operation is smooth and quiet.

Application range:

• 5m / 400kg
• 4m / 500kg
• 3m / 600kg
• 2.5m / 800kg
• 2m / 1000kg

The telescopic steel arm is protected by an aluminum housing that provides resistance to weather conditions. The top and bottom metal covers can be easily open for easy and quick maintenance.
The ATS50DGS has a built-in encoder so that the actuator has perfect management movement - detects obstacles and slow down traffic.

TECHNICAL PARAMETERS:

• power supply: 230V 50/60 Hz
• motor power: 24V DC
• motor current consumption: 8A
• maximum engine power: 80W
• duty cycle: intensive
• thrust: 400 ÷ 3000 N
• opening time (up to 90 °): 15 - 30 s
• degree of protection: IP44

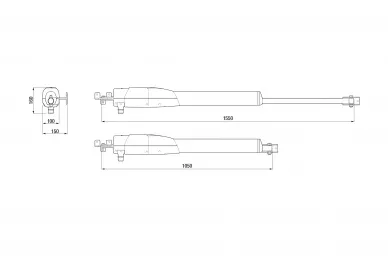

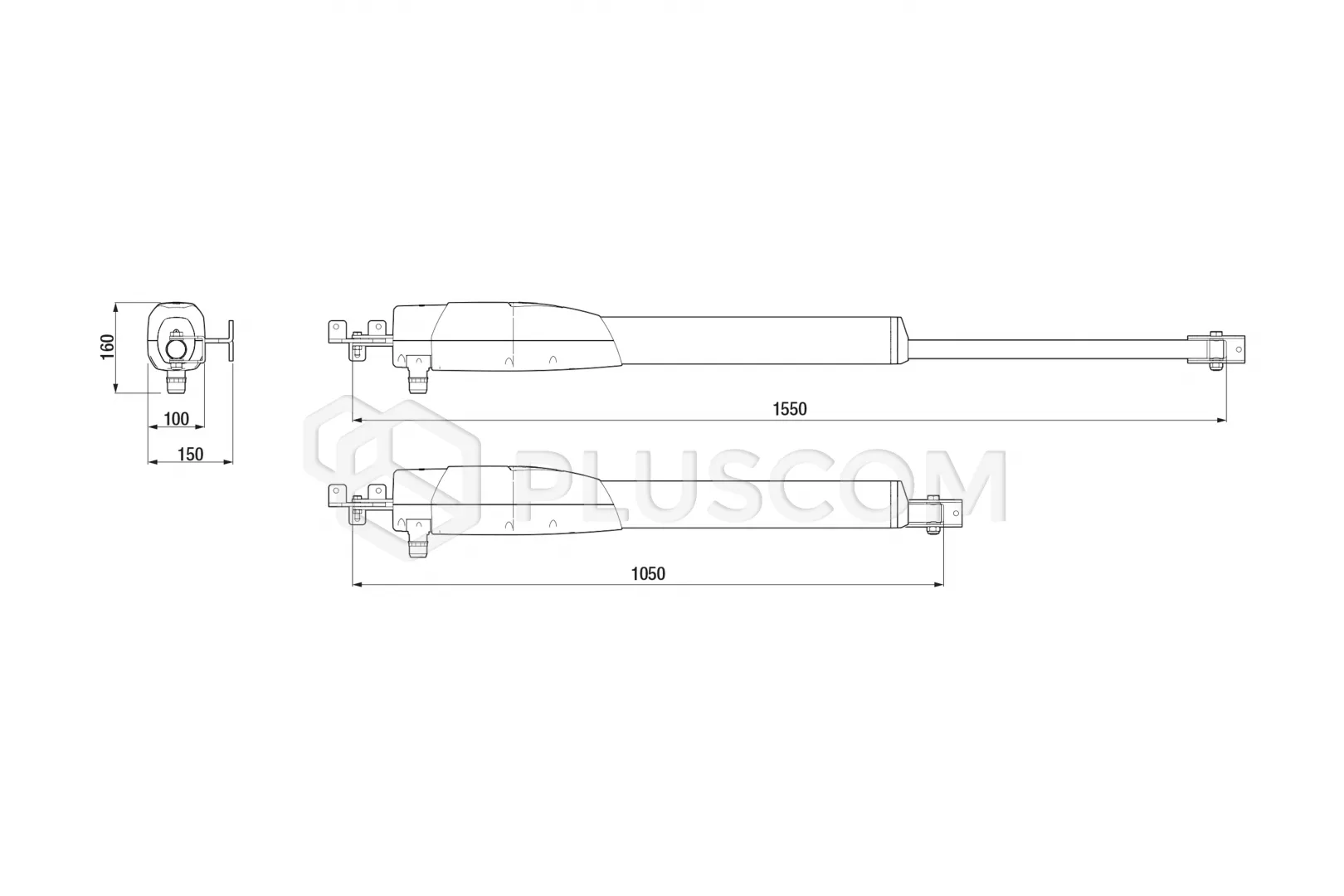

• dimensions: 160x150x1050mm
• weight: 8kg

To ensure effective and reliable closing and to protect the gears drives, it is recommended to install an electric lock. If the wings are more than 3m, an electric lock is compulsory.
,
