Came ZL65 Control unit for single or double-leaf gates

CAME ZL65 Control unit for single or double-leaf gates with multi-segment graphical display

The control panel is intended for use in single-family houses and multi-apartment, for single or double-leaf gates. It has multi-segment graphic display for programming individual functions, displaying messages, equipped with the device self-diagnosis function security.

The ZL65 control panel has many optional functions available as additional ones modules that can be connected directly to it. ZL65 is prepared for:

• connection of the RGP1 module enabling the reduction of energy consumption
• connection of the RLB39 electronic board ensuring operation in in the event of a power cut and charging batteries
• connection of RIO-CONN card to set up Rio accessories
• connection of CONNECT GW module for remote control of devices CAME automatics, with the CAME CLOUD system

All circuits are protected by high speed fuses.

ADVANCED FEATURES:

• the control panel supports radio control with a fixed code and a rolling code. It allows you to save up to 250 remotes
• MEMORY KIT for saving and sending setting data i Saved Users
• the optional EMERGENCY POWER SUPPLY system ensures that the drive works even in no AC power
• compatible with CAME KEY and CAME CONNECT technology

TECHNICAL DATA :

• power supply: 230 VAC - 50/60 Hz
• motor supply: 24 VDC
• power consumption in stand-by mode: 7 W
• stand-by power consumption when using RGP1 module: 0.5 W
• max. power: 300 W
• protection class: IP54
• housing material: ABS
• working temperature: -20 ° C ÷ + 55 ° C

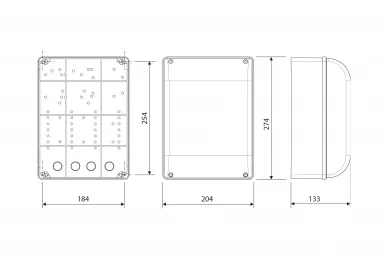

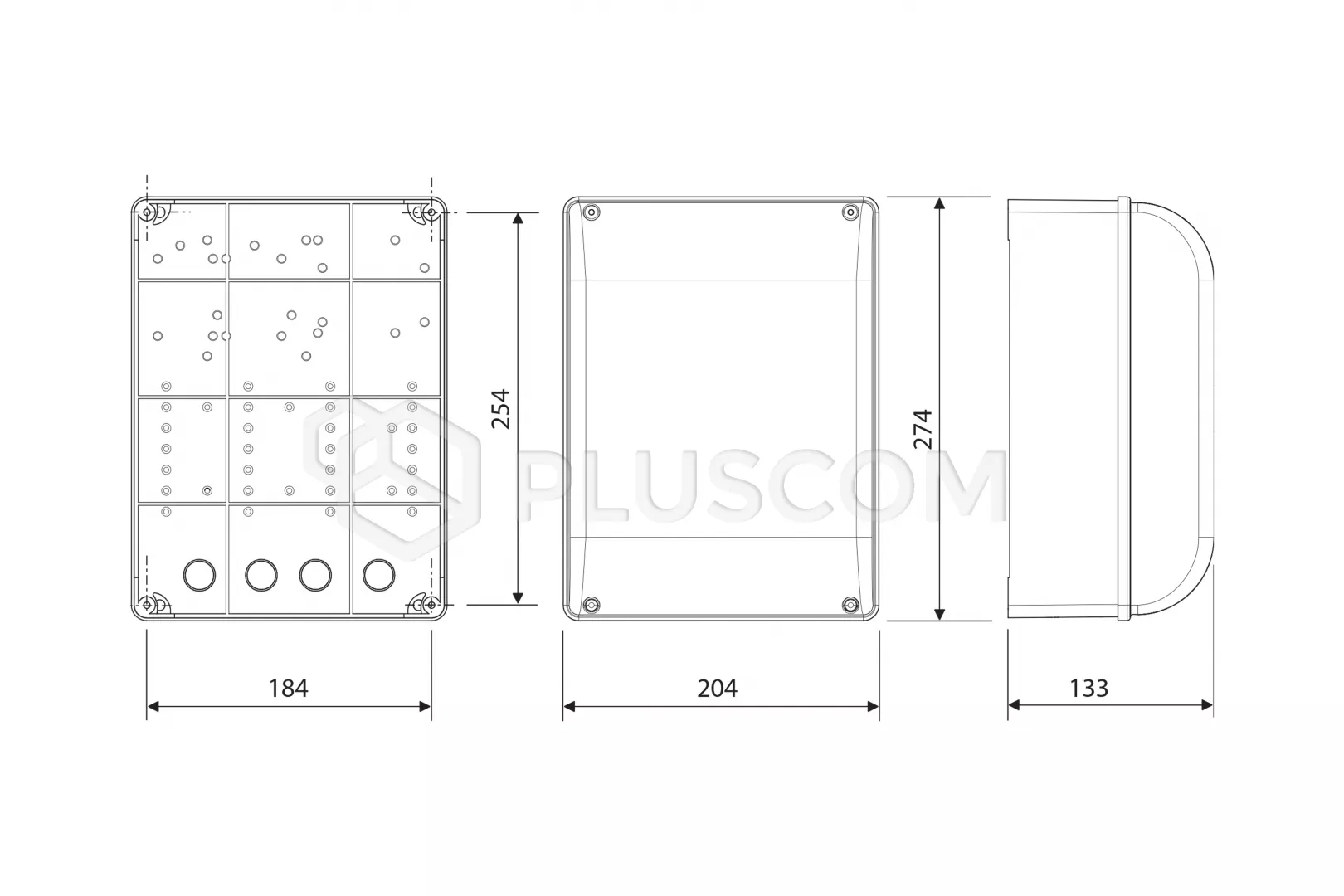

• dimensions: 204x133x254mm
• weight: 3.3 kg
