Came DIR30 photocells synchronized up to 30m

96,53 EUR including 23.00% VAT

Add to cart

Product code: #26392

Manufacturer: CAME

Ask about this product

Range: 30 m
Modular design
Infrared auto-sync
Power supply: 12-24V AC / DC
Work inside and out

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:

Came DIR-PN Extension of the column to the DIR series black

Came DIR-P Extension of the column to the DIR series silver

Came DIR-LN Column for DIR photocells 0.5m black

Came DIR-L Column for DIR photocells 0.5m silver

Came DIRZ Metal housing for DIR photocells

Came DIR-S Bracket for mounting DIR photocells

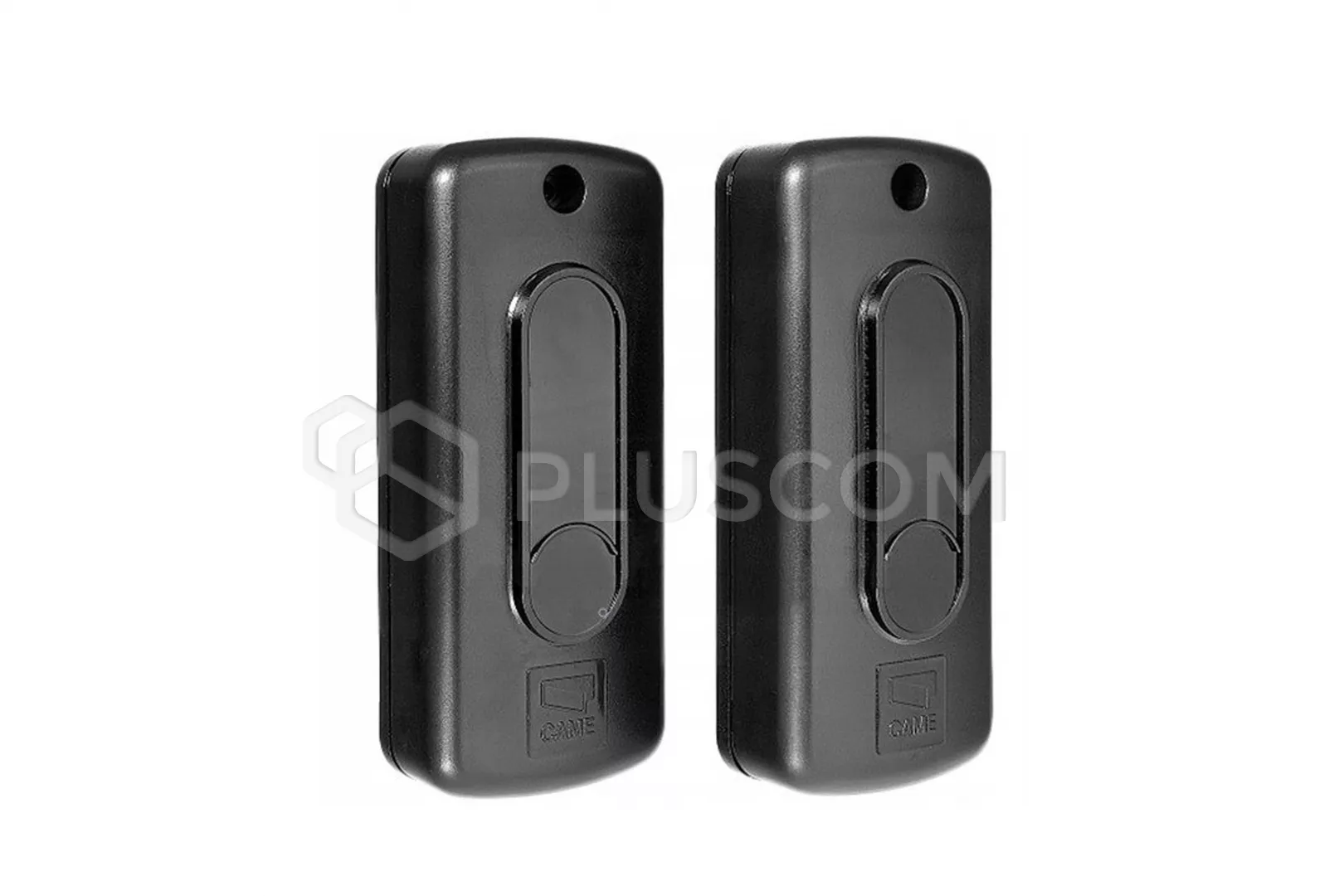

CAME DIR30 photocells with infrared synchronization, range up to 30m

DIR photocells are distinguished by a modern design and very small dimensions. Thanks to the use of the IP54 tightness class and appropriate accessories mounting, the DIR photocells can be installed both inside and on outside.
They have a modular structure, so their assembly can be on different types heights.

The principle of operation of the DIR photocell is based on the synchronization between the transmitter and the receiver - this event takes place after connecting the power supply. Means, that each receiver cooperates only with the corresponding transmitter, eliminating thus possible interference with the signal from external sources.

TECHNICAL DATA:

Power supply: 12 - 24 V AC / DC
Range: 30m
Output load: 1 A 24 V
Current consumption: 60 mA (24 V A.C.)
Working temperature: -20 ° C min. + 55 ° C max.
ABS material: polycarbonate
Dimensions: 46 × 108 × 23mm
