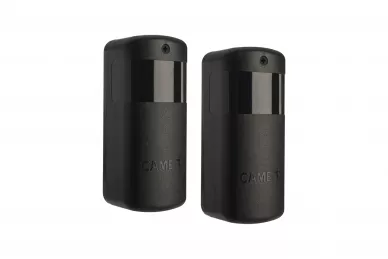

Came 806TF-0060 Photocell DXR10BAP

115,20 EUR including 23.00% VAT
In stock. Ships today!
Product code: #26382
Manufacturer: CAME
  • 180 ° IR beam adjustment
  • Range up to 10m
  • Receiver power supply: 12/24 V AC / DC
  • Battery power of the transmitter: CR123A
  • Up to 2 pairs of photocells can be synchronized
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came DIR-PN Extension of the column to the DIR series black Came DIR-P Extension of the column to the DIR series silver Came DIR-LN Column for DIR photocells 0.5m black Came DIR-L Column for DIR photocells 0.5m silver Came 806TF-0050 Aluminum anti-impact covers

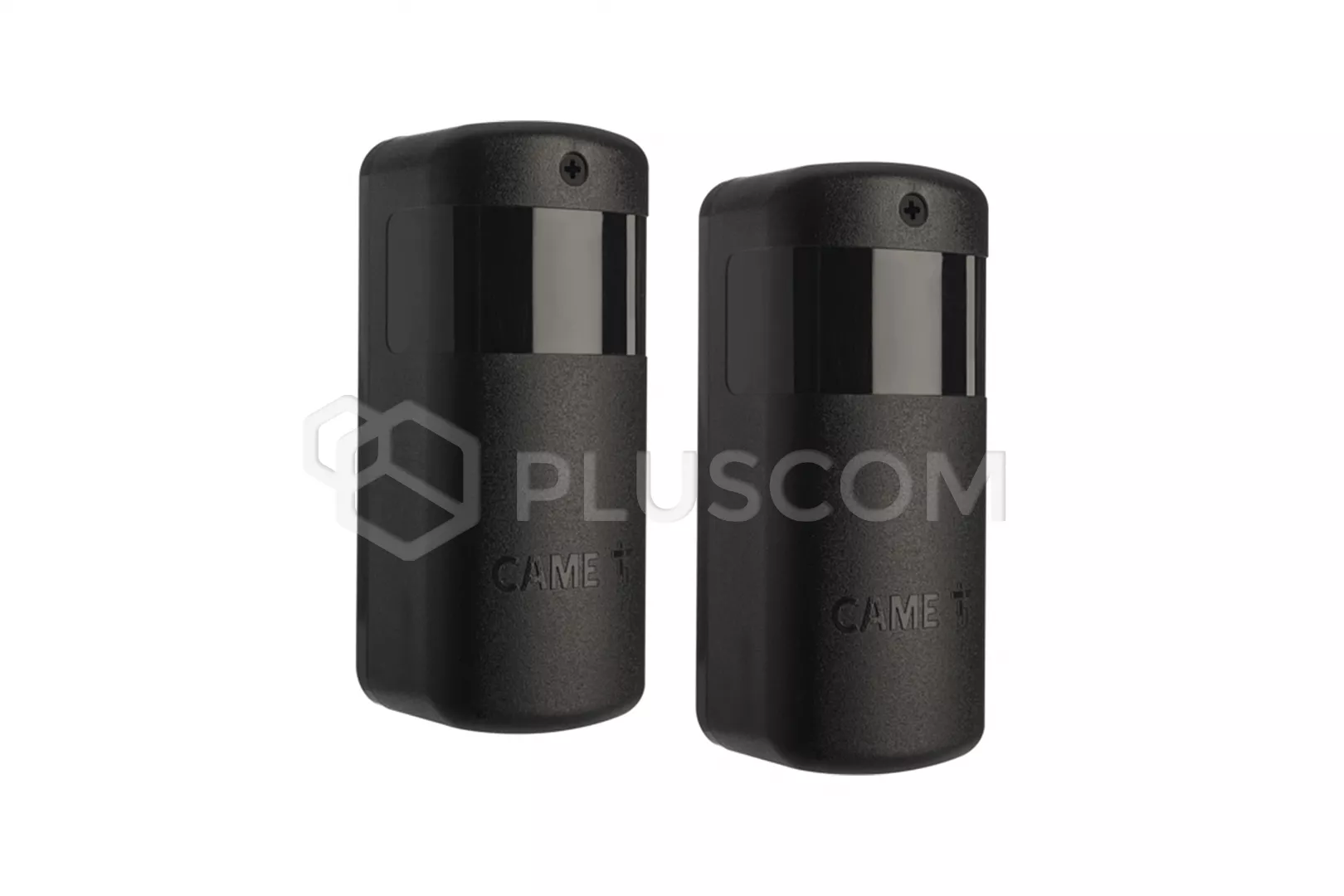

CAME 806TF-0060 Photocell DXR10BAP with regulation and wireless transmitter


New generation photocell in a rotating housing. Finds wide use in places where the assembly space and construction of the installation do not allow for perfect matching, front to front, with standard photocells.

The infrared beam is adjustable 180 ° on the horizontal axis and 5 ° on the axis vertical and can be locked in any position by a heavy-duty interlock snap on housing. The efficiency of the action radius in each direction is ensure by a high quality lens, specially designed for optimizing device performance and ensuring perfect pairing in each direction.

KEY FEATURES:
  • ADJUSTING THE BEAM RANGE up to 10 m
  • SYNCHRONIZE UP TO 2 PAIRS OF PHOTOCELLS without interference or connection between the transmitter and receiver
  • FILTER FUNCTION to avoid false detection caused by bad weather conditions or sunlight
  • ADJUSTABLE CONTACT OUT to use the photocell also as control device
  • COMPATIBLE with load-bearing columns from the DIR series (also with double height)
To minimize wired work and additionally facilitate treatments installation, the photocell transmitter is powered by a battery. Version wireless allows you to use the transmitter as a photocell or as a safety edge (8k2).

TECHNICAL DATA:
  • max. infrared beam range: 10m
  • wavelength: 940 nm
  • power supply of the receiver: 12/24 V AC / DC
  • battery powered transmitter: CR123A
  • load of the relay at 24V: 500 mA
  • current consumption at 24V AC: <40 mA
  • insulation class: III
  • working temperature: -20 ° C min. + 55 ° C max.
  • dimensions: 46 × 37 × 108 mm
  • material: PC
Download
Manual 1.12 MB
