Came AMICO Set for swing gates weighing up to 200 kg and 1.8 m long

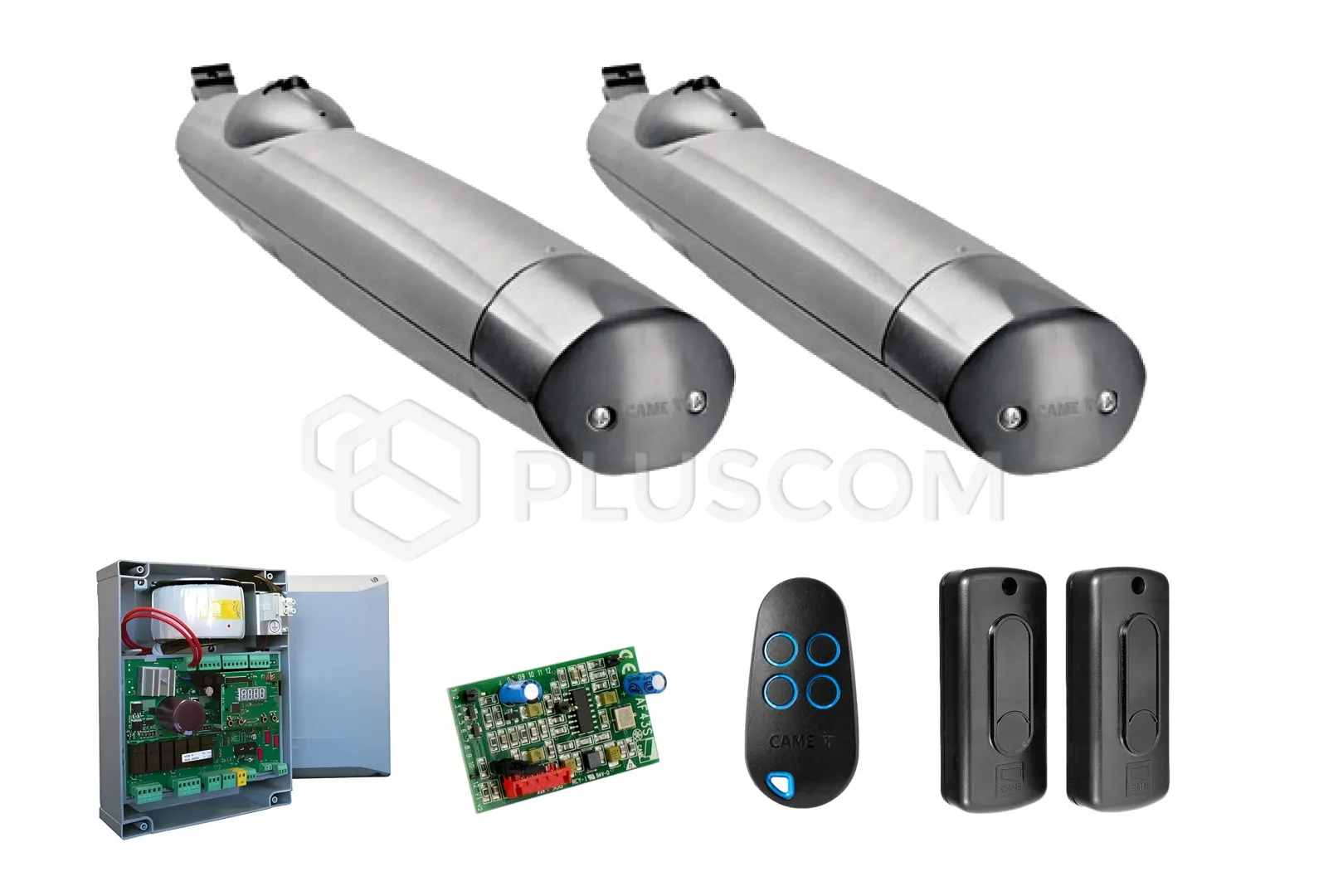

PACK CONTAINS:
|
Came AMICO Set for swing gates weighing up to 200 kg and 1.8 m long
|
Self-locking A1824 electromechanical actuators,
dedicated for gates with a leaf length of up to 1.8m and 200kg. The actuators
are facilitated connection, as only one cable is needed to connect the geared
motors three-wire or four-wire.
Drive safe and reliable operation, even with intensive use. Is equipped with a
durable protective casing, in which there is a socket for unlock key.
The drive combines innovative technical solutions with the most modern
electronics.
PRODUCT ADVANTAGES
- motor power supply: 24V
- unlocking system with unlocking key
- facilitated connection of gearmotors, one cable is enough three-wire
- Automatic adjustment of automatic limit switches at opening /
closing
- structure made of aluminum
- worm screw protected by dedicated cover
- possibility of emergency operation in case of power failure electric
- self-diagnosis of security devices

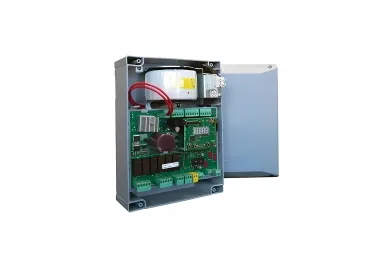

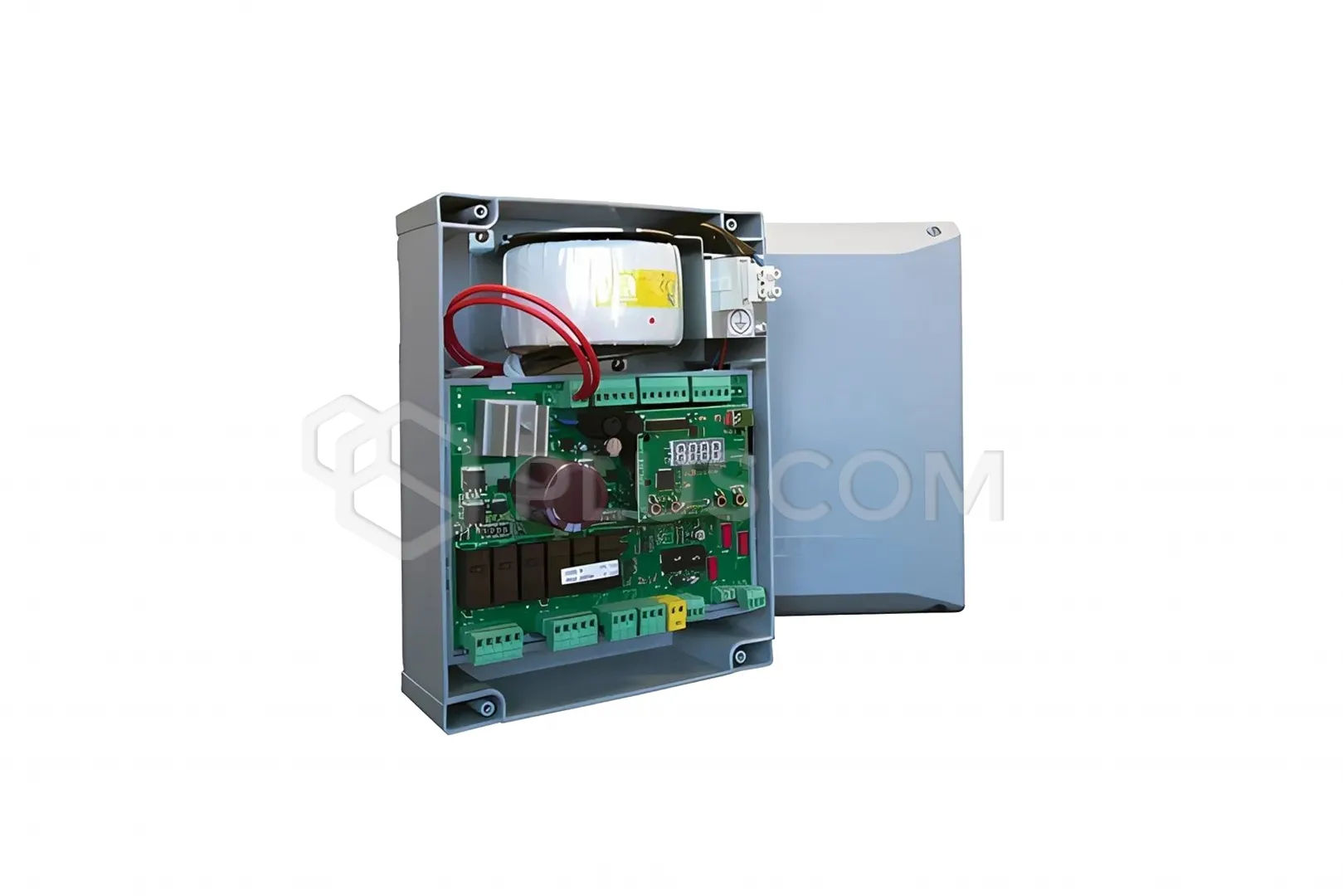

The ZLX24MA is a multifunction control panel powered by
230 V AC; it features a 7-segment display, self-diagnosis of safety devices,
Adaptive Speed & Torque Technology, a CXN BUS interface, 2 safety inputs, and
memory for up to 250 users.
The technology employed allows for the use of low voltage (24 V DC) to control
the operators and connected accessories.
The control panel includes a BUS input supporting CAME CXN BUS technology,
enabling the bus-based connection of control and safety accessories.

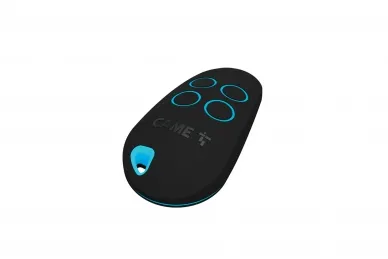

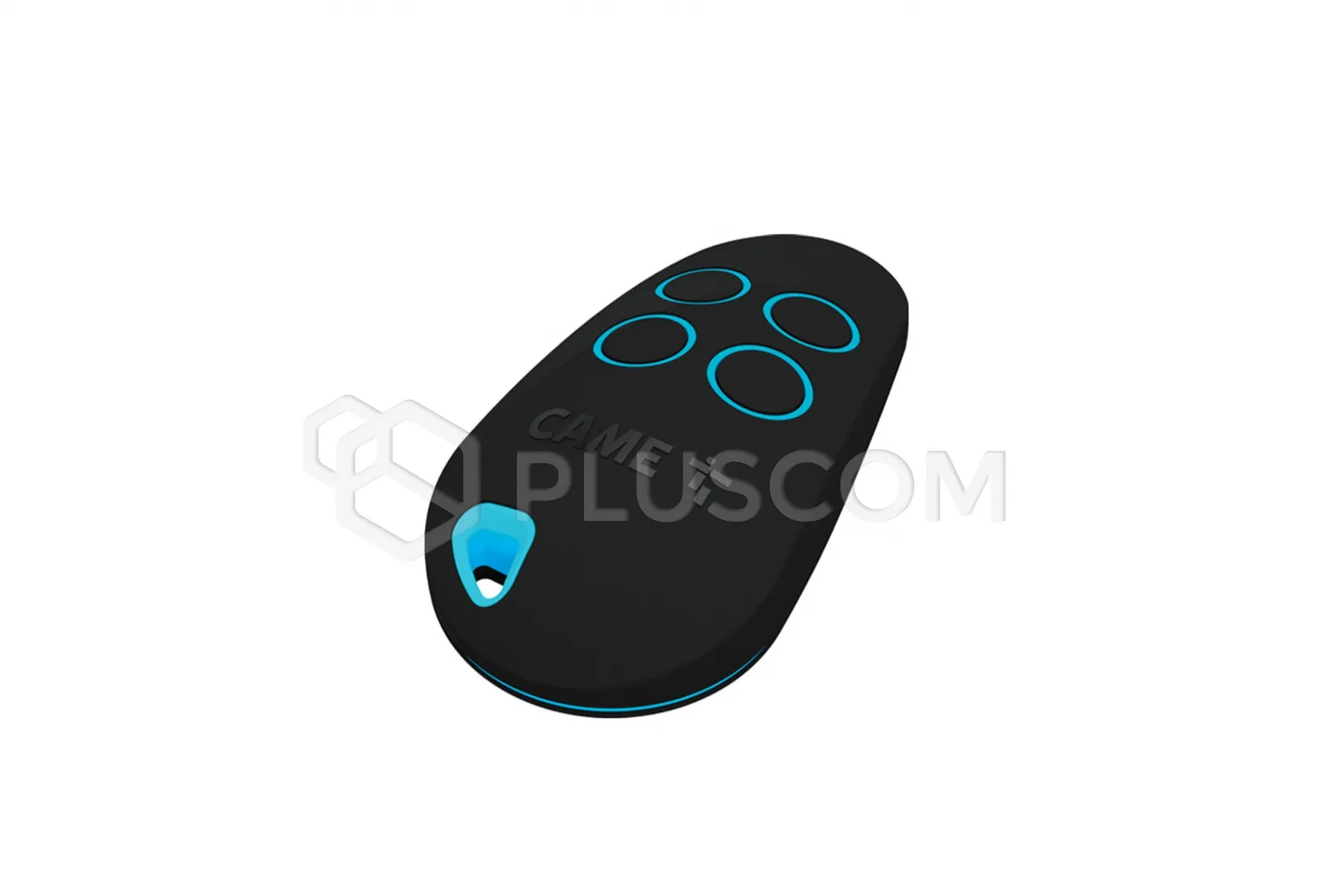

The TOP44RBN remote control provides radio control of the
dynamically variable code o frequency 433.92 MHz, which gives a high level of
safety of use, and makes the code impossible to copy.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.
DIR photocells are distinguished by a modern look and very
small sizes. Thanks to the use of IP54 tightness class and appropriate mounting
accessories, DIR photocells can be mounted both inside and outside and out.
They have a modular structure, thanks to which their assembly can be at
different heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.
The
AF43S frequency card , included in the kit, works in
frequency 433.92 MHz and supports TOP and TAM fixed code control as well with
the ATOMO rolling code.
Dimensions:
TECHNICAL PARAMETERS:
- power supply: 230V 50/60 Hz
- motor power supply: 230V
- motor current consumption: 1.2A
- maximum power: 80W
- duty cycle: 50%
- thrust: 400 ÷ 2000 N
- opening time (up to 90 °): 19s
- degree of protection: IP44
- dimensions: 886x151x87mm
