Came A1824 24V actuator wing up to 1.8m /200kg

529,33 EUR including 23.00% VAT
Product code: #26007
Manufacturer: CAME
  • Gate weight up to 200kg, lenght up to 1.8m
  • Motor power supply: 24V
  • Opening time (up to 90 °): adjustable
  • For intensive work
  • Connection of gearmotors via one 3-wire or 4-wire cable
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Came LB90 Card enabling the system to be powered by batteries Came DIR-LN Column for DIR photocells 0.5m black Came PL0032 Battery12V 1.2Ah Came DIR-L Column for DIR photocells 0.5m silver Came KLED24 LED warning light 24V Came DIR30 photocells synchronized up to 30m Came DIR20 photocells synchronized up to 20m Came DIR10 photocells synchronized up to 10m Came AT04EV 4-channel remote control ATOMO series Came TOP-A433N Antenna

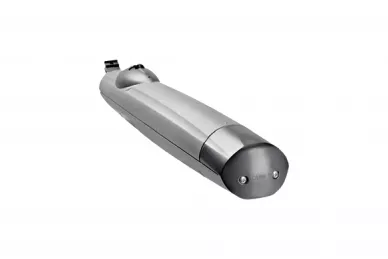

CAME A1824 Gearmotor for single or double-leaf gates up to 1.8m


Self-locking electromechanical gearmotor designed for long gates wings up to 1.8m and 200kg. The actuator is easy to connect because to to connect geared motors, one three-core or four-core cable is enough.

Safe and reliable drive work also with intensive use. It is equipped with a durable housing the protective cover, in which there is a socket for the key unlocker.
The drive combines innovative technical solutions with the most modern electronics.

PRODUCT ADVANTAGES
  • motor power supply: 230V
  • unlocking system with unlocking key
  • facilitated connection of gearmotors, one cable is enough three-wire
  • Automatic adjustment of autos limit switches at opening / closing
  • structure made of aluminum
  • worm screw protected by dedicated cover
  • possibility of emergency operation in case of power failure electric
  • self-diagnosis of security devices

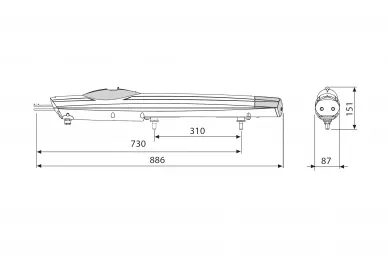

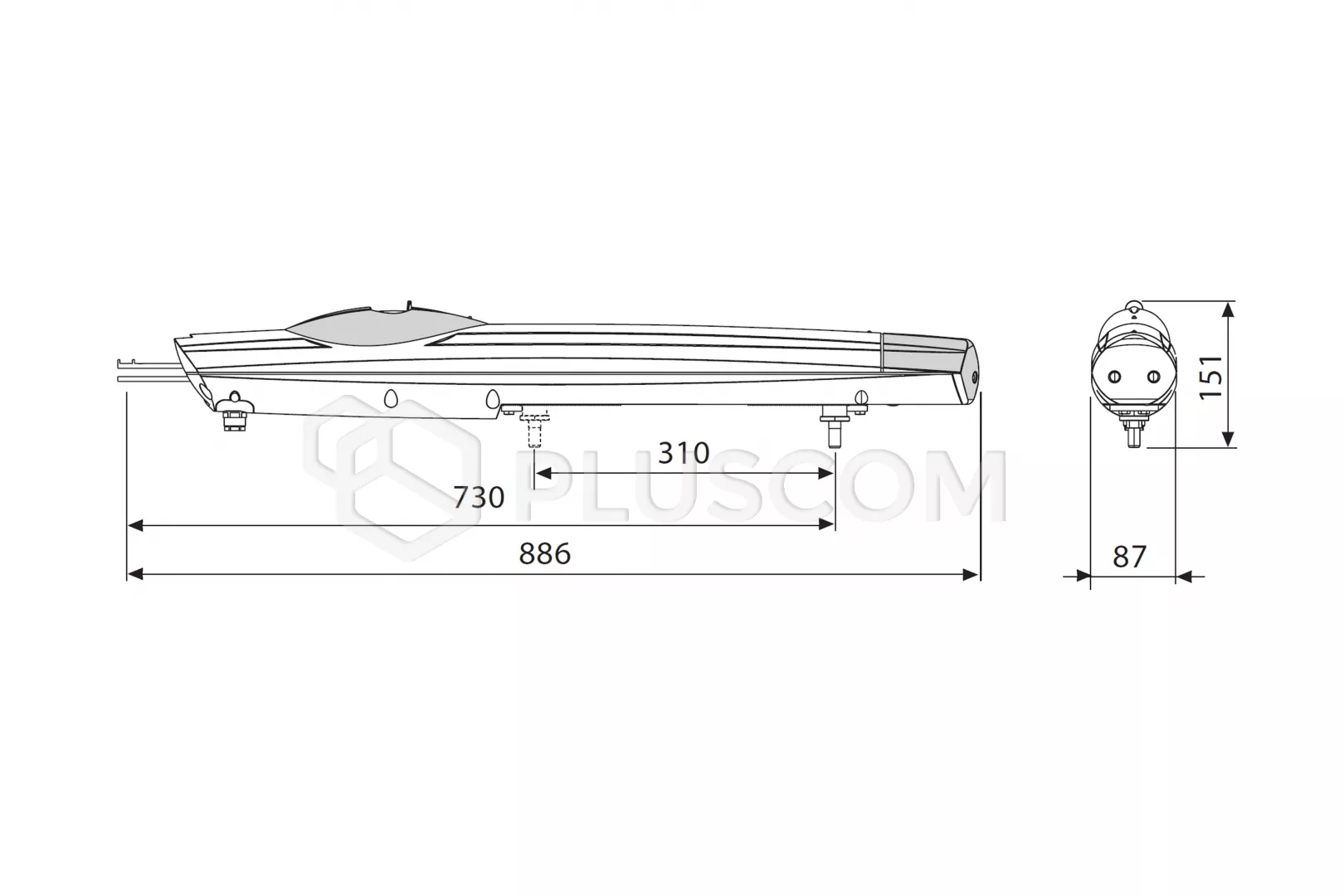

Dimensions:

Dimensions:


TECHNICAL PARAMETERS:
  • power supply: 230V 50/60 Hz
  • motor power: 24V
  • motor current consumption: 4A
  • maximum power: 100W
  • work cycle: intensive work
  • thrust: 400 ÷ 2000 N
  • open time (up to 90 °): adjustable
  • degree of protection: IP44
  • dimensions: 886x151x87mm
