CAME AMICO EURO ATOMO kit for gates leafs with a
maximum leaf weight of 200 kg and max. 2.2m length

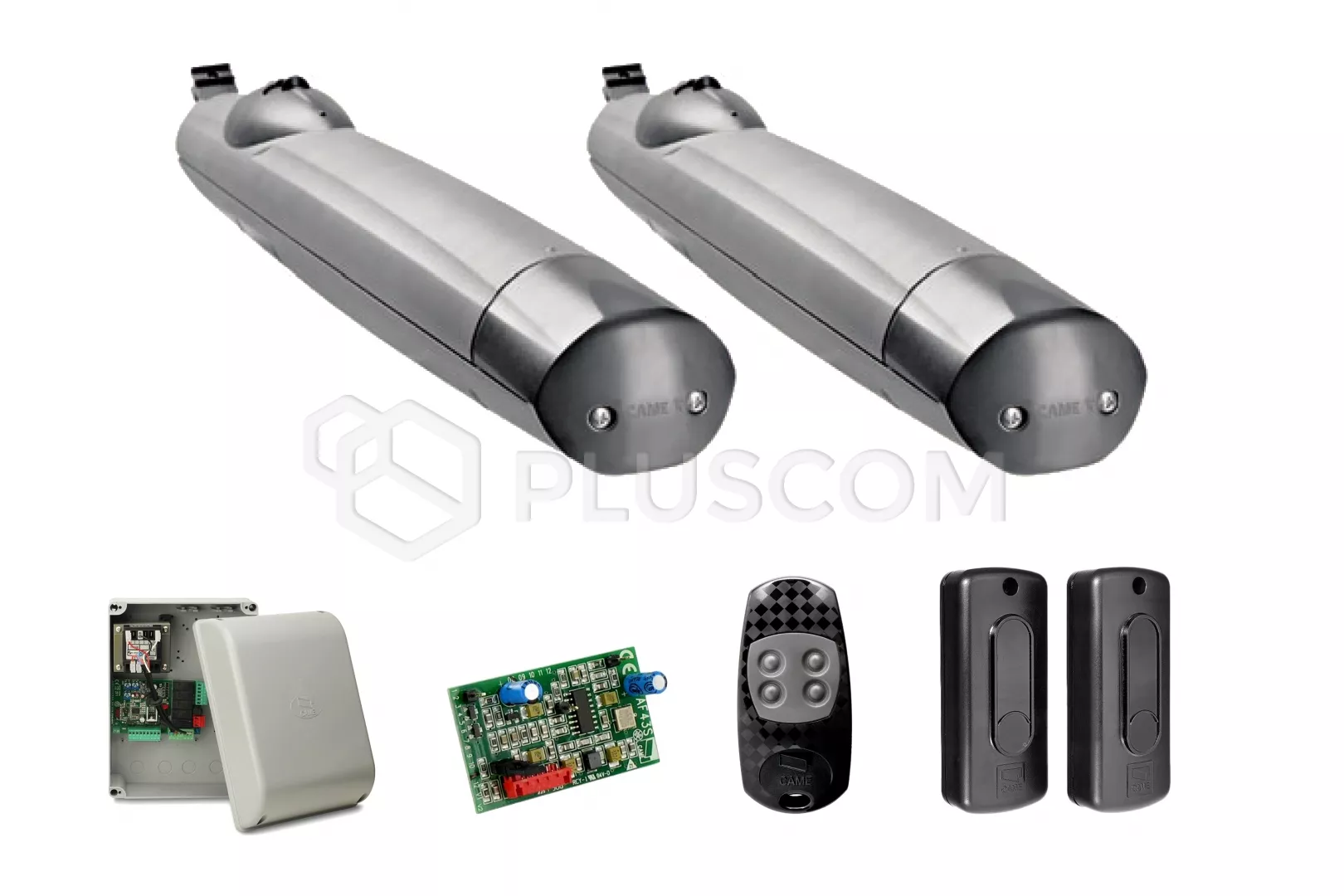

PACK CONTAINS:
|
CAME AMICO EURO ATOMO set up to 2m
|
A18230 Self-locking electromechanical gearmotor
designed for long gates wings up to 2.2m and 200kg. The actuator is easy to
connect because to to connect geared motors, one three-core or four-core cable
is enough.
The drive combines innovative technical solutions with the most modern
electronics.
PRODUCT ADVANTAGES
- motor power supply: 230V
- unlocking system with unlocking key
- facilitated connection of gearmotors, one cable is enough three-wire
- structure made of aluminum
- worm screw protected by dedicated cover
- possibility of emergency operation in case of power failure electric
- self-diagnosis of security devices

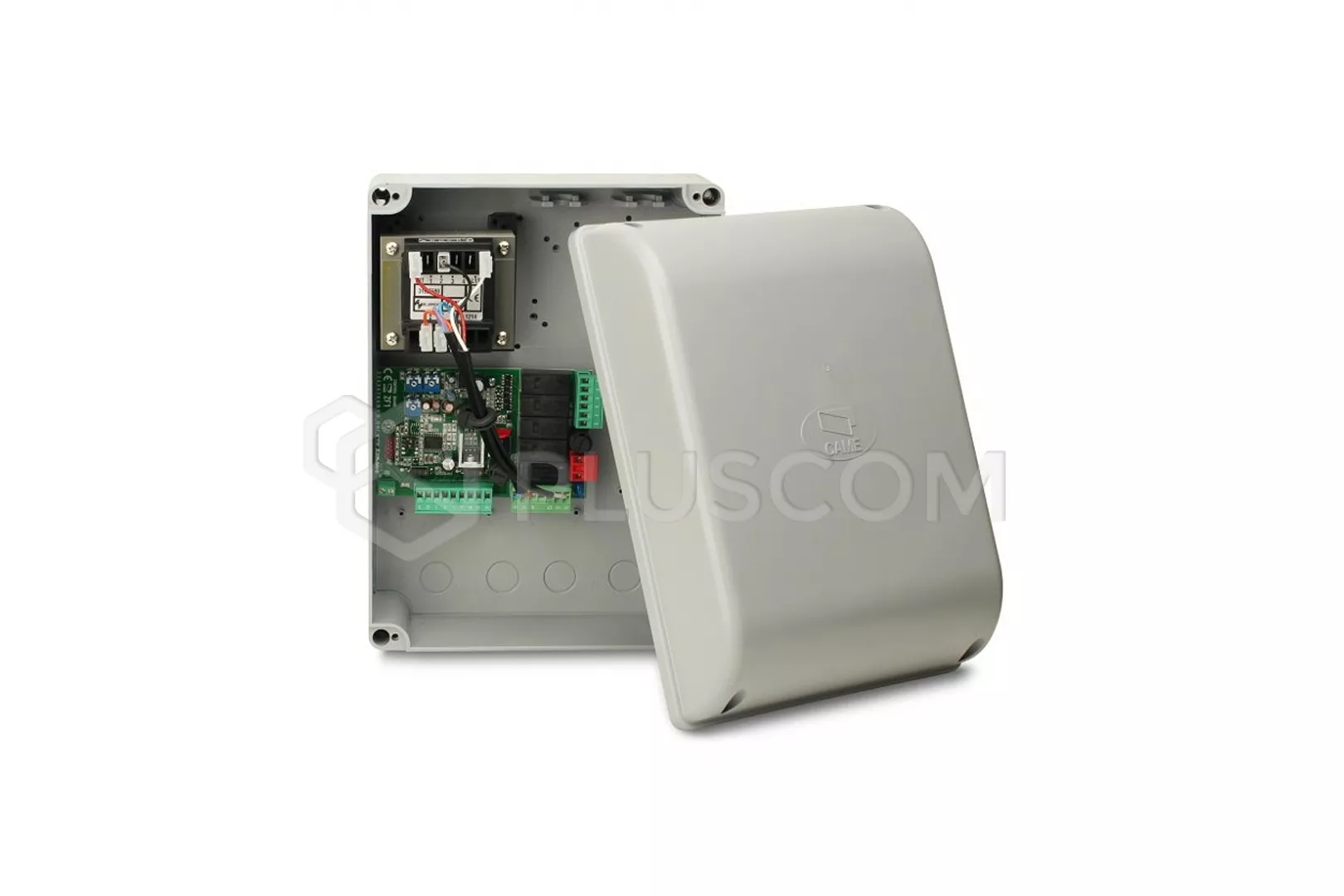

The ZF1N control panel for double-leaf gates is equipped
with a double-channel one radio decoder and is powered by 230V AC.
It enables the extension of the installation with the necessary control
accessories and safety devices such as photocells, flashing light, electric
lock, card frequencies, antenna or remote controls. The total power of the
accessories must not exceed 20 W.

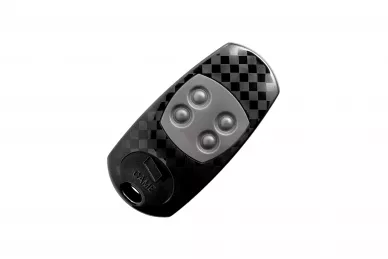

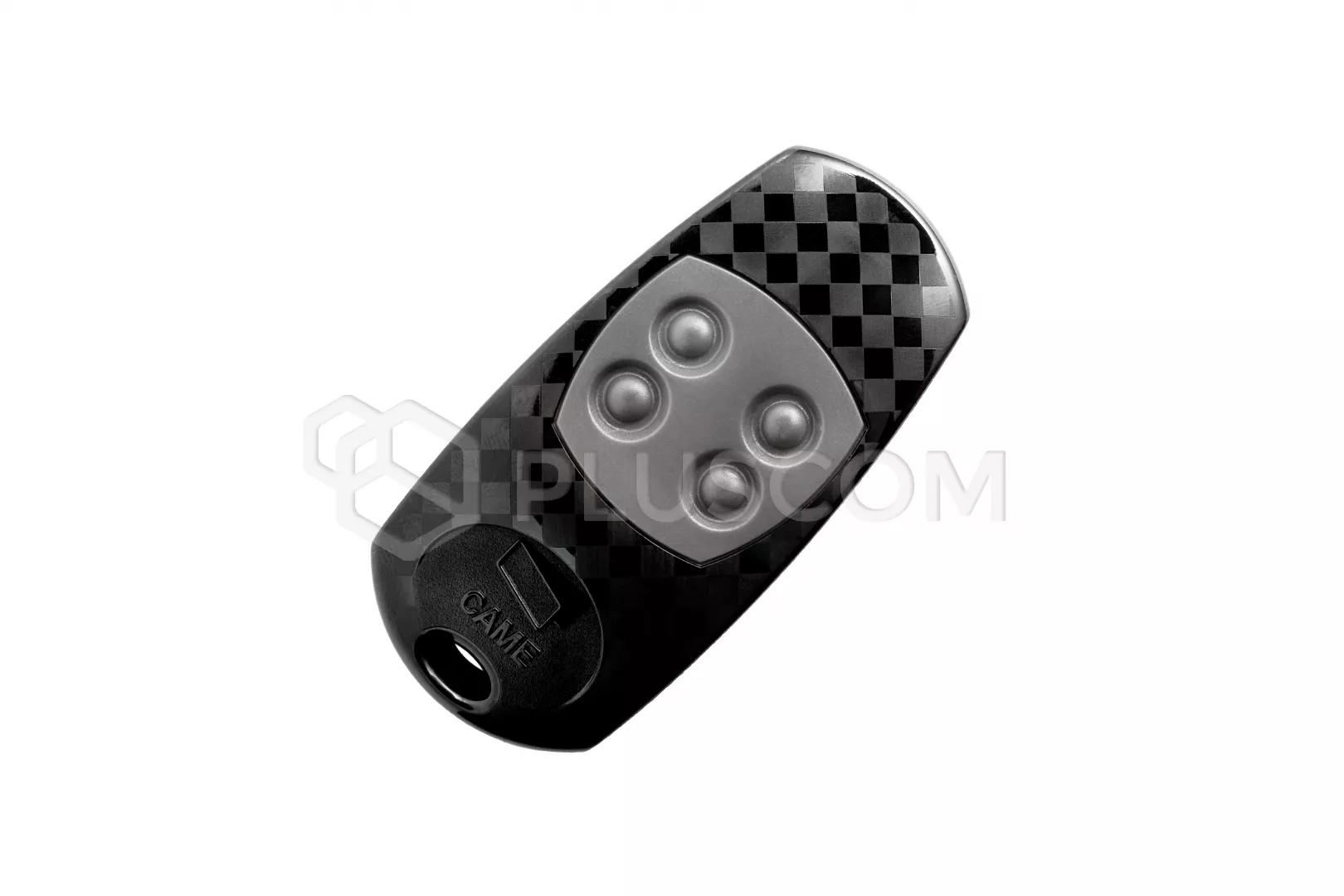

AT04EV remote control is provides radio control of the
dynamically variable code with the frequency of 433.92 MHz, which gives a high
level of user security and makes the code impossible to be copied.
Each time you press a button on the transmitter, one of more than 4 is sent
billions of possible code combinations according to the complex algorithm that
only the receiver can decode. This technique prevents cloning the code to be
sent.

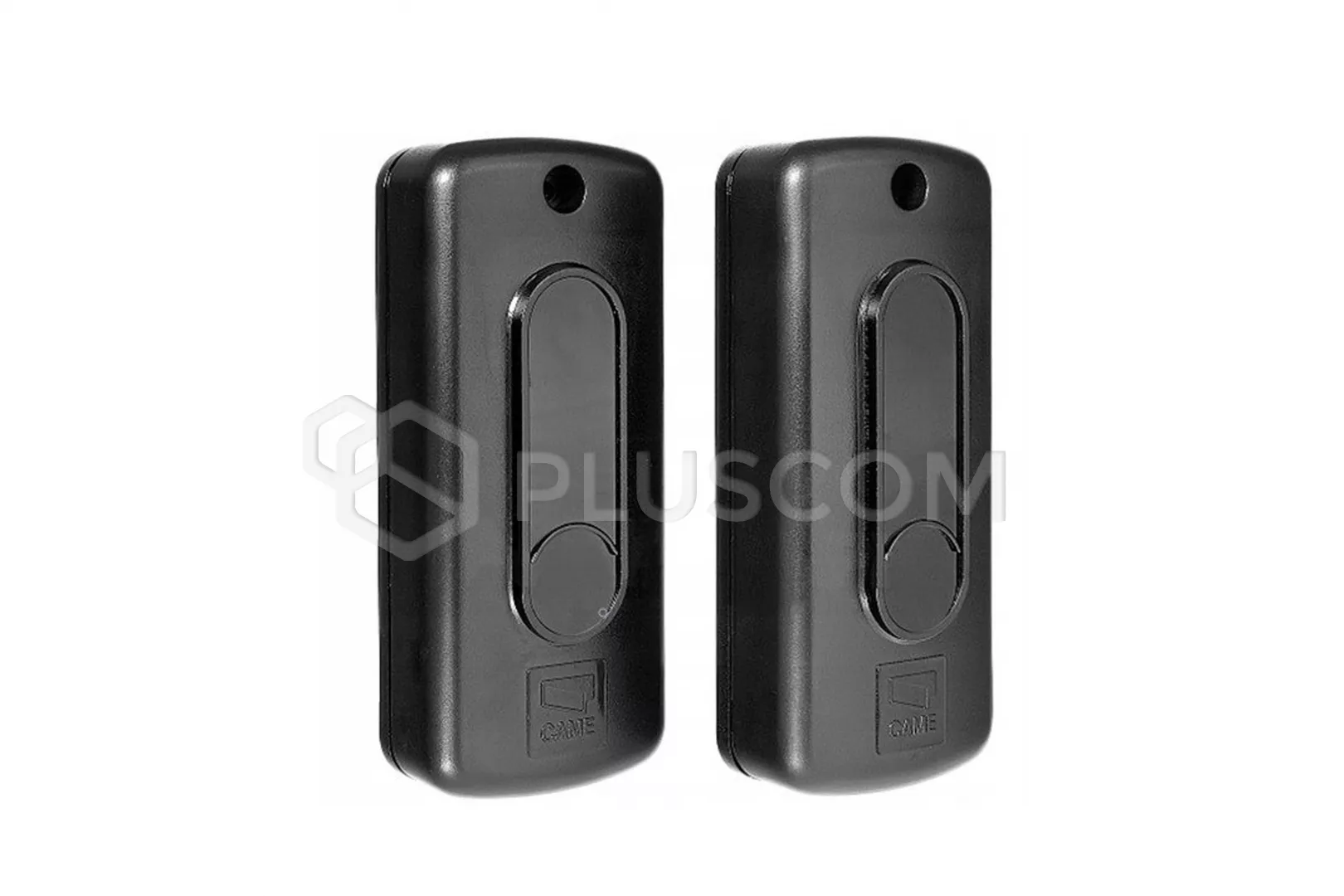

DIR photocells are distinguished by a modern design and very
small dimensions. Thanks to the use of the IP54 tightness class and appropriate
accessories mounting, the DIR photocells can be installed both inside and on
outside.
They have a modular structure, so their assembly can be on different types
heights.
The principle of operation of the DIR photocell is based on the synchronization
between the transmitter and the receiver - this event takes place after
connecting the power supply. Means, that each receiver cooperates only with the
corresponding transmitter, eliminating thus possible interference with the
signal from external sources.

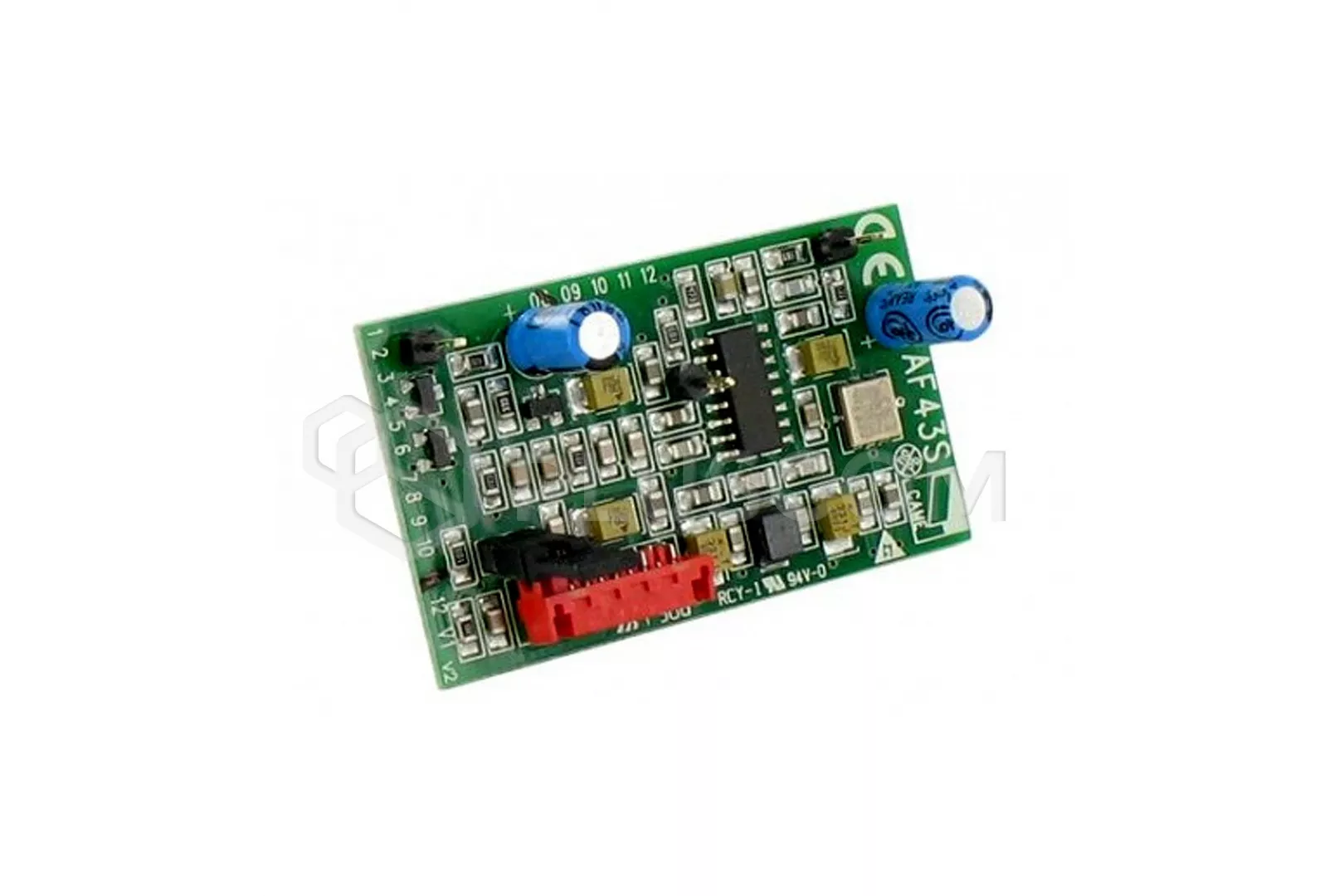

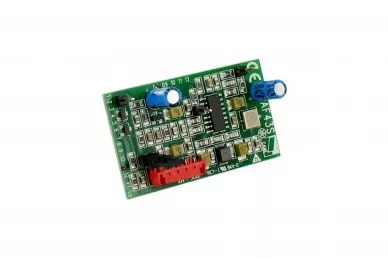

The AF43S frequency card, included in the kit, operates at
433.92 MHz and supports constant code control TOP and TAM and the ATOMO rolling
code.

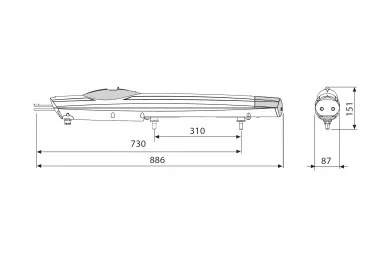

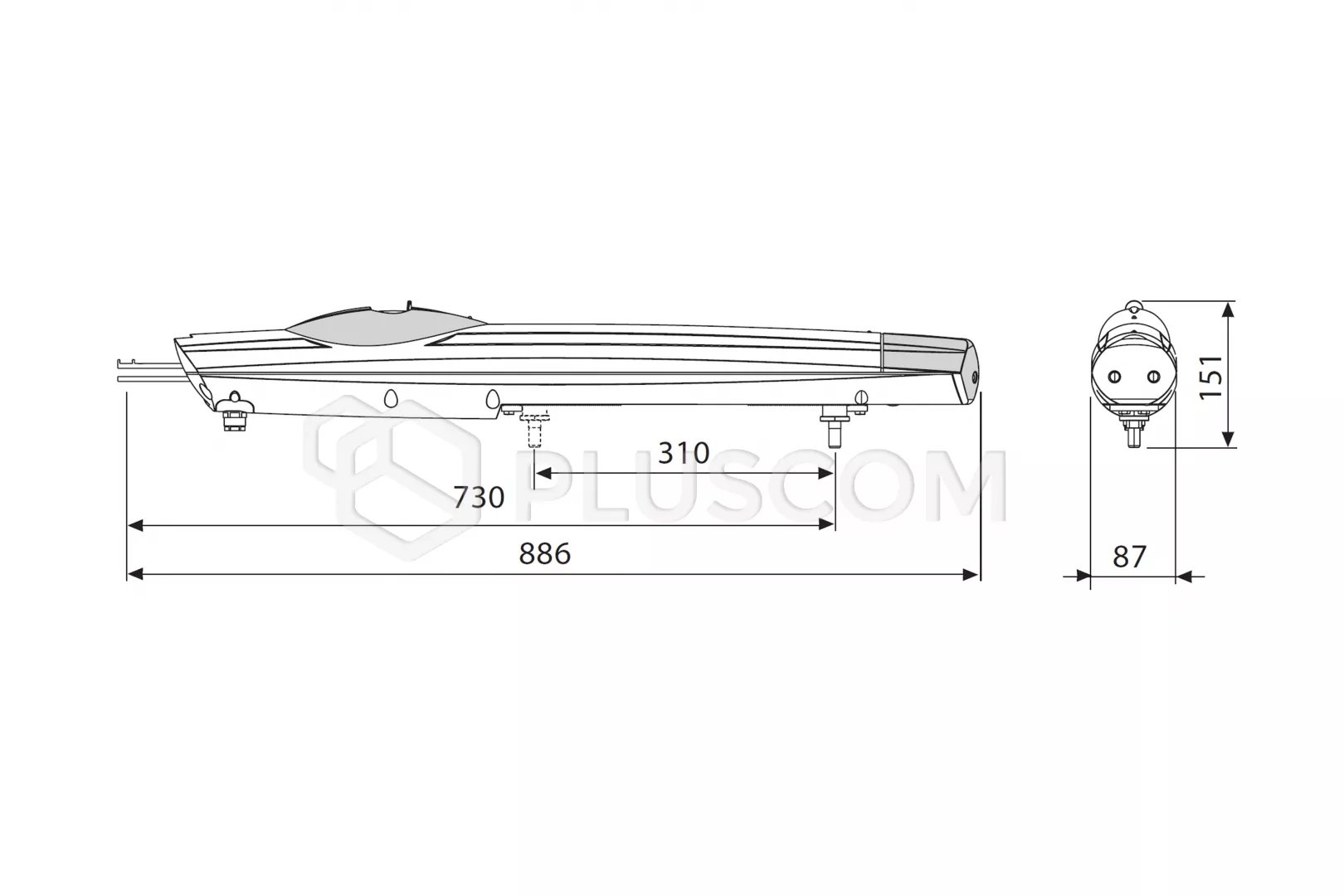

Dimensions:
TECHNICAL PARAMETERS:
- power supply: 230V 50/60 Hz
- motor power supply: 230V
- power consumption: 1.1A
- maximum power: 130W
- duty cycle: 30%
- thrust: 400 ÷ 3000 N
- opening time (up to 90 °): 22s
- degree of protection: IP54
- working temperature: -20 ° C ~ 55 ° C
- dimensions: 956x234x113mm
- weight: 10kg
