Elmes CH8HT Eight channels transmitter

24,30 EUR including 20.00% VAT
Product code: #6773
Manufacturer: Elmes
  • operating frequency: 433.92 MHz
  • power: <10mW
  • the range: 200m in open space
  • power supply: 9V battery
  • size: 113x33x21mm

Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
0,00 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Elmes STB24VM1 Controller for DC 24V motors in moving gates Elmes STP Sliding gate automation controller Elmes STB12VM1 Controller for DC 12V motors in moving gates Elmes DW200HMR Two-channel miniature receiver Elmes TRX Wireless repeater

CH8HT pilot eight-channels, 433.92 MHz bandwidth, variable dynamic code KEELOQ

The remote control
works with any Elmes receiver 433.92 MHz. It has a LED indicator for signal transmission.


The remote control has 4 control buttons and 1 button changing group of control buttons. Change group is indicated by LED. The first group 1-4, 5-8 second group.

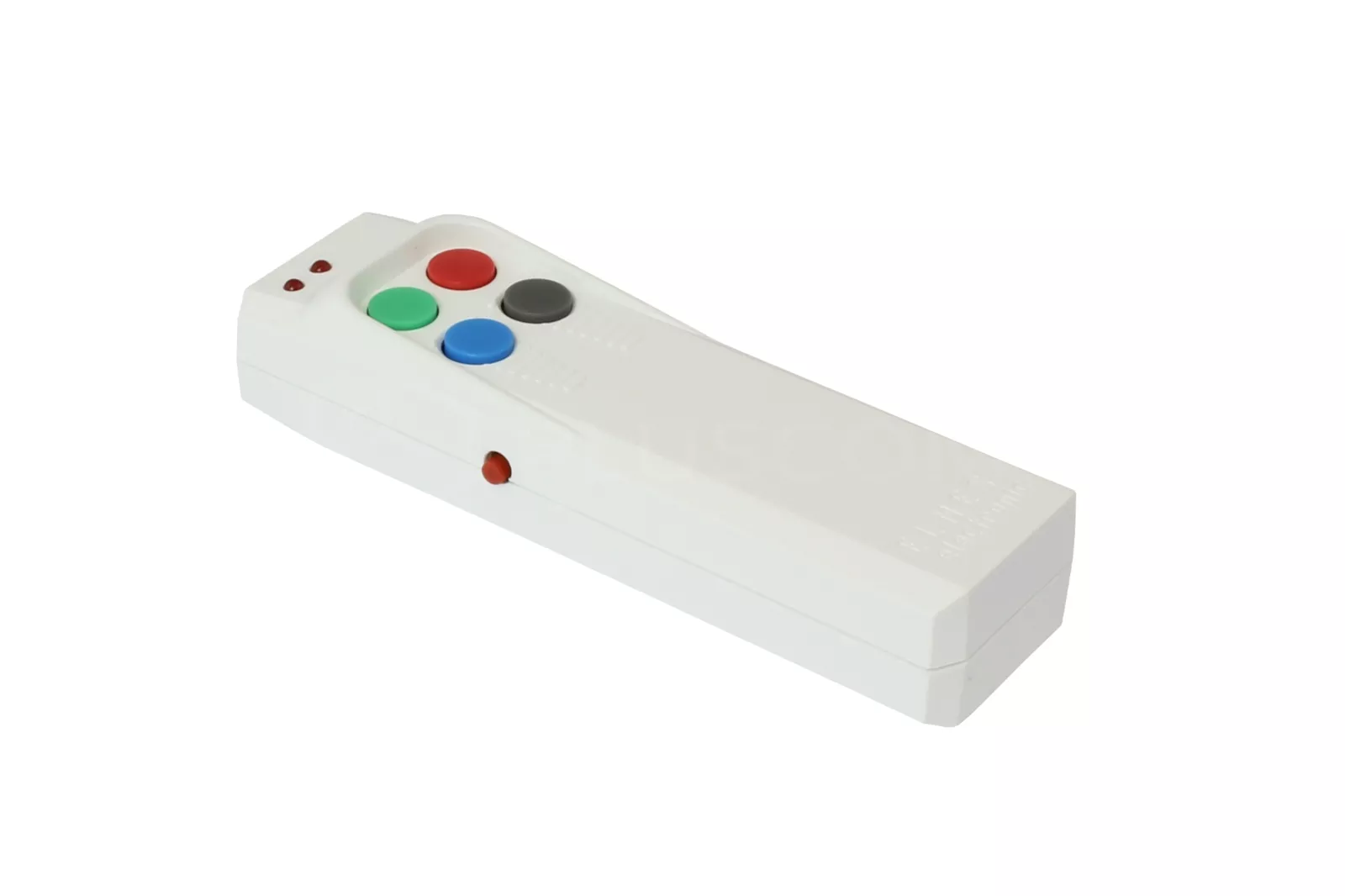

Elmes CH8HT Eight channels transmitter

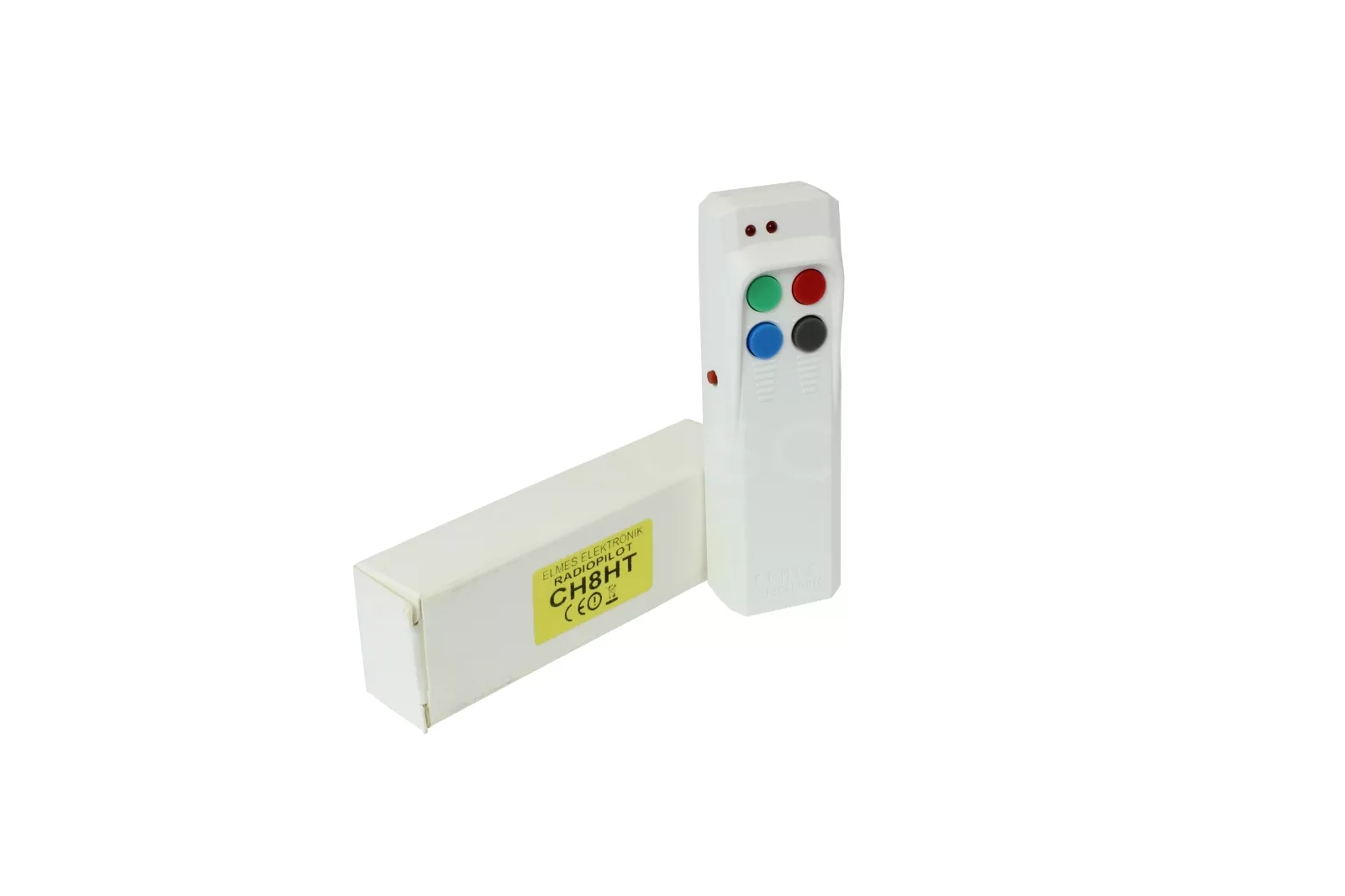

Elmes CH8HT Eight channels transmitter


In the pilot
we use radio frequency stabilization based on the quality SAW resonators produced by EPCOS.

Radio transmissions
sent by the pilot are protected KEELOQ variable coding system.
The system significantly increases safety in use, each code is different and intercepted transmission can not be reused.

TECHNICAL DATA

  • eight-channels remote control
  • 433.92 MHz operating frequency
  • power <10mW
  • range: 200m in open space
  • power supply: 9V alkaline battery
  • dimensions (length/width/height) 113x33x21mm

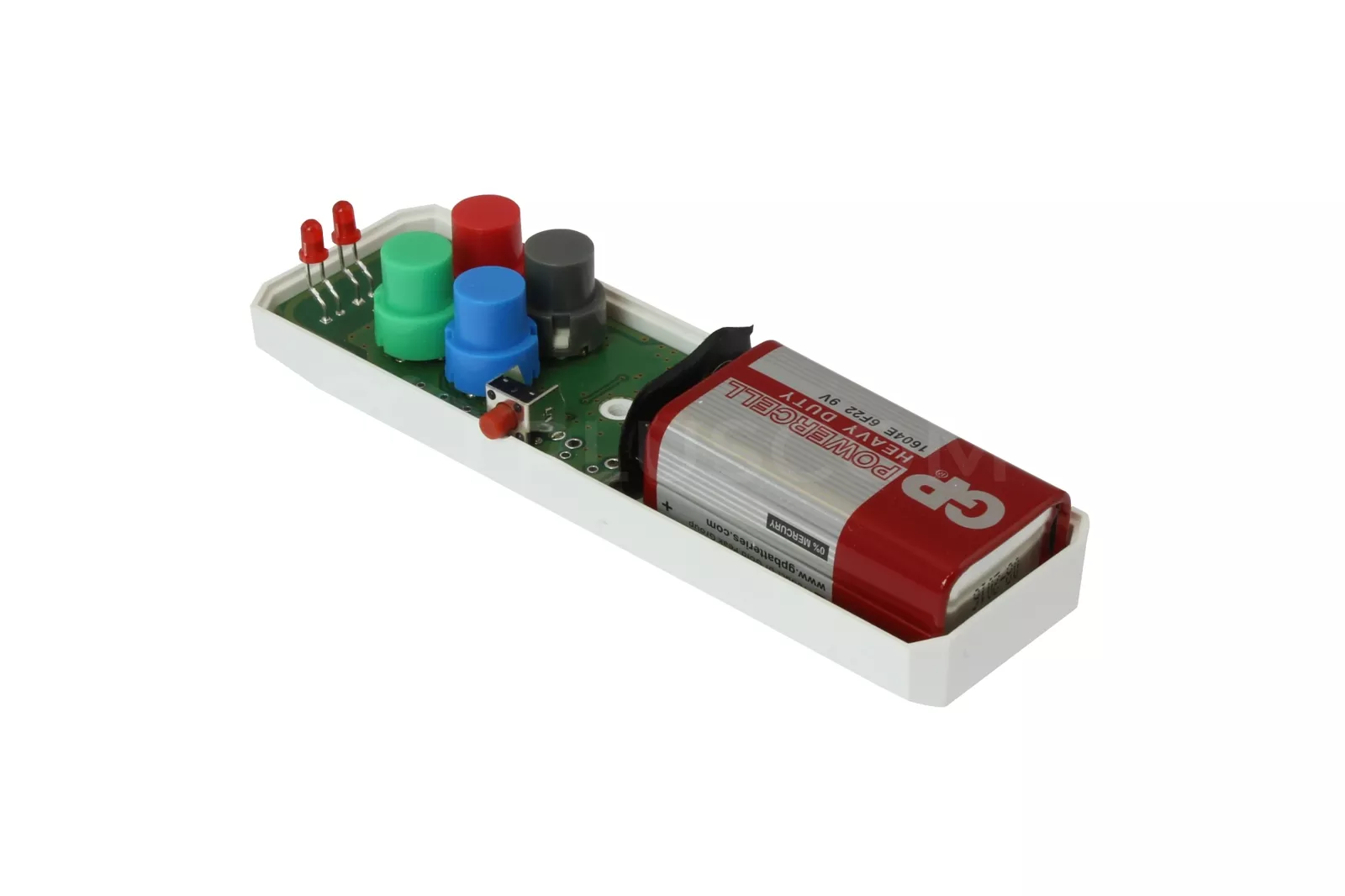

Casing removed:

Casing removed:



Download
Datasheet 0.05 MB
