Somfy 1841150 Cbx ixengo io (no remote)

292,17 EUR including 22.00% VAT
Product code: #31312
Manufacturer: Somfy
  • io radio Frequency 868-870 MHz
  • Possibility to set each parameter separately
  • LCD display
  • Up to 30 control channels can be programmed
  • No remotes included
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

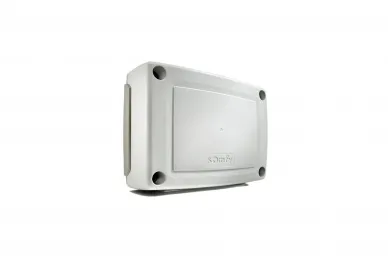

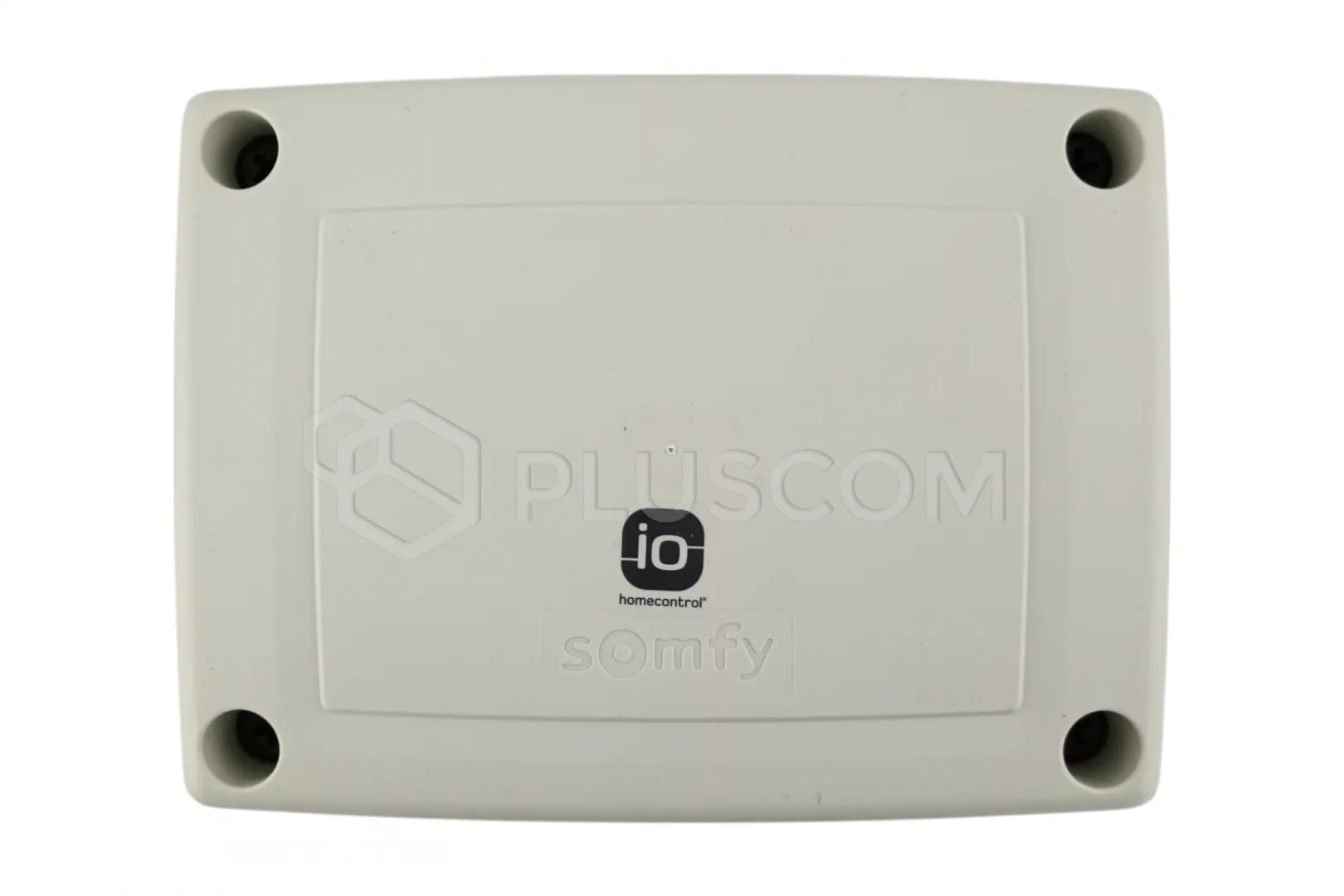

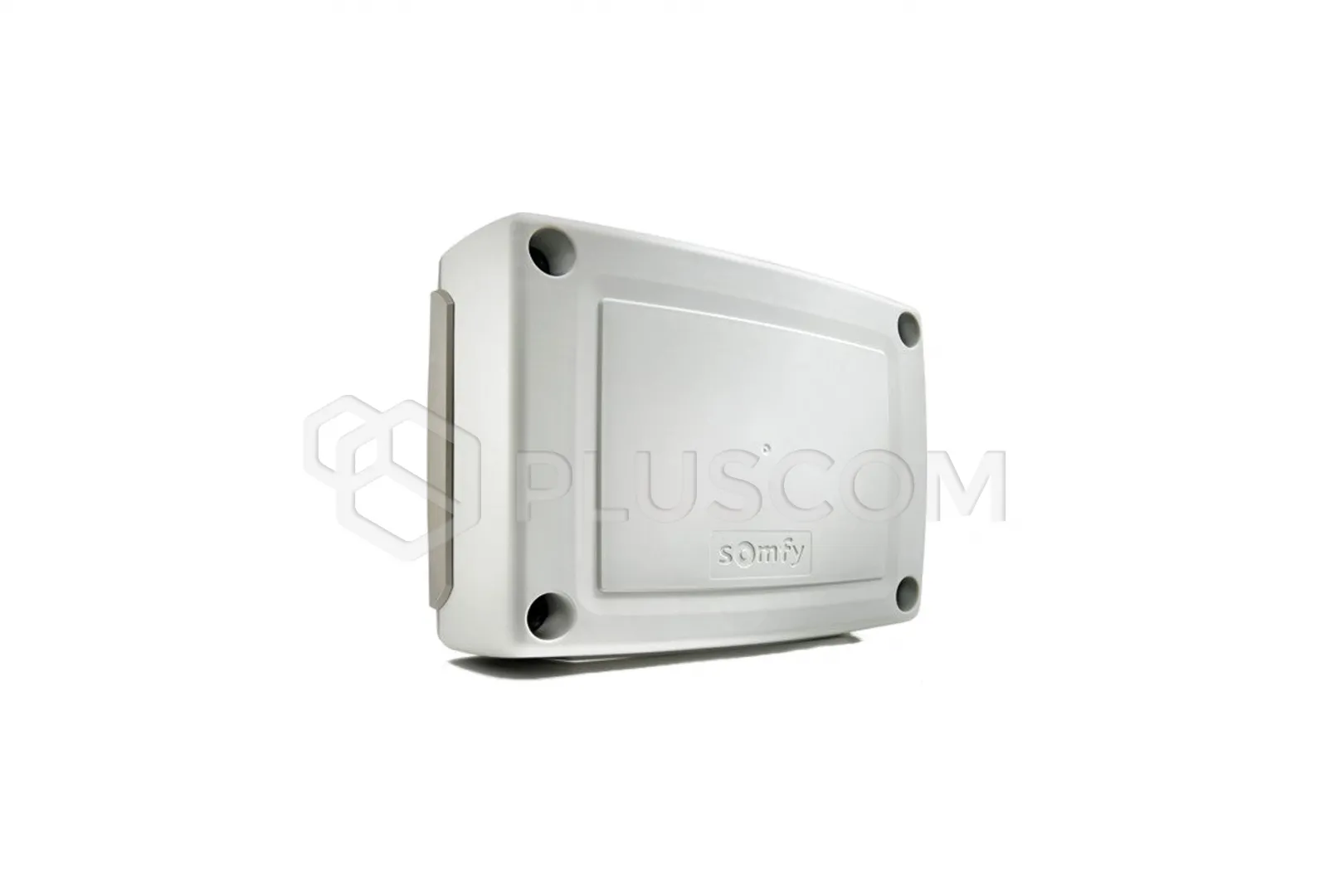

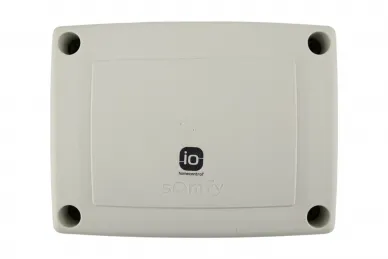

Somfy 1841150 3S Ixengo io Control Unit


3S Ixengo io control unit for quick installation in the drive has the ability to set each parameter separately with a very intuitive menu. It is ready to work in 2 minutes because all settings are pre-programmed.

Features and functions:

  • has the ability to select parameters for non-standard operation
  • wide range of connections to the security accessories control panel
  • possibility to connect zone lighting (e.g. Halogen 500W)
  • outputs for controlling various types of automation
  • LCD display allows for intuitive navigation through the menu
  • programming system prevents errors

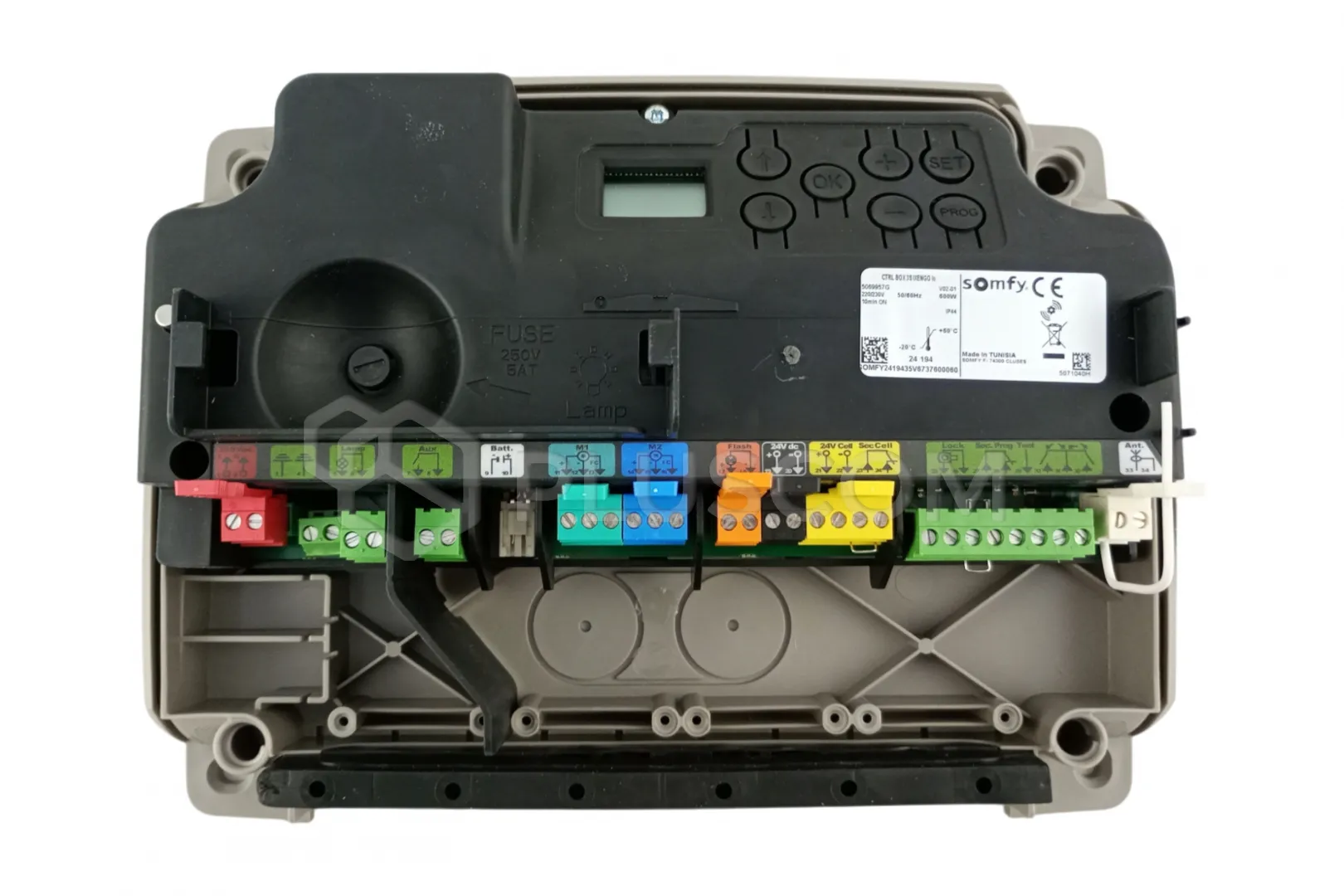

  • multi-color marking of wire connections eliminates connection errors
  • real-time display of drive operation status
  • real-time display of error codes and drive operation disturbances
  • displayed number of work cycles, error reports, etc.
  • compatibility with all Somfy devices operating in io technology
  • feedback on all bidirectional remote controls
  • remote control using TaHoma Premium
The control unit is compatible with Axovia 3S io, Axovia MultiPro, Ixengo S 24V, Ixengo L 24V drives
The control panel does not include any remote controls.

TECHNICAL DATA:

  • Mains power supply: 230 V - 50 Hz
  • Power: 800 W (with 500 W lighting)
  • 7-button programming interface: 3-character LCD display
  • io radio frequency: 868-870 MHz
  • Protection class: IP 44
  • Operating conditions: from -20°C to +60°C
  • Number of remote control devices that can be saved:
    • One-way (Keygo 4io,...): Gate control: max. 30 channels, Light control: max. 4 channels, Additional device control: max. 4 channels
    • Bi-directional: unlimited
