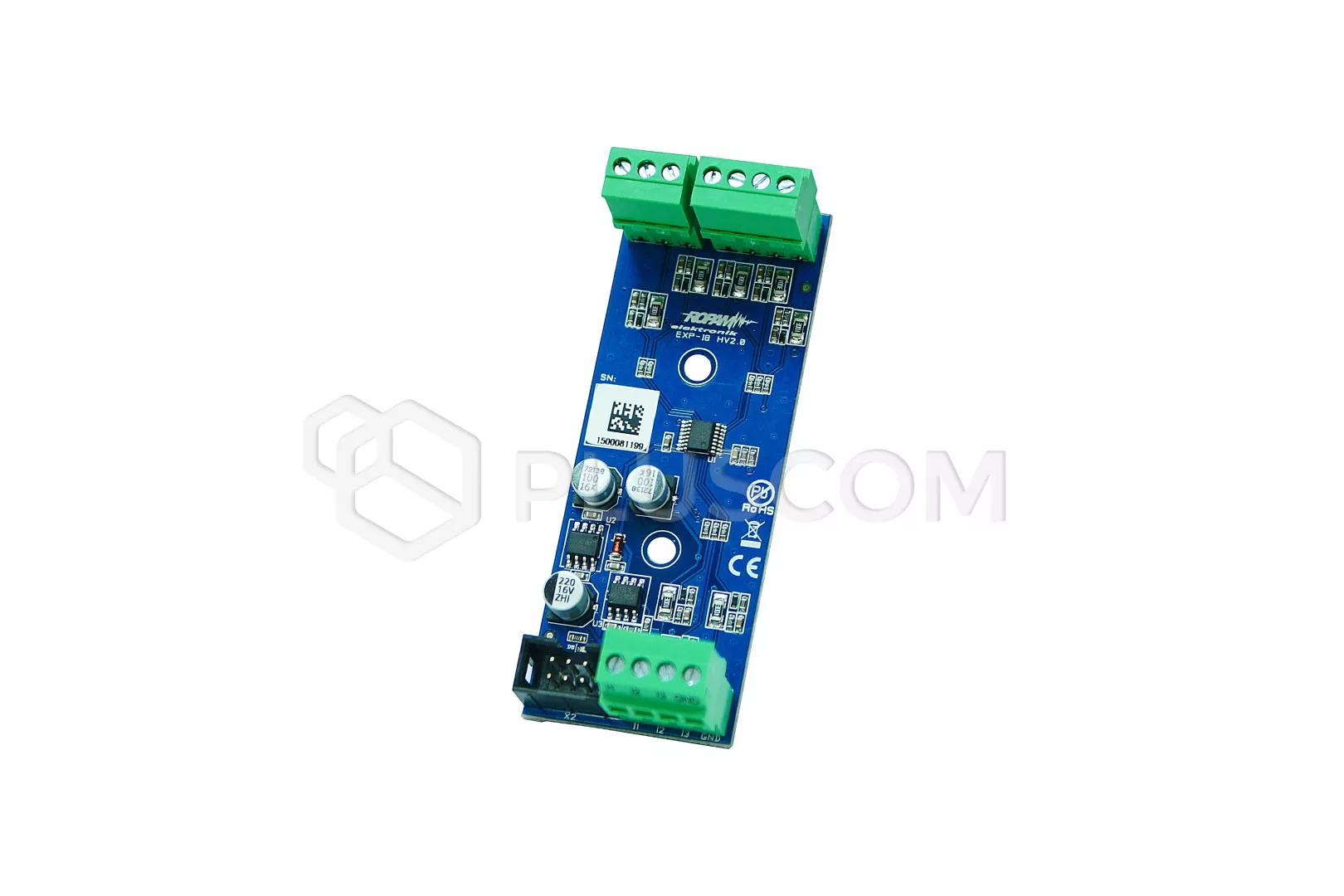

EXP-I8 is an input module compatible with the control panel alarm system NeoGSM-IP / PS or OptimaGSM / PS
new version of PCB HV 2.0 with detachable connectors

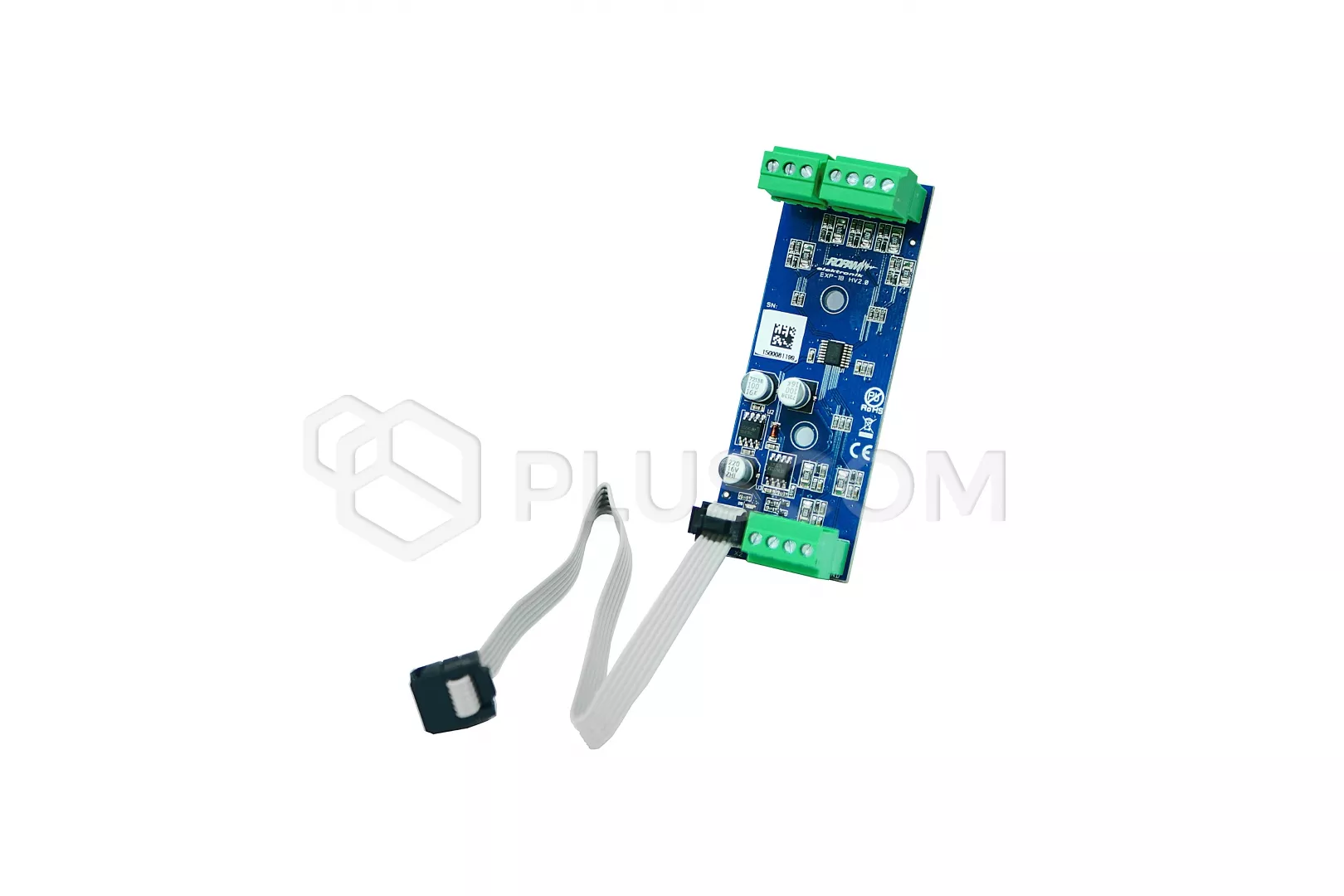

The module increases the number of entries in the system by eight . We connect the module no additional power supply is required to the control panel via connector X2 .

The EXP-I8 has additional inputs identical to the I1-I6 on the board headquarters.

PROPERTIES

• 8 additional zones in the system (numbering I13-I20),
• 2EOL / NC, 2EOL / NO, EOL, NC, NO,
• operation configuration
• local module connected to the NeoGSM-IP / PS or OptimaGSM / PS motherboard (X2 connector),
• configuration, properties and reaction types like board inputs I1-I6 main
• transmission from EXP-I8 inputs: SMS / VOICE / CLIP / EMAIL

TECHNICAL PARAMETERS:

• DC 9-14V power supply from connector X2 or EXP
• inputs I1-I8 (programmable)


• NO, NC, EOL, 2EOL/NC, 2EOL/NO =
• hi-Z/ ~30, ~30 /hi-Z, hi-Z/2k2, 1k1/2k2, 2k2/1k1
• line impedance for a given type [Ohm]: no violation / violation

• operation signaling by means of a LED diode (power)
• working conditions: class II (-10 ° C ... 55 ° C)
• dimensions: 87x33x26mm
