Roger Technology H85/DEC 4-channel keyboard decoder

102,56 EUR including 23.00% VAT
Product code: #43252
Manufacturer: Roger Technology
  • Number of channels: 4
  • For H85/TDS - H85/TTD keyboard
  • Power supply: 24V AC - DC; 12V DC
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,52 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology H85/TDS/E Wired Keyboard

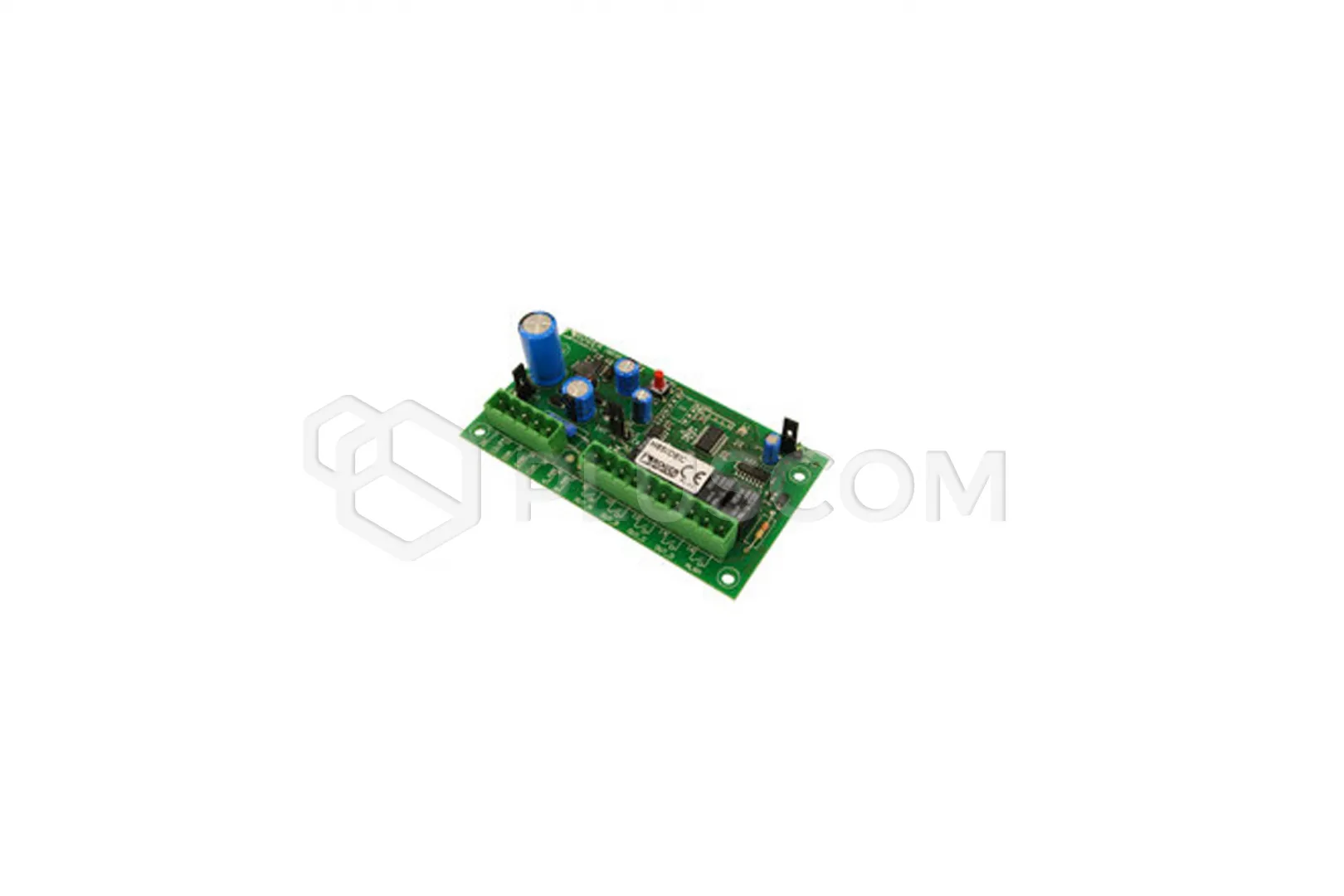

Roger Technology H85/DEC 4-Channel Keyboard Decoder


Decoder card for H85/TDS - H85/TTD 4-channel keyboard selectors in a plastic box.

TECHNICAL DATA:

  • Mains power supply: 24V AC - DC; 12V DC: H85/DEC
  • Absorption: 40mA keypad + decoder (50mA with active relay)
  • Maximum number of user codes that can be stored: 500
  • Maximum number of digits per user code: 6
  • Minimum number of digits per user code: 3
  • Maximum number of connectable keypads: 4
  • Number of available outputs: 4 control; 1 strange man alarm
  • Output activation type: Person present
  • Result type: Relay, clean contact
  • Maximum switching power (excluding bulbs): 60VA/24W
  • Relay activation delay: 100ms
  • Maximum cable length from interface to keypad: 100m (2-core cable with a cross-section of 0.5 mm²)
  • Operating temperature: -20 ~ +55°C
  • Protection rating: IP54
  • Dimensions: 119 x 159 x 76mm
  • Packaged product weight: 0.6kg
