Roger Technology F70/IPU36/BOX Control unit

747,29 EUR including 23.00% VAT
Product code: #40579
Manufacturer: Roger Technology
  • For SLED, NAVI drives
  • Number of motors: 2 motors 36V DC
  • IPU technology
  • LED display
  • Plastic casing
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology NAVI Set Roger Technology NAVI NV/200/DX Right-hand drive with 36V brushless motor Roger Technology SLED HIGH SPEED Kit

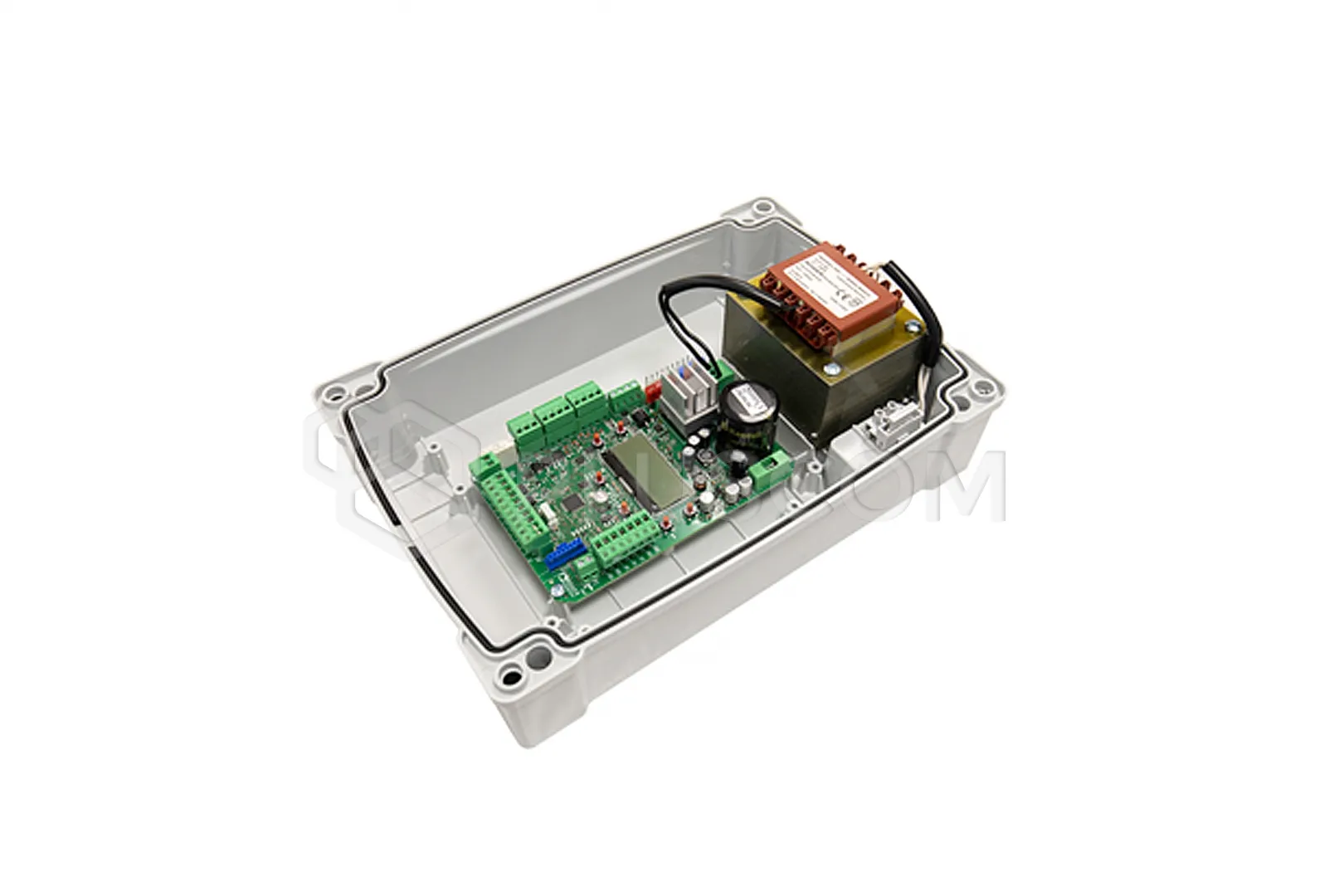

Roger Technology F70/IPU36/BOX Control unit in housing


Control unit for 2 brushless motors in IPU technology with inverter, in housing.
Dedicated to Roger Technology drives from the series: SLED, NAVI.

FUNCTIONS:

  • Automatic movement programming
  • Force adjustment
  • Maximum force at start of manoeuvre
  • Obstacle detection sensitivity adjustment
  • Acceleration adjustment (SOFT-START)
  • Opening speed adjustment
  • Closing speed adjustment
  • Slowing adjustment
  • Braking adjustment (SOFT-STOP)
  • Function - Automatic closing
  • Automatic closing time adjustment
  • Function - Timer
  • Programming of safety output
  • Function - FAIL SAFE TEST (Photocell test)
  • Function - Close after photocell release
  • Function - NC/8K2 safety edge
  • Function - Emergency stop
  • Function - Partial opening (Wicket)
  • Partial opening adjustment
  • Function - Residential complex
  • Function - DEAD MAN (TOTMANN)
  • Function - Closing guarantee
  • Function - Additional lighting
  • Function - Gate status indication
  • Thermal protection
  • Battery management
  • Information on system use
  • Protection against parameter modification
  • Restore settings factory

TECHNICAL DATA:

  • Rated supply voltage: 230V AC ± 10% 50 Hz
  • Max. power consumption: 230W
  • Max. power consumption during start-up: 600W
  • Fuses used:
    • F1 = 20A motor power supply circuit protection
    • F2 = 4A electric lock protection
    • F3 = 10A battery power supply circuit protection
    • F4 = T2A transformer primary protection
  • Number of supported drives: 2
  • Motor power supply: 36V AC
  • Supported motor type: brushless, sinusoidal (ROGER BRUSHLESS)
  • Motor control type: field-oriented (FOC - FIELD ORIENTED CONTROL), sensorless (SENSORLESS)
  • Max. motor rated power: 90W
  • Max. motor power consumption: 250W
  • Max. warning light power: 10W (24V DC)
  • Warning light flashing frequency: 50%
  • Max. additional lighting power 100W (230V AC) - 40W (24V AC/DC) / (potential-free contact)
  • Max. gate status indicator light power: 3W (24V DC)
  • Max. power consumed by electric lock: 15W (12V DC) / (average voltage value)
  • Max. power consumption of accessories: 20W (24V DC / 750 mA)
  • Operating temperature range: from -20°C to +55°C
  • Dimensions: 380 x 145 x 130 mm
  • Weight: 0.45 kg
