Roger PS1A-LCK Supply Module

34,26 EUR including 23.00% VAT
Product code: #22423
Manufacturer: Roger
  • Main supply from 18 VAC
  • Back-up supply from 13.8 VDC
  • 1.0 A(LCK) and 0.2 A (TML) supply output
  • ON/OFF control input for LCK output
  • Outputs protected against overload
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MC16-EVC-8 Conventional Elevator Access Controller Roger MCX402-BRD Door Expander Roger MC16-EVC-64 Conventional Elevator Access Controller Roger MC16-LRC-64 Locker Access Controller Roger MC16-EVC-32 Conventional Elevator Access Controller Roger MC16-LRC-32 Locker Access Controller Roger MC16-EVC-16 Conventional Elevator Access Controller Roger MC16-LRC-16 Locker Access Controller Roger MC16-BAC-8 Building Automation Controller Roger MC16-HRC-4 Hotel Room Access Controller

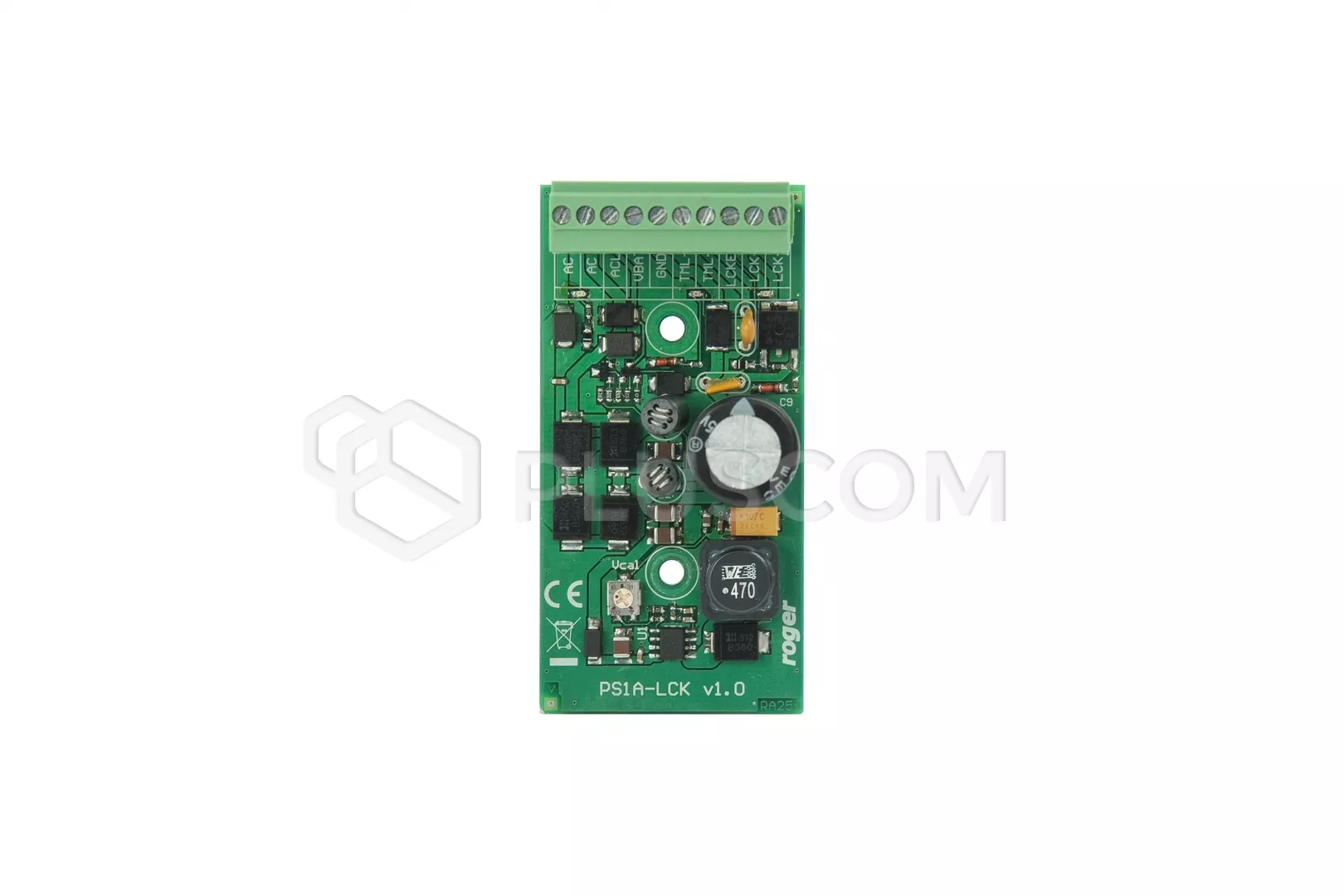

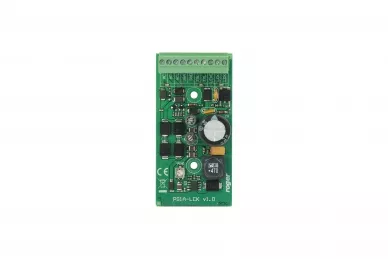

Roger PS1A-LCK Supply Module


PS1A-LCK module is dedicated to provide power supply for the second door if built-in power supply unit of the MC16 controller or MCX402DR expander is sufficient for only single door. The module is supplied with 18VAC and it offers 13.8VDC at LCK and TML outputs. The LCK (1.0A) output is dedicated to supply door lock and it can be triggered with LCKEN input. Optionally it can be triggered all the time and used to supply door related devices e.g. alarm signalling, door bell. The TML (0.2A) output is dedicated to supply readers and is triggered all the time. PS1A-LCK can be connected to backup battery in order to offer emergency supply for door. The shortage of 18VAC power supply is signalled with ACL transistor (open collector) output. All PS1A-LCK outputs are protected against overload
Roger PS1A-LCK Supply Module

Roger PS1A-LCK Supply Module


Specification:
  • power supply voltage: 18VAC min. 20VA
  • LCK power output for door lock: 13.8VDC/1.0A
  • TML power output for readers: 13.8VDC/0.2
  • ACL output for power shortage signalling: 15VDC/40mA
  • LCKEN input: triggering <1V
  • environmental class:I
  • working temperature: +5°C to +40°C
  • dimensions 40 x 80 mm
  • weight 45 g
Download
Datasheet 0.18 MB
CE Declaration 0.13 MB
Operating Manual 0.5 MB
