Roger MCX16-AP-2 I/O Expander with APERIO interface

342,51 EUR including 23.00% VAT
Product code: #22420
Manufacturer: Roger
  • Interface for 2 APERIO wireless locks
  • 8 inputs NO/NC
  • 6 transistor outputs 12V/1.0A
  • 2 relay outputs NO/NC 30V/1.5A DC/AC
  • 18VAC or 12VDC power supply
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Battery 12V 7Ah CS12-7 12V 7,2Ah Battery GP 1272 12V 7Ah Battery GP 1272 F2 Pulsar TRP 40VA Transformer AWT150 Battery 12V 7.2Ah LT12-7.2 Battery 12V 7Ah CJ12-7 Mean Well LRS-35-12 Switching power supply Mean Well LRS-150-12 Switching power supply Roger ME-17 Metal enclosure Roger MCX4D Door Expander

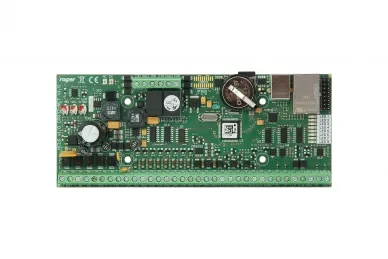

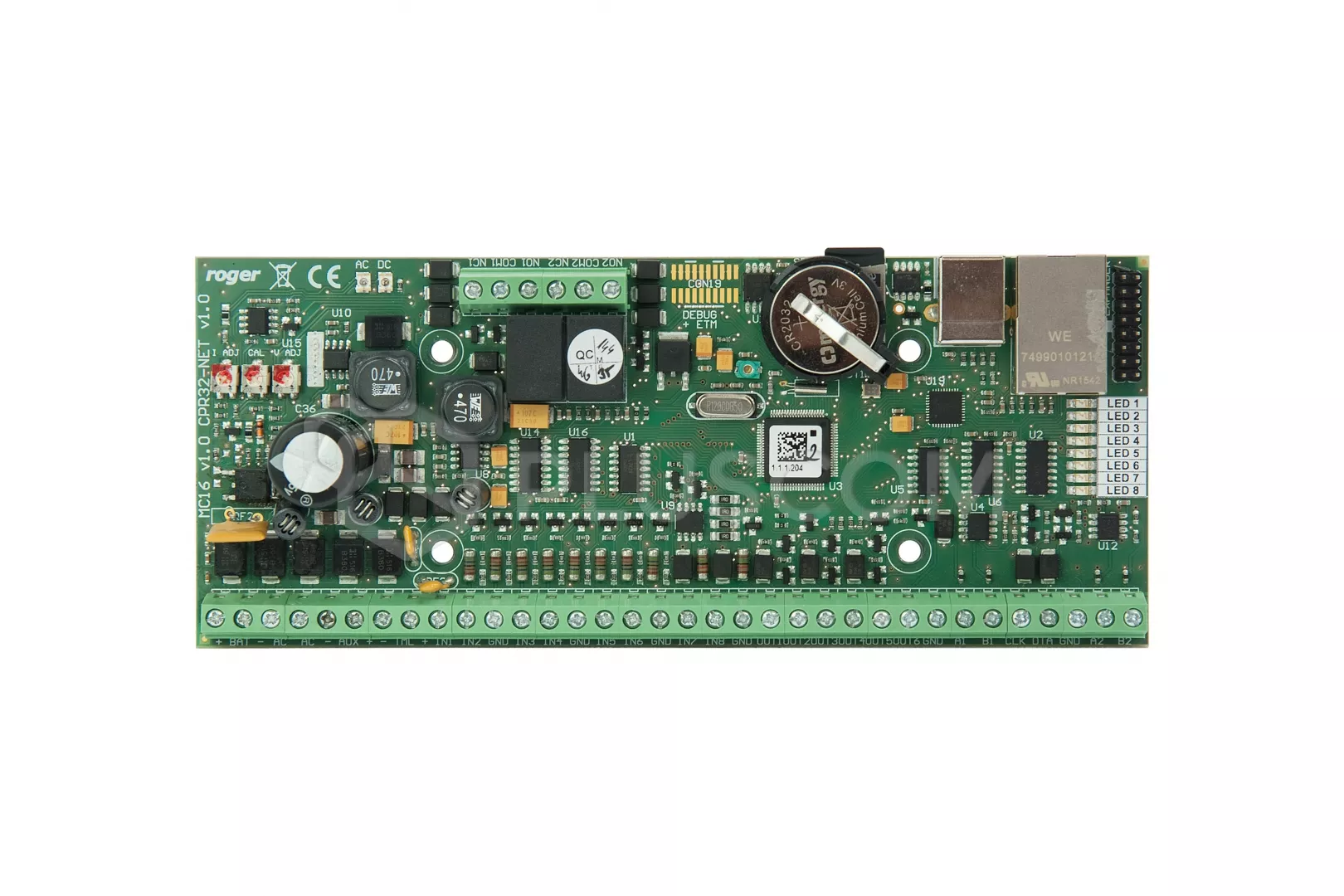

Roger MCX16-AP-2 I/O Expander with APERIO interface


The MCX16-AP-2 I/O expander enables use of APERIO (ASSA ABLOY) wireless locks as access terminals in RACS 5 system. MCX16-AP-2 operates as hardware interface for communication of APERIO locks with MC16 access controller. The expander communicates with the MC16 controller using RS485 bus and with APERIO system using Ethernet (LAN). MCX16-AP-2 offers its input and output lines for use in RACS 5 system.

The expander offers 8 inputs which can be configured as NO or NC, six open collector type transistor outputs OUT1-OUT6, two relay outputs REL1 and REL2, tahat each relay offers NO/NC terminals and is 30V/1.5A rated and TML and AUX power supply output is dedicated to supply additional devices.

MCX16 module is designed for power supply from 230VAC/18VAC/40VA transformer and then it offers 12VDC power outputs (AUX, TML) for external devices. Optionally the expander can be supplied from 12VDC or 24VDC but in case of 12VDC the backup battery cannot be directly connected to the expander thus the emergency power supply must be provided by external PSU.

Characteristics:
  • interface for 2 APERIO (ASSA ABLOY) wireless locks
  • 8 inputs NO/NC
  • 6 transistor outputs 12V/1.0A
  • 2 relay outputs NO/NC 30V/1.5A DC/AC
  • power outputs: 13.8V/1.0A and 13.8V/0.2A
  • 18VAC or 12VDC power supply
  • battery charging with 0.3A current
  • protection against full battery discharge
  • reporting of power supply status to access controller

Roger MCX16-AP-2 I/O Expander with APERIO interface

Roger MCX16-AP-2 I/O Expander with APERIO interface


TECHNICAL DATA
  • supply voltage:
    • 12VDC(10-15VDC)
    • 18VAC (17-22VAC)
    • 24VDC (22-26VDC)
  • backup battery 13.8V/7Ah, charging current app. 300mA
  • current consumption: 100mA with 18VAC power supply (without output load AUX / TML)
  • 8 parametric inputs
  • 2 relay outputs
  • 6 open collector transistor outputs
  • 2 power outputs
  • RS485 port Two RS485 communication ports
  • Ethernet port 10BASE-T 10/100Mb communication port
  • Distances: max. 1200 m between controller and expander (RS485)
  • Environmental class: I
  • temperature: +5°C to +40°C
  • case dimensions: 72x175x30mm
  • weight; 200g
