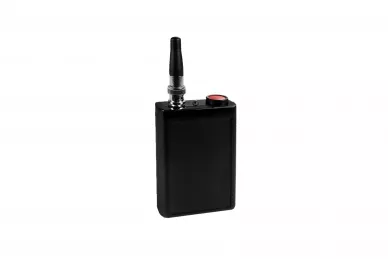

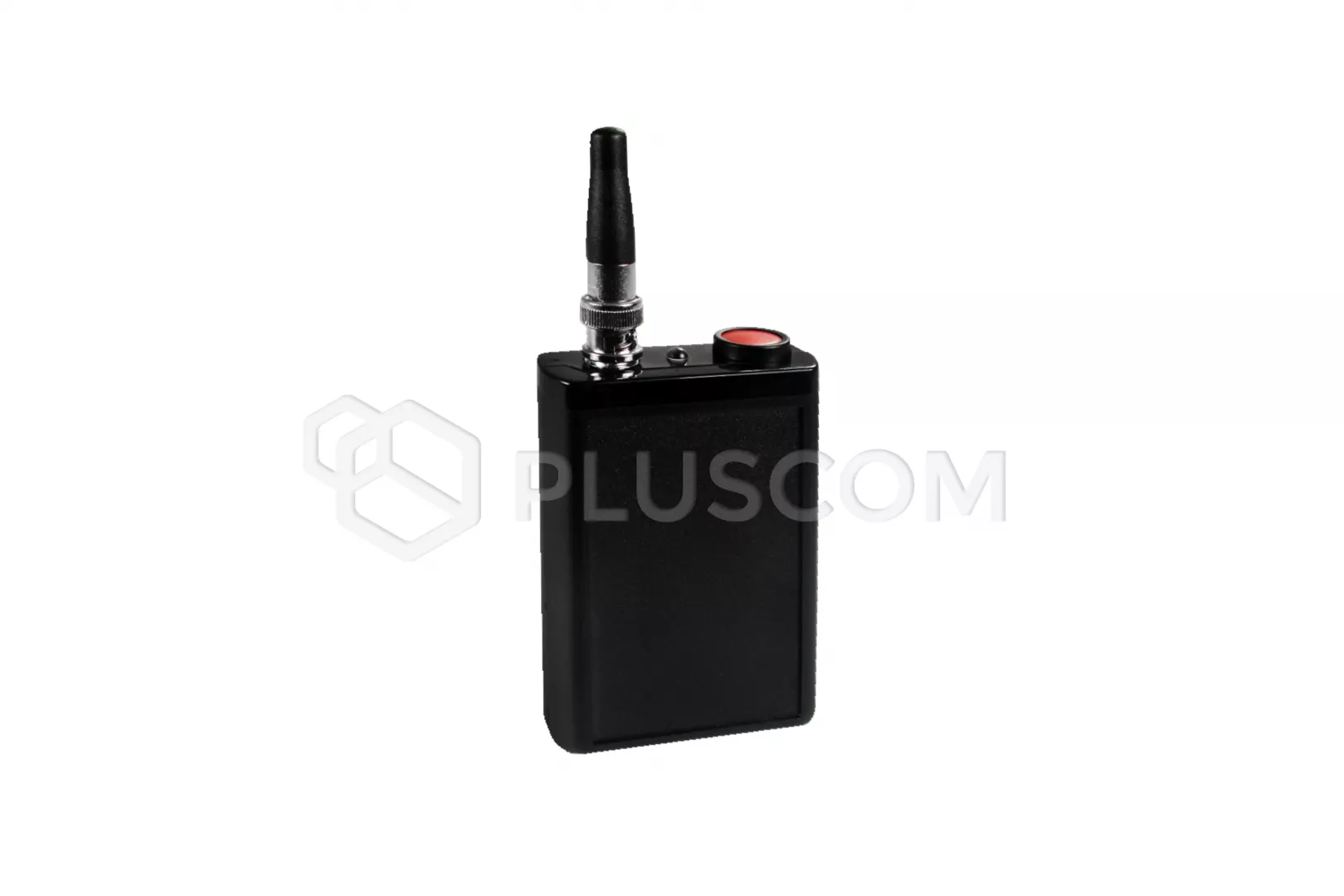

Gorke RNB-101 LOK 1-key remote control, checkpoint

185,24 EUR including 23.00% VAT
Product code: #25699
Manufacturer: Gorke
  • Dedicated to the Zonal Location (LOK) system
  • Two-way communication
  • Range: up to 5km
  • 1 hermetic button
  • Reception signaling: acoustic, vibration, optical
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Gorke RSX-K02 2-channel receiver

Gorke RNX-101LOK 1-key remote control, checkpoint

RNX-101LOK is a remote control dedicated to the Security Agency, which enables operation even in very difficult radio conditions. It works well in urban areas, where the amount of interference is very high, but also where range plays a key role.
The operating range of sets based on the RSU-K02 receiver is up to 5,000 meters. And in favorable radio conditions, up to 10 km.

The transmitter and receiver operate in bidirectional mode. The RSX-101LOK design uses the LX receiving module with LoRa technology for advanced wireless communication. A unique parameter of the LX module, characteristic of professional solutions, is the ability to effectively receive a radio signal even if it is weaker than the surrounding noise. This allows for effective communication in conditions of high interference, occurring in industrial environments or in the centers of large cities. Another feature of the module is its resistance to strong GSM signals from telephones, modems or nearby relay stations, as well as WiFi or Bluetooth devices.

TECHNICAL DATA:
  • frequency: 433.92 MHz
  • encoding: variable code
  • number of keys: 1
  • number of channels: 1
  • power supply: LS14500 battery
  • operating mode: bidirectional
  • reception signaling: acoustic, vibration, optical
  • transmitting power: 10 mW
  • cooperation: RSX-K02 receiver
  • antenna socket: SMA 50 Ohm
  • antenna: helical angular (total length 58 mm)
  • operating temperature: -10÷ +55 °C
  • humidity (max): 93±3%
  • dimensions: 65x100x24mm
