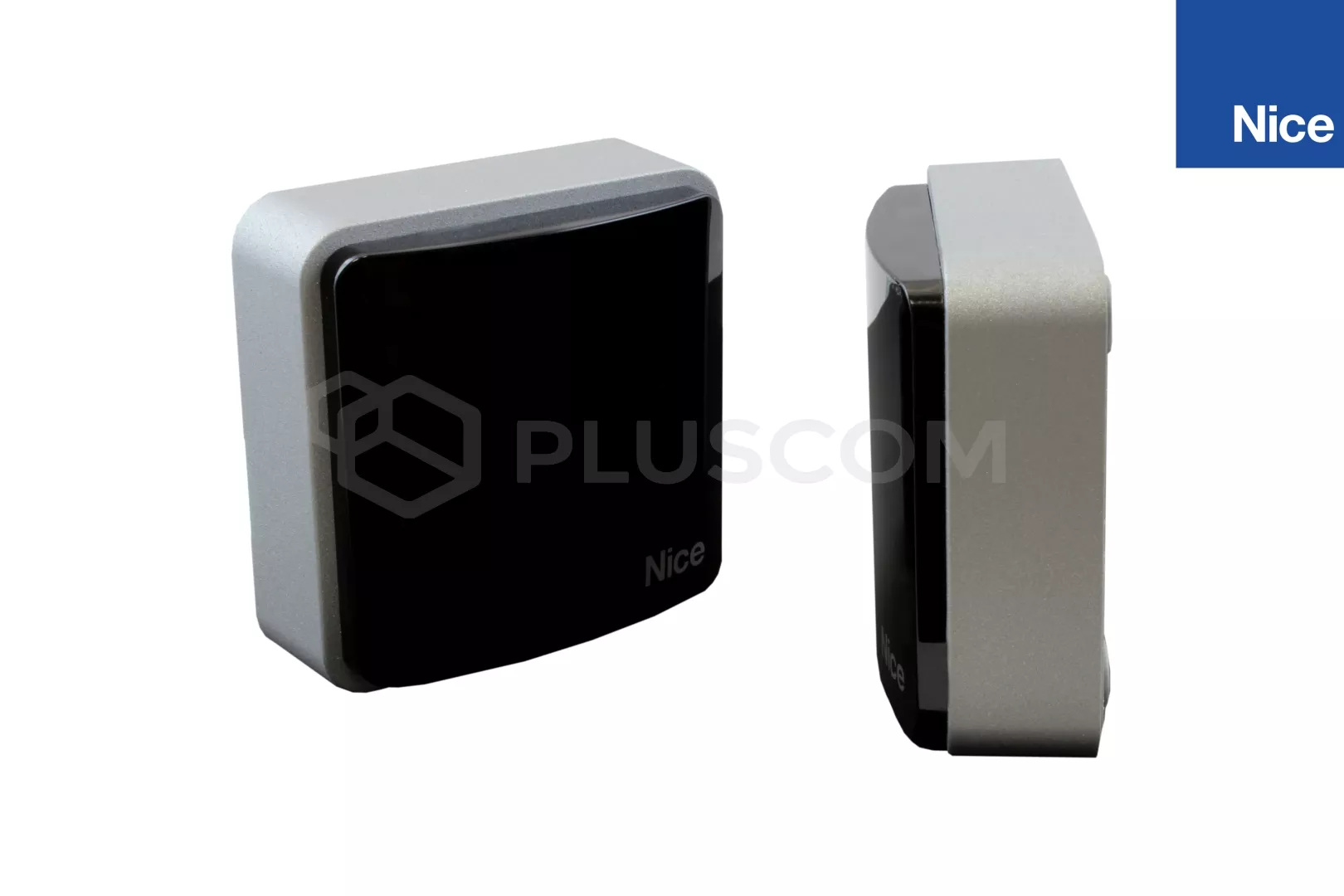

Photocell Nice EPL ERA Large

76,28 EUR including 23.00% VAT
Product code: #6918
Manufacturer: Nice
  • Range: 30m
  • Viewing angle: 10°
  • Relay outputs
  • Polycarbonate housing
  • For classic PHOTO/STOP control input
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Nice TOO3000 R10 Base set Nice PPH1 aluminium post for EPL/EPM photocell, 50cm high Nice PPH2 aluminium post for EPL/EPM photocell, 100cm high Nice TOO4500 R10 Base set Nice Set WIDE S Set with arm 4m Nice HY7005 Base set Nice Set WIDE M Set with arm 4m Nice Set WIDE L Set with arm 6m Nice SPCG011100 EPL/EPL Photocell housing
Photocell Nice EPL ERA Large is designed for installation in gate automation systems. The photocells are made of polycarbonate material ensures high durability and modern aesthetic appearance.

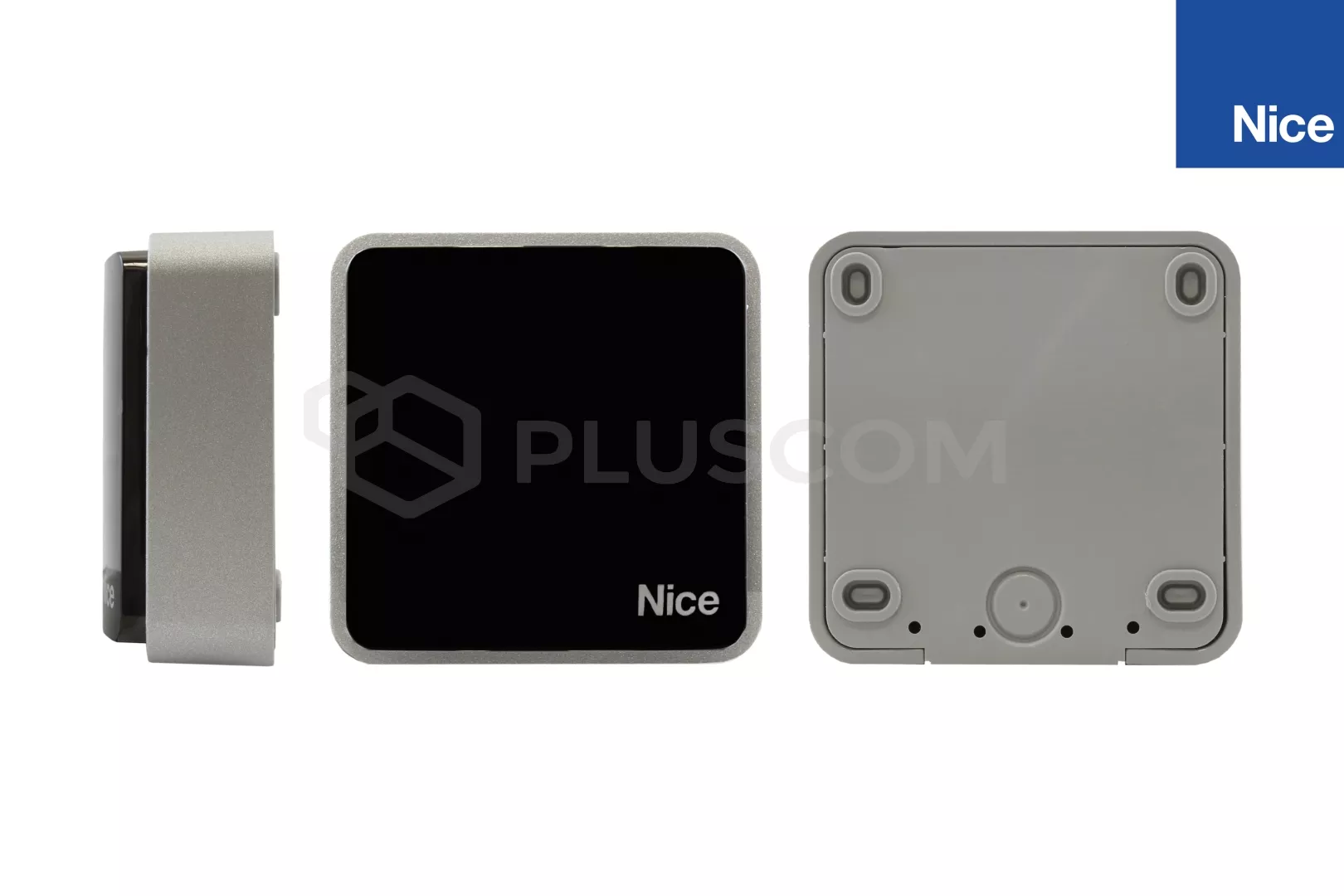

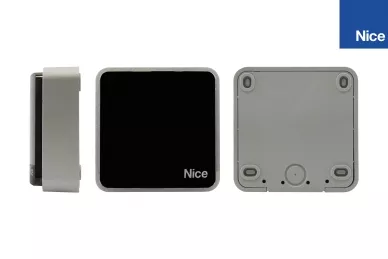

Photocell view: right, front, rear:

Photocell view: right, front, rear:

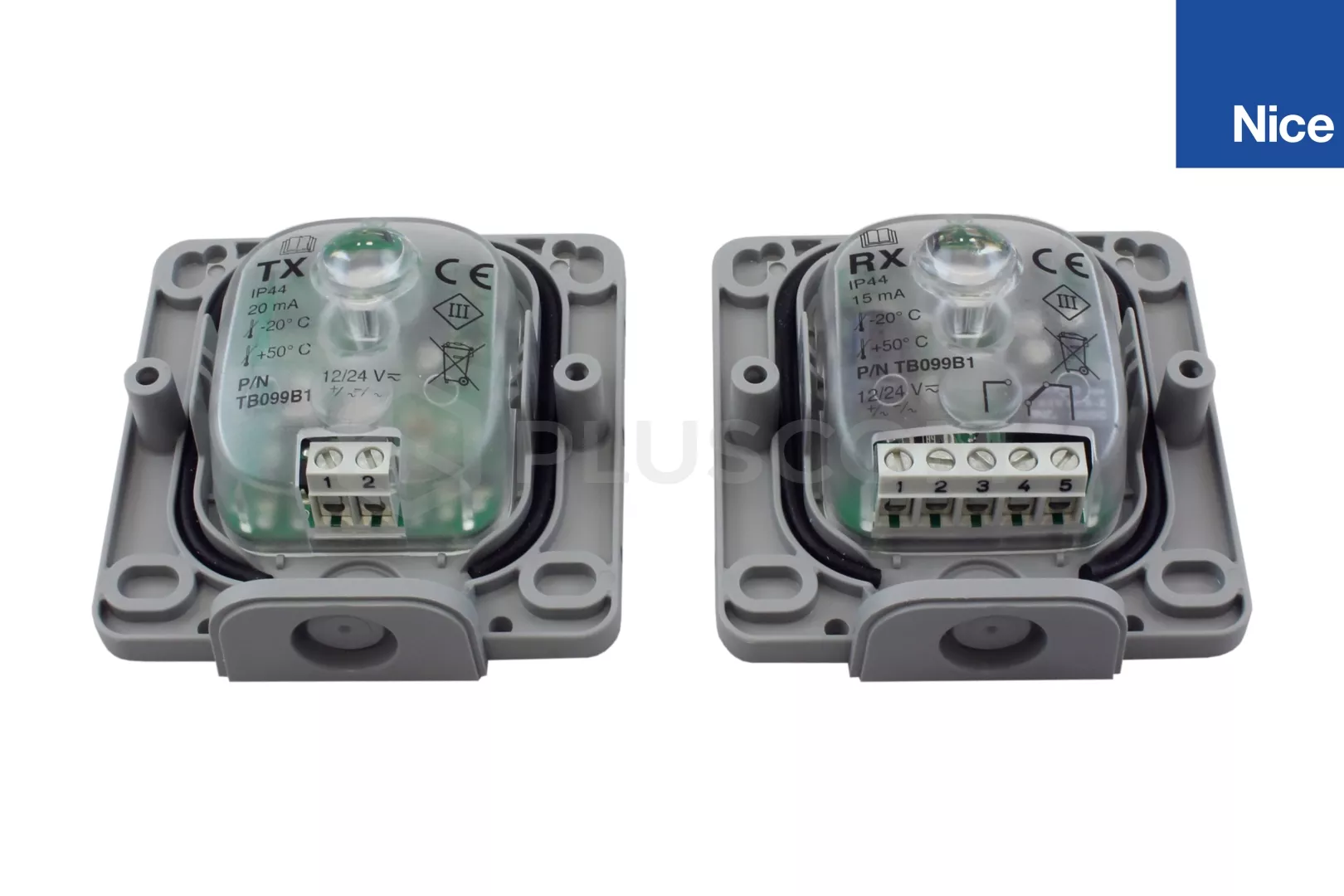

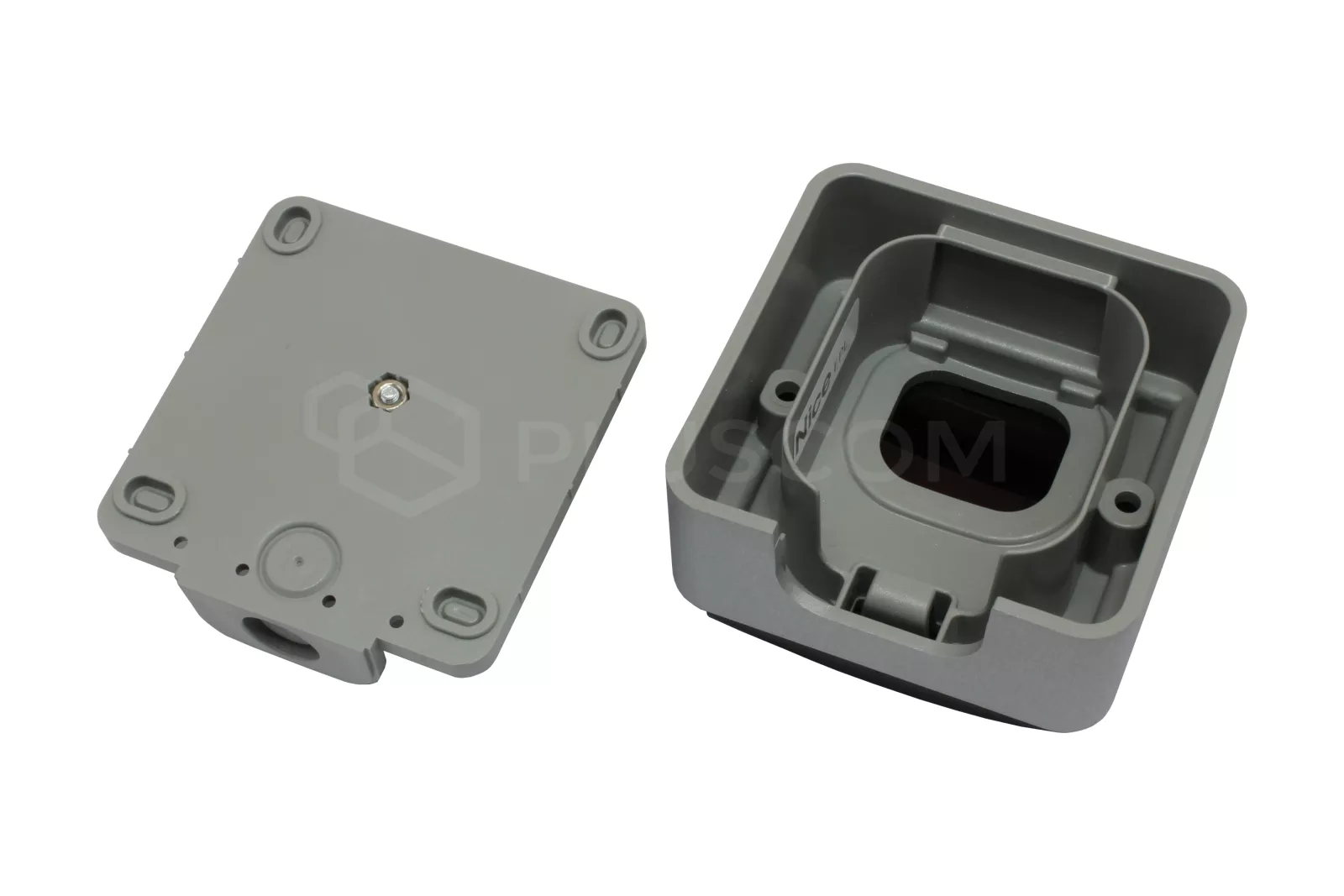

Interior of photocell, złącza:

Interior of photocell, złącza:


The housing protects the photocell from dust and rain, which makes it can be installed outside and work in the temperature range -20°C...+50°C

Photocell Nice EPL has no possibility to adjust the viewing angle.
It is important to be mounted on the vertical and parallel relative to each other walls.
For installation, you can use aluminum column with a height of 50 cm or 100 cm PPh3, PPH4


TECHNICAL PARAMETERS:
  • AC/DC 24V (18-35V DC)  (AC 15-28V)
  • 12V power supply after the bridge plates TX, RX
  • power consumption: 55mA max
  • radiation angle transmitter (TX) - 20° (8° using a reducing cone)
  • angle detection zone receiver (RX) - 20°
  • a maximum range of 30m
  • IP44
  • operating temperature: -20°C...+50°C
  • size: 70x70(h)x30mm
IN THE BOX:
  • photocells, a transmitter (TX), a receiver (RX)
  • installation and operating instructions
  • screws and mounting pins

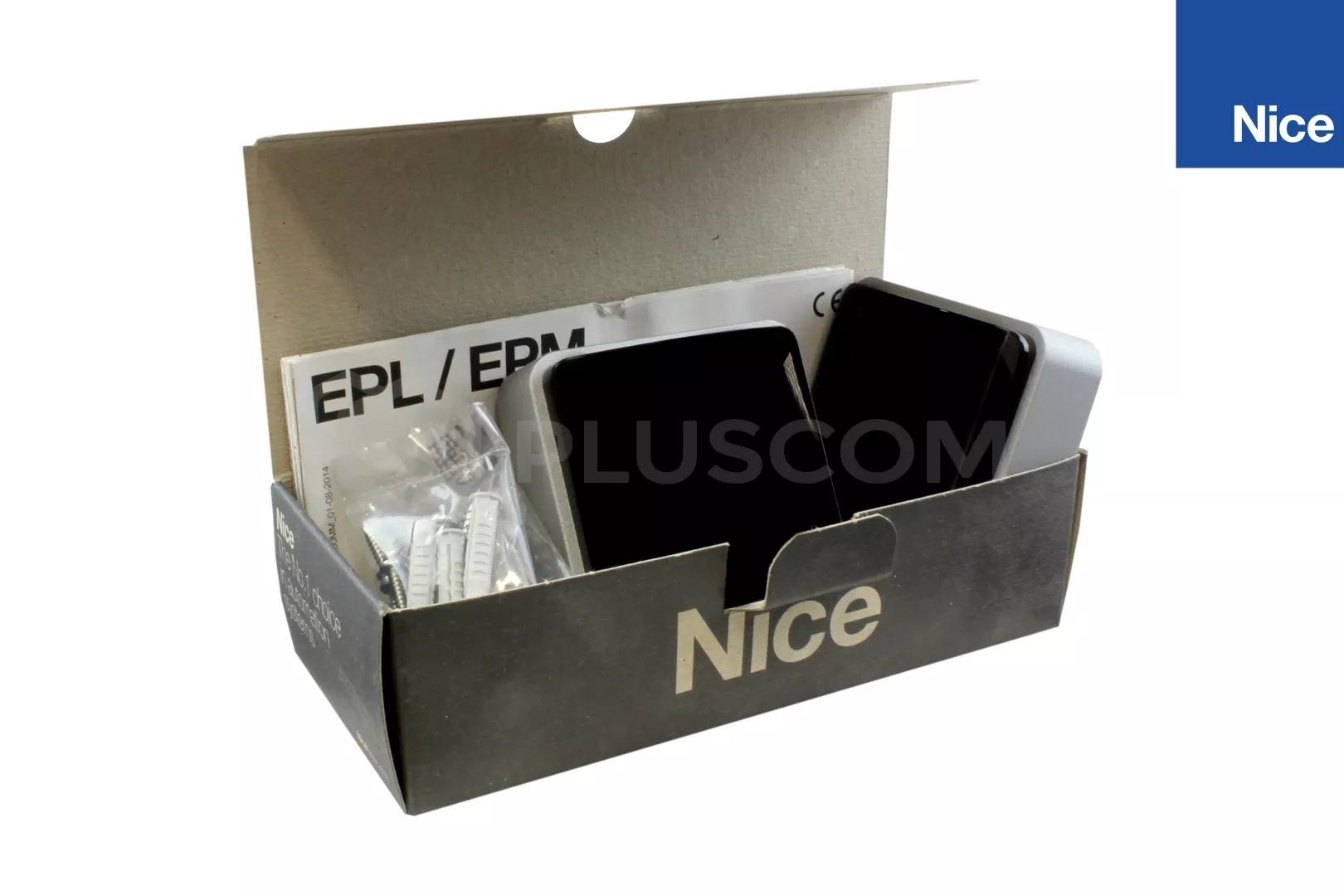

BOX contents:

BOX contents:
