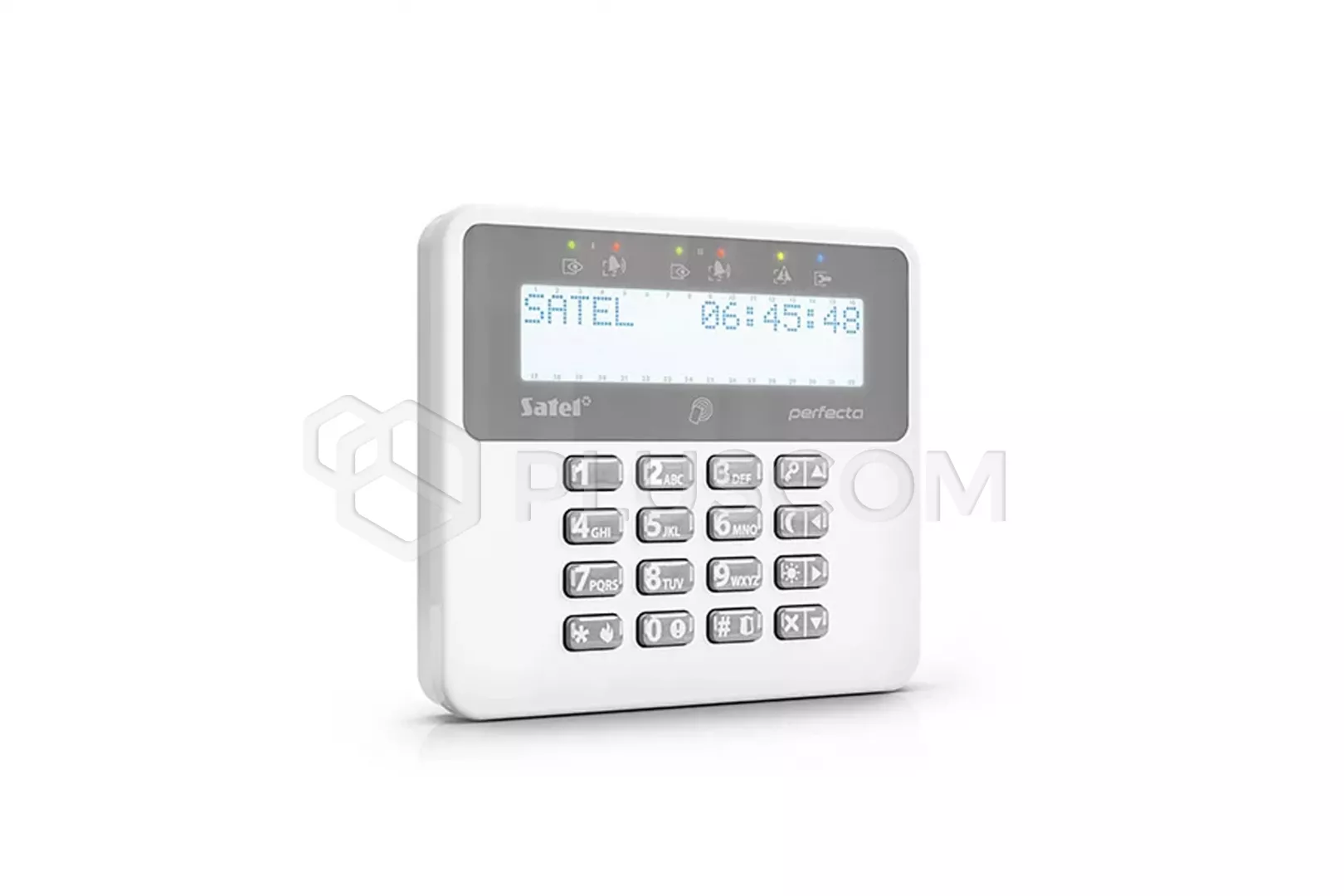

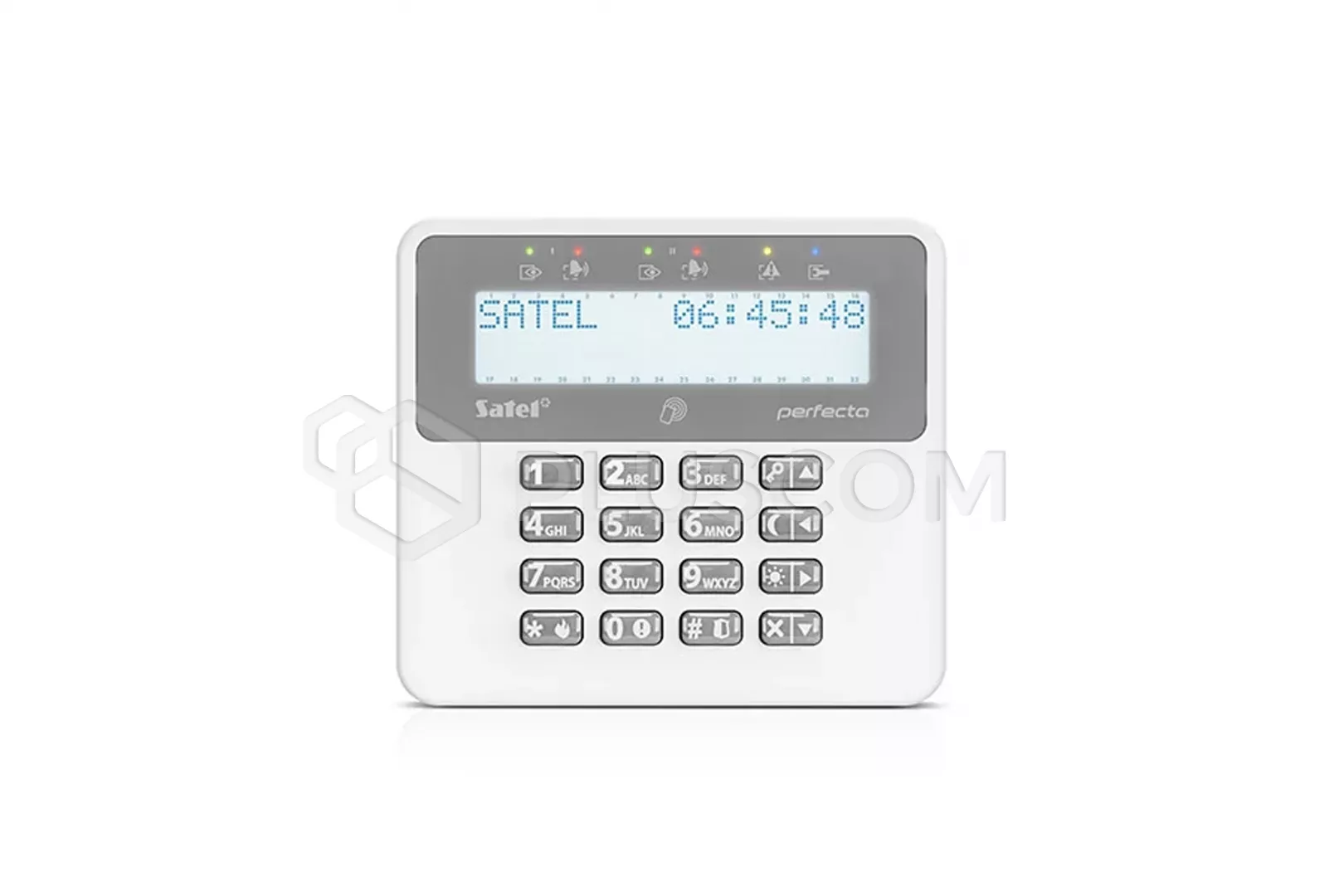

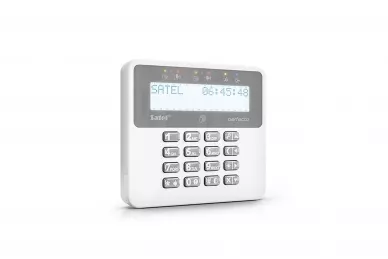

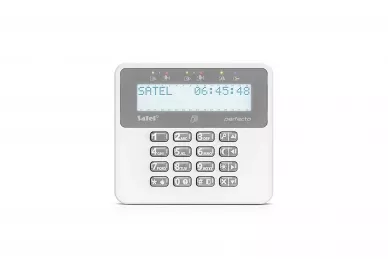

Satel PRF-LCD-A2 Wireless LCD keypad with reader proximity
The
Wireless keypad with a large readable LCD display makes it possible
direct access to the functions of the PERFECTA 64 M control panel. It is
intended for as part of the ABAX 2 two-way wireless system. Large keys, The LCD
display and LEDs indicating the system status make it easy to use system is
convenient and transparent. The keyboard, in addition to the numeric keys, it
also has buttons for quickly switching on the selected surveillance mode (day,
night, full) and triggering three alarms: panic, fire, help.
Two-way coded communication with the controller takes place in the band
frequency of 868MHz
The PRF-LCD-A2 has a built-in card reader and proximity tags used to operate
the alarm system. With their help, it is possible to fully arm, disarm, and
clear the alarm as well control of devices connected to the alarm system
outputs.
The main source of power supply for the keypad are two CR123A 3 V batteries.
Their condition is constantly monitored. The device works in wake and sleep
mode (save energy when idle). For extra To reduce energy consumption, it is
possible to disable the proximity card reader. The manipulator can be powered
externally by connecting a 5 V DC power supply, e.g. APS-055, to it. Then it
behaves similarly to wired ones LCD keypads, i.e. it is constantly awake. In
this case, the batteries are only used when there is a power loss external.
PARAMETERS AND FUNCTIONS OF THE MANIPULATOR
- cooperation with the PERFECTA 64 M control panel
- work as part of the ABAX 2 wireless system - required for connection to
the control panel ACU-220 or ACU-280 controller (version 6.06 or newer)
- two-way encrypted radio communication in the 868 MHz frequency band
- range of radio communication in open space: up to 800 m
- large, easy-to-read LCD display with configurable status screen
- display and key backlight
- LEDs informing about the current state of the system
- proximity card and key fob reader
- quick activation of the selected standby mode using function keys
- FIRE, HELP, PANIC alarms triggered from the keyboard
- built-in piezoelectric transducer for sound signaling
- remote software configuration and update
- indication of loss of communication with the PBX
- tamper protection against opening the housing and against tearing it off
the mounting surface
- power:
-
- two 3V CR123A batteries (required)
- APS-055 5V DC power adapter (optional)
