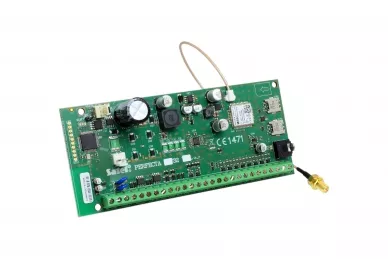

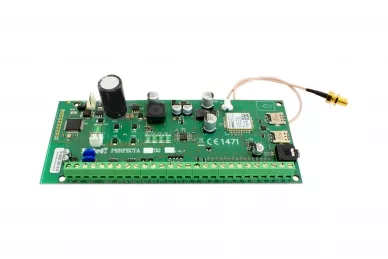

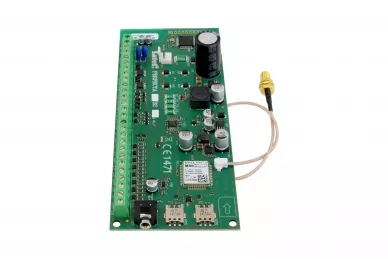

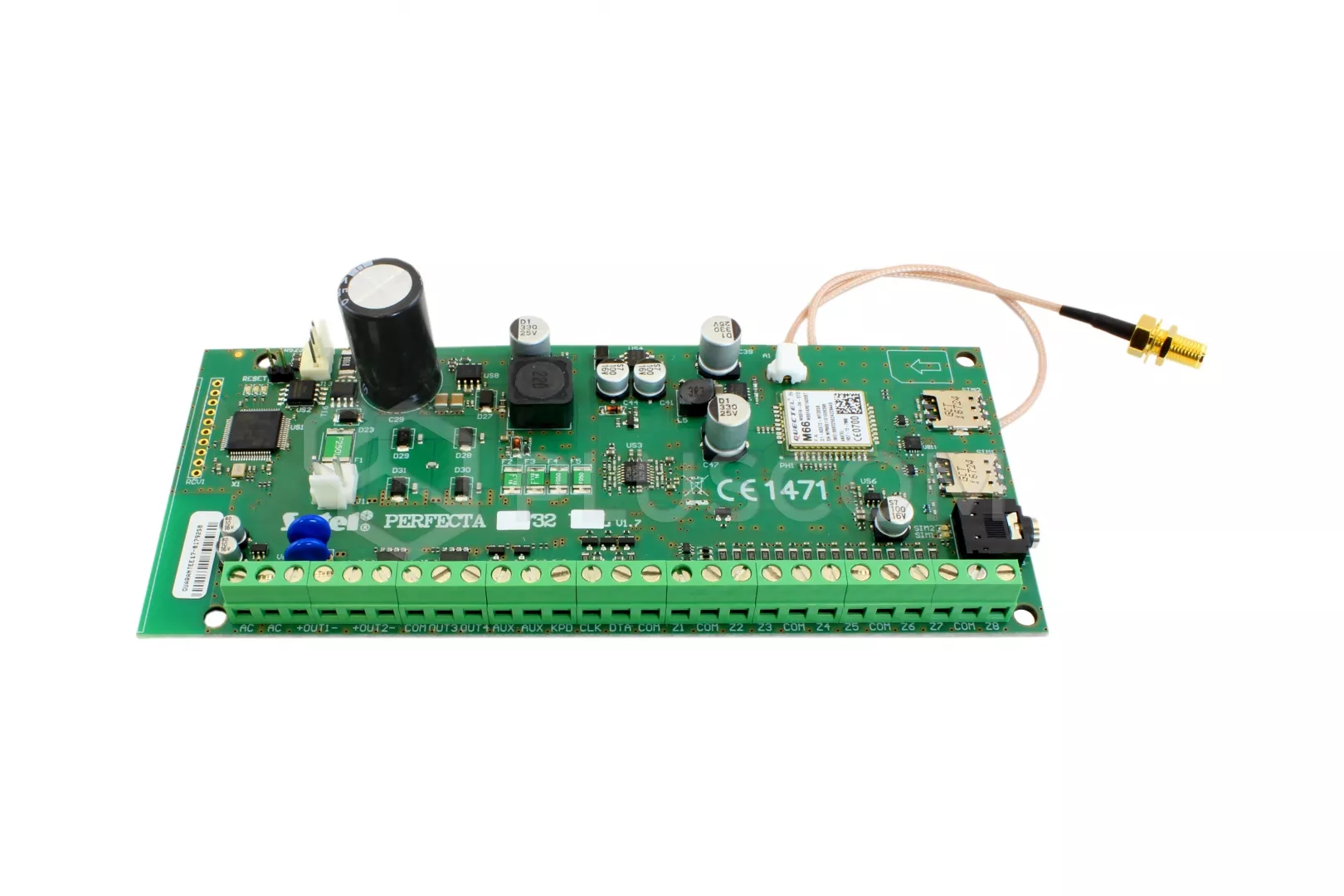

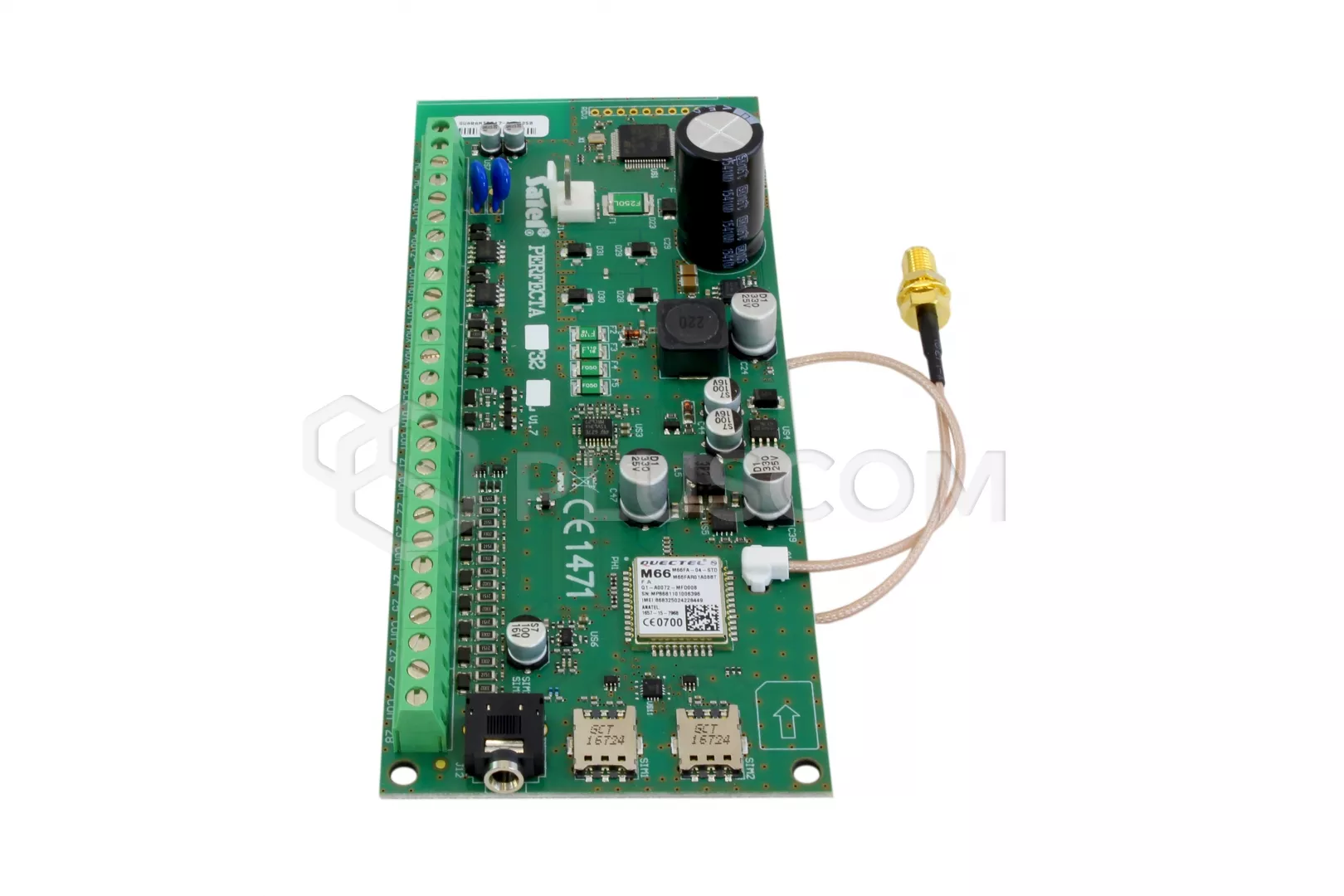

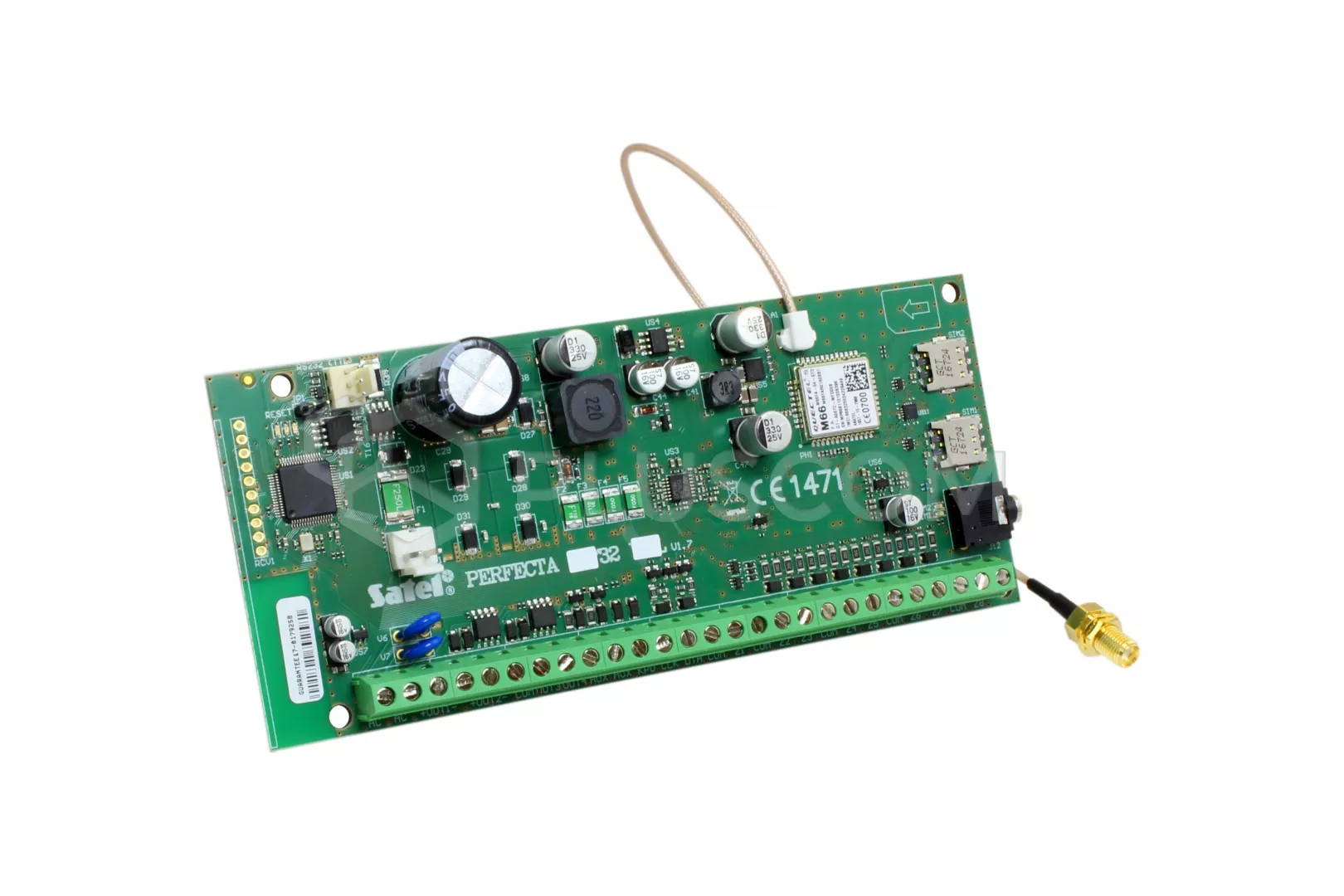

Satel PERFECTA 32 LTE Control panel with GSM/LTE

Satel PERFECTA 32 LTE Control panel with GSM/LTE

The control panel is intended for alarm installations in small buildings, apartments, small houses, commercial premises summer houses. Allows for construction traditional wired system. Alarm system based on the PERFECTA control panel it is distinguished by simple configuration, intuitive operation and convenient control. The control panel provides protection in accordance with the requirements of Grade 2 EN 50131
System configuration can be done by:

• computer with PERFECTA Soft program installed
• remotely - thanks to data transmission from the cellular network and using the keypad

CONTROL PANEL PARAMETERS AND FUNCTIONS

• 8 programmable hardwired inputs on board

• • expansion to 32 using INT-E expanders
  • configuration selection NO, NC, EOL, 2EOL/NO, 2EOL/NC
  • support for roller shutter and vibration detectors
• 4 programmable hardwired outputs on board
• • extension to 12 using the INT-O expander
  • two power outputs
• 2 partitions witch 3 arming modes in each partition
• 8 timers with exceptions setting capability

• built-in modules:
• • cell phone with 2 nano-SIM slots
  • voice module
  • audio alarm verification module

• local system operation by means of PRF-LCD wired keypads (max 4 pcs)
• support up to 15 users + 1 service
• memory of 3584 events
• built-in switch-mode power supply
• • over-current protection
  • battery deep discharge protection
  • battery charging current control
• ANT-LTE-O antenna included

The control panel works with a wide range of wired detectors and optical and acoustic signaling devices from SATEL, to increase the number zones / outputs in the control panel, you can use the INT-E, INT-O or INT-ORS expanders.

The PERFECTA control panel is a very functional device. You can set up quickly carry out from the manipulator. Convenient access to all functions from everyone space is possible through the PERFECTA Soft program. Program using a modern intuitive interface guides you step by step creating installations.

KEYPAD FOR PERFECTA CONTROL PANEL
