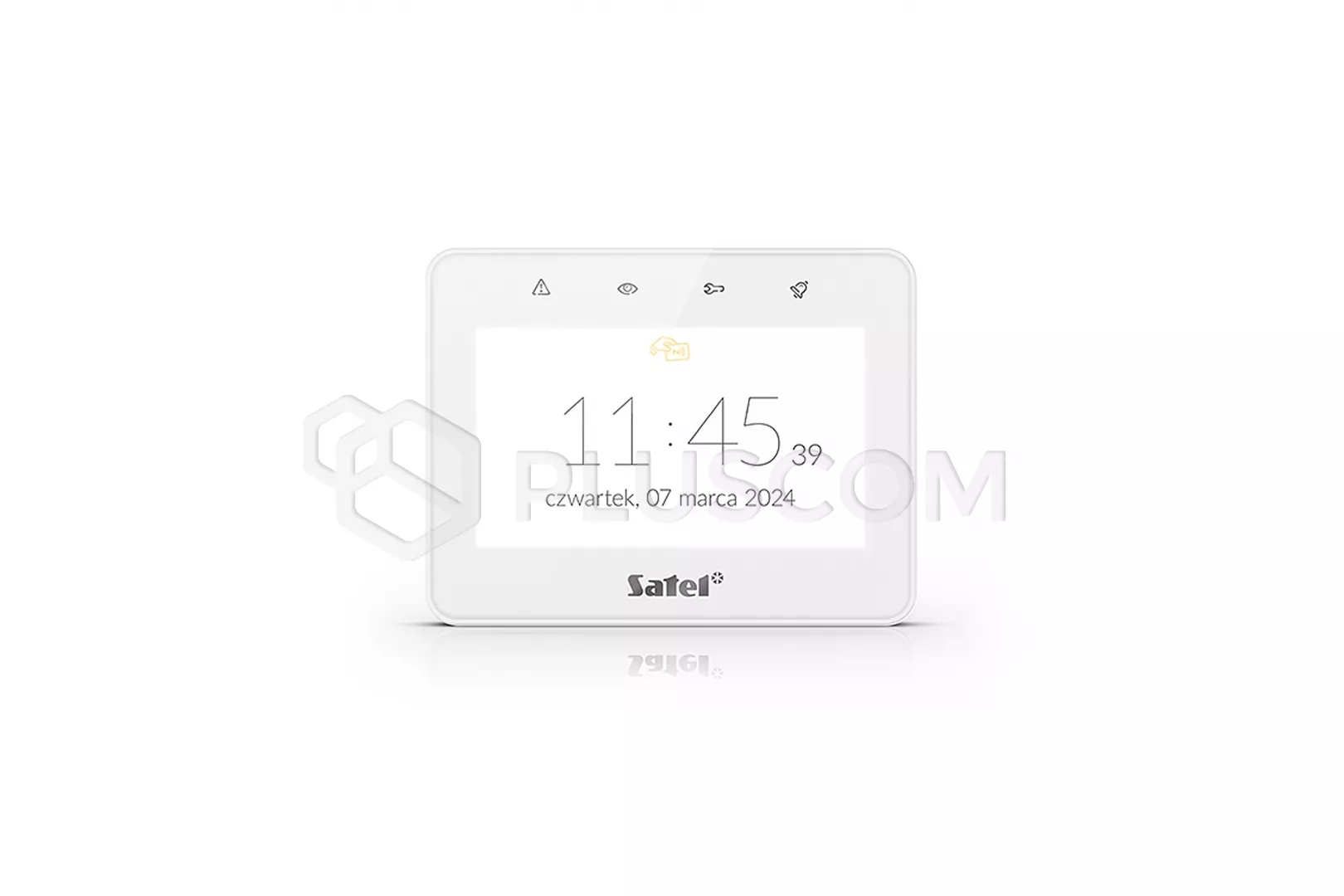

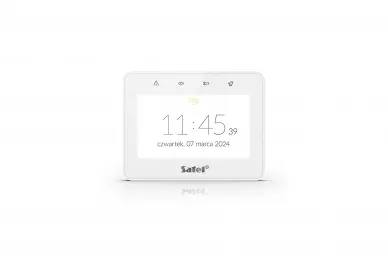

Satel INT-TSG2R-W Manipulator with 4.3" touch screen - white
The
INT-TSG2R-W keypad is used to operate and program the control panels INTEGRA,
INTEGRA Plus, VERSA and PERFECTA 64 M. It is an ideal solution for people who
expect convenience during everyday control of the alarm system and elements of
building automation, including the KNX system. The combination of a large one
display and universal design make this device perfect fits into both modern and
traditionally decorated interiors.
The multi-screen and multi-level interface allows you to build a menu in such a
way that keep it transparent, which allows you to easily find the functions you
are looking for. Thanks to gesture support, navigating the interface is smooth
and, above all, everything – intuitive.
INT-TSG2R-W has a built-in reader thanks to which you can...
convenient way to control INTEGRA system functions, without the need to use a
password
The device has as many as 24 screens, and each of them can be grouped icons,
for example, thematically or in relation to a specific room. The appearance of
icons can be freely adjusted to the function assigned to them.
Features:
- 4.3'' capacitive glass touchscreen with gesture support
- resolution 480 x 272
- multi-level graphical interface adapted to your needs user
- up to 24 user screens
- ability to configure and adapt interface screens to your needs user
- over 20 ready-made graphic themes with the option of creating your own
composition
- widgets enabling keypad operation and alarm system control and automation
devices connected to the alarm control panel
- system control using MAKRO commands activating in the control panel a
number of various functions (including building automation)
- possibility of quickly triggering the ATTACK, FIRE, HELP alarms
- cooperation with INTEGRA and INTEGRA Plus control panels (INTEGRA
Firmware 1.20 or newer), VERSA (VERSA Firmware 1.10 or newer) and PERFECTA 64
M
- screensaver with the ability to display the clock, date and status system
elements (zones, zones, outputs), temperatures (INTEGRA, INTEGRA Plus,
PERFECTA 64 M)
- possibility to display a slide show (photo frame function)
- indicators of the current system status located on the housing
- 2 programmable wired inputs (only supported by control panels INTEGRA and
INTEGRA Plus)
-
- support for NO and NC type detectors and roller shutter detectors
vibration
- support for EOL, 2EOL and 3EOL configurations (3EOL in case of
cooperation with INTEGRA Plus control panel)
- programming the values of parametric resistors
- built-in buzzer for sound signaling
- possibility to adjust the signaling volume
- possibility to adjust the backlight with "day/night"
division
- built-in microSD memory card reader (storing photos up to photo frames,
additional screen backgrounds, sounds for input violations - gongs)
- tamper contact reacting to opening the housing and removing it from the
wall
- GRADE 3
The new generation processor used in the manipulator is more than twice as
powerful faster compared to previous models. All the components stayed selected
and optimized to ensure effective service even complex systems, covering both
the issue of facility protection and automation functions.
