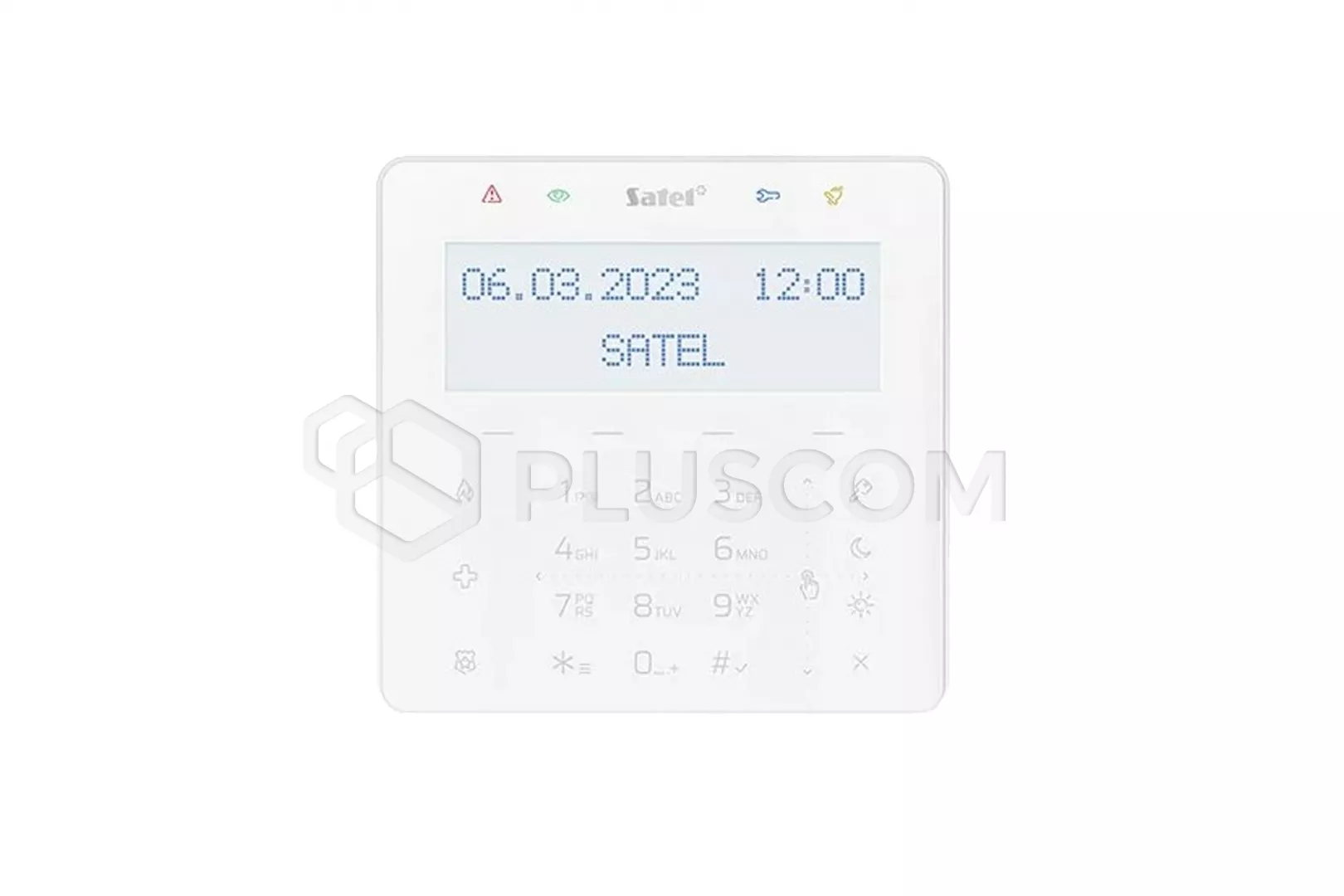

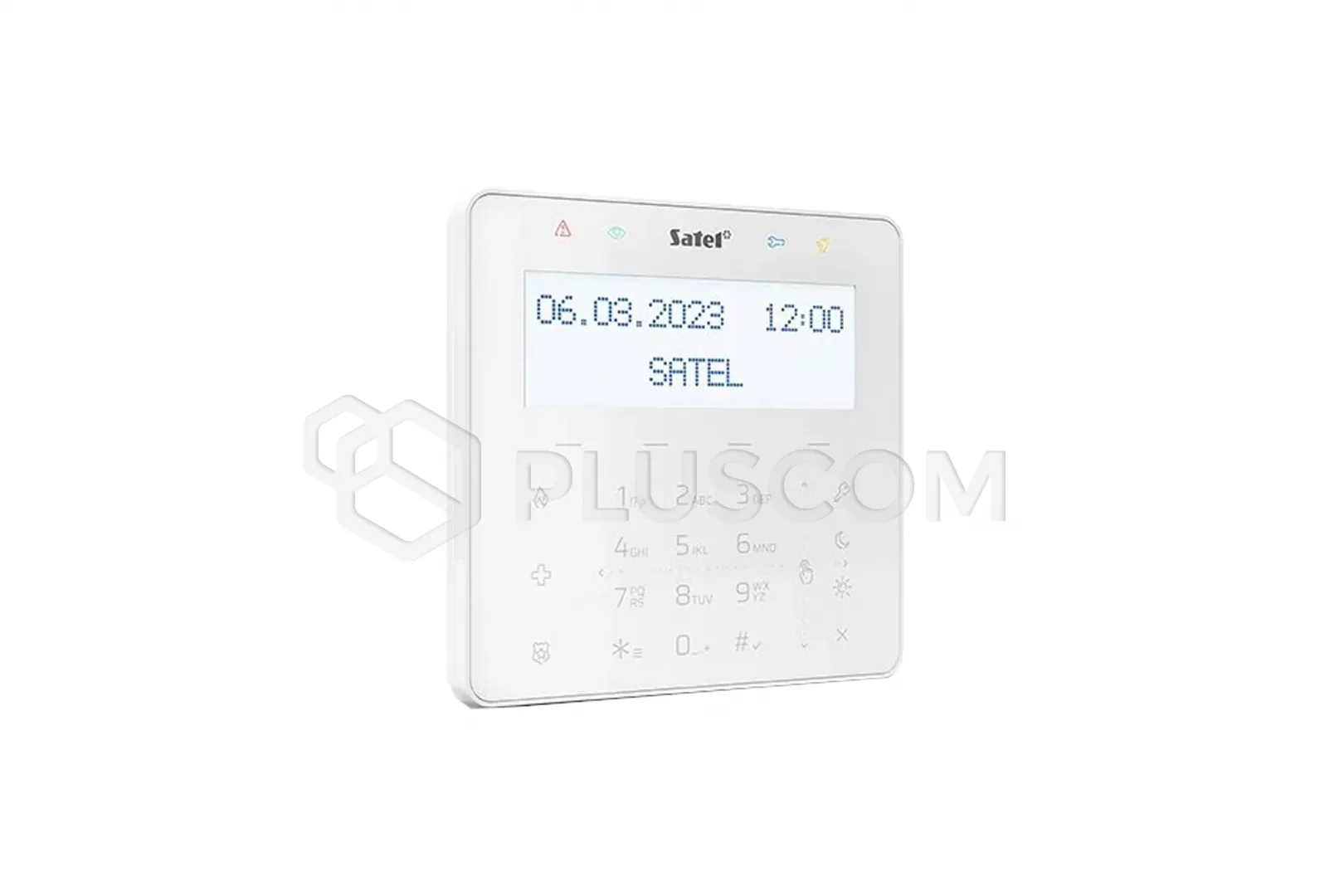

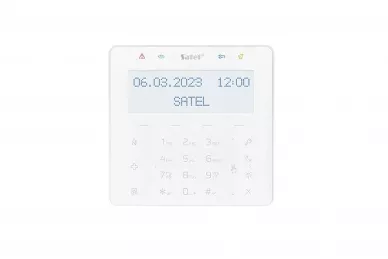

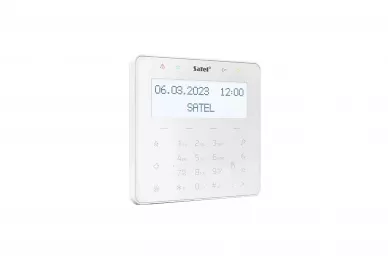

Satel INT-KSG2R-W Keypad with a touch keyboard (white)

Satel INT-KSG2R-W - Keypad with touch keypad

The INT-KSG2R-W keypad is equipped with a touch keyboard and a large display that provides system status information, a at the same time, it facilitates the operation and programming of the alarm system.
The display can operate in one of the following modes:

• standby mode (basic operating mode)
• zone status preview mode
• saver mode

The keypad is used to operate and program the INTEGRA i series control panels INTEGRA Plus, as well as the PERFECTA 64 M control panel and is distinguished by many features:

• large graphic display with backlight
• configurable screensaver with the ability to display the clock, date, states system elements (zones, inputs, outputs), temperatures
• backlit touch keyboard:
• • 12 keys, marked in accordance with the telephone standard, intended for data entry
  • 4 function keys (INTEGRA: selection of functions; PERFECTA 64 M: arming / disarming)
  • 3 keys to trigger an alarm (fire / help / panic)
  • 4 keys to run macro commands
  • Swipe gesture support (menu navigation)
• controlling the system using macro commands running in the control panel a number of various functions (including building automation)
• built-in MIFARE proximity card reader (supported by z INTEGRA series) - for future applications
• LEDs informing about the current state of the system
• built-in piezoelectric transducer for sound signaling
• 2 programmable hardwired zones (only supported by the control panel INTEGRA and INTEGRA Plus):
• • support for NO and NC type detectors as well as roller shutter detectors i
  • Supports EOL, 2EOL and 3EOL configurations (3EOL for PBXs) INTEGRA Plus)
  • programmable value of parametric resistors
• possibility of connecting to the RS-485 bus (software update via bus)
• tamper protection against opening the housing and tearing it off the substrate

MACRO COMMANDS
A macro command is a sequence of actions to be performed by the control panel. They simplify the operation of the alarm system. Instead of performing multiple operations (e.g. to arm the selected partitions), you can start macro command, and the control panel will perform the functions assigned to the macro command.
