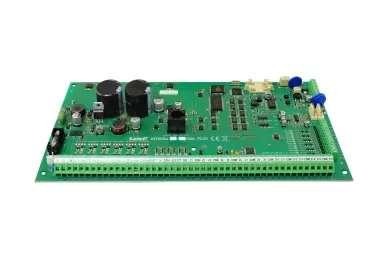

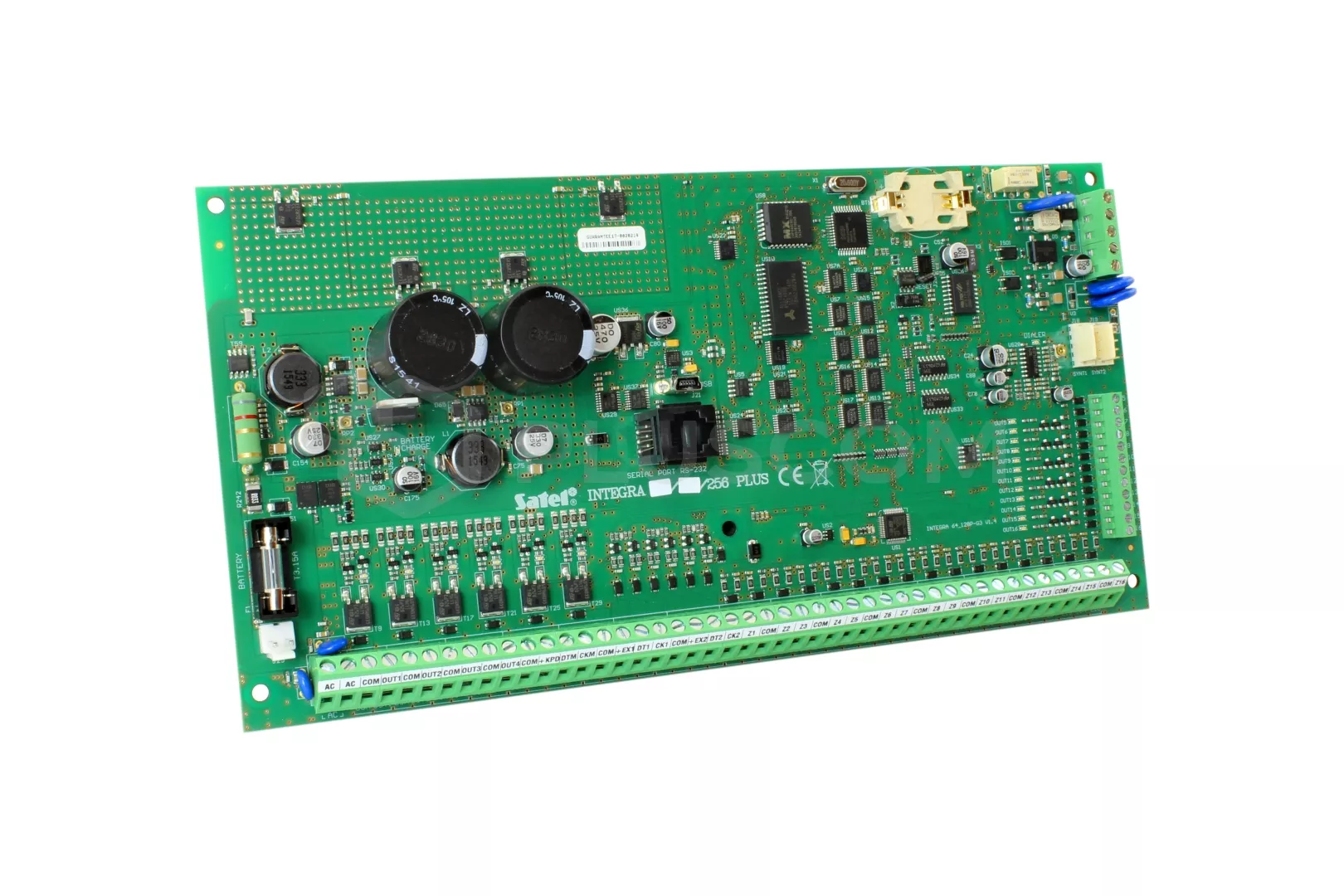

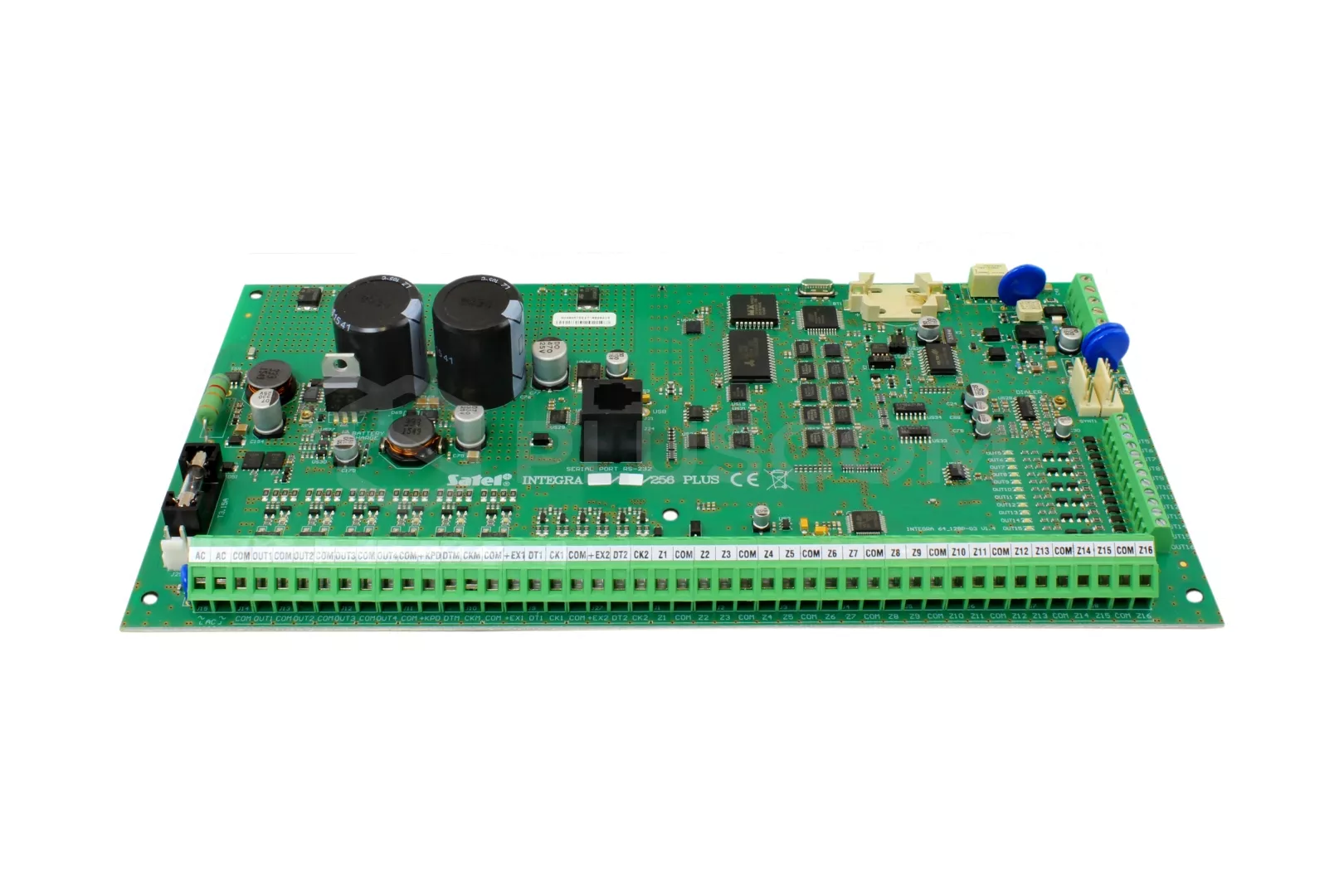

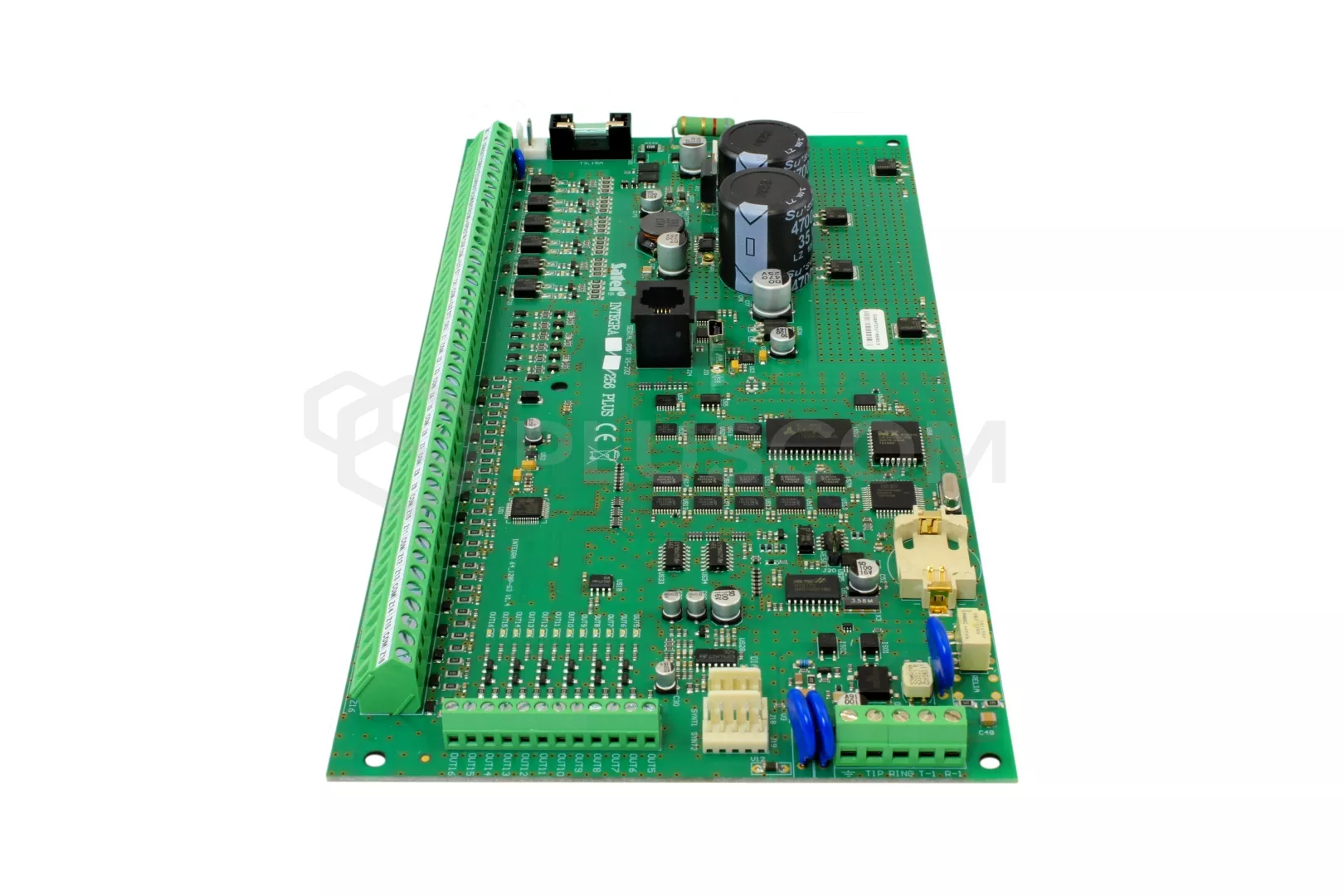

Satel INTEGRA 256 Plus Control panel from 16 to 256 zones Grade 3

Satel INTEGRA 256 Plus Control panel from 16 to 256 zones Grade 3

The control panel's menu in English and Polish

Thanks to their full compliance with the EN50131 Grade 3 requirements, the INTEGRA Plus series control panels provide a perfect solution for implementing advanced security systems in facilities subject to considerable burglary risk, e.g. jewellery shops or public utility buildings. These control panels ensure extended functionalities, which allow to use them to implement access control systems or even smart building systems.

Control panel feature:

• full compliance with the EN50131 series standards for Grade 3 devices
• in-built advanced 2A+1.5A power supply with extended diagnostic functions
• supports up to 256 inputs with a possibility to program parametric resistance and operate 3EOL lines (only motherboard inputs)
• USB for programming by means of a PC
• possibility to divide a system into 32 zones and 8 partitions
• extension to 256 programmable outputs
• communication buses to connect keypads and extension modules
• in-built phone communicator with monitoring, voice messaging and remote control functions
• system operation by means of LCD keypads, zone keyboards, keyfobs and proximity cards or remote control via computers or mobile phones
• 64 independent automatic control timers
• access control and home automation functions
• memory capacity - 24575 events, with a printout function
• operation of 240+8+1 users
• possibility of software updates by means of a computer
