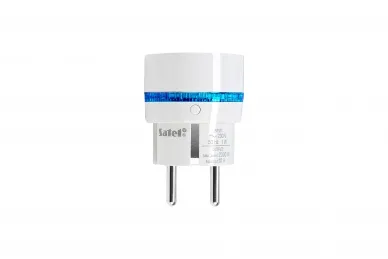

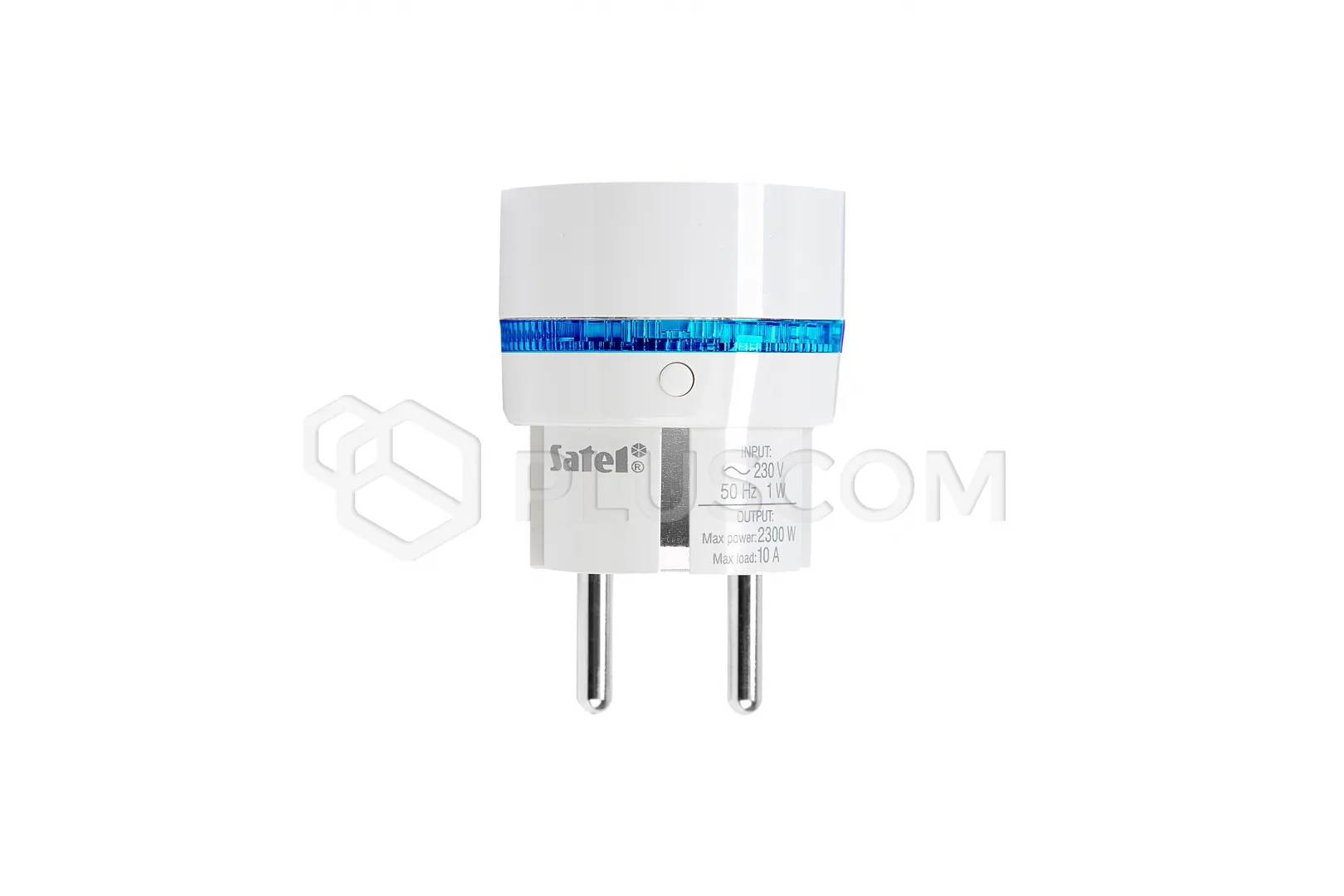

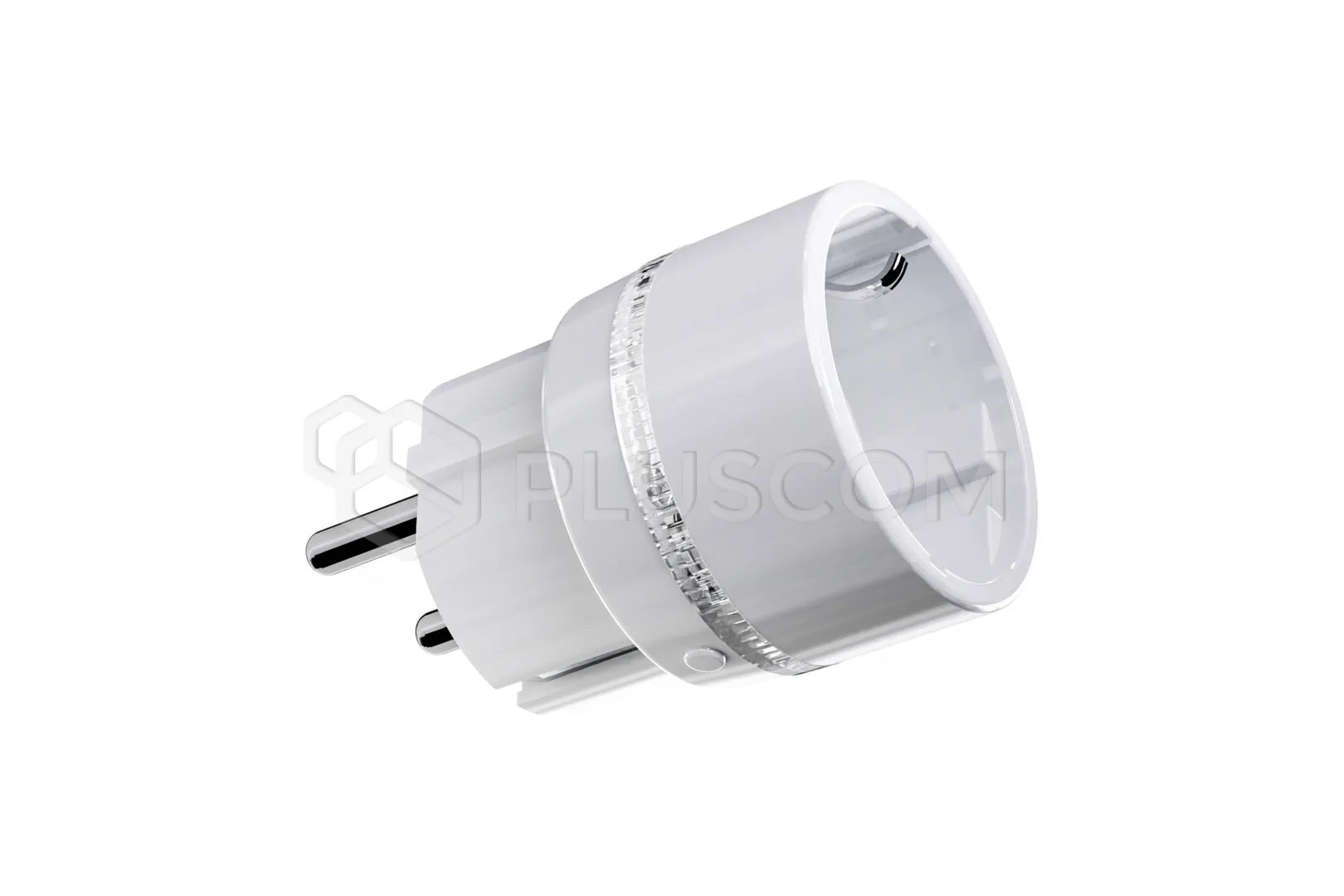

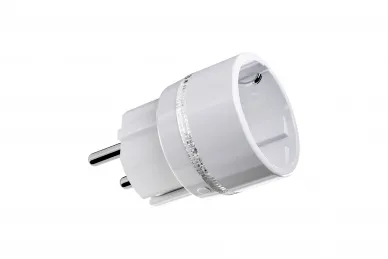

Satel ASW-200 F-W Smart Plug

77,85 EUR including 23.00% VAT
Product code: #42444
Manufacturer: Satel
  • Type F socket (SCHUKO)
  • Współpraca: BE WAVE, ABAX 2
  • The power of the connected device up to 2300 W
  • LED Ring
  • Meets the requirements of EN 50130-4 and EN 50130-5
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Satel ACU-220 ABAX 2 Wireless system controller Satel ACU-280 ABAX 2 Wireless system controller ARU-200 radio signal retransmitter

Satel ASW-200 F-W Smart Plug


ASW-200 F-W is a smart plug that allows you to remotely turn on and off connected devices. The plug is designed to work within the two-way wireless system ABAX 2/ABAX.

FEATURES:

  • control of electrical devices with a power of up to 2300 W
  • encrypted two-way radio communication in the 868 MHz frequency band (AES standard)
  • diversification of transmission channels - 4 channels enabling automatic selection of the one that will allow transmission without interference with other signals in the 868 MHz frequency band
  • remote update of the plug-in software
  • remote configuration
  • LED indicator for signaling
    • possibility of presenting the current consumption of the connected device
    • information about failure
    • possibility of completely turning off the indicator
    • special button for configuring settings indicator
  • software protection against overload and overheating
  • ASW-200 is supported by:
    • ABAX 2:
      • ACU-220/ACU-280 controller
      • ARU-200 retransmitter
    • ABAX:
      • ACU-120/ACU-270 controller
      • ARU-100 retransmitter
      • INTEGRA 128-WRL control panel

  • TECHNICAL DATA:

    • Power supply voltage: 230 V AC, 50 Hz
    • Operating frequency band: 868.0 ÷ 868.6 MHz
    • Maximum power consumption: 1.37 W
    • Radio communication range (in open area) for ABAX: up to 500 m
    • Radio communication range (in open area) for ABAX 2: up to 1000 m
    • Rated current (resistive load): 10 A
    • Power consumption in standby mode: 0.73 W
    • Maximum humidity: 93±3%
    • Environmental class according to EN50130-5: II
    • Standards met: EN 50130-4, EN 50130-5
    • Operating temperature range: -10°C...+55°C
    • Dimensions: ø45 x 67 mm
    • Weight: 60 g
