Roger Technology SLED HIGH SPEED Kit

2230,71 EUR including 19.00% VAT
Product code: #40574
Manufacturer: Roger Technology
  • Leaf length up to 1.8m
  • Opening time to 90°: 6-30s
  • 36V engine power supply
  • Technology IPU
  • Perfect for narrow posts and gates
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SL/LED/RGB RGB LED strip Roger Technology F70/IPU36/BOX/SL Control unit Roger Technology F70/IPU36/BOX Control unit Roger Technology B73/RGB RGB LED Strip Management Module Roger Technology LT341 Sliding arm for SLED series Roger Technology LT340 Articulated arm for SLED series

Roger Technology SLED Set with 36V HIGH SPEED brushless motor drive for gates with narrow posts and for wickets

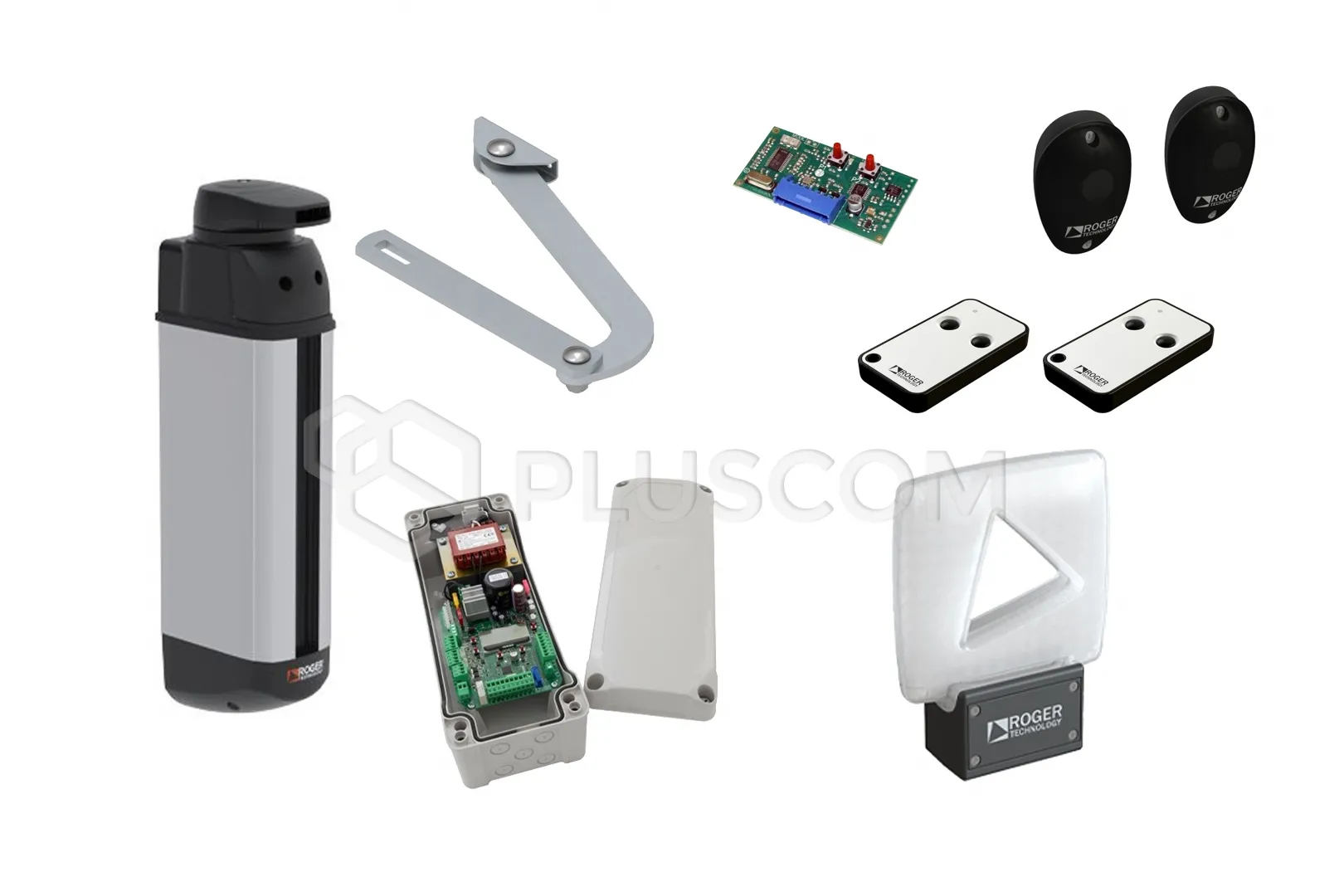

The set consists of:
Roger Technology SLED 36V HIGH SPEED Brushless Motor Drive Kit

Roger Technology SLED 36V HIGH SPEED Brushless Motor Drive Kit
SL/180/R brushless actuator with 36V IPU HIGH SPEED motor with built-in control unit and digital encoder and plate for screwing to post. It is designed for automation of swing gates and wickets with a maximum length of 1.8 meters.
The HIGH SPEED version ensures quick opening in the range of 6-30 seconds depending on the dimensions of the wing, which makes it ideal for intensive use without time limits.
Thanks to the mechanical limiter with a sliding arm and an innovative three-stage planetary gear, the actuator ensures reliability and precision of operation.

The actuator set is enriched with two 2-channel copying remote controls E80/TX52R/2 with a fixed code, a set of R90/F2ES photocells, based on infrared technology and a FIFTHY/24/ 24V LED signal lamp with a built-in 433.92MHz antenna that increases the range of the remote controls.
The elegant and aesthetic appearance with a white lampshade gives the lamp great visibility on the gate.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 36V
  • Nominal power: 200 W
  • Use frequency: Intensive
  • Force: 150 N
  • Gear motor type: Non-self-locking
  • Speed: 0.6- 6.6 rpm
  • Opening time to 90°: 6 - 30 s
  • Limit switches: Mechanical limit switches for opening and closing with LT341
  • Control unit: F70/IPU36
  • Encoder: Built-in digital + magnetic digital SENSORED, 48 pulses per revolution
  • Number of cycles per day (opening/closing - 24h non-stop): unlimited cycles
  • Operating temperature: -20°C to +55°C
  • Protection class: IP 44
  • Dimensions: 102 x 492 x 144.5 mm
  • Weight: 13.7 kg
