Roger Technology SL/180/R Brushless Motor Drive 36V HIGH SPEED

Roger Technology SL/180/R Brushless 36V HIGH SPEED motor drive for gates with narrow posts and for wickets

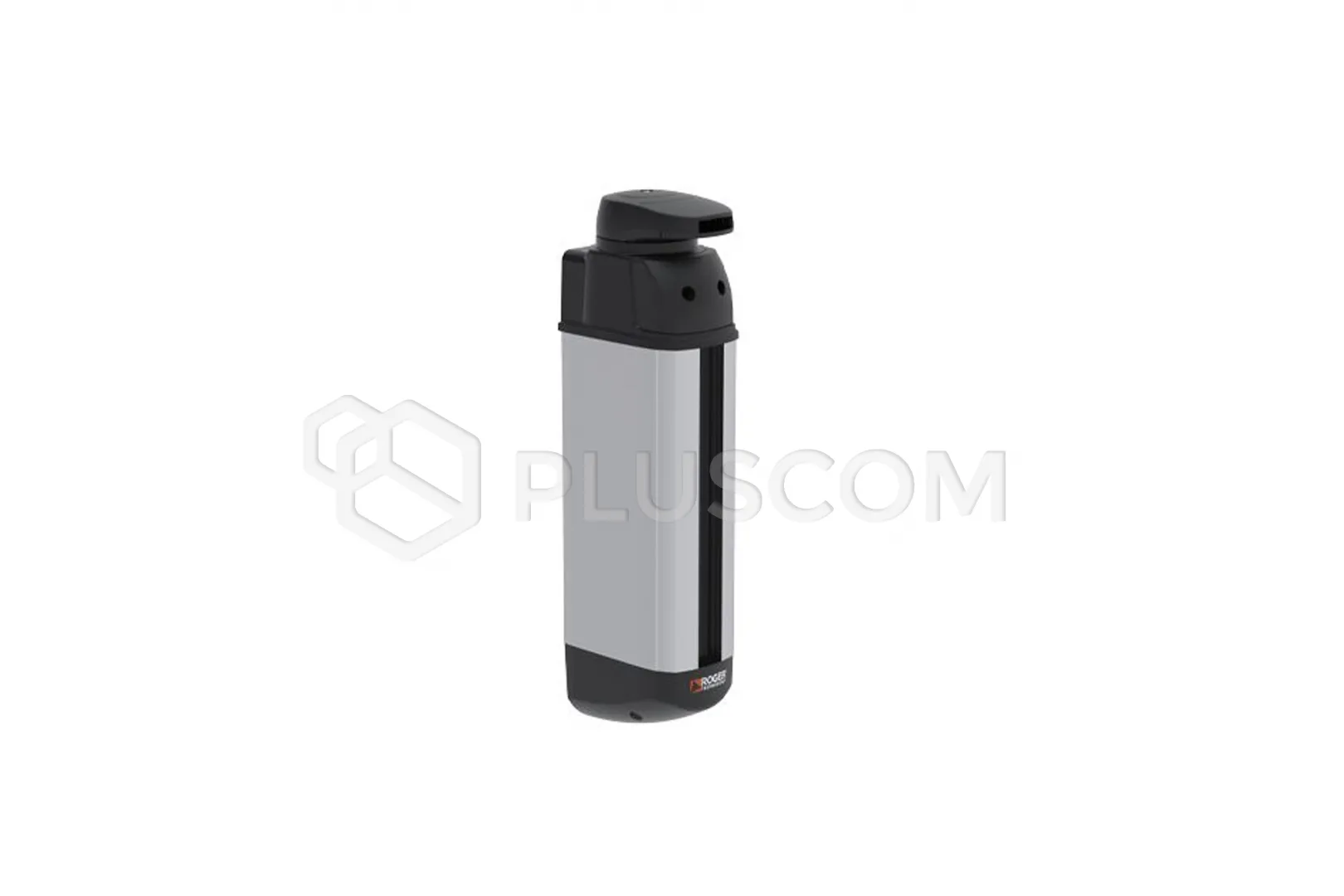

SL/180/R brushless actuator with 36V IPU HIGH SPEED motor with built-in control unit and digital encoder and plate for screwing to the post. It is designed to automate swing gates and wickets with a maximum length of 1.8 meters.
The HIGH SPEED version ensures quick opening in the range of 6-30 seconds depending on the dimensions of the wing, which makes it ideal for intensive use without time limits.
Thanks to the mechanical limiter with a sliding arm and an innovative three-stage planetary gear, the actuator ensures reliability and precision of operation.

FEATURES:

• Ideal for narrow posts and gates
• Mechanical limiter for opening and closing with sliding arm
• Three-stage planetary gear
• Non-self-locking drive
• Digital control unit without relays in IPU technology
• Digital encoder management
• High operating culture
• Very low energy consumption

The new Roger Technology IPU system, thanks to its intelligence control module, can manage all digital brushless motors using a single digital controller. Thanks to the new technology, it is able to separately control two different drives, always maintaining maximum work culture, safety and their efficiency.

TECHNICAL DATA:

• Mains power supply: 230V AC 50Hz
• Motor power supply: 36V
• Nominal power: 200 W
• Use frequency: Intensive
• Force: 150 N
• Gear motor type: Non-self-locking
• Speed: 0.6- 6.6 rpm
• Opening time to 90°: 6 - 30 s
• Limit switches: Mechanical limit switches for opening and closing with LT341
• Control unit: F70/IPU36
• Encoder: Built-in digital + magnetic digital SENSORED, 48 pulses per revolution
• Number of cycles per day (opening/closing - 24h non-stop): no cycle limit
• Operating temperature: -20°C to +55°C
• Protection class: IP 44
• Dimensions: 102 x 492 x 144.5 mm
• Weight: 13.7 kg
