Roger Technology R90/F2ES Complete set of photocells with synchronization

59,16 EUR including 23.00% VAT
Product code: #33306
Manufacturer: Roger Technology
  • Power: 12/24V AC 50Hz - 12/24V DC
  • Range: max. 15m
  • Relay version
  • For devices with classic PHOTO/STOP input
  • Max. 2 pairs of photocells in one system
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology CRA/100 Column for G90 photocells, height 100cm Roger Technology CRA/BAR Side column for G90 photocells 53cm Roger Technology CFT501 Set of columns for R90 photocells Roger Technology CFT500 Set of columns for R90 photocells Roger Technology R90 HOLDER R90 photocell holder Roger Technology DEF/01 Complete set of vandal-proof housings Roger Technology CRA/50 Column for G90 photocells, height 50cm

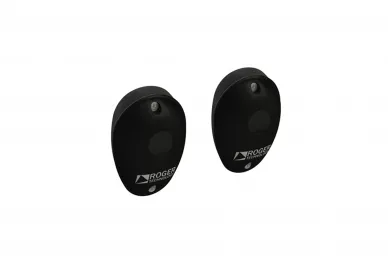

Roger Technology R90/F2ES Complete set of photocells with synchronization


Synchronized photocells based on infrared technology, which enable obstacle detection on the optical axis between the transmitter and receiver photocells.
Classic relay version used for devices with a classic PHOTO/STOP input.
Possibility to install up to 2 pairs of photocells in one system.

They are designed for mounting on flat and parallel mounting surfaces, which allows for proper centering between the TX and RX photocells.
Aluminum columns with a height of 50 or 100 cm can be used for mounting.

TECHNICAL DATA:

  • Power supply: 12/24V AC/DC 50 Hz
  • Range: 10-15 m
  • Max. relay contact voltage: 30V
  • Protection class: IP 55
  • Operating temperature: -20°C to +55°C
  • Dimensions: 88 x 62 x 27 mm
  • Weight: 0.1 kg
Download
User manual 2.1 MB
