Roger Technology SET SMARTY5 Set

2964,24 EUR including 23.00% VAT
Product code: #40982
Manufacturer: Roger Technology
  • Leaf length up to 5m
  • Engine power supply 36V
  • Mechanical limiter for opening and closing
  • To full wings
  • 2 x E80/TX52R/2 remote control, R90/F4ES photocells and FIFTHY/24/OR lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack

Roger Technology SET SMARTY5 for double-leaf gates up to 5m long per leaf

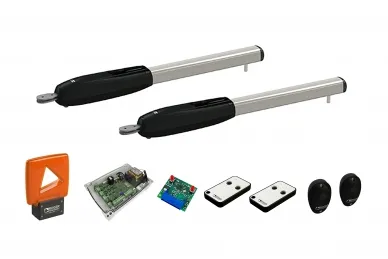

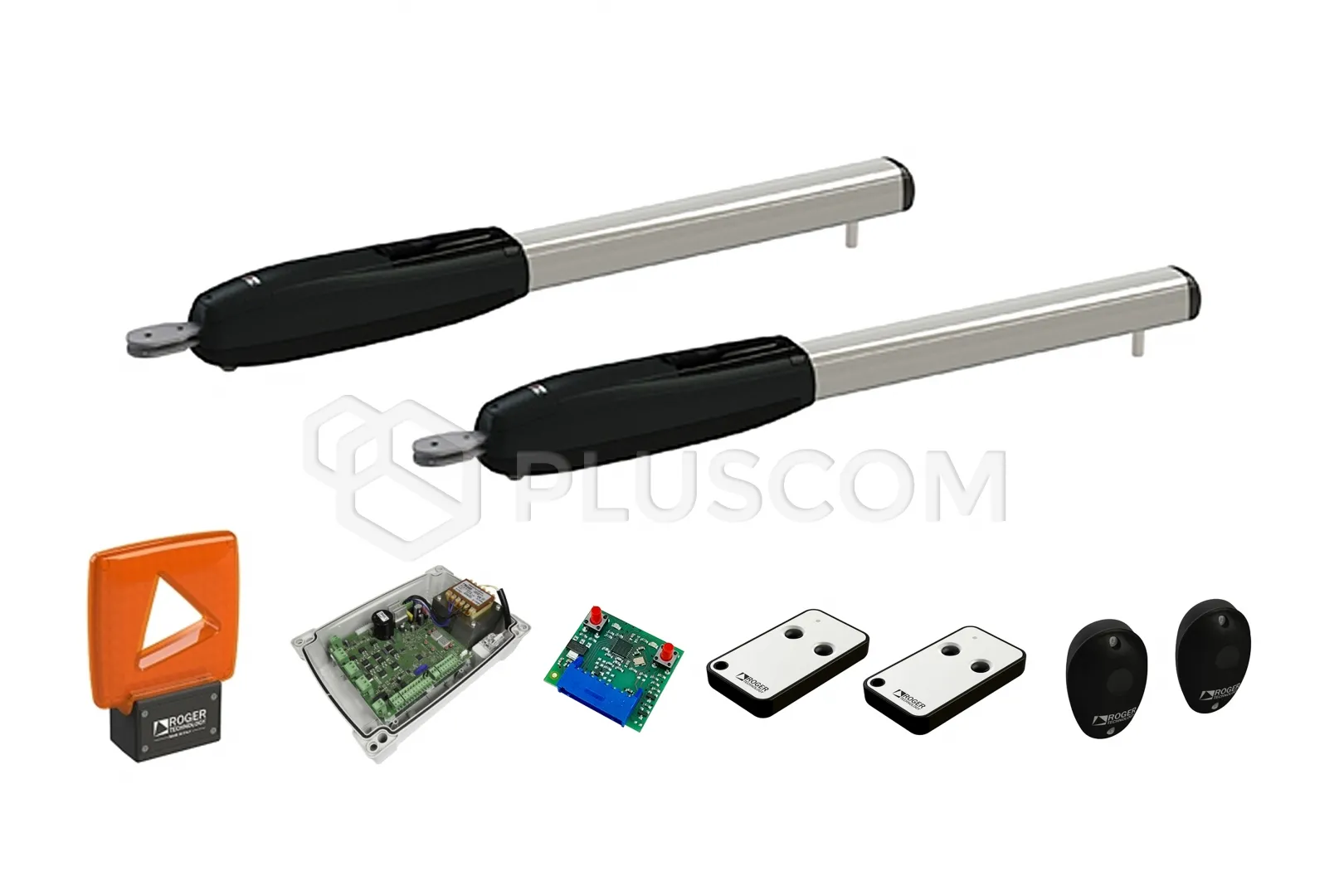

The set consists of:
Roger Technology SET SMARTY5 Set

Roger Technology SET SMARTY5 Set
BRUSHLESS motor drive powered by low voltage, for super-intensive use, irreversible. Designed for swing gates with a leaf length of up to 5m, with mechanical stops when opening and closing.
Includes a bracket for screwing to the post and a bracket for mounting to the leaf.

FEATURES:

  • 36V brushless motor
  • Super intensive use -1000 cycles per day
  • Mechanical limiter for opening and closing
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital encoder management
  • 7000 N force
  • For full wings
  • High work culture
  • Very low energy consumption
The actuator set is enriched with two 2-channel E80/TX52R/2 copying remote controls with a fixed code, a set of photocells R90/F4ES, based on infrared technology and LED signal lamp FIFTHY/24/OR 24V with built-in 433.92MHz antenna increasing the range of the remote controls.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 36V
  • Nominal power: 200 W
  • Force: 600-7000 N
  • Speed: 1.6 cm/s
  • Opening time to 90°: 25-40 s
  • Stroke: 370 mm
  • Number of cycles per day: 1000
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (48 pulses per revolution)
  • Protection class: IP 44
  • Operating temperature: -20°C to +55°C
  • Dimensions: 1312 x 116 x 165 mm
  • Weight: 17.1 kg
