Roger Technology SMARTY5 36V Brushless Motor Drive

1058,66 EUR including 23.00% VAT
Product code: #40568
Manufacturer: Roger Technology
  • Leaf length up to 5m
  • Engine power supply 36V
  • Mechanical limiter for opening and closing
  • To full wings
  • For very intensive work
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology EDGE1/BOX Control unit for 2 brushless motors 36V DC

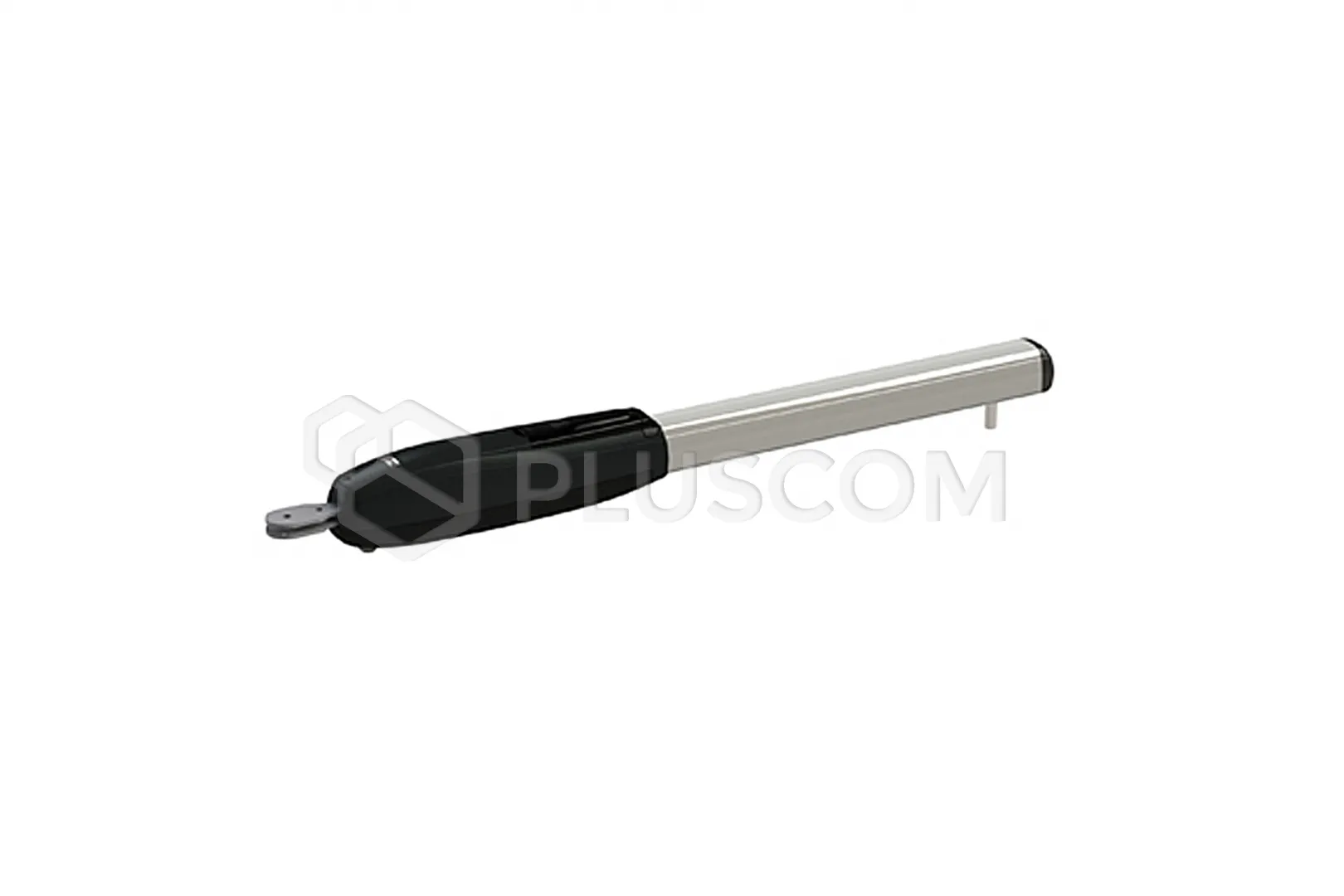

Roger Technology SMARTY5 Drive with a 36V brushless motor for swing gates up to 5m


Drive with a BRUSHLESS motor powered by low voltage, for super-intensive use, irreversible. It is designed for swing gates with a leaf length of up to 5m, with mechanical stops when opening and closing.
Includes a bracket for screwing to the post and a bracket for mounting to the leaf.

FEATURES:

  • 36V brushless motor
  • Super intensive use -1000 cycles per day
  • Mechanical limiter for opening and closing
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital encoder management
  • 7000 N force
  • For full wings
  • High work culture
  • Very low energy consumption

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 36V
  • Nominal power: 200 W
  • Force: 600-7000 N
  • Speed: 1.6 cm/s
  • Opening time to 90°: 25-40 s
  • Stroke: 370 mm
  • Number of cycles per day: 1000
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (48 pulses per revolution)
  • Protection class: IP 44
  • Operating temperature: -20°C to +55°C
  • Dimensions: 1312 x 116 x 165 mm
  • Weight: 17.1 kg
