Roger Technology SET R23/373/F SET FULL

1774,80 EUR including 23.00% VAT
Product code: #40616
Manufacturer: Roger Technology
  • Leaf length up to 3.5m
  • Leaf weight up to 400kg
  • Engine power supply 230V
  • For very wide posts

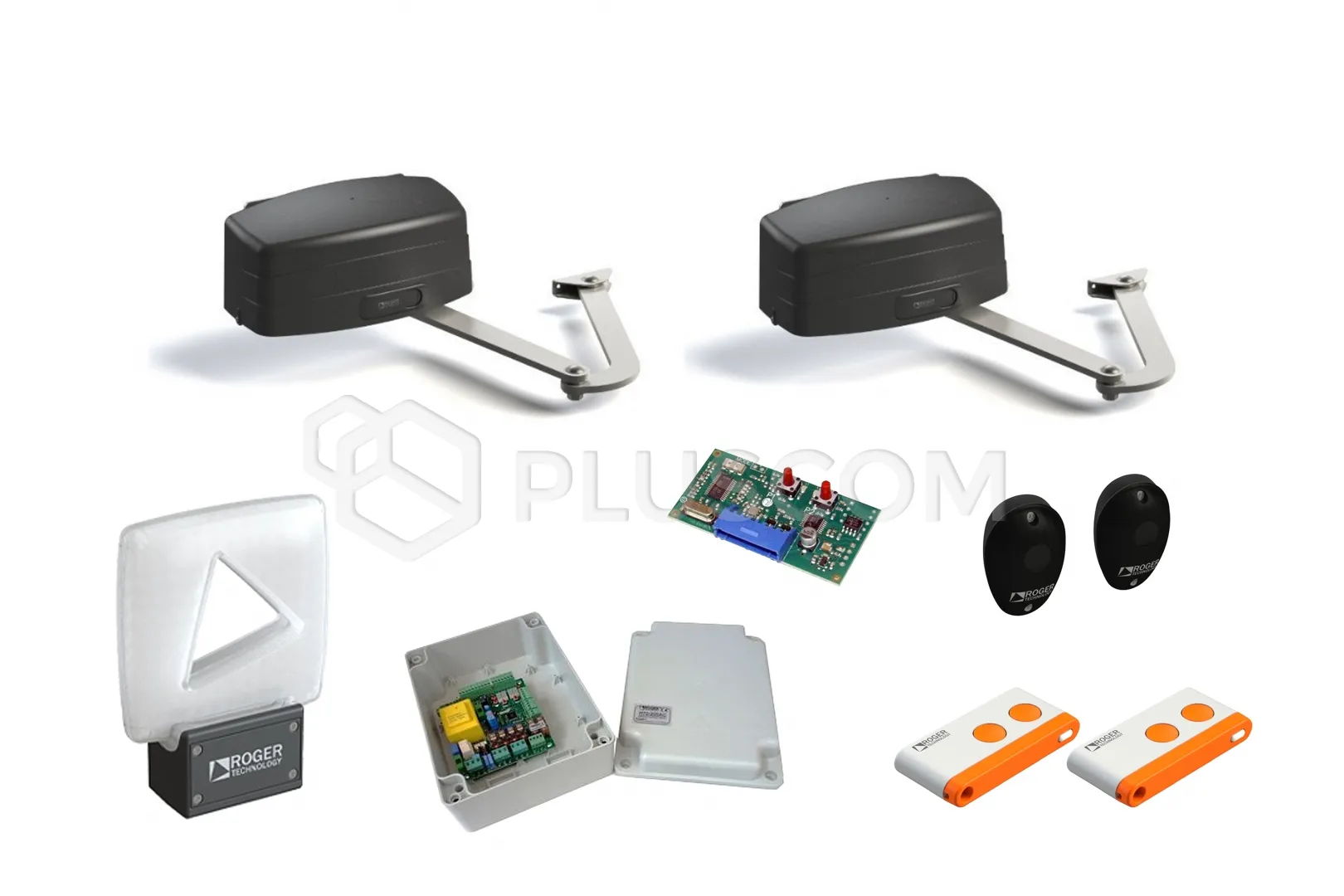

  • 2 x 2-channel remote controls T80/TX2, R90/F2ES photocells, FIFTHY/230 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology LT303 Long arm, articulated Roger Technology LT302 Short arm, articulated

Roger Technology SET R23/373/L SET LIGHT set with a 230V asynchronous motor drive for swing gates up to 3.5m


The set consists of:
Roger Technology SET R23/373/F SET FULL

Roger Technology SET R23/373/F SET FULL
Drive with a 230V AC asynchronous motor, with a folding arm, for very intensive work. Adapted for mounting on very wide posts, even up to 50 cm hinge mounting depth.

FEATURES:

  • Intensive use
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Optical encoder
  • For very wide posts, dimension B = 500 mm (with optional arm LT303)
  • Drive unlocking secured with a personalized key
  • Control unit with LED display
  • Soft start and slowdown
The actuator set is enriched with two 2-channel T80/TX2 fixed code / rolling code remote controls operating at a frequency of 433.92MHz and a set of R90/F2ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230 V AC - 50 Hz
  • Motor power supply: 230 V AC
  • Nominal power: 200 W
  • Use frequency: 50%
  • Force: 400 N
  • Gear motor type: Irreversible
  • Speed: 1.5 rpm
  • Opening time to 90°: 14 s
  • Limit switches: Microswitch limiters for opening and closing
  • Motor thermal protection: 150°C
  • Capacitor: 10uF
  • Control unit: H70/200AC
  • Operating temperature: -20°C / +55°C
  • Protection class: IP43
  • Weight: 13.6 kg
