Roger Technology SET BR21/354/F Set

2319,71 EUR including 23.00% VAT
Product code: #33356
Manufacturer: Roger Technology
  • Leaf length: max 3m
  • Leaf weight: max 400kg
  • Engine power supply 36V
  • For intensive work

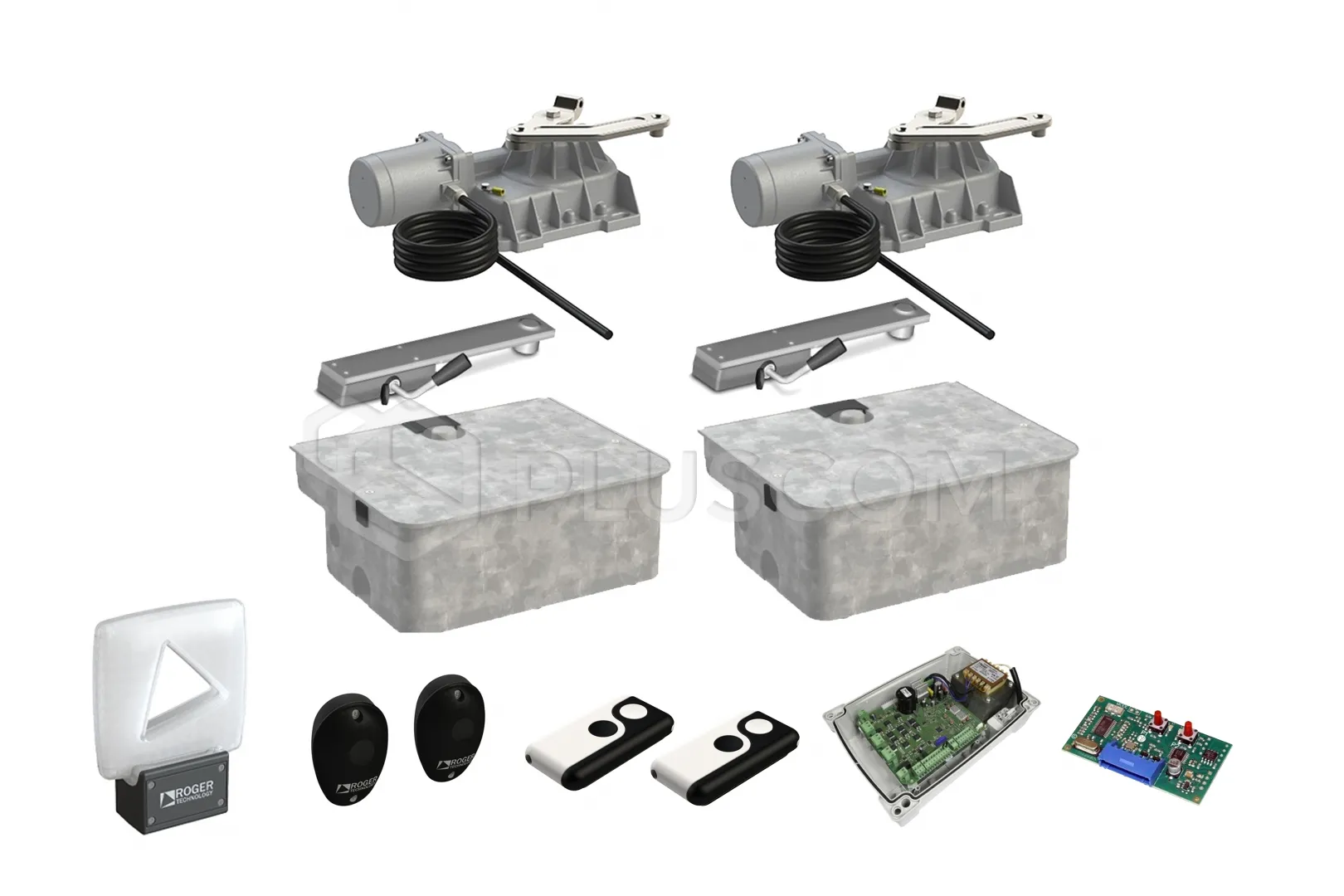

  • 2 x SYNUS/2 remote control, R90/F4ES photocells, EDGE1/BOX control unit, FIFTHY/24 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology FU100 Galvanized steel housing and cover Roger Technology EDGE1/BOX Control unit for 2 brushless motors 36V DC Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack Roger Technology RL651 Key Unlock Roger Technology LT301 Chain Gear Kit Roger Technology LT300 Gate opening lever kit Roger Technology FU103 Housing and cover made of stainless steel INOX 304 Roger Technology FU102 Galvanized housing and stainless steel cover INOX 304

Roger Technology SET SET BR21/354/L for double-leaf gates up to 3m long and weighing up to 400kg


The set consists of:
Roger Technology SET BR21/354/F Set

Roger Technology SET BR21/354/F Set
The biggest advantage of underground actuators is the aesthetics and discretion of the drive, which is invisible and does not spoil the image of the gate.
The second significant advantage of underground drives is the possibility of installation in a place where, due to:
  • narrow entrance
  • very narrow posts where the A dimension is less than 100mm
  • there is no space for the installation of screw drives or with a folding arm
BR21/351/HS is an underground actuator that allows you to make a stylish and discreet automation installation for gates with a leaf length of up to 3m and a weight of 400kg.

The drive is with a 36V brushless motor, for very intensive work - 1300 cycles per day.
The opening time to 90° is 10-25 s. The device has a built-in digital encoder and mechanical limiters for opening and closing. Gears made of metal alloys, without plastic, without Teflon, without nylon. Digital encoder management. It is characterized by quiet and fast operation and a solution that does not interfere with the appearance of the gate.
The actuator is characterized by quiet operation, low energy consumption and a solution that does not interfere with the appearance of the gate.

TECHNICAL DATA:

  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 36V
  • Nominal power: 200W
  • Use frequency: Intensively used
  • Motor torque: 50 - 200 N m
  • Operating temperature: -20+55°C
  • Protection class: IP67
  • Gear motor typology: irreversible
  • Speed: 2 Rpm
  • Opening time: 10-25 s
  • Switches: Mechanical limiters
  • Recommended digital controllers: 230V: EDGE1/BOX - 115V: EDGE1/BOX/115
  • Encoder: Built-in digital SENSORLESS, 48 pulses per revolution
  • Maximum aperture: 105° (optional 125° - 360°)
  • Number of cycles per day (opening / closing - 24h non-stop): 1300
  • Dimensions: 345 x 224 x 144mm
  • Weight: 12.8kg
