Roger Technology KIT R20/510/F KIT FULL

1248,60 EUR including 23.00% VAT
Product code: #33252
Manufacturer: Roger Technology
  • Leaf length up to 3.5m
  • Leaf weight up to 400kg
  • Engine power supply 230V AC
  • Adjustable pole mount and mounting bracket included
  • 2 x 2-channel remote controls T80/TX2, R90/F2ES photocells, FIFTHY/230 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology MC780 Mechanical switches R20 (2 pcs) Roger Technology MC770 Limit Switch

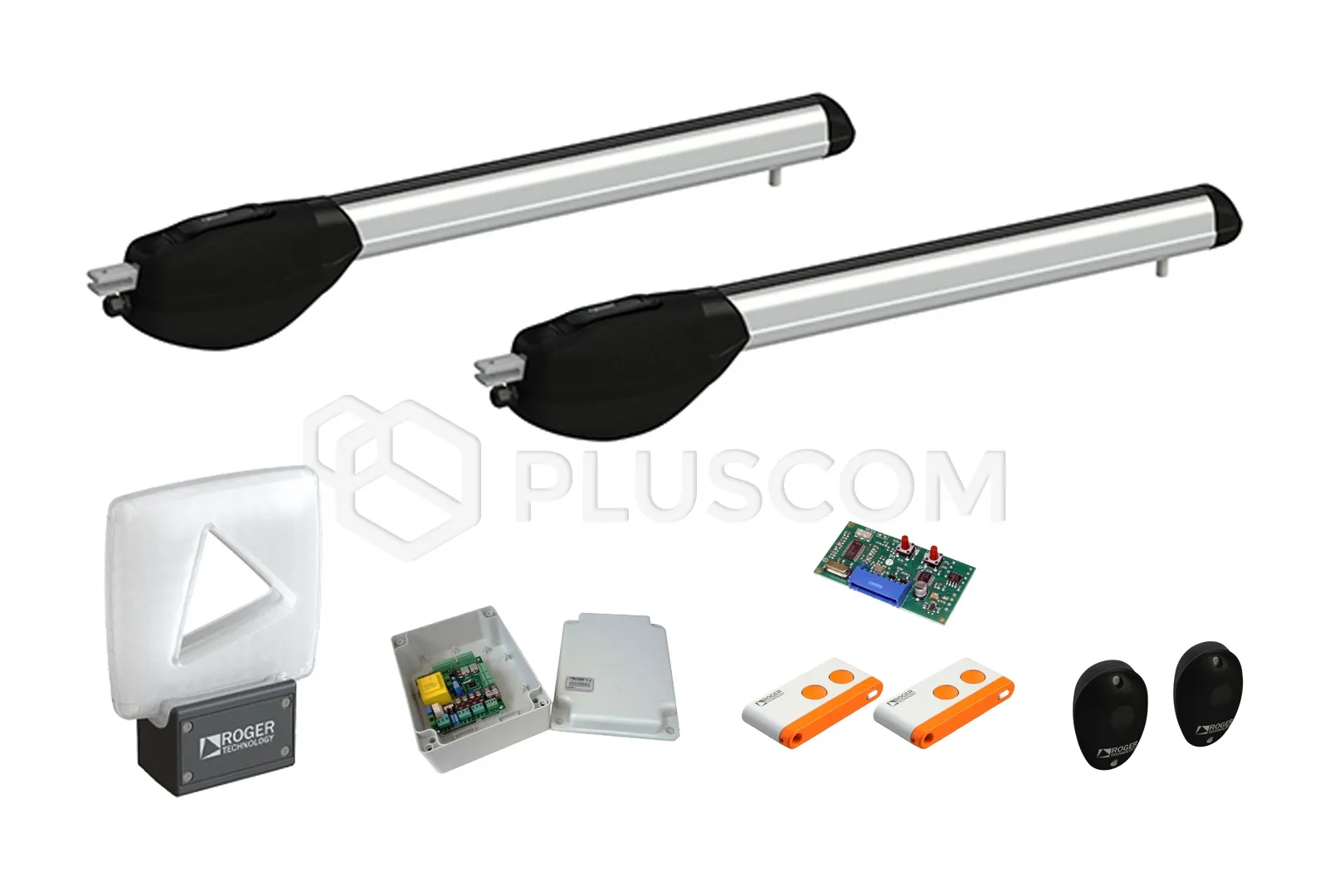

Roger Technology KIT R20/510/F SET FULL with 230V motor drive for swing gates up to 3.5m


The set consists of:
Roger Technology KIT R20/510/F KIT FULL

Roger Technology KIT R20/510/F KIT FULL
Swing gate actuators equipped with asynchronous motors with a voltage of 230 V AC and a frequency of use of 40%. For use in swing gates with a maximum length of 3.5 meters. Thanks to the opening limit switch and the gear made of metal alloys, the actuators ensure precise and failure-free operation.
They are equipped with a mounting bracket for the wing, an adjustable bracket for screwing to the post and the screw pitch is 520 mm.
Easy and safe solution for unlocking the drive, secured with a personalized key.

FEATURES:

  • 230 V AC motor
  • 40% usage frequency
  • Opening limit switch
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • For wide posts (c=19cm)
The actuator set is enriched with two 2-channel T80/TX2 remote controls with fixed code/rolling code operating at a frequency of 433.92MHz, a set of R90/F2ES photocells, based on infrared technology and a FIFTHY/230 230V LED signal lamp with a built-in 433.92MHz antenna.

TECHNICAL DATA:

  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 230V AC
  • Rated power: 200W
  • Use frequency: 40%
  • Pulling force: 2500N
  • Gear motor typology: Irreversible
  • Speed: 1.66 cm/s
  • Opening time: 27 s
  • Stroke: 520 mm
  • Motor temperature: 140°C
  • Built-in capacitor: 15 µF
  • Switches: Microswitch when opening (optional when closing)
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Dimensions: 1088 x 120 x 165 mm
  • Weight: 10.6 kg
