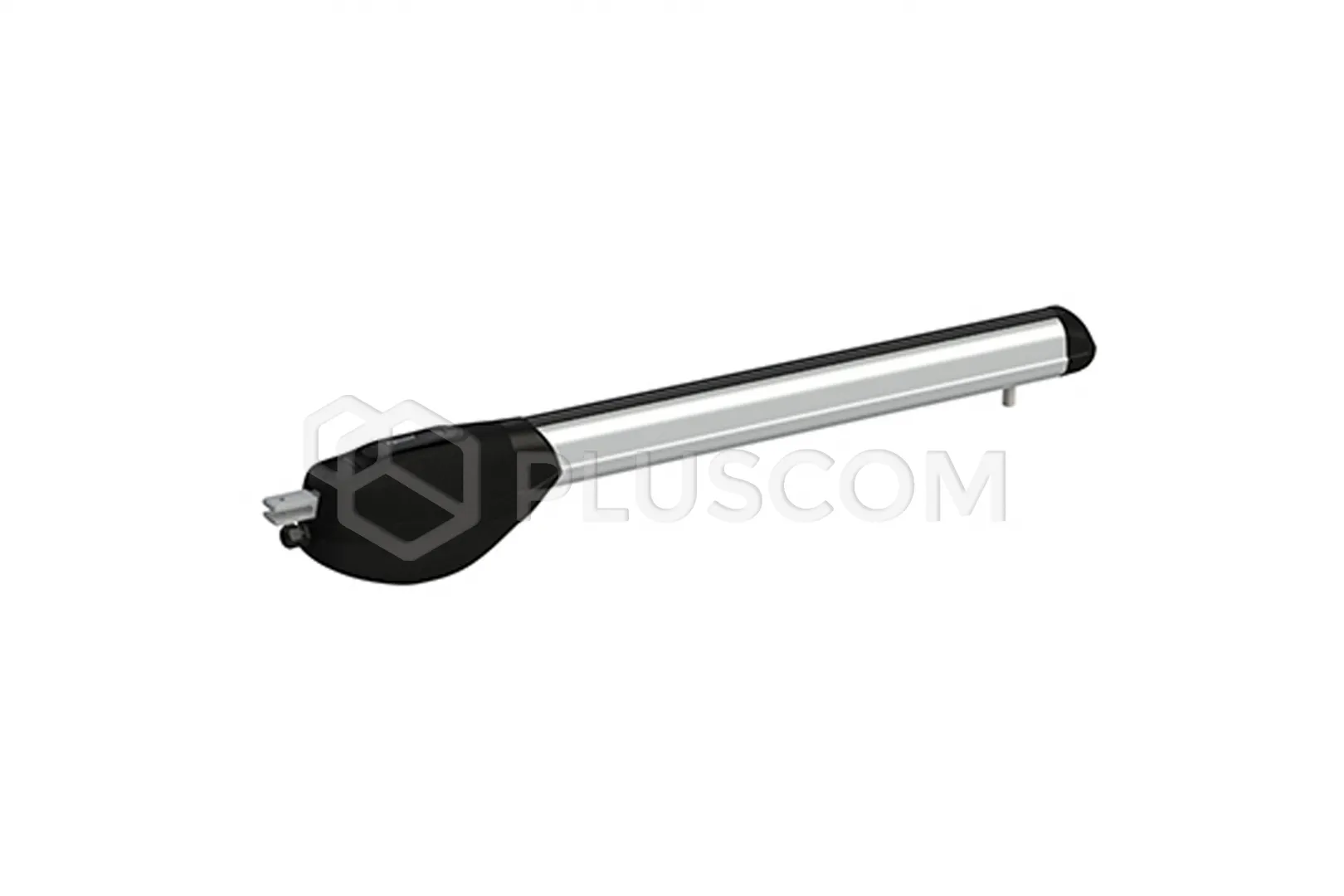

Roger Technology R20/500 Drive with 230 V motor

513,38 EUR including 20.00% VAT
Product code: #40566
Manufacturer: Roger Technology
  • Leaf length up to 3.5m
  • Leaf weight up to 400kg
  • Engine power supply 230V AC
  • Microswitch limiters for opening
  • Adjustable pole mount and mounting bracket included
Delivery and tax:
France metropolitan VAT: 20.00% change
Shipping cost from:
12,76 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology MC780 Mechanical switches R20 (2 pcs) Roger Technology MC770 Limit Switch Roger Technology H70/200AC/BOX Control unit for 2 230V AC motors

Roger Technology R20/500 Drive with 230 V motor


The R20/500 swing gate actuator is equipped with a 230 V AC asynchronous motor with a usage frequency of 40%. It is for use in swing gates with a maximum length of 3.5 meters. Thanks to the opening limit switch and the gear made of metal alloys, this actuator ensures precise and failure-free operation.
The actuator is equipped with a mounting bracket for the wing, adjustable bracket for screwing to the post and the screw pitch is 520 mm.
Easy and safe solution for unlocking the drive, secured with a personalized key.

FEATURES:

  • 230 V AC motor
  • Use frequency 40%
  • Opening limit switch
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • For wide posts (c=19cm)

TECHNICAL DATA:

  • Mains power supply: 230V AC - 50Hz
  • Motor power supply: 230V AC
  • Rated power: 200W
  • Use frequency: 40%
  • Pulling force: 2500N
  • Gear motor typology: Irreversible
  • Speed: 1.66 cm/s
  • Opening time: 27 s
  • Stroke: 520 mm
  • Motor temperature: 140°C
  • Built-in capacitor: 15 µF
  • Switches: Microswitch when opening (optional when closing)
  • Operating temperature: -20°C / +55°C
  • Protection class: IP44
  • Dimensions: 1088 x 120 x 165 mm
  • Weight: 10.6 kg
