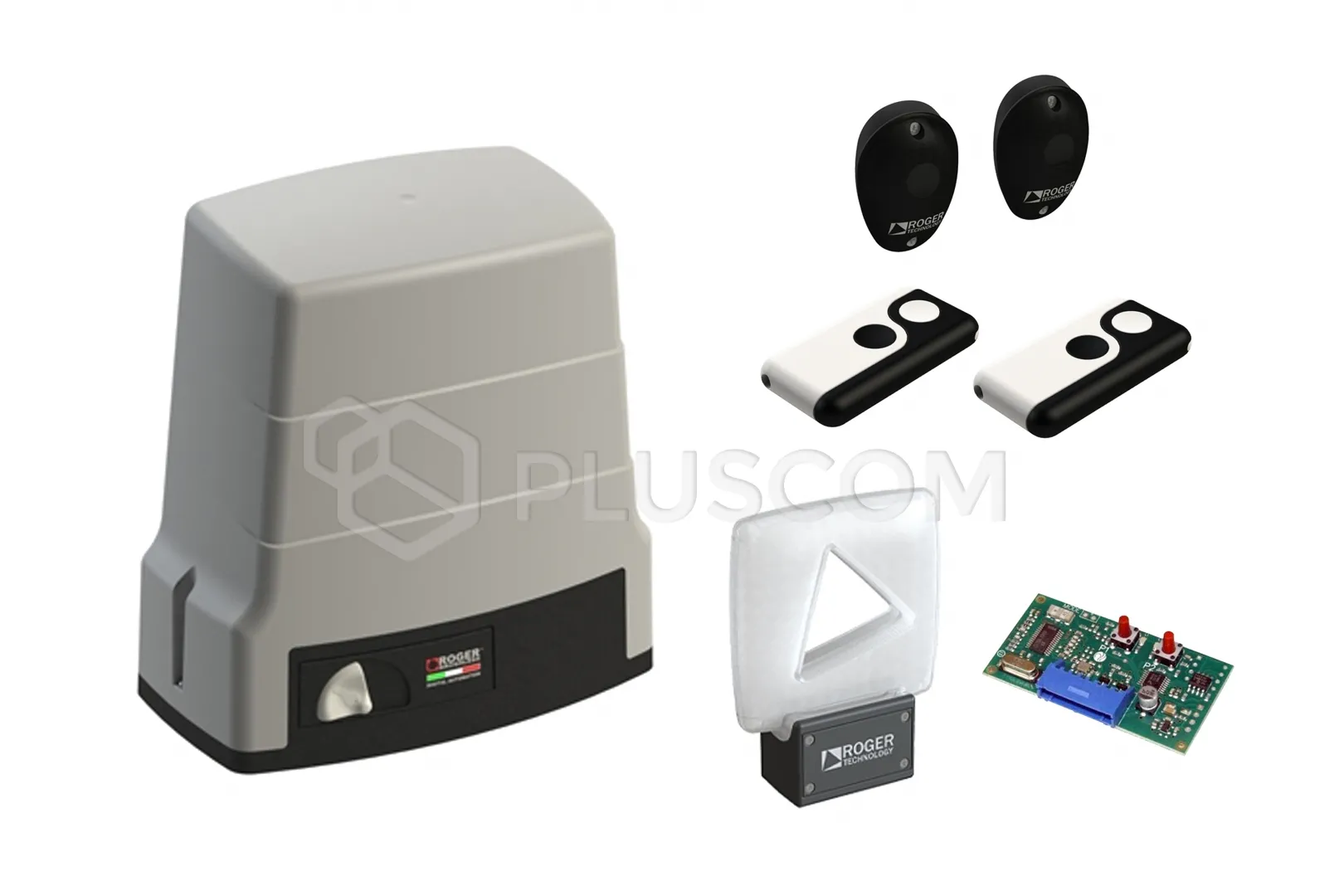

Roger Technology KIT BH30/806/F KIT FULL

1099,46 EUR including 22.00% VAT
Product code: #33230
Manufacturer: Roger Technology
  • gate weight: up to 1000kg
  • 24V engine
  • built-in B70/1DC control unit
  • speed: 12 m/min
  • 2 x 2-channel remote controls SYNUS/2, R90/F2ES photocells, FIFTHY/24 lamp
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology POST BASE Adjustable base for H30 drives Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology B71/BC Battery Charging Card Roger Technology B70/1DC Control unit with 1 brushless motor 24 V DC Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30

Roger Technology KIT BH30/806/F Brushless motor drive kit 24V for sliding gates up to 800 kg


The kit consists of:
Roger Technology KIT BH30/806/F KIT FULL

Roger Technology KIT BH30/806/F KIT FULL
Drive with 24 V brushless motor, for very intensive use, for sliding gates with a maximum weight of 1000 kg, with absolute encoder, built-in B70/1DC control unit and magnetic switches, as well as a base and screws for mounting.

FEATURES:

  • Gate weight max 1000 kg
  • Brushless motor 24 V
  • Intensive use - 1300 cycles per day (non-stop)
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply
The actuator set is enriched with two 2-channel SYNUS/2 remote controls (a copying remote control with a fixed code / variable code operating at a frequency of 433.92MHz), a set of photocells R90/F2ES, based on infrared technology and LED signal lamp FIFTHY/24 24V with built-in 433.92MHz antenna increasing the range of remote controls.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 24V
  • Nominal power: 200 W
  • Force: 50-1000 N
  • Speed: 12 m/min (0.21 m/s)
  • Work intensity: 1300 cycles/day (opening/closing 24h non-stop)
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (4096 pulses per revolution)
  • External gear: Z15/mod. 4
  • Max. gate weight: 1000 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 315 x 329 x 165.8 mm
  • Weight: 11.9 kg
