Roger Technology BH30/804 24V Brushless Motor Drive

955,91 EUR including 23.00% VAT
Product code: #33136
Manufacturer: Roger Technology
  • gate weight: up to 1000kg
  • 24V engine
  • built-in B70/1DC control unit
  • speed: 12 m/min
  • magnetic switches

Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR

Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology CROSSF10 Metal toothed rack, galvanized 1m Roger Technology B71/BC Battery Charging Card Roger Technology B70/1DC Control unit with 1 brushless motor 24 V DC Roger Technology SET BT12V12 2 batteries for sliding gates Roger Technology UNI-3 BASE Bases for mounting H30 and BH30 Roger Technology UNI-2 BASE Bases for mounting H30 and BH30 Roger Technology UNI-1 BASE Bases for mounting H30 and BH30 Roger Technology POST BASE Adjustable base for H30 drives Roger Technology CROSSPP Nylon toothed rack with steel core up to 1200kg Roger Technology CROSSF8 Metal toothed rack, galvanized 1m

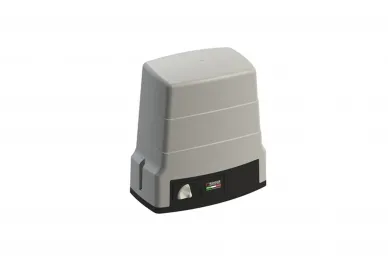

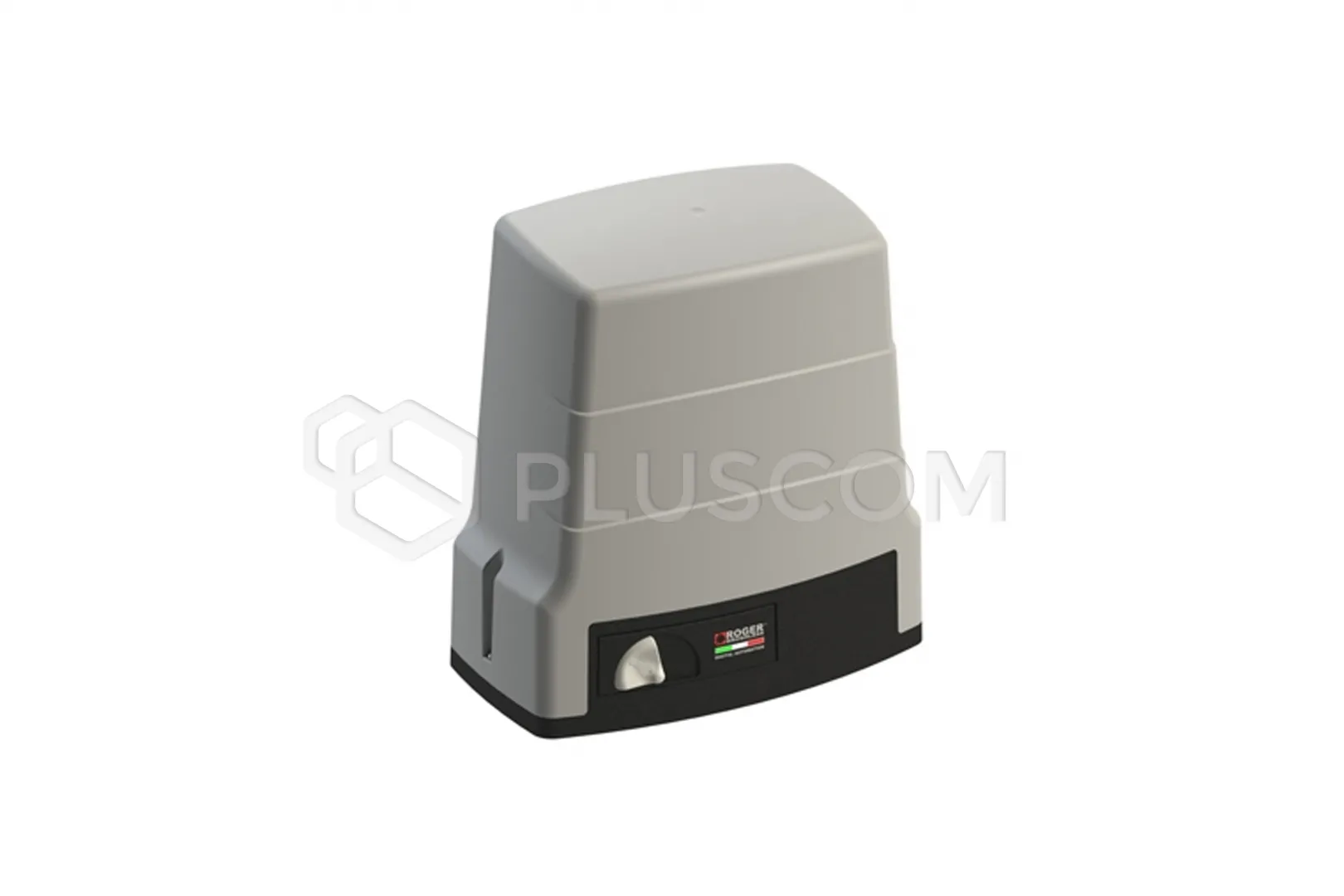

Roger Technology BH30/804 Drive with 24V brushless motor for sliding gates up to 1000 kg

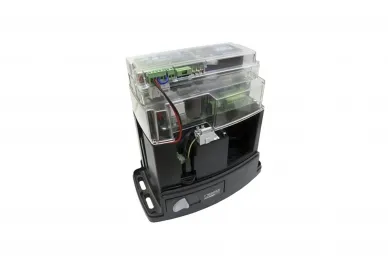

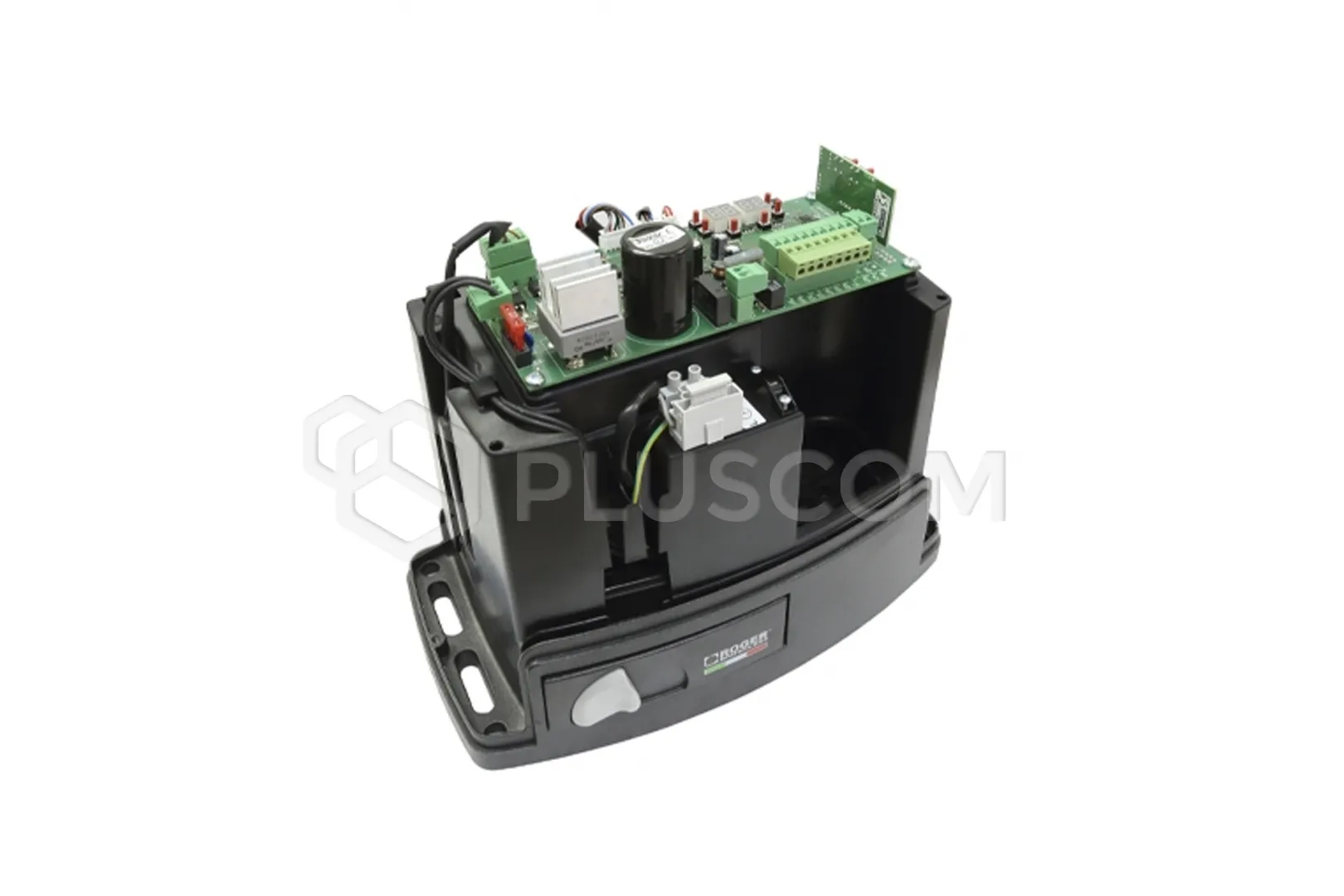

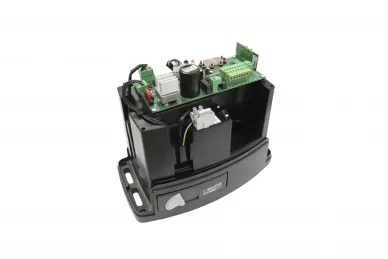

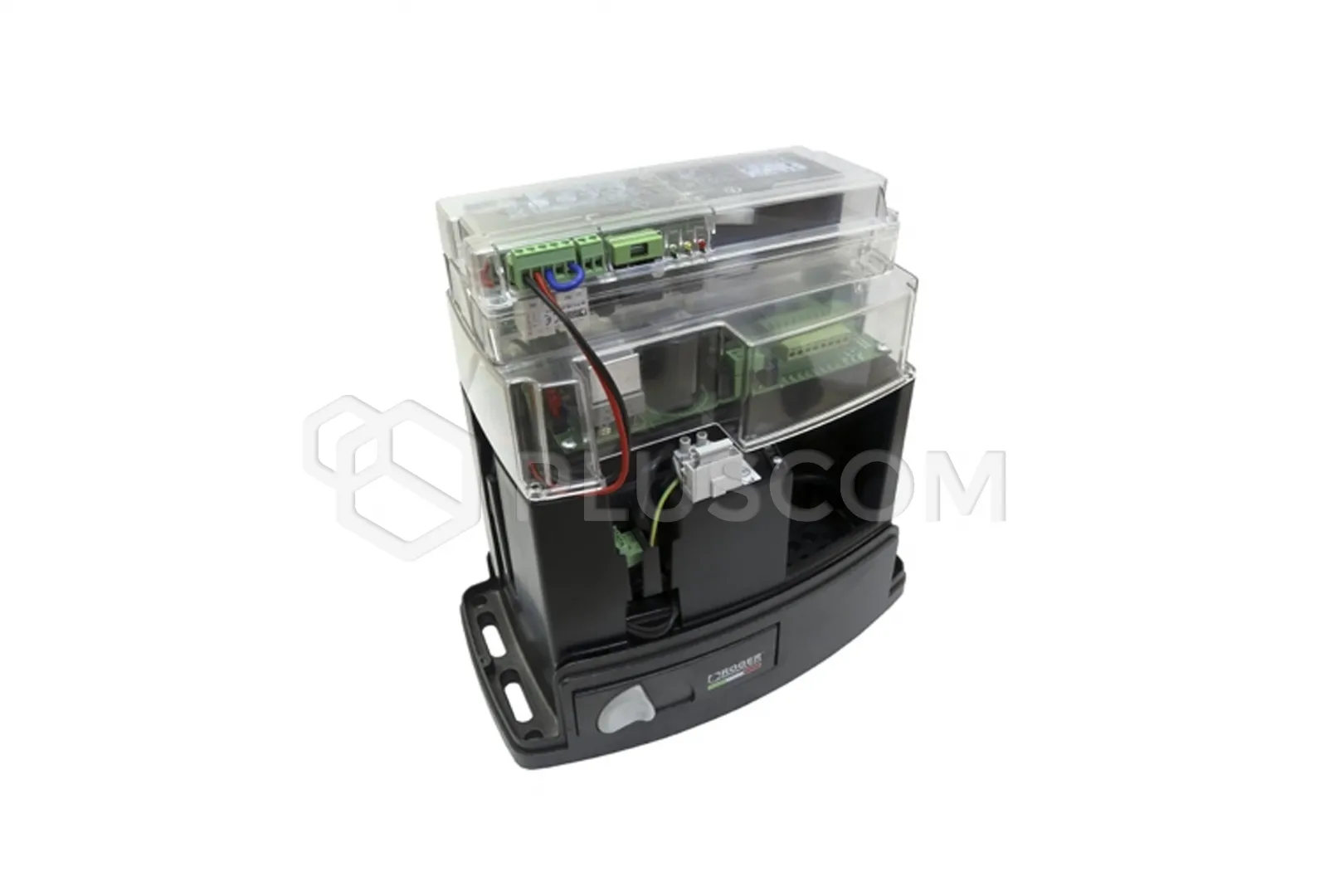

Drive with 24V brushless motor, for very intensive use, for sliding gates with a maximum weight of 1000 kg, with absolute encoder, built-in B70/1DC control unit and magnetic switches, as well as base and screws for mounting.

FEATURES:

  • Gate weight max 1000 kg
  • Brushless motor 24 V
  • Intensive use - 1300 cycles per day (non-stop)
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Built-in absolute encoder
  • High work culture
  • Very low energy consumption
  • There is a possibility of configuring solar power supply

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 24V
  • Power rated: 200 W
  • Force: 50-1000 N
  • Speed: 12 m/min (0.21 m/s)
  • Work intensity: 1300 cycles/day (opening/closing 24h non-stop)
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (4096 pulses per revolution)
  • External gear: Z15/mod. 4
  • Max. gate weight: 1000 kg
  • Protection class: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 315 x 329 x 165.8 mm
  • Weight: 11.9 kg
