Roger Technology KIT BE20/410/F KIT FULL

1693,86 EUR including 23.00% VAT
Product code: #33222
Manufacturer: Roger Technology
  • Leaf length up to 4m
  • Engine power supply 36V
  • Adjustable pole mount and mounting bracket included
  • 2 x 2-channel remote controls SYNUS/2, R90/F4ES photocells, FIFTHY/24 lamp
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology EDGE1/BOX Control unit for 2 brushless motors 36V DC Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack

Roger Technology KIT BE20/410/F SET FULL with 36V brushless motor drive for swing gates up to 4m

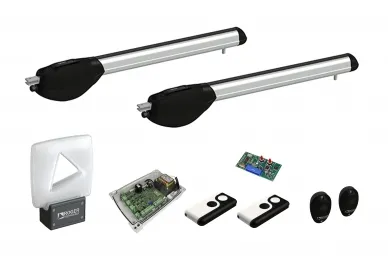

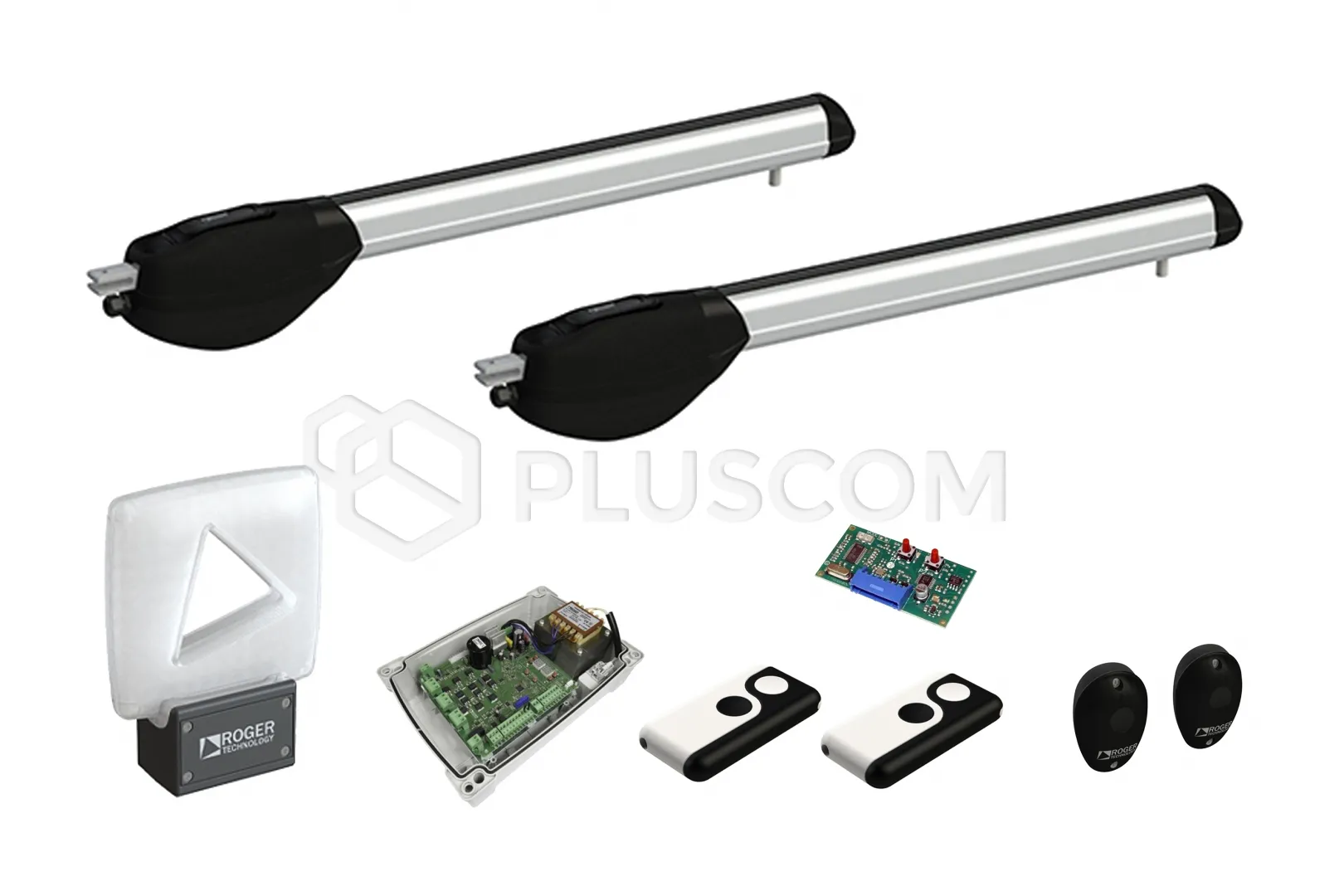

The set consists of:
Roger Technology KIT BE20/410/F KIT FULL

Roger Technology KIT BE20/410/F KIT FULL
Electromechanical brushless actuator 36V for very intensive work For swing gates with a maximum wing length of 4m With digital encoder, adjustable post holder and wing holder 2 mechanical limiters for opening and closing.

FEATURES:

  • Max leaf length 4m
  • 36 V brushless motor
  • Super intensive use - 1000 cycles per day
  • Mechanical limiter for opening and closing
  • Metal alloy gear, no plastic, no Teflon, no nylon
  • Drive unlocking secured with a personalized key
  • Digital control unit without relays
  • Digital encoder management
  • High work culture
  • Very low energy consumption
  • Screw pitch 550 mm
  • Adjustable bracket for screwing to the post
  • Wing mounting bracket
The actuator set is enriched with two 2-channel SYNUS/2 remote controls with a fixed code/rolling code operating at a frequency of 433.92MHz, a set of photocells R90/F4ES, based on infrared technology and a FIFTHY/24/ 24V LED signal lamp with a built-in 433.92MHz antenna that increases the operating range of the remote controls.

TECHNICAL DATA:

  • Mains power supply: 230V AC 50Hz
  • Motor power supply: 36V
  • Nominal power: 200 W
  • Force: 100-2800 N
  • Speed: 1.66 cm/s (17-26 s opening to 90°)
  • Stroke: 550 mm
  • Number of cycles per day: 1000
  • Gear motor type: irreversible
  • Encoder: built-in digital + magnetic digital SENSORED (48 pulses per revolution)
  • Degree protection: IP 43
  • Operating temperature: -20°C to +55°C
  • Dimensions: 1019 x 155 x 105 mm
  • Weight: 8.5 kg
