Roger Technology KIT BE20/211/HS/L KIT LIGHT

1379,70 EUR including 19.00% VAT
Product code: #33218
Manufacturer: Roger Technology
  • Leaf length up to 2.5m
  • Weight up to 300kg
  • Engine power supply 36V
  • Adjustable pole mount and mounting bracket included
  • 2 x 2-channel remote controls E80/TX52R/2, R90/F4ES photocells
Delivery and tax:
Germany VAT: 19.00% change
Shipping cost from:
10,84 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger Technology SET BT12V45 2 batteries (12 V DC, 4.5 Ah) Roger Technology EDGE1/BOX Control unit for 2 brushless motors 36V DC Roger Technology BI/BCHP Battery charging card for CTRL control panel Roger Technology B71/BCHP/EXT Battery Pack

Roger Technology KIT BE20/211/HS/L SET LIGHT with HIGH SPEED brushless motor drive 36V for swing gates up to 2.5m per wing

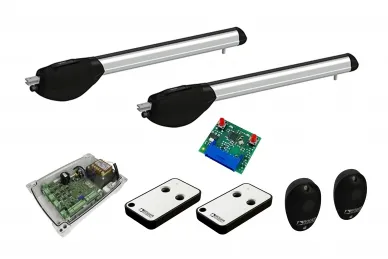

The set consists of:
Roger Technology KIT BE20/211/HS/L KIT LIGHT

Roger Technology KIT BE20/211/HS/L KIT LIGHT
Drive with a 36 V brushless motor, for very intensive use, for swing gates with a maximum leaf length of 2.5 m with a digital encoder, mechanical limiters, adjustable bracket for screwing to the post and a bracket for mounting to the leaf.

FEATURES:

  • BRUSHLESS 36V brushless motor
  • can perform up to 800 cycles per day
  • digital encoder management
  • electronic force regulation
  • adjustable opening/closing speed
  • full control of the wing movement
  • low energy consumption and very quiet operation
  • mechanical limiter for opening and closing
  • obstacle detection function
  • easy key release
  • possibility of using batteries
The actuator set is enriched with two 2-channel E80/TX52R/2 remote controls with a fixed code of 433.92 MHz with copy function and a set of R90/F4ES photocells, based on infrared technology.

TECHNICAL DATA:

  • Mains power supply: 230V AC - 50 Hz
  • Motor power supply: 36 V
  • Nominal power: 200 W
  • Use frequency: Intensive
  • Force: 100 -2200N
  • Operating temperature: -20°C / +55°C
  • Protection class: IP43
  • Gear motor type: Irreversible
  • Speed: 3 cm/s
  • Opening time to 90°: 10-15 s
  • Stroke: 400 mm
  • Limit switches: Mechanical limit switches for opening and closing
  • Control unit: EDGE1
  • Encoder: Built-in digital + magnetic digital SENSORED, 48 pulses per revolution
  • Number of cycles per day: 800
  • Weight: 8 kg
