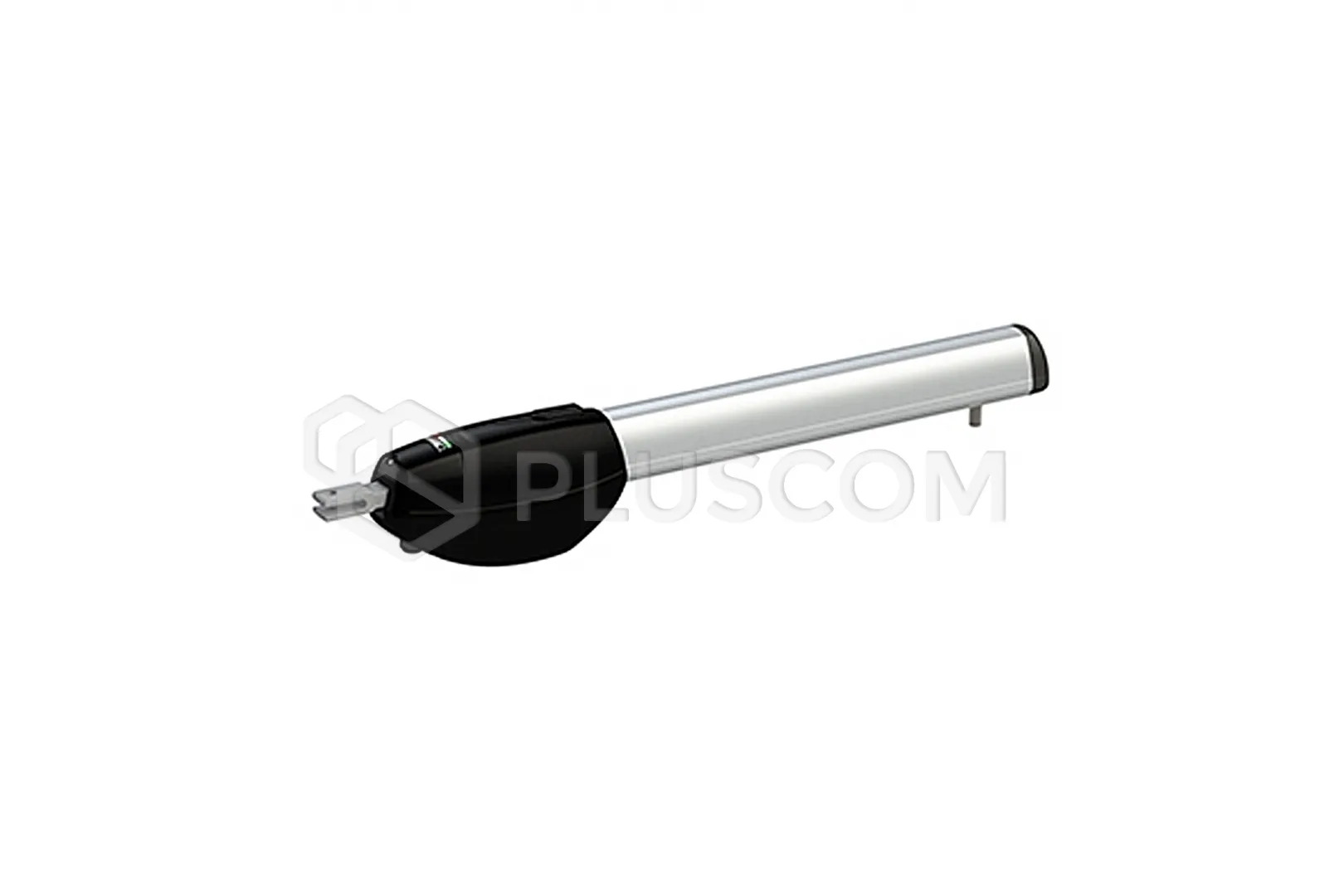

Roger Technology BE20/200/HS HIGH SPEED 36V Brushless Motor Drive

Roger Technology BE20/200/HS HIGH SPEED 36V brushless motor drive for swing gates up to 2.5m per leaf

Drive with a 36 V brushless motor, for very intensive use, for swing gates with a maximum leaf length of 2.5 m with a digital encoder, mechanical limiters, adjustable bracket for screwing to the post and a bracket for mounting to the leaf

FEATURES:

• BRUSHLESS 36V brushless motor
• can perform up to 800 cycles per day
• digital encoder management
• electronic force regulation
• adjustable opening/closing speed
• full control of the wing movement
• low energy consumption and very quiet operation
• mechanical limiter for opening and closing
• obstacle detection function
• easy key release
• possibility of using batteries

TECHNICAL DATA:

• Mains power supply: 230V AC - 50 Hz
• Motor power supply: 36 V
• Nominal power: 200 W
• Use frequency: Intensive
• Force: 100 -2200N
• Operating temperature: -20°C / +55°C
• Protection class: IP43
• Gear motor type: Irreversible
• Speed: 3 cm/s
• Opening time to 90°: 10-15 s
• Stroke: 400 mm
• Switches Limits: Mechanical end stops for opening and closing
• Control unit: EDGE1
• Encoder: Built-in digital + magnetic digital SENSORED, 48 pulses per revolution
• Number of cycles per day: 800
• Weight: 8 kg
