Roger RFT1000-ADM Access system administrator reader

Roger RFT1000-ADM Access system administrator reader

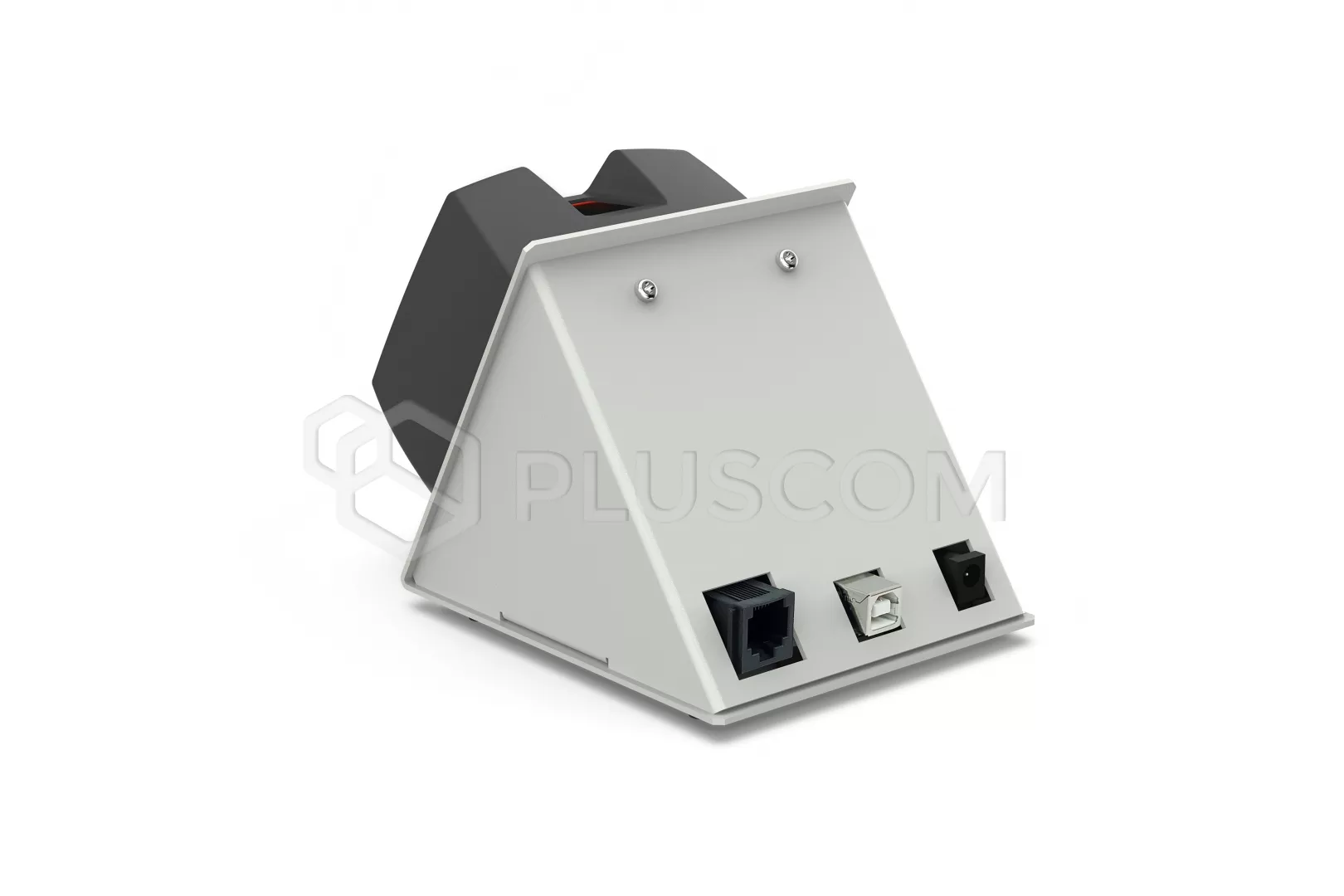

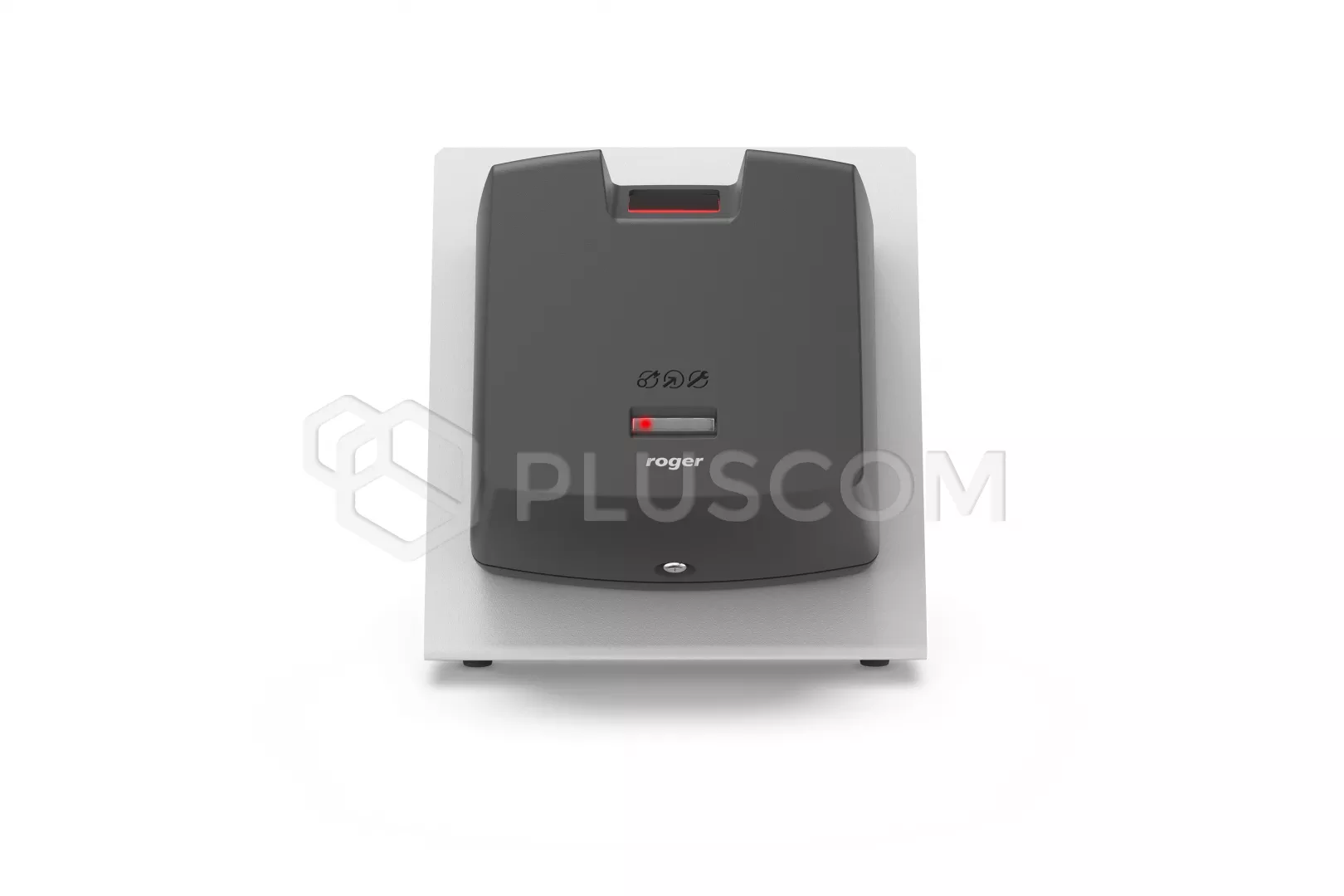

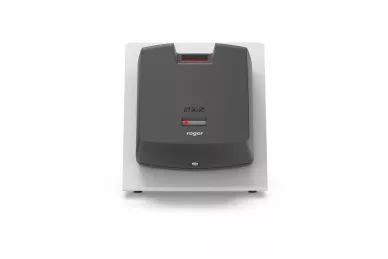

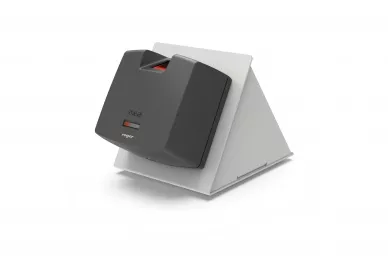

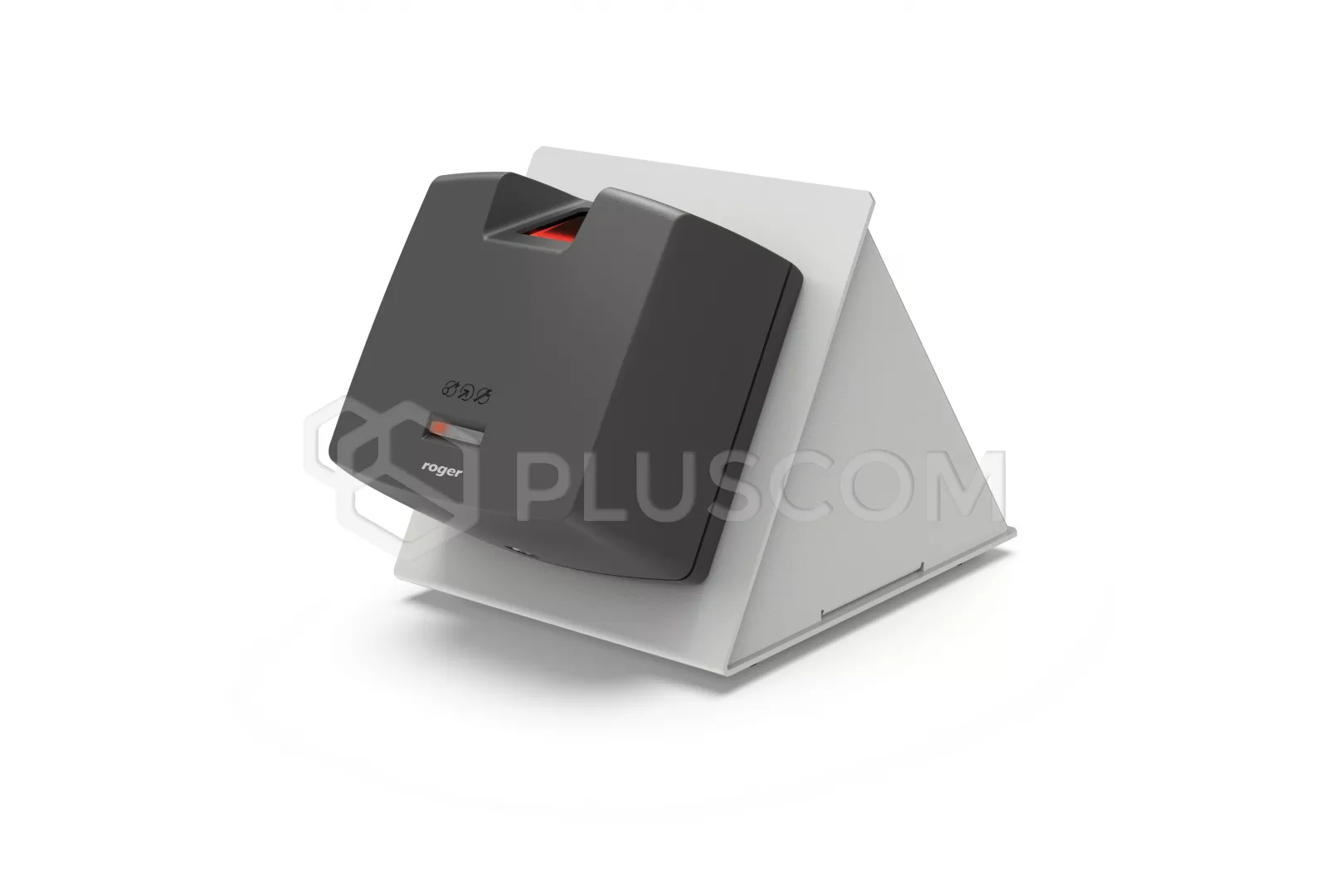

RFT1000-ADM is a form of RFT1000 reader mounted on a metal desktop housing and intended for use as a system reader. Using the reader, system administrator can enter both fingerprints and MIFARE proximity cards into the system database. Communication with the reader is possible only via Ethernet network. The reader is delivered with power supply.

RFT1000 reader operates as terminal for master device (controller) and is equipped with fingerprint scanner and MIFARE proximity card reader. The reader can store up to 1900 fingerprint templates. User can be identified by comparison of his fingerprints with fingerprint templates recorded in reader’s memory (1:N mode) or by comparison of his fingerprints with fingerprint templates recorded in MIFARE Classic card memory (1:1 mode).

Features:

• optical fingerprint scanner
• ISO/IEC 14443A MIFARE proximity card reader
• scanned fingerprint is compared with template read from proximity card (1:1 mode)
• scanned fingerprint is compared with template read from internal database (1:N mode)
• 1900 fingerprint templates in 1:N mode
• Windows application for configuration and management of fingerprints (RogerVDM)
• configuration by Ethernet
• average current consumption 130 mA
• tamper

TECHNICAL PARAMETERS

• supply voltage:
• • nominal 12VDC
  • min./max. range 10-15VDC
• proximity cards: MIFARE Ultralight/Classic
• average current consumption: 130mA
• environment class: I
• IP41
• working temperature: +5 ° C ~ +40 ° C
• weight: approx. 160g
• dimensions: 85x85x52mm
