Roger RCC512-O Cabinet Access Control Panel

Roger RCC512-O Cabinet Access Controller

RCC512-O Cabinet Controller enables electronic access control to cabinets, lockers, compartments, etc.
The cabinets are connected to the controller via I/O expanders MCX8-BRD. Each expander allows you to connect 8 cabinets. All in all, a controller can support up to 512 cabinets. Access to the cabinet is controlled via via electric lock. The cabinets can be divided into groups (e.g. o different sizes) and define individual access rights for them. Controller can work in the mode with an on-demand cabinet or an assigned cabinet permanently to the user. In the latter case, depending on the one you choose operation mode, multiple users can be assigned to a locker or, conversely, many cabinets for one user. In vault mode, the controller enables use lockers by a person who has a one-time PIN code. In automatic mode postal service, a user with postman authorization deposits items in the locker (shipments), which are then collected using one-time PIN codes.

System users are identified via the touch panel controller or external readers. In this first case the identifier is the PIN code. In the second case, about the method of identification depends on the type of external reader. Readers can be connected to the controller Wiegand interface or MCT series readers (Roger RS485). Each included readers can control access to the group of lockers associated with it. IN In particular, the RFT1000 reader can be connected to the control panel (proximity and fingerprint identification), MCT80M-BLE reader (proximity and mobile identification) or MCT84M-BK-QB reader (proximity, mobile and graphic QR code identification).

FEATURES:

• autonomous operation
• local management from the touch panel
• remote management from a web browser
• support up to 512 cabinets
• division of lockers into groups with individual access rights
• interface for electric lock and cabinet opening sensor
• work in the mode with a cabinet assigned to the user (e.g. cabinets employee)
• work in the mode with a cabinet assigned on request (e.g. cabinets swimming pool)
• work in 1:N mode (many users assigned to one cabinet, e.g. mailboxes)
• work in N:N mode (multiple users with access to multiple cabinets, e.g. toolboxes)
• working in storage mode (e.g. deposit lockers in centers commercial)
• work in parcel machine mode
• possibility to divide cabinets into groups with independent ones assigned to them access readers

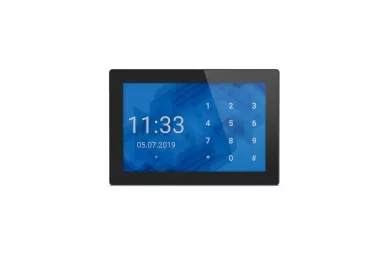

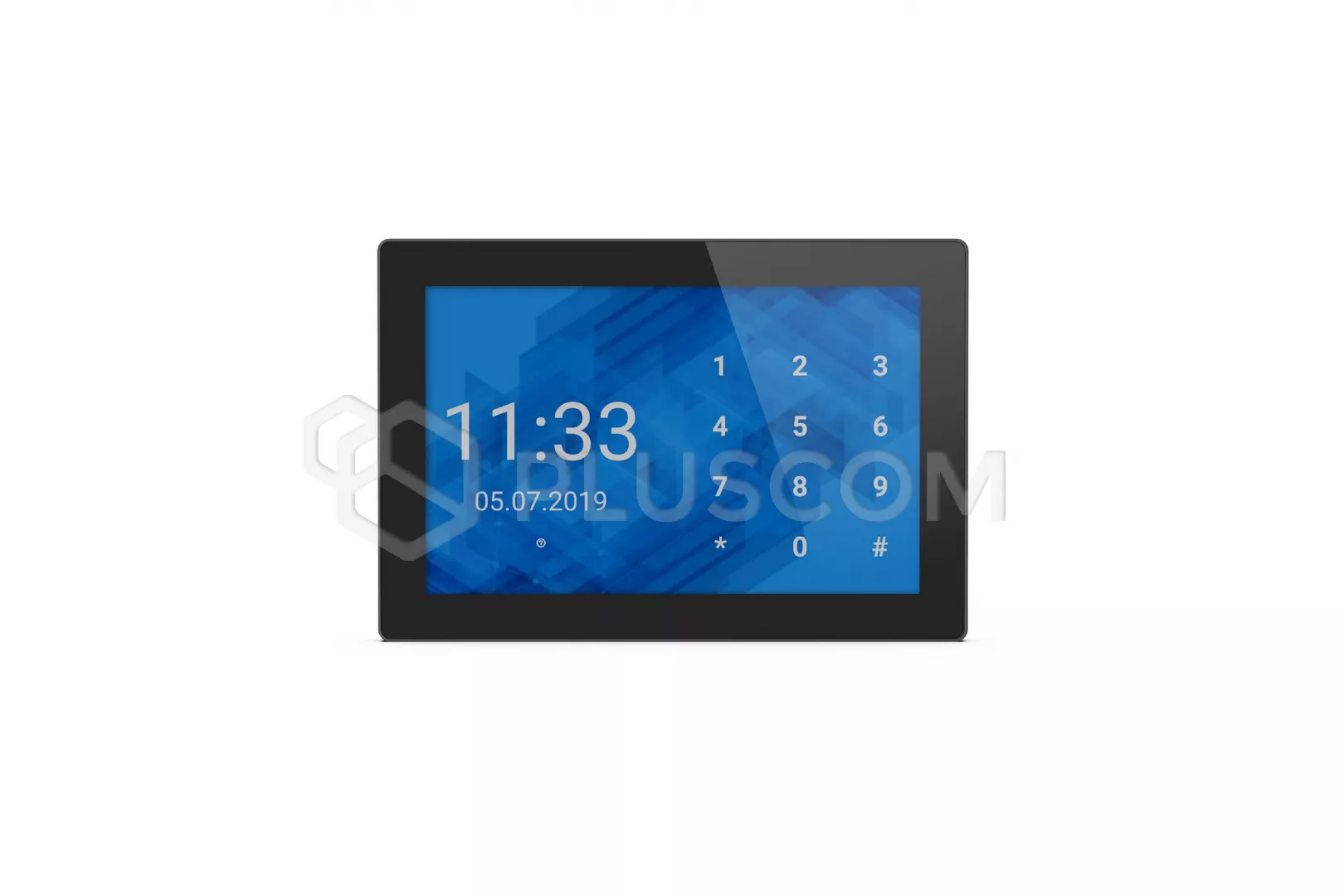

• industrial graphic touch panel with a 10" screen
• possibility to use external readers with Wiegand or interface RS485 Roger
• registration of events and reporting of system operation
• LAN communication interface (Ethernet or Wi-Fi)
• SDK for authorized integrators
