Roger MC16-PAC-1-KIT Access Control Kit

Roger MC16-PAC-1-KIT Access Control Kit for 1 door in the RACS 5 system

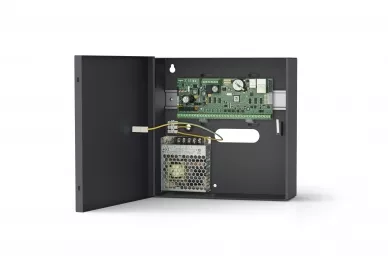

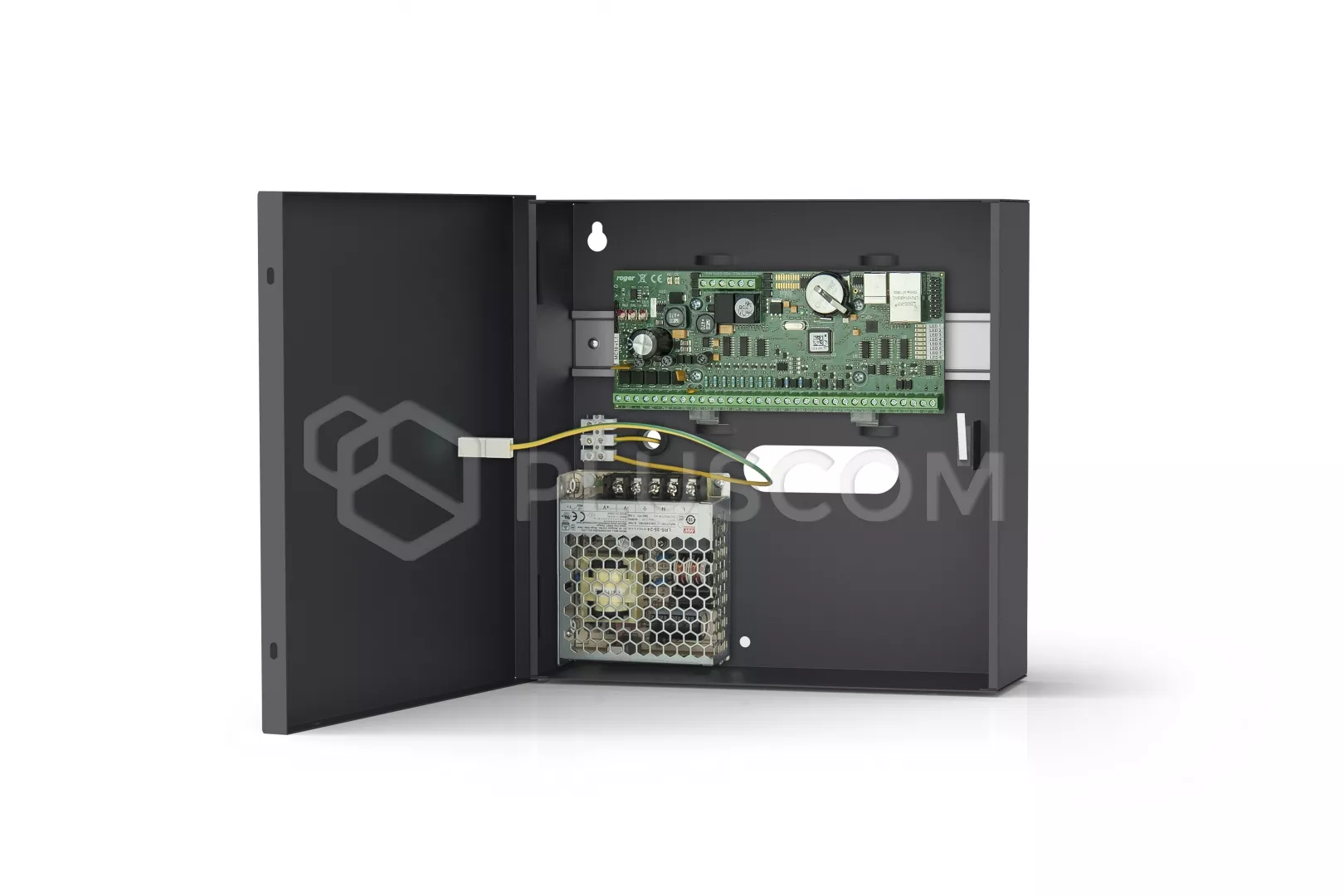

SET CONTAINS MC16-PAC-1 access controller module ME-14-24V metal housing with power supply

Roger MC16-PAC-1-KIT Access Control Kit

Access control kit for one door. The kit consists of a metal enclosure with power supply and a networked access controller. The controlled door can be managed on both, read-in and read-out sides, by RS485 (MCT series readers), RACS CLK/DTA (PRT series readers) or Wiegand readers. Door lock and readers are supplied from the controller’s onboard supply outputs capable to deliver respectively 0.2 A and 1.0 A. The entire system is supplied from the power supply included in the kit.

MC16 is access and building automation controller dedicated to RACS 5 system. MC16 controller can be supplied from 230VAC/18VAC transformer with minimal power output 20VA, from 12VDC PSU or from 24VDC PSU.
The controller offers advanced and efficient methods for management of users and their authorisations (rights). The configuration of controllers in a system is performed concurrently via LAN/WAN and the total number of controllers does not affect configuration time. The controller is managed with VISO. MC16 can handle not only its own input lines but also lines located in peripheral devices (MCT, MCX).
The communication with MC16 controllers in LAN/WAN is encrypted according to AES128 CBC.

Characteristics

• Access controller in RACS 5 system
• 18VAC, 12VDC and 24VDC power supply
• Built-in 12VDC/1,2A power supply unit
• Backup battery charging and monitoring
• Ethernet communication interface
• Encrypted data transmission (AES128 CBC)
• Peripheral devices interfaces: RS485, RACS CLK/DTA, Wiegand
• 8 million event buffer on memory card

TECHNICAL DATA

• supply voltage:
• • 18VAC (17-22VAC)
  • 12VDC(10-15VDC)
  • 24VDC (22-26VDC)
• current consumption: 100mA with 18VAC power supply (without output load AUX / TML)
• interface to 4 RACS CLK/DTA readers (PRT series)
• interface to 4 Wiegand readers
• supply output 0.2 A
• power output 1A
• space for 7 Ah battery
• deep discharge protection
• case dimensions: 255 x 255 x 90mm
