Roger MCI-3-LCD Communication Interface

80,96 EUR including 23.00% VAT
Product code: #32986
Manufacturer: Roger
  • Communication with RACS access control system
  • Connecting the OSR88M-IO reader to the MC16 series access controller
  • 3 signaling LEDs
  • IP20
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Roger MC16-PAC-ST-1 Physical Access Controller Roger MC16-LRC-64 Locker Access Controller Roger MC16-BAC-32 Building Automation Controller Roger MC16-PAC-EX-4-KIT Access control kit Roger MC16-LRC-32 Locker Access Controller Roger MC16-BAC-16 Building Automation Controller Roger MC16-PAC-EX-3-KIT Access control kit Roger MC16-LRC-16 Locker Access Controller Roger MC16-PAC-EX-2-KIT Access control kit Roger MC16-HRC-4 Hotel Room Access Controller

Roger MCI-3 Communication Interface

The MCI-3 interface performs a function converter between the OSDP v2.2 protocol and the RS485 protocol (EPSO3). Thanks Using the interface, it is possible to connect other OSDP readers manufacturers for the MC16 controller. The MCI-3-LCD interface can also be used to connect single OSR80M-BLE or OSR88M-IO reader to MC16 controller.

A brand new interface usually requires no configuration low-level and can function based on default settings. Configuring low-level settings from RogerVDM requires: use of the RUD-1 interface.

SPECIFICATIONS:
  • 12 VDC power supply
  • RS485 EPSO 3 interface to the controller
  • RS485 OSDP v2 interface to the reader
  • 3 signaling LEDs
  • plastic housing

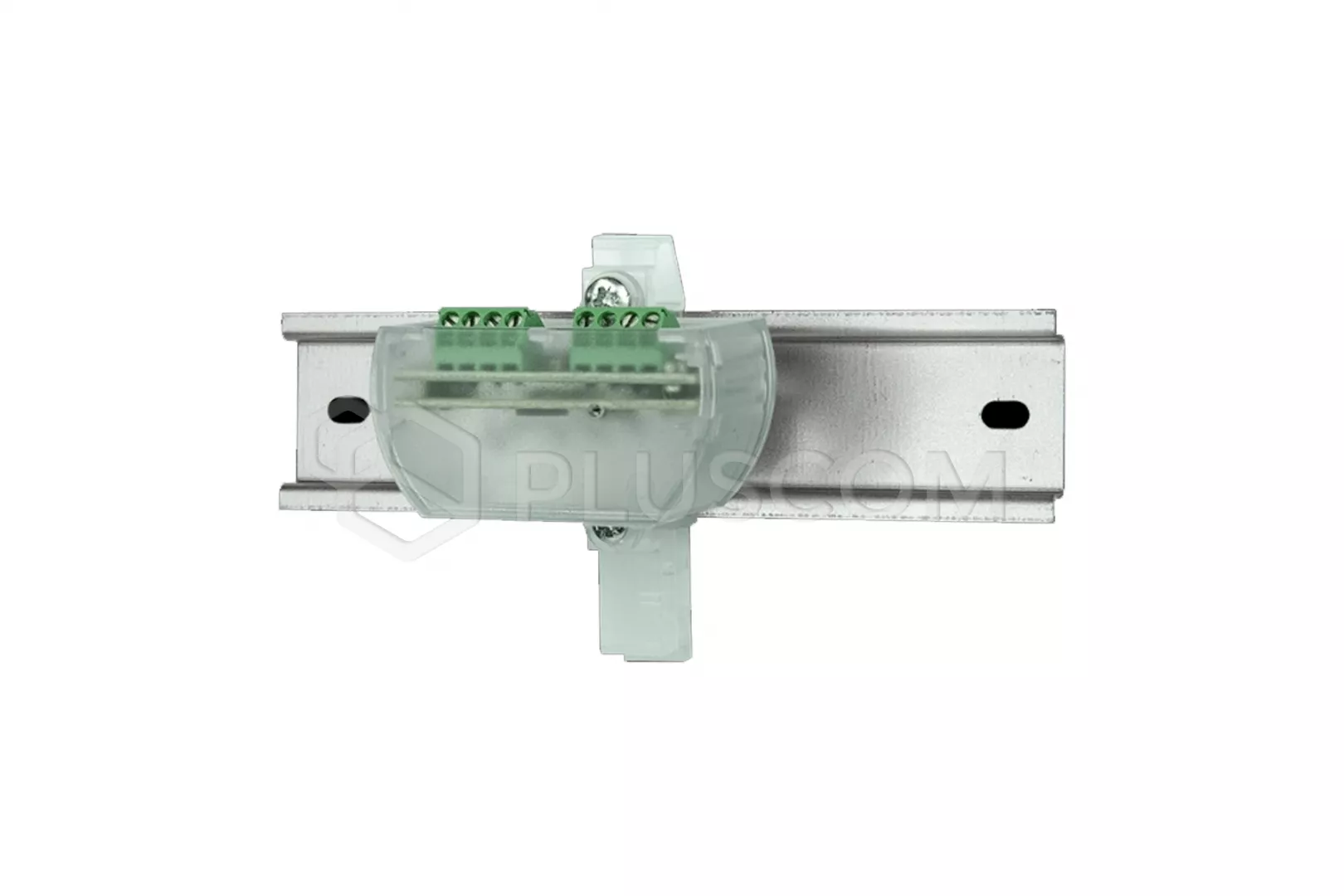

  • possible mounting on a DIN rail
  • dimensions: 36 x 55 x 47 mm
Download
Datasheet 0.18 MB
CE Declaration 0.13 MB
User manual 0.28 MB
