Roger MC16-PAC-4-KIT Access Control Kit

Roger MC16-PAC-4-KIT Access Control Kit for 4 doors in the RACS 5 system

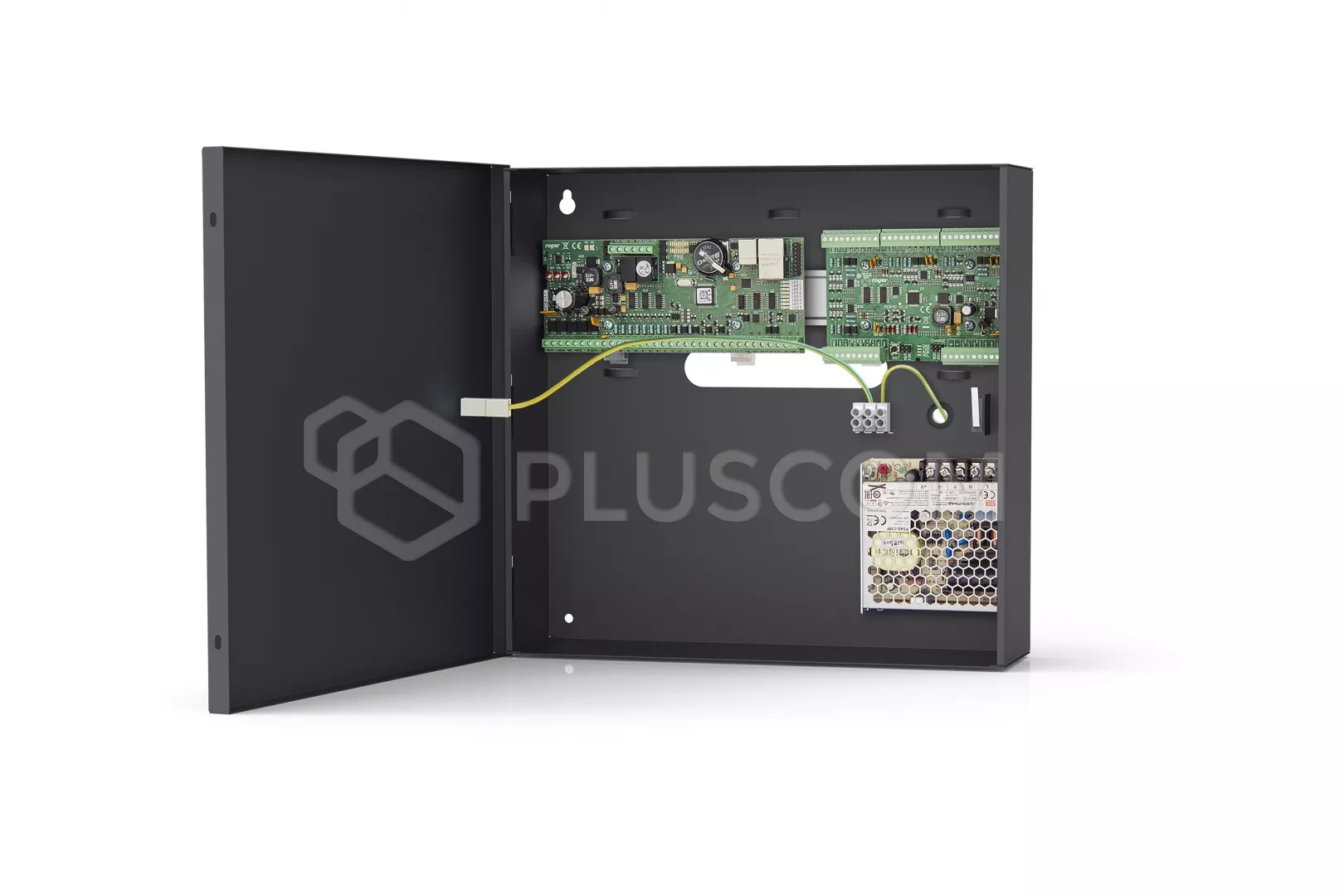

SET CONTAINS MC16-PAC-4 access controller module MCX4D I/O expander PS4D power supply ME-16 metal enclosure

Roger MC16-PAC-4-KIT Access Control Kit

MC16-PAC-4-KIT is designed to control 4 doors in RACS 5 system. The controlled doors can be managed on both, read-in and read-out side, by RS485 (MCT series readers). In case the RACS CLK/DTA (PRT series readers) or Wiegand readers are used, doors can be controlled on read-in side only.

Each transition is served by an independent set of power outputs, composed of a 0.2 A output to power the readers and a 1.0 A output to power supply lock and other elements of the passage.
In case of read-in door, single reader is connected to the controller within particular door

The metal housing of the ME-16 has a place for a 17Ah battery and it is there equipped with one DIN rail and anti-tampering switch.
The set is powered by a PS4D 13.8VDC / 5A power supply.

MC16 is access and building automation controller dedicated to RACS 5 system. MC16 controller can be supplied from 230VAC/18VAC transformer with minimal power output 20VA, from 12VDC PSU or from 24VDC PSU.
The communication with MC16 controllers in LAN/WAN is encrypted according to AES128 CBC.

Characteristics

• Access controller in RACS 5 system
• 18VAC, 12VDC and 24VDC power supply
• Built-in 12VDC/1,2A power supply unit
• Backup battery charging and monitoring
• Ethernet communication interface
• Encrypted data transmission (AES128 CBC)
• Peripheral devices interfaces: RS485, RACS CLK/DTA, Wiegand
• 8 million event buffer on memory card

TECHNICAL DATA

• supply voltage:
• • 18VAC (17-22VAC)
  • 12VDC(10-15VDC)
  • 24VDC (22-26VDC)
• interface to 4 RACS CLK/DTA readers (PRT series)
• interface to 4 Wiegand readers
• 4 supply outputs 0.2 A
• 4 supply outputs 1.0 A
• space for 17 Ah battery
• battery charging current: 0.3 A / 0.6 A / 0.9 A
• deep discharge protection
• case dimensions: 305x325x100mm
