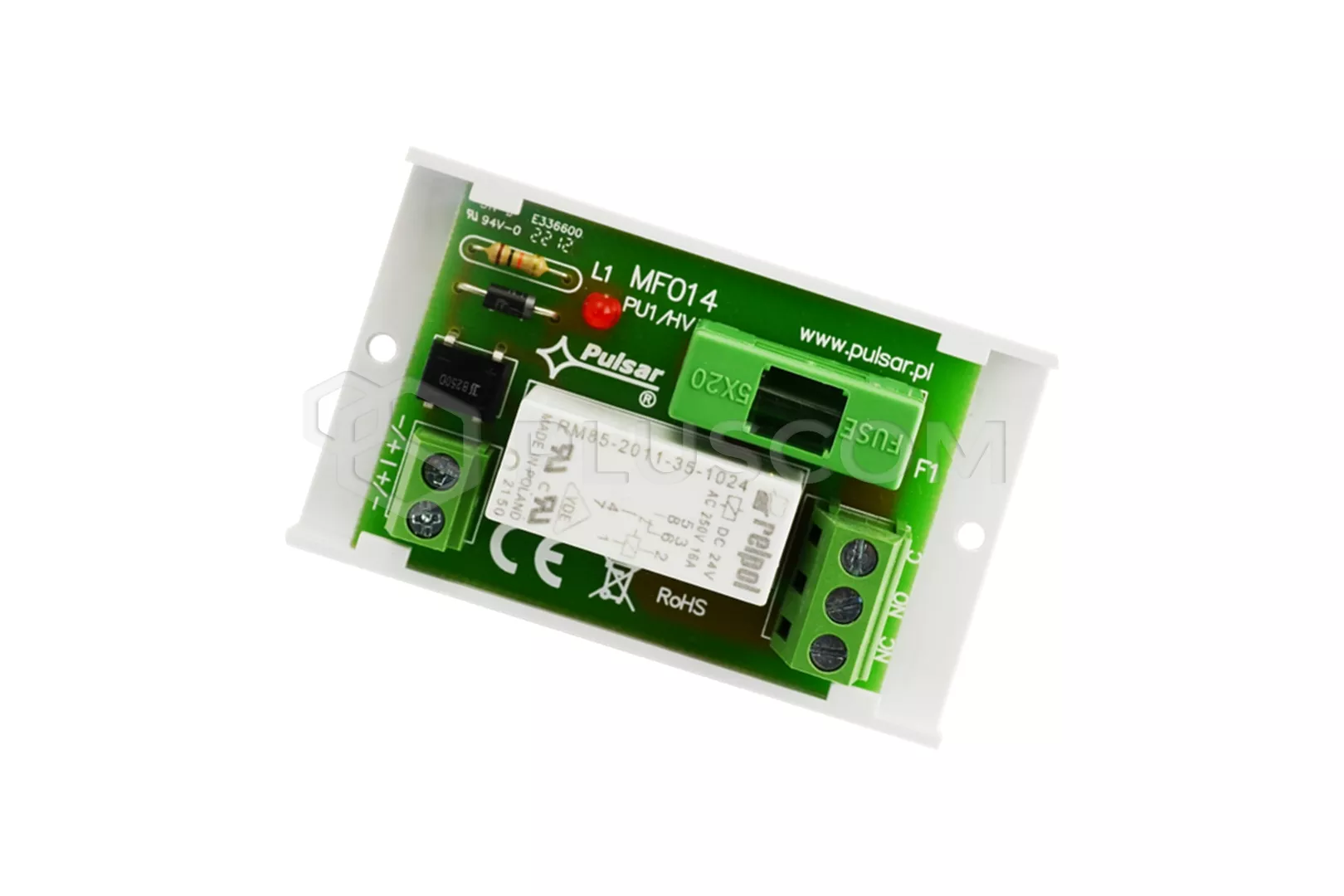

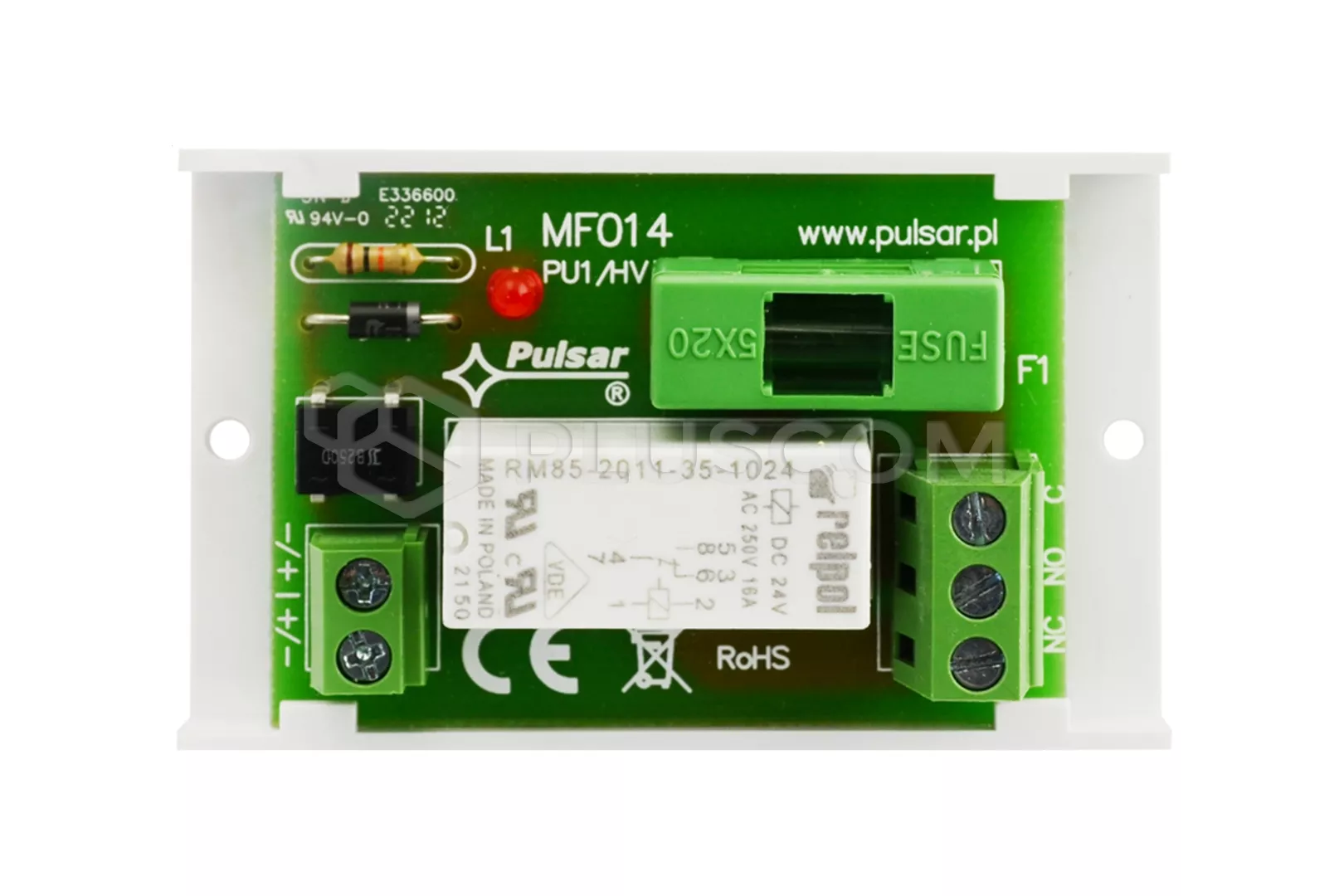

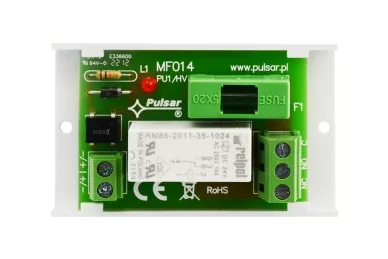

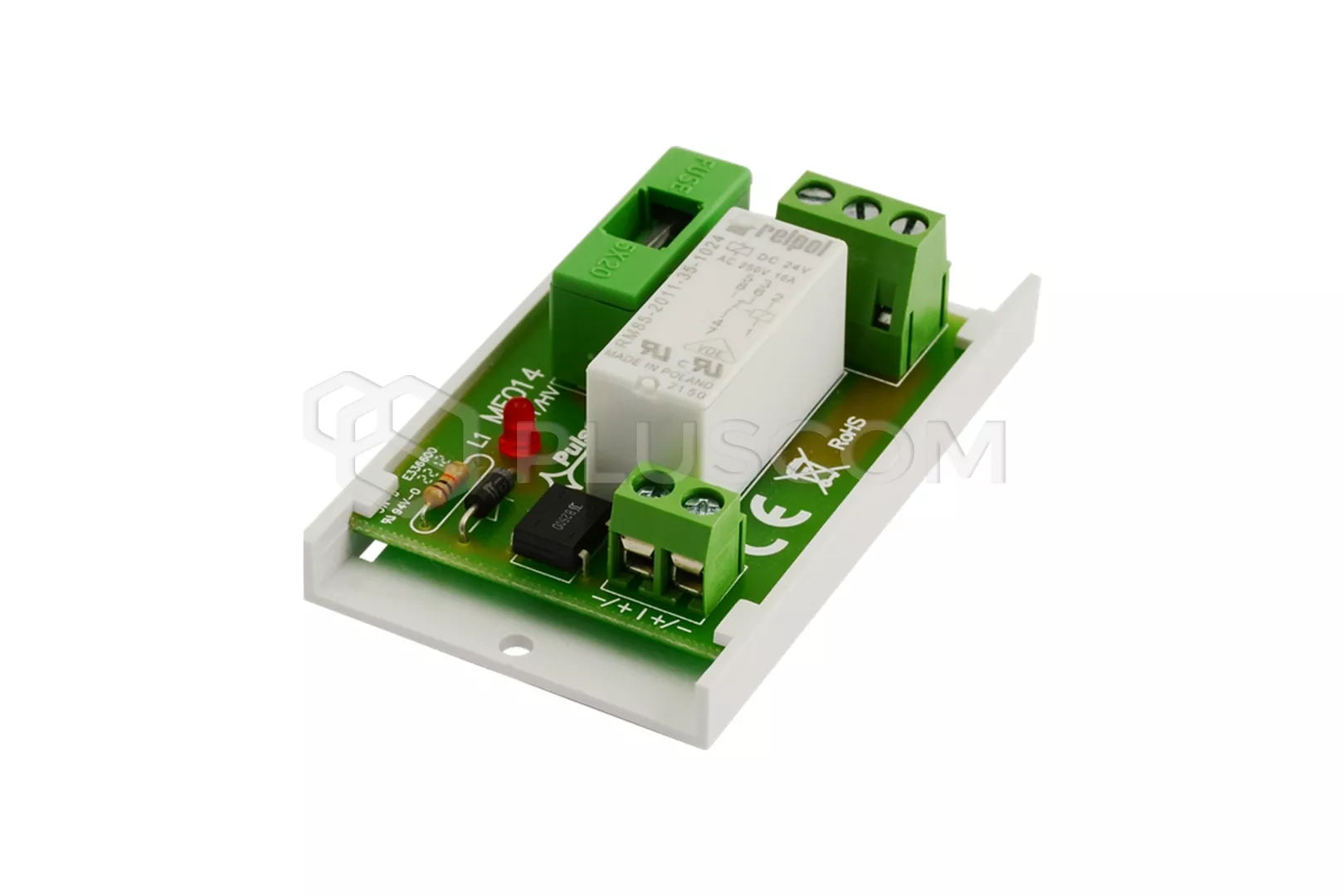

Relay module Pulsar AWZ 514

11,83 EUR including 23.00% VAT

Add to cart

Product code: #10644

Manufacturer: Pulsar

Ask about this product

The number of relays: 1
Current of the relay’s coil: 16,7mA@24VDC
Load of relay contacts: 6A 30V DC
Coil voltage: 20-32V DC/AC

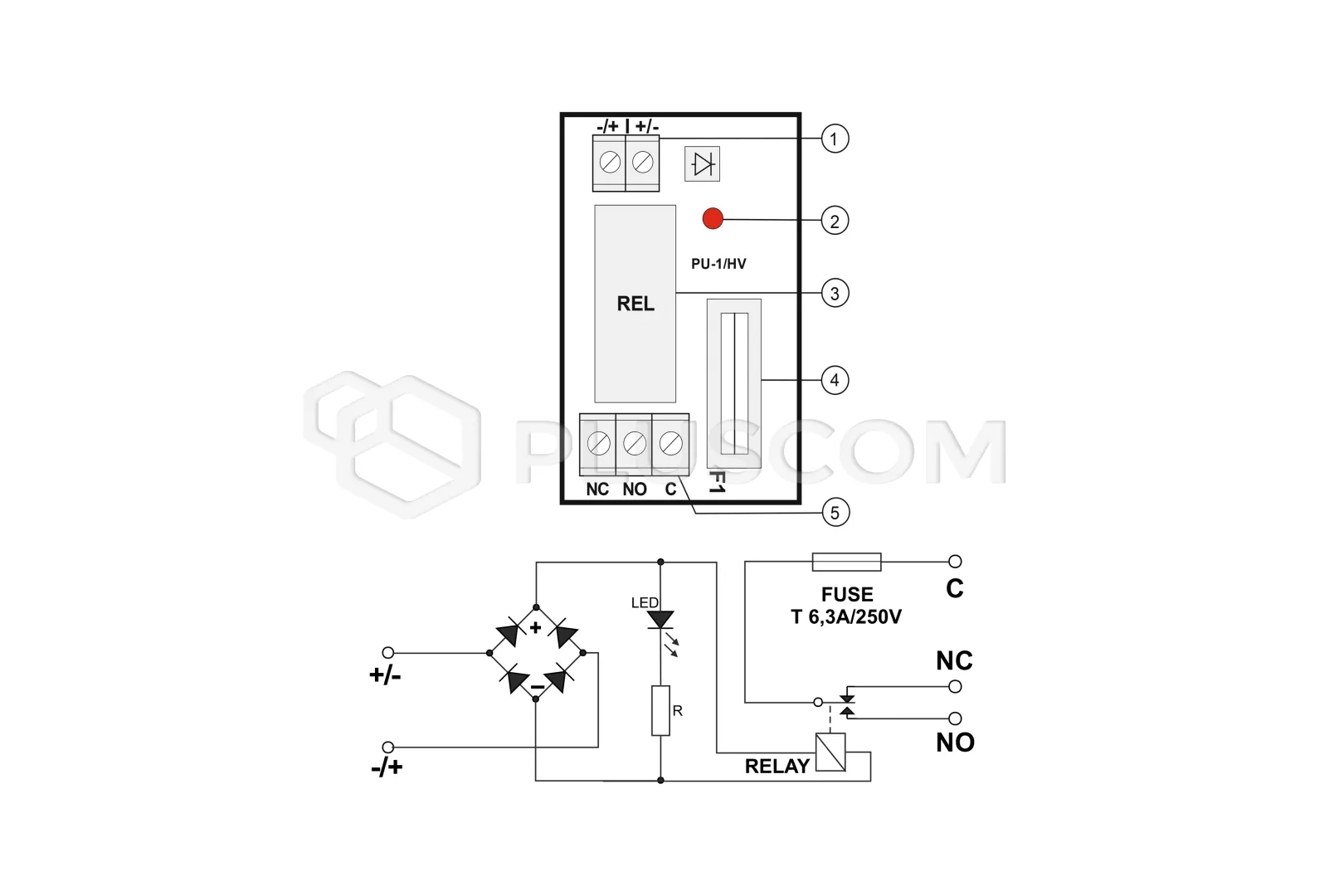

Protection: 6A fuse in the circuit C/NC/NO relay

Delivery and tax:

Poland VAT: 23.00% change

Shipping cost from:

2,53 EUR

Payment methods:

We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:

PU1/HV/24V Relay module AWZ 517

The PU1/HV/24V (AWZ517) relay module is to be used in low-voltage installations. It is intended for controlling and status indication in e.g. alarm or access control systems. It may be used to control devices of high power consumption via OC outputs of alarm systems. Moreover, it ensures galvanic isolation of signals, power sources relating to the outputs of the module.

Relay module Pulsar AWZ 514

SPECIFICATIONS

Voltage of the relay’s coil: 20-32V DC/AC
Current of the relay’s coil: 16.7mA@24VDC
Resistance of coil: 1440 OHM (-/+10%)
Power of coil: 400mW
Number of relays: 1
Voltage of the relay’s contacts: 30VDC / 250VAC max.
Current of the relay’s contacts: 6A max
Contacts of relay: C/NC/NO (leads Φ2.05 mm: AWG 24-12)
ON/OFF time: 15ms/8ms
Operating conditions: 2nd environmental class, -10°C÷ 40°C
Enclosure: open-frame design, IP00
Dimensions: 70x43x23 mm(+/-2)
Weight: 0,06kg

Relay module Pulsar AWZ 514

Download

Datasheet 0.12 MB

Declaration CE 0.32 MB

User Manual 0.2 MB
