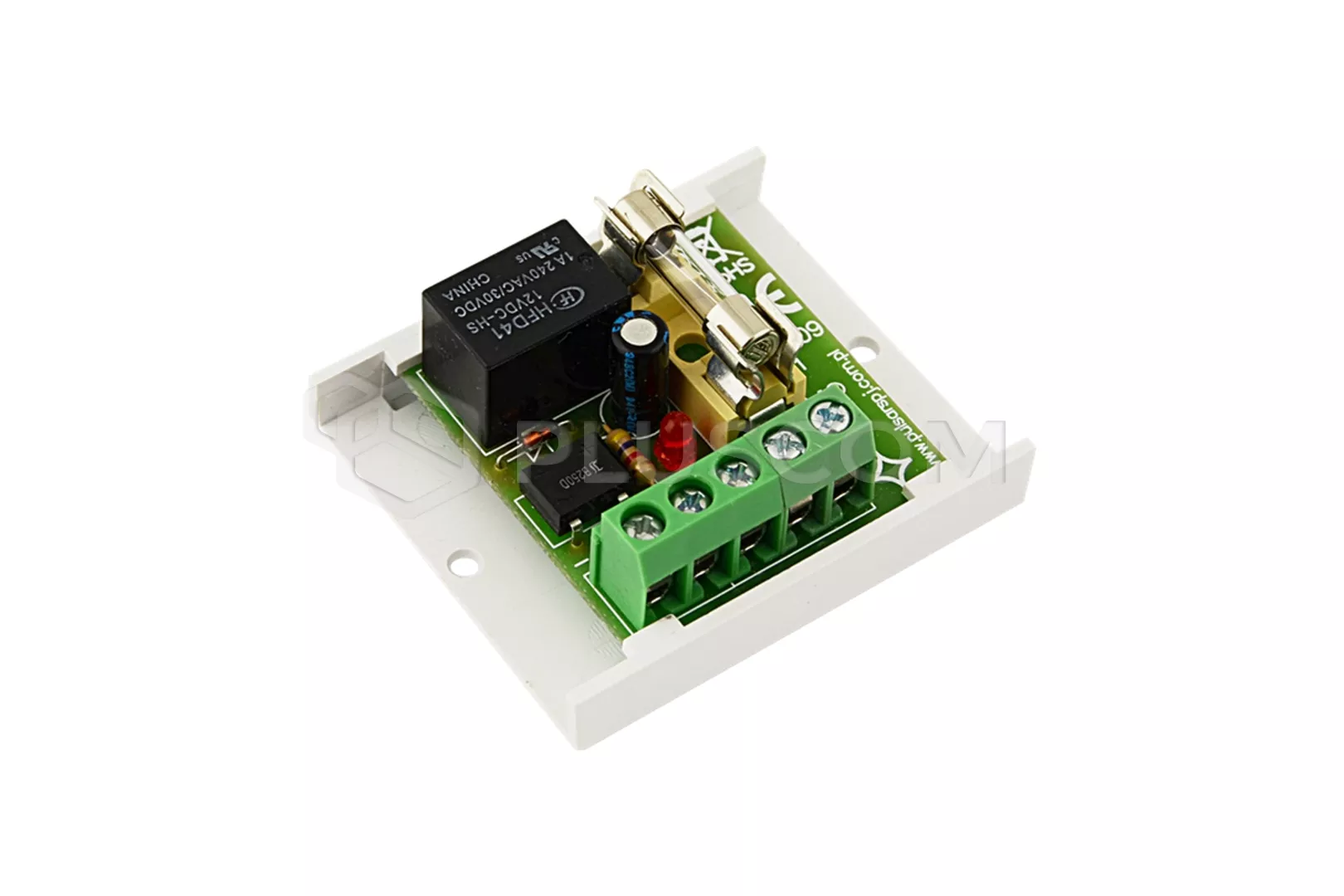

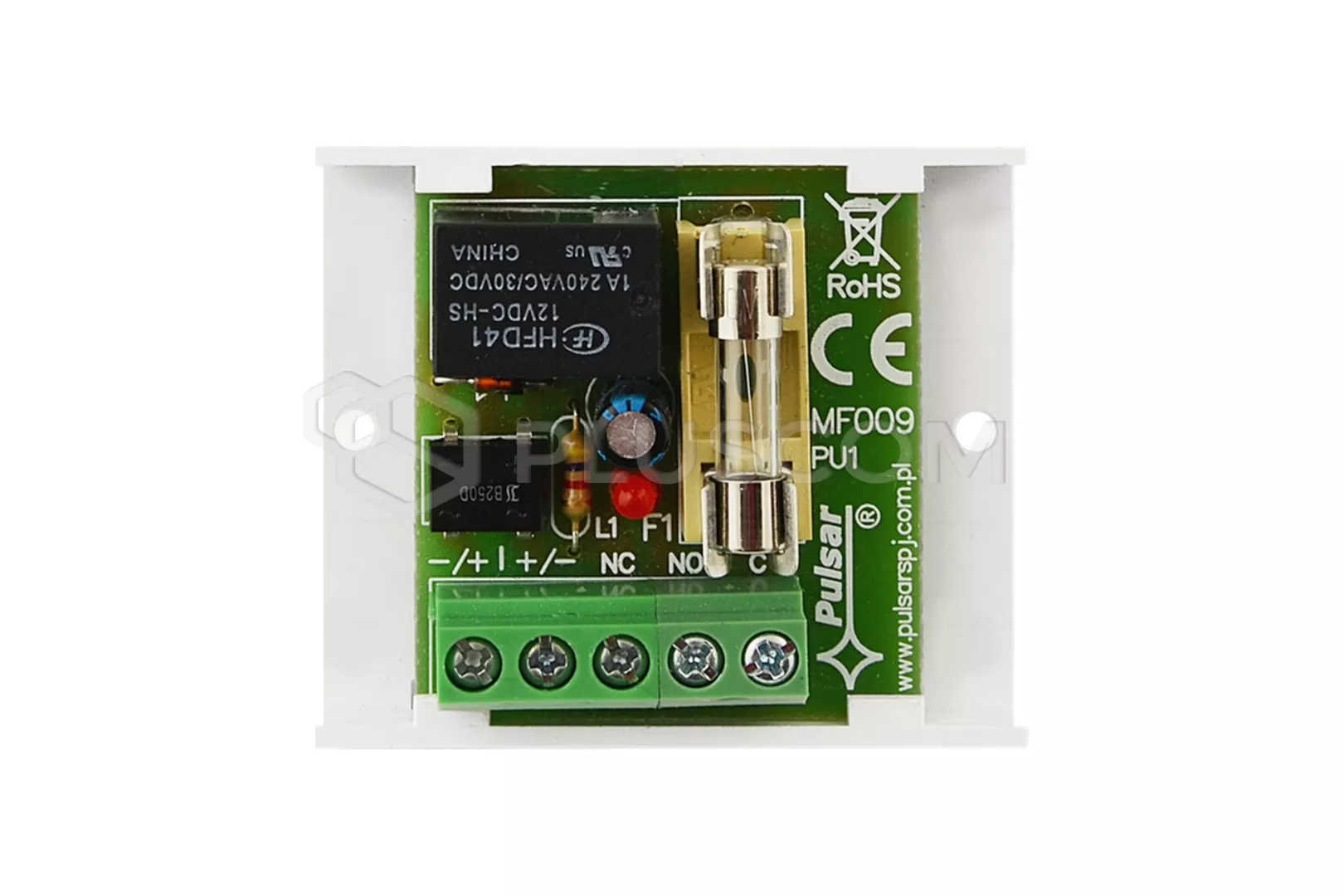

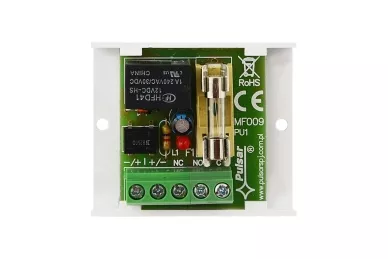

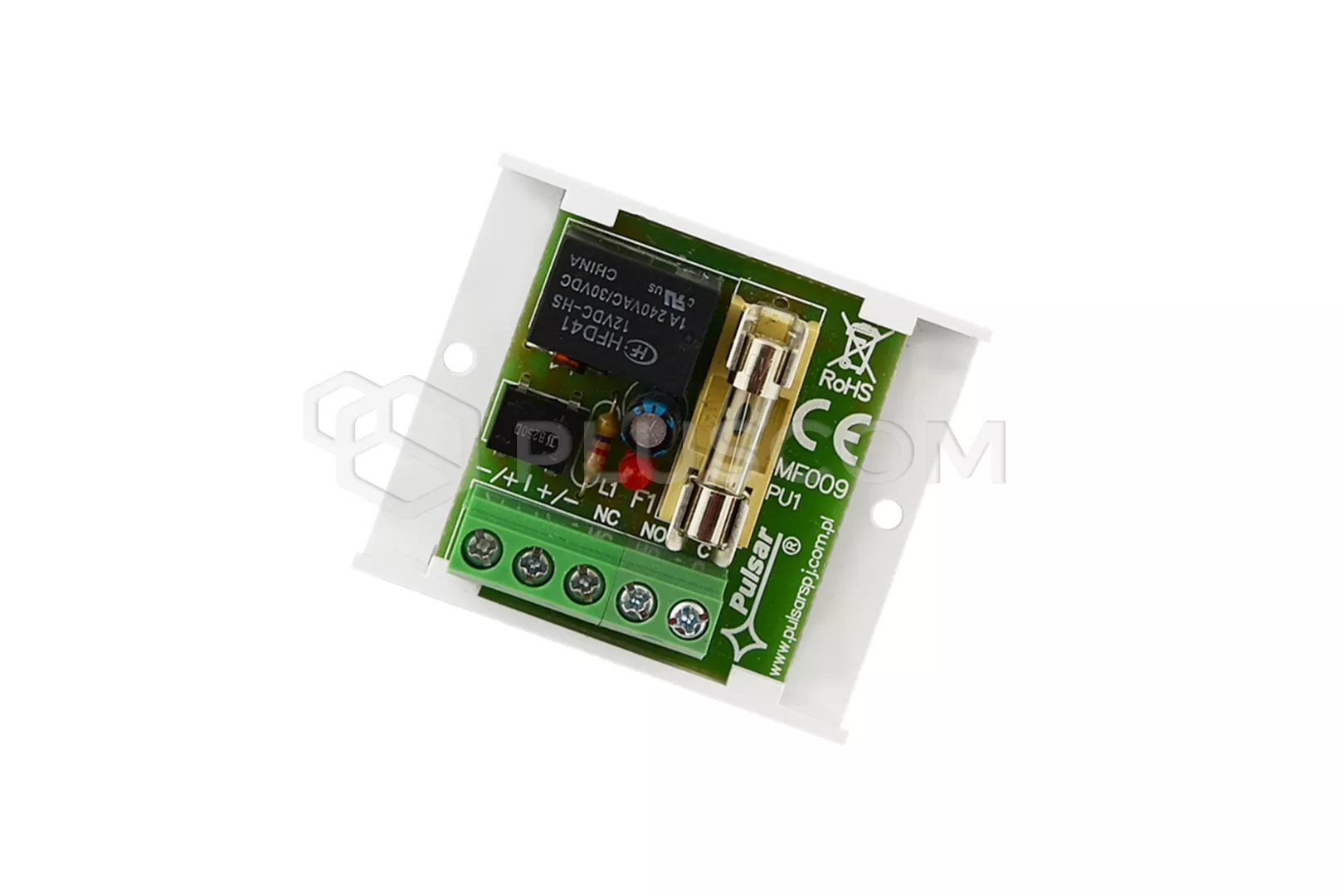

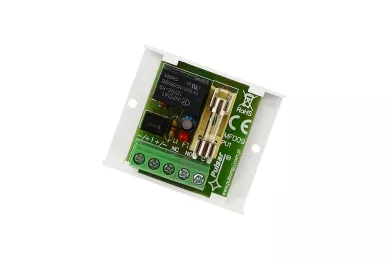

Relay module Pulsar AWZ 510

7,16 EUR including 23.00% VAT
On stock. Ships in one business day
Product code: #10637
Manufacturer: Pulsar
  • The number of relays: 1
  • Current of the relay’s coil: 33mA 12VDC
  • Load of relay contacts: 1A 30V DC
  • Coil voltage: 10-16V DC/AC
  • Protection: 1.5A fuse in the circuit C/NC/NO relay
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Relay module Pulsar AWZ 514 Relay module Pulsar AWZ 512 Relay module Pulsar AWZ 514 Relay module PU2/HV Pulsar AWZ625 Relay module PU4/HV Pulsar AWZ626

PU1 Relay module AWZ 510

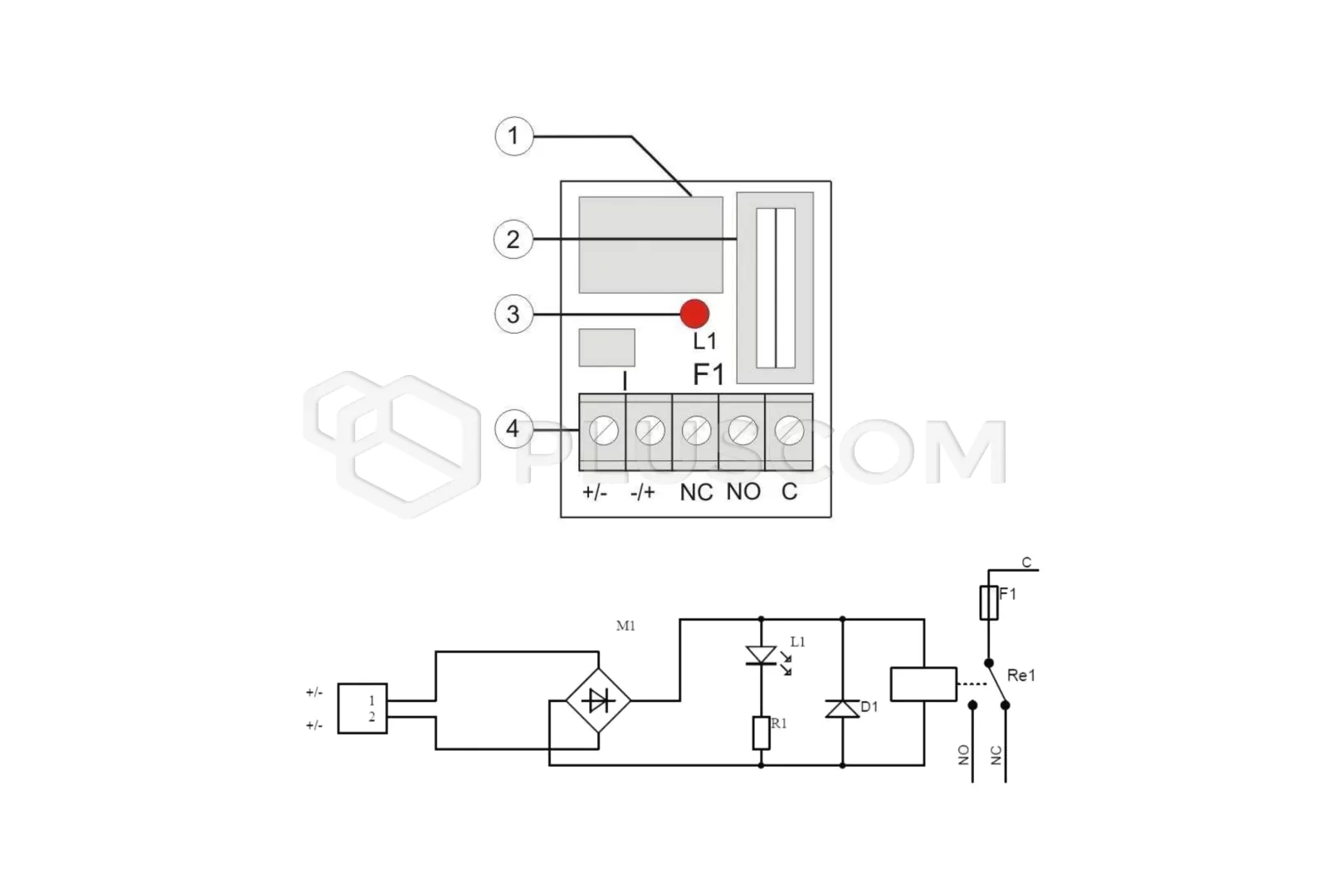

The PU1 (AWZ510) relay module is to be used in low-voltage installations. It is intended for controlling and status indication in e.g. alarm or access control systems. It may be used to control devices of high power consumption via OC outputs of alarm systems. Moreover, it ensures galvanic isolation of signals, power sources relating to the outputs of the module.
Relay module Pulsar AWZ 510

Relay module Pulsar AWZ 510



SPECIFICATIONS

  • Voltage of the relay’s coil: 10-16V DC/AC
  • Current of the relay’s coil: 33mA 12VDC
  • Resistance of coil: 360 OHM (-/+10%)
  • Power of coil: 400mW
  • Number of relays: 1
  • Voltage of the relay’s contacts: 30VDC / 50VAC max.
  • Current of the relay’s contacts: 1A max
  • Contacts of relay: C/NC/NO (leads Φ2.05 mm: AWG 24-12)
  • ON/OFF time: 15ms/8ms
  • Operating conditions: 2nd environmental class, -10°C÷ 40°C
  • Enclosure: open-frame design, IP00
  • Dimensions: 50x43x20mm
  • Weight: 0,04kg

Relay module Pulsar AWZ 510

Relay module Pulsar AWZ 510


Download
Datasheet 0.12 MB
Declaration CE 0.32 MB
User Manual 0.15 MB
