Relay module PU4/HV Pulsar AWZ626

34,56 EUR including 23.00% VAT
Product code: #14196
Manufacturer: Pulsar
  • The number of relays: 1
  • Current of the relay’s coil: 12VDC
  • Coil power: 400mW
  • Voltage of the relay’s coil: 10÷16V DC/AC
  • Voltage of the relay’s contacts: 30VDC/250VAC max.
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Relay module Pulsar AWZ 510 Relay module Pulsar AWZ 514 Relay module Pulsar AWZ 512 Relay module Pulsar AWZ 514 Relay module PU2/HV Pulsar AWZ625

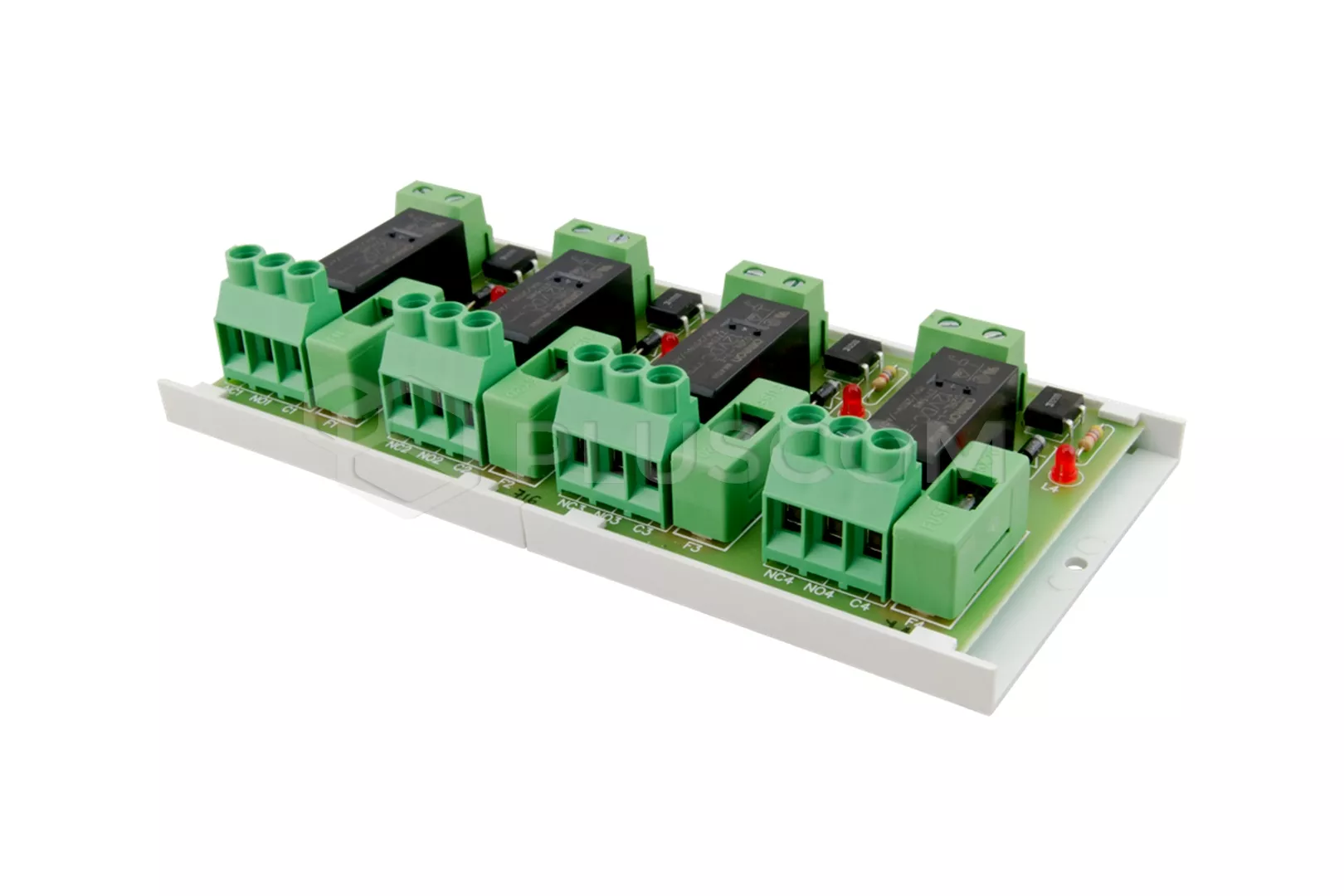

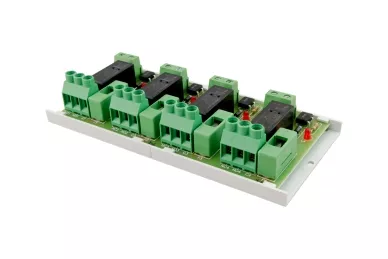

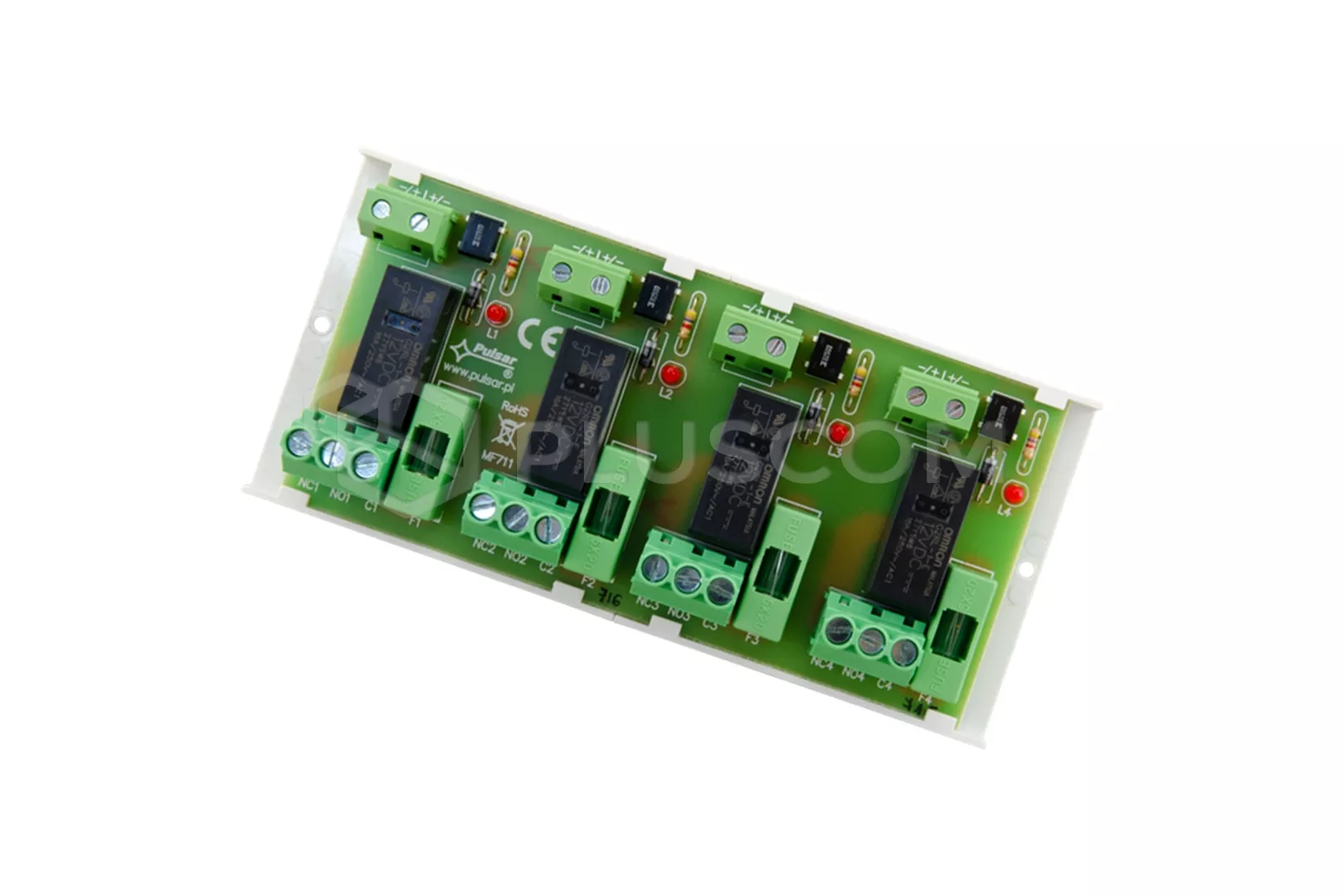

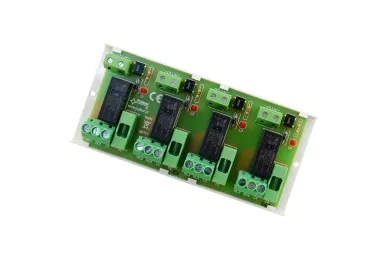

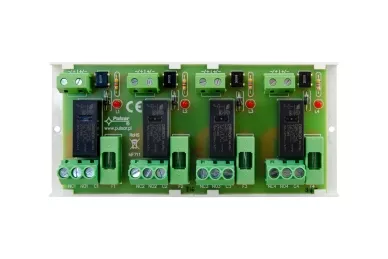

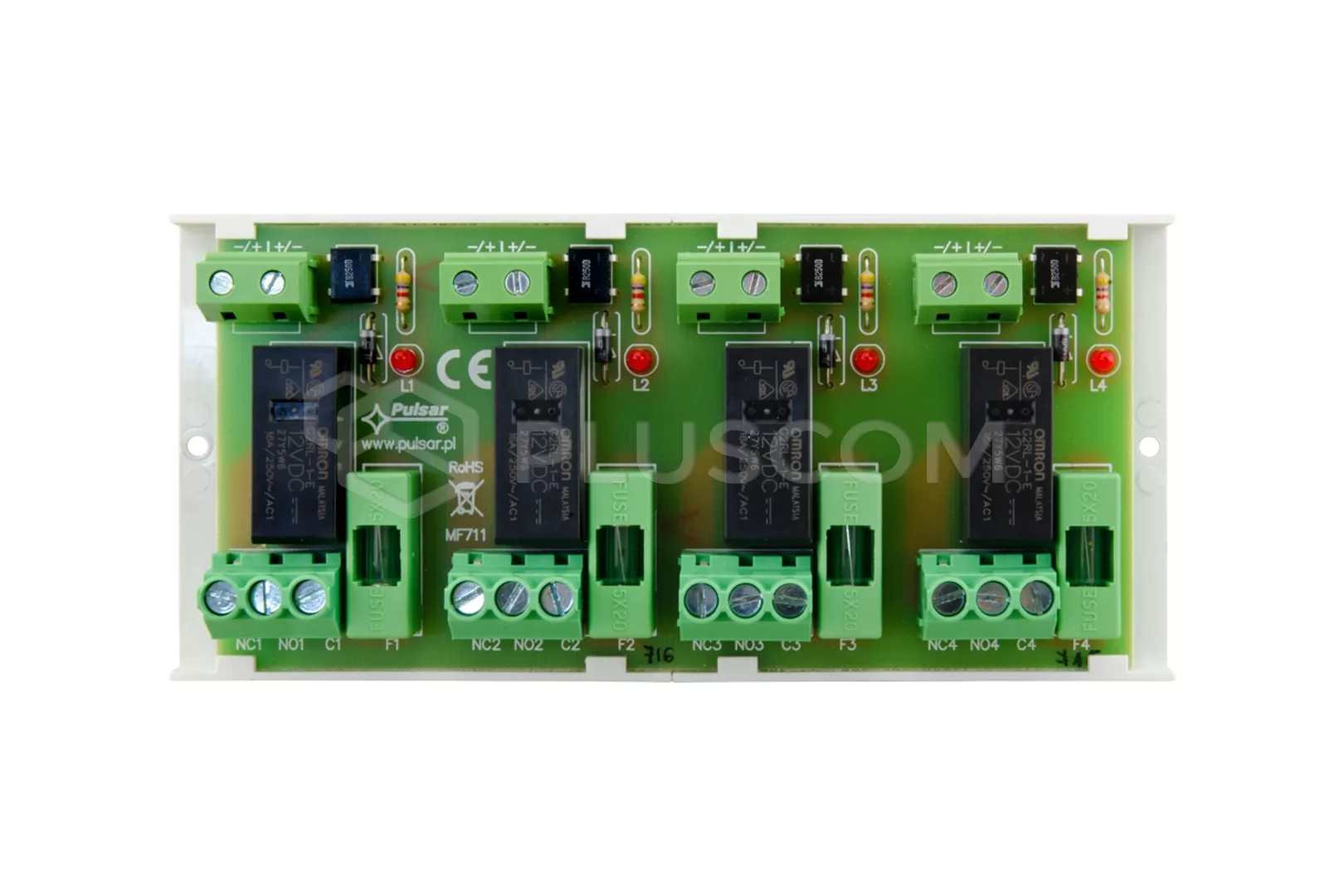

Pulsar AWZ626 Relay module PU4/HV

Pulsar AWZ626

Pulsar AWZ626


APPLICATION:
The PU4/HV AWZ 626 relay module is designed for use in low voltage installations. It is used for controlling, signaling states eg in alarm systems, access control. It can be used to control devices with high power consumption through the OC outputs of alarm systems. In addition, it provides galvanic separation of signals, power sources in relation to the outputs of the module.
The construction of the module is of the 'open-frame' type, i.e. it has no housing. For mounting, you can use an integrated self-adhesive tape or use the holes to screw the skirting board to the ground.

SPECIFICATIONS
  • module supply voltage: 10 ÷ 16VDC / VAC
  • coil control current: 33mA @ 12VDC
  • coil power: 400mW
  • relay contact current: 6A max.
  • relay contacts C/NC/NO
  • dimensions: 150x70x30mm
  • Weight: 0.19g
  • working conditions: -10°C ÷ 40°C

Pulsar AWZ626

Pulsar AWZ626


Download
Datasheet 0.14 MB
Declaration CE 0.32 MB
Instruction 0.15 MB
