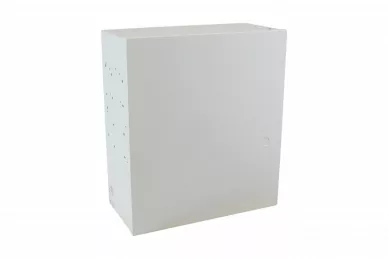

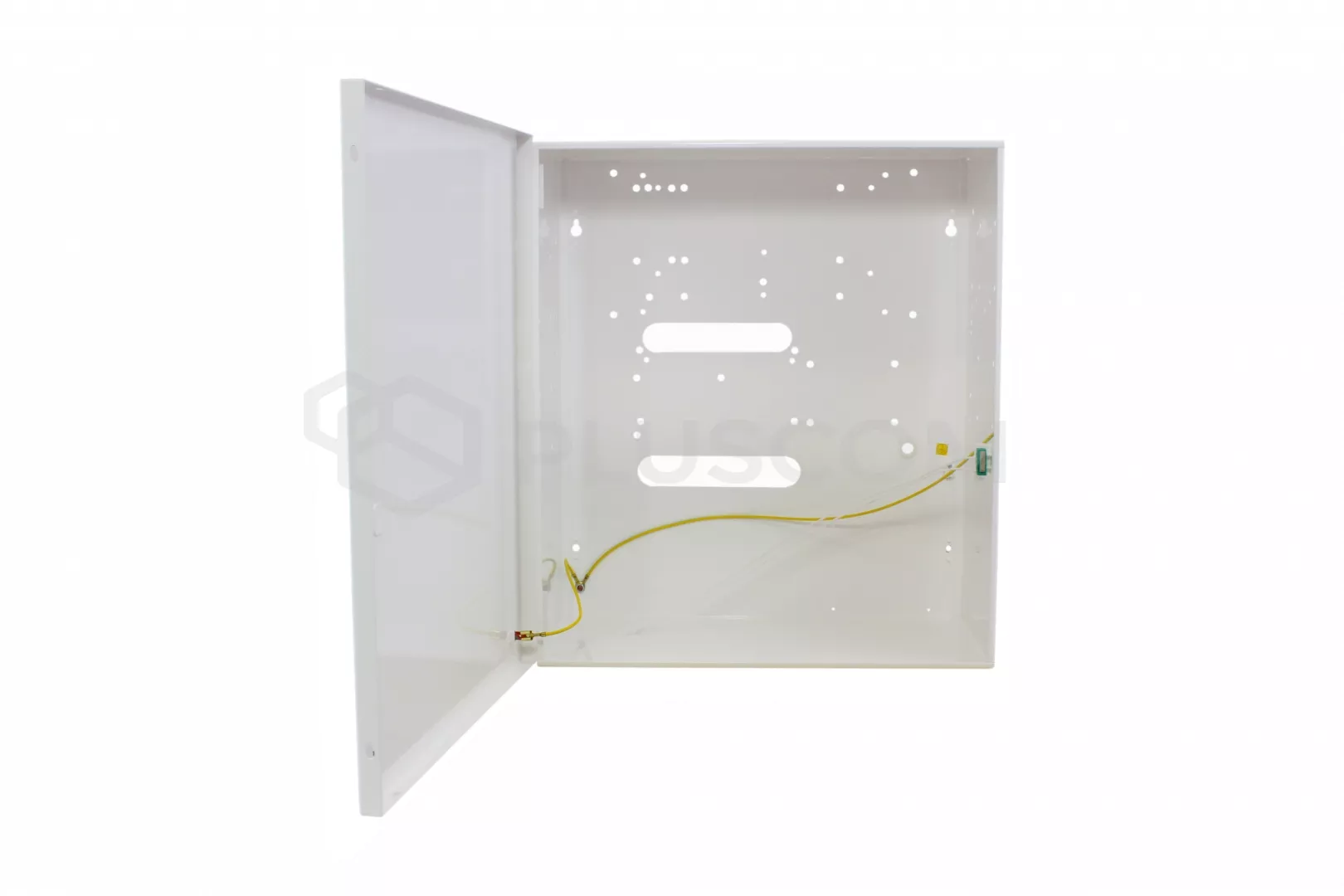

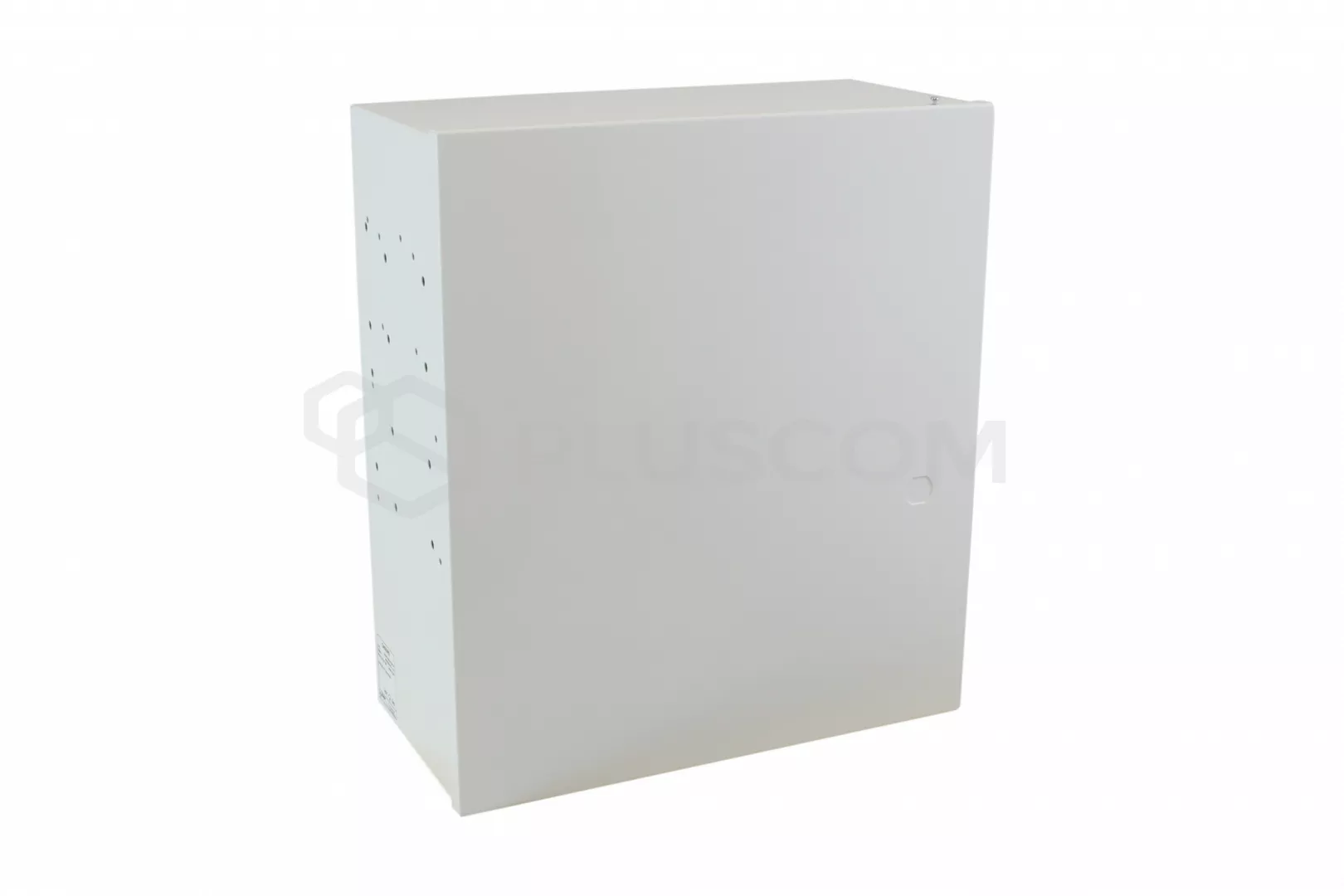

Pulsar AWO301PU Casing for control panels

Pulsar AWO301PU 24/80/DS/PUSTA surface mounted housing is designed for mounting:

• panel boards and optional additional modules control

• controllers and additional modules

• radio transmitter, GSM

• module PS

• to the housing can be mounted transformer type: TRP50, TRP80, TRZ50, TRZ80
• other dedicated devices

The housing has a place for 12V/24Ah. The standard is also a tamper protection in the form of the chassis intrusion detector



SPECIFICATIONS:

• place for transformer TRP50, TRP80, TRZ50, TRP80

• place on battery: 12V/24Ah

• tamper protection: Yes

• material: 0.7mm sheet RAL9003 color

• degree od protection : IP20

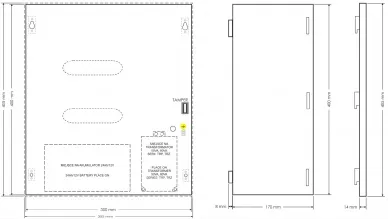

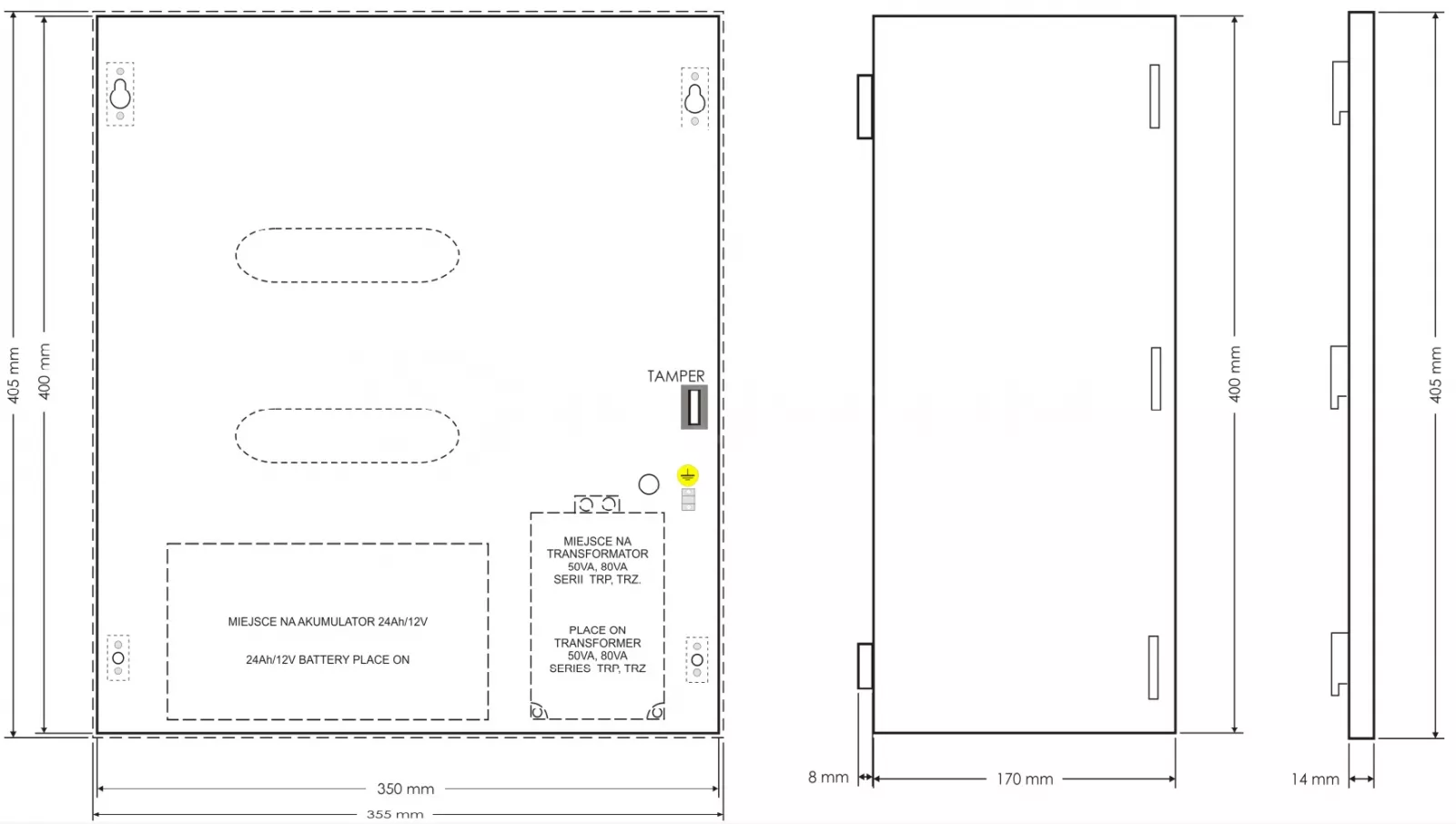

• internal dimensions: 350x400x170mm

• closing: 4x twisted sheet metal, an optional locking

• distance from wall 8mm

Housing is ideal for panel installation SATEL

• CA10, VERSA10,15, INTEGRA 24, 32, 64, 128 + 6x CA64 (SM)

• CA10, VERSA10,15, INTEGRA 24, 32, 64, 128 + 5x CA64 (EPS, O- OC, O-ROC, OR, VGM- 16, SR, ADR, ACC-KP-PS)

• 6x CA64 (EPS, O-OC, O-ROC, OR, VGM- 16, SR, ADR, ACC-KP-PS)

• 3x CA64 (PP, OPS-OC, OPS-R, OPS-ROC) + CA64 (EPS, O-OC, O-ROC, OR, VGM-16, SR, ADR, ACC-KP-PS) + 3x CA64 (MS)

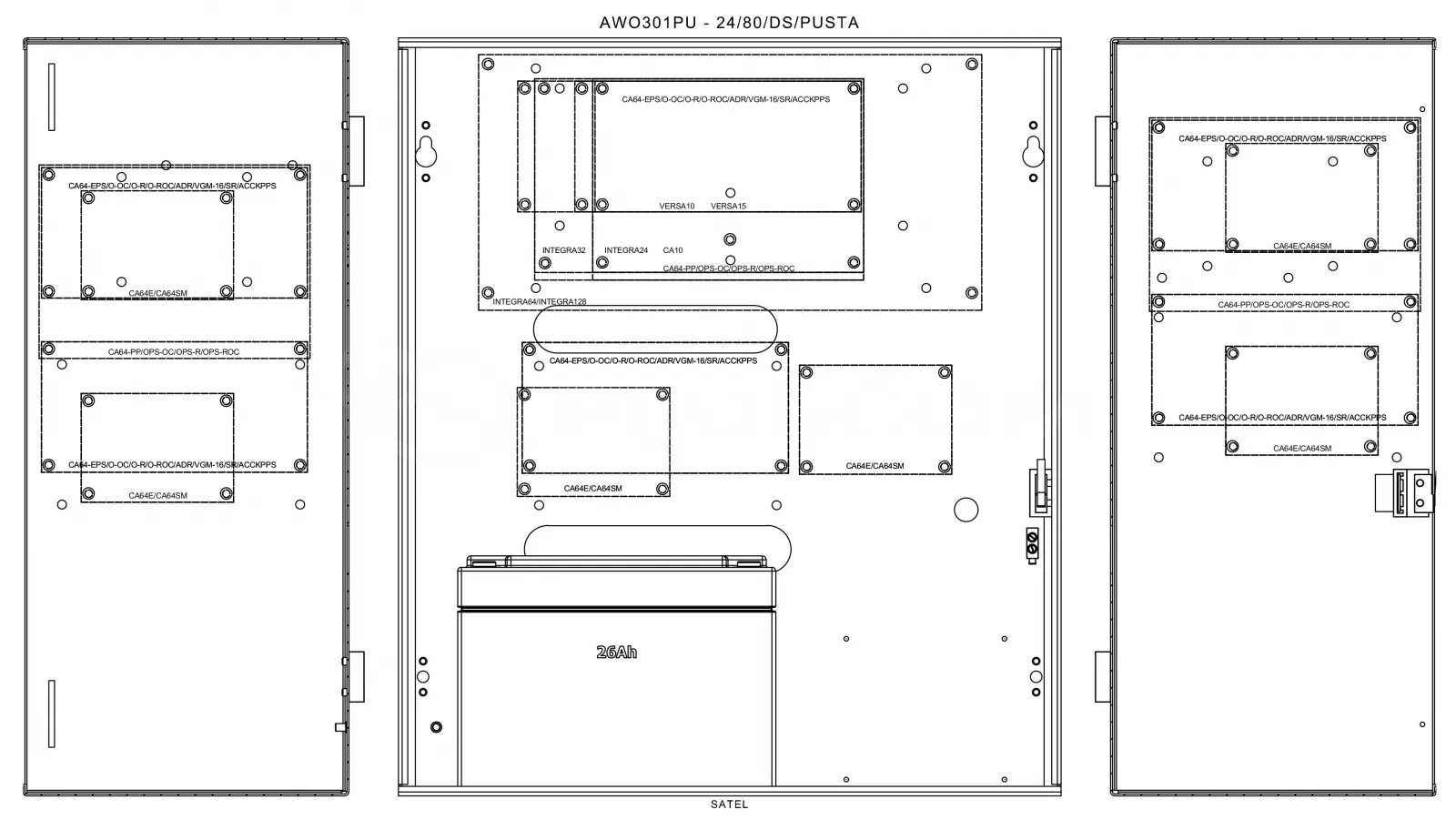

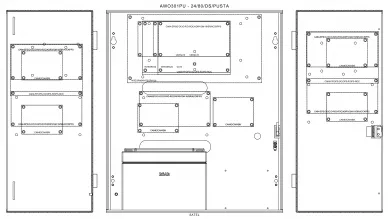

Sample distribution panel in the housing SATEL



Other panels that can be mounted in the enclosure:
DSC:
PC1616, 1832, 1864, 4020, 6010, 4x (4108, 5108, 6108, 5100, 4116, 5208) + 3x (5204, 5400, 5200, 5580, 4216, 6216, 6400)
Modules:
(4204, 6204) + 4x (4108, 5108, 6108, 5100, 4116, 5208) + 3x (5204, 5400, 5200, 5580, 4216, 6216, 6400)
