Pulsar AWO528S Casings for recorders

105,93 EUR including 22.00% VAT
Product code: #27308
Manufacturer: Pulsar
  • Casings for recorders, surface mounted
  • External dimensions: 319 x 429 x 81mm
  • Tamper – opening of enclosure
  • Tamper – opening of enclosure
  • Black color
Delivery and tax:
Italy VAT: 22.00% change
Shipping cost from:
12,35 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fan with temperature sensor 45C Pulsar ARAW45 Pulsar AWO529W Casings for recorders Pulsar AWO528 Casings for recorders Pulsar AWO529 Casings for recorders Pulsar AWO528W Casings for recorders Pulsar AWO530S DVR/MEDIUM/VERTICAL enclosure Pulsar AWO530WS Casings for recorders Pulsar AWO529WS Casings for recorders Pulsar AWO529S Casings for recorders Pulsar AWO528WS Casings for recorders

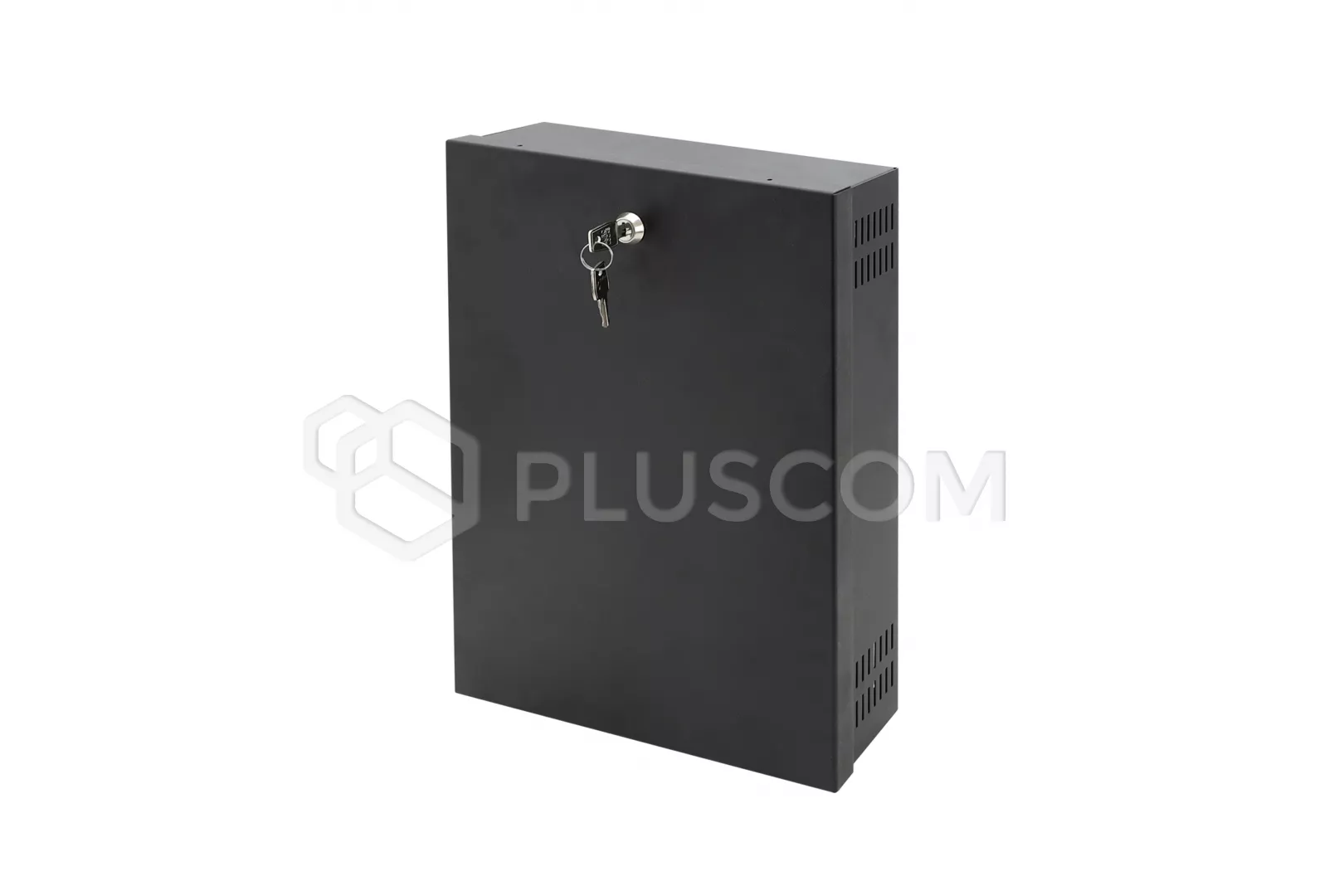

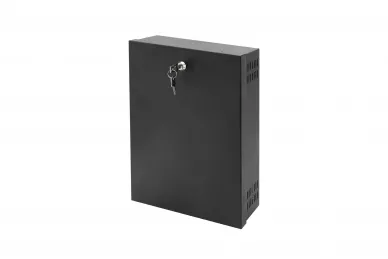

Pulsar AWO528S Enclosure for mini recorders


The housing is used to protect the recorder against unauthorized access or theft.
It is made of 1.2mm thick sheet metal. Due to the vertical mounting of the housing i shallow depth is ideal wherever it is not deep enclosures or RACK19” cabinets can be installed.

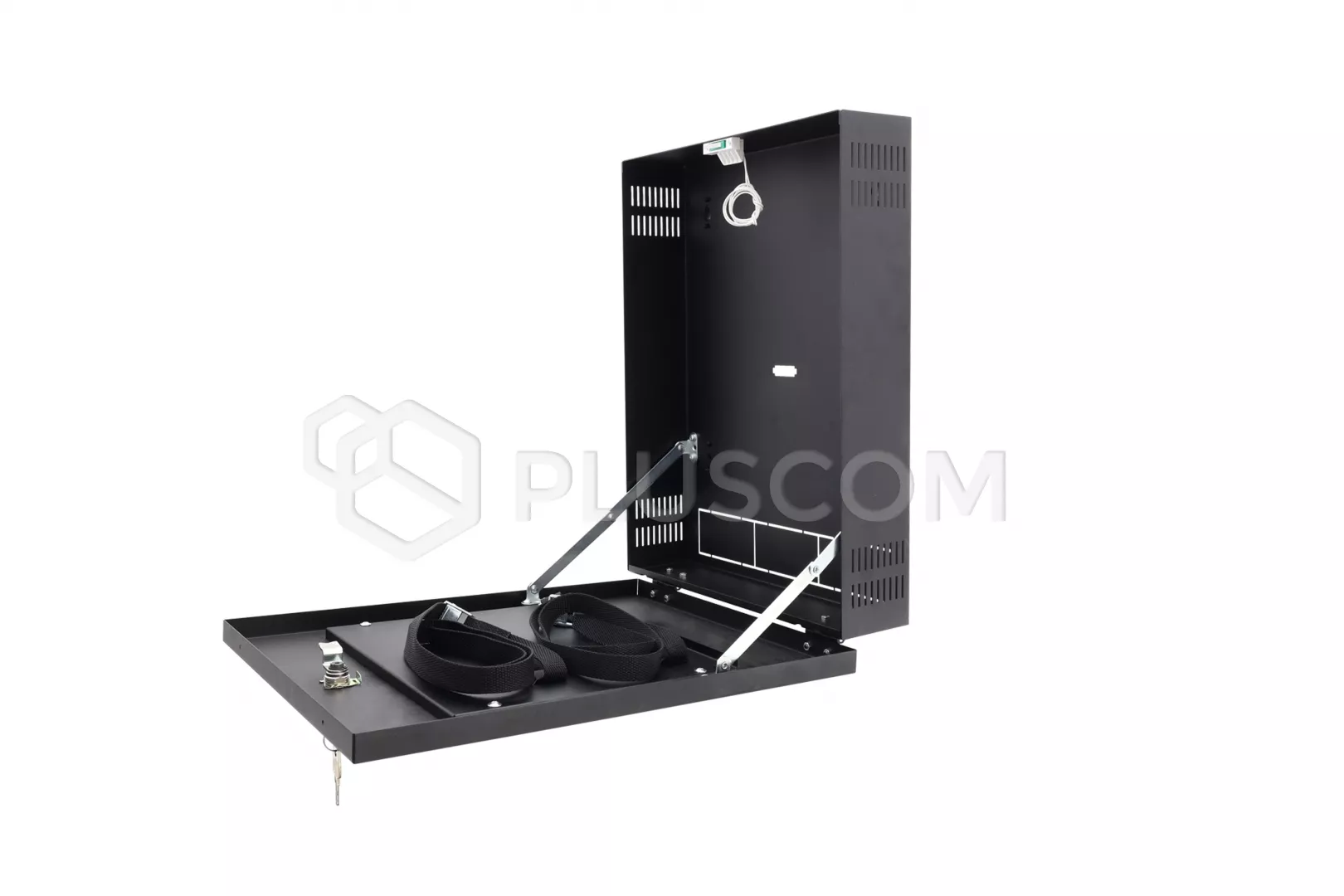

After opening the housing, the headlamp is held in a horizontal position, thanks to which we get easy access to the buttons placed on front panel of the recorder.

The housing uses a special handle with straps for mounting recorders with dimensions of 260 x 250 x 55mm.

SECURITY
The housing is used to protect the recorder against unauthorized persons access or theft.
It is equipped with a lock (1xMR008, different code) and an opening tamper housing. Additionally, it is possible to install a PKAZ067 tear-off tamper.

TECHNICAL PARAMETERS:
  • external dimensions: recorders with dimensions of 319 x 429 x 81mm
  • internal dimensions: 260 x 250 x 55mm
  • net weight: 5.21kg
  • execution: DC01 sheet, thickness 1.2mm, color RAL9005 - protection anti-corrosion
  • anti-sabotage protection: 1 x microswitch - housing opening, 0.5 AND; 50V DC max. NC – normally closed contacts
  • closing: lock
  • distance from wall (floor) 14mm
Download
Datasheet 0.37 MB
Manual 0.39 MB
