Pulsar AWO529W Casings for recorders

127,66 EUR including 23.00% VAT
Product code: #6522
Manufacturer: Pulsar
  • Casings for recorders, surface mounted
  • External dimensions: 435x500x130mm
  • Tamper: 2x
  • Mounting plate, adjustable handles
Delivery and tax:
Poland VAT: 23.00% change
Shipping cost from:
2,53 EUR
Payment methods:
We can deliver packages to most countries around the world, shipping cost is calculated in the cart. Price of the product varies due to the VAT of the destination country.

Items bought with this product:
Fan with temperature sensor 45C Pulsar ARAW45 Pulsar AWO528 Casings for recorders Pulsar AWO529 Casings for recorders Pulsar AWO528W Casings for recorders Pulsar PKAZ067 PKAZ067 Tamper switch detachement from surface 14mm with wires Pulsar AWO530 Casings for recorders Pulsar AWO530S DVR/MEDIUM/VERTICAL enclosure Pulsar AWO530WS Casings for recorders Pulsar AWO529WS Casings for recorders Pulsar AWO529S Casings for recorders
The enclosure protects the recorder against unauthorized access or theft.

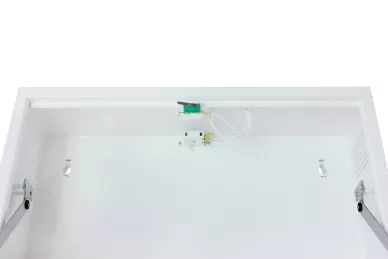

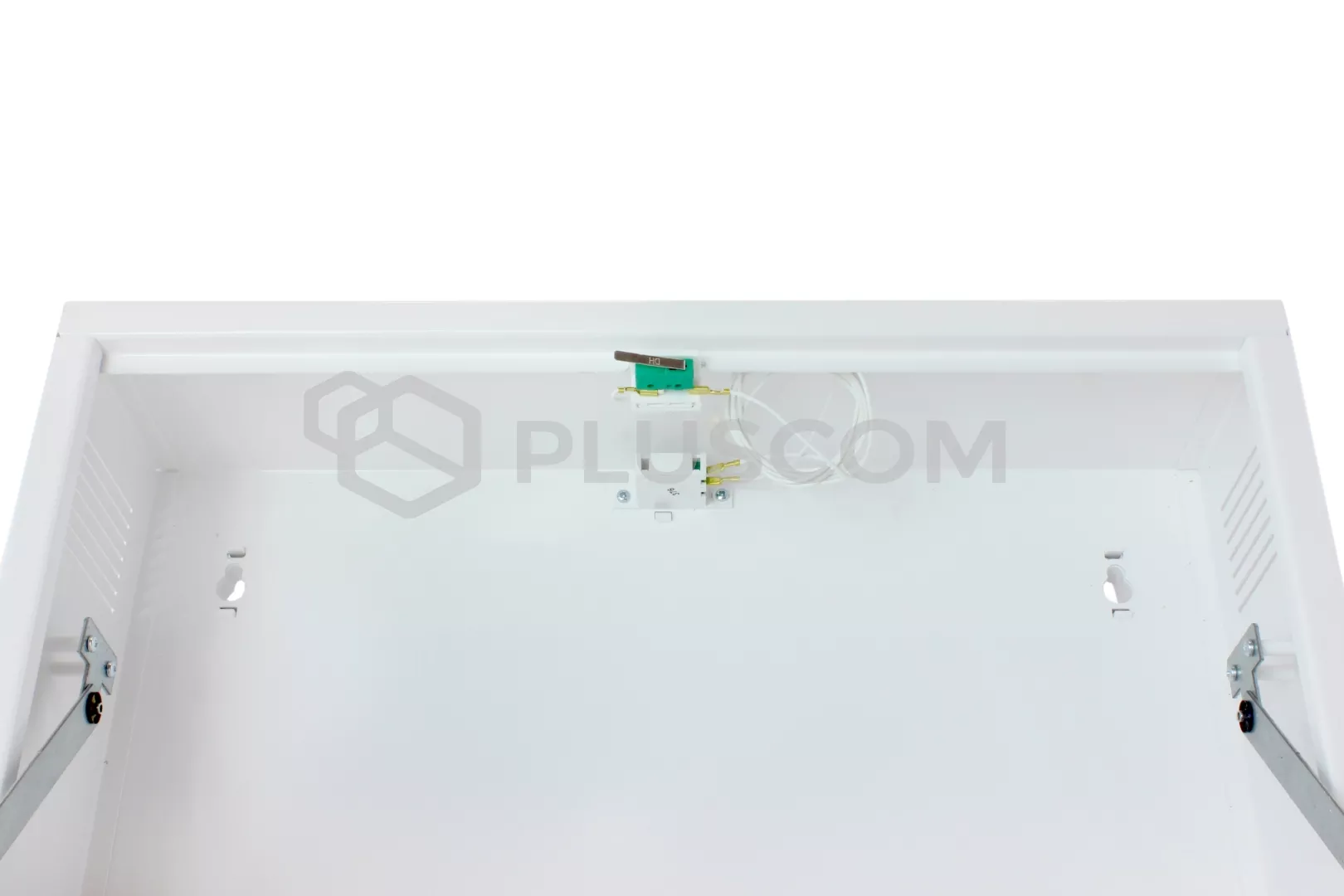

The enclosure is made of steel with a thickness of 1mm. It is equipped with lock and two tamper switches, indicating enclosure opening and detachment from the wall. Due to the vertical installation and low depth, it is ideal for places where deeper enclosures or cabinets type Rack19" cannot be installed.

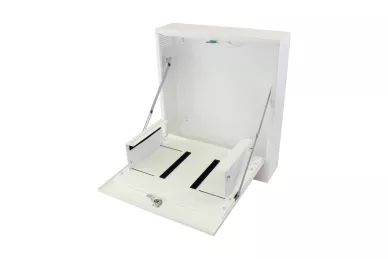

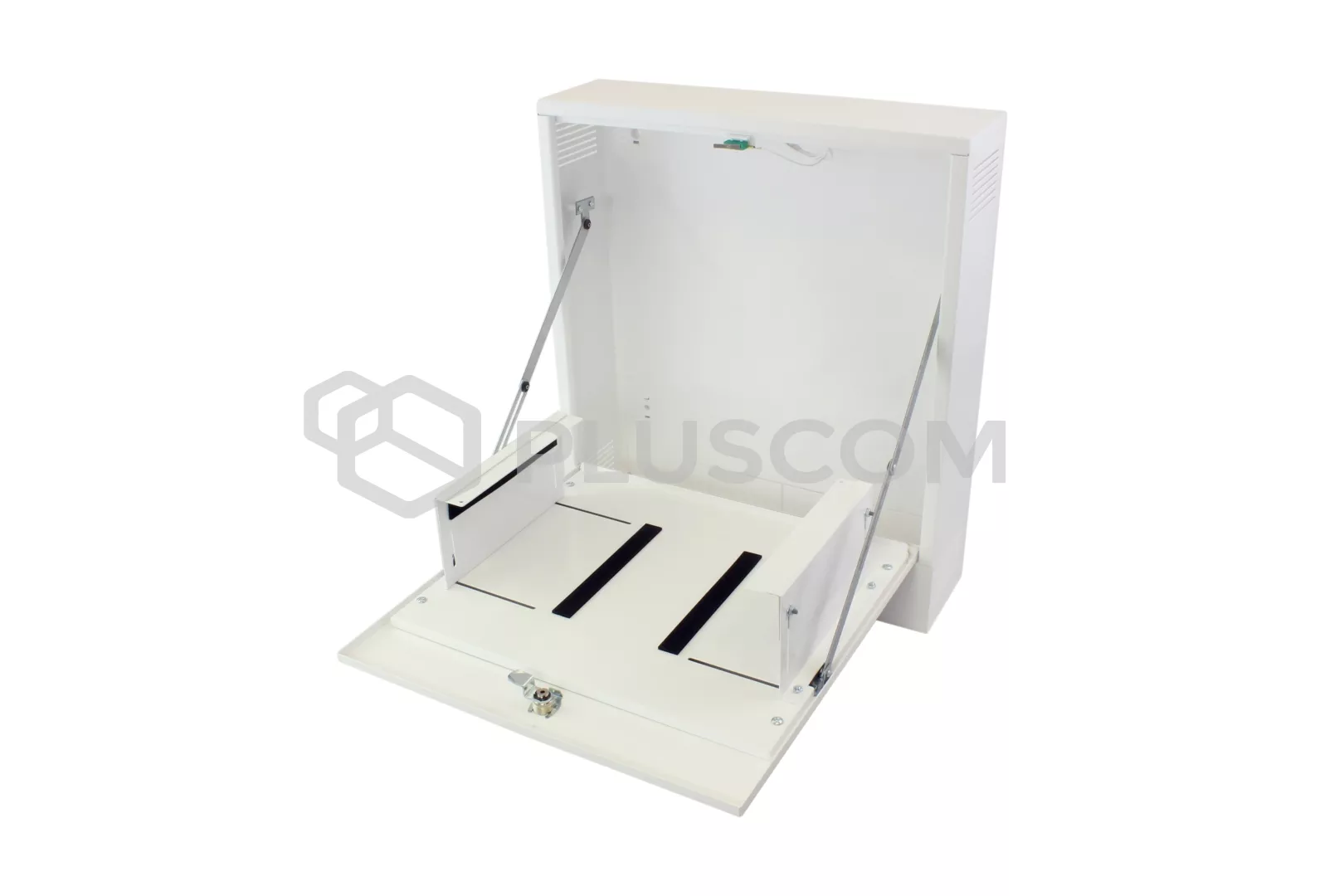

After opening the enclosure, the front cover is held in a horizontal position, providing easy access to the buttons on the front panel of DVR.

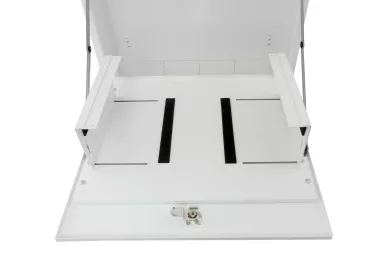

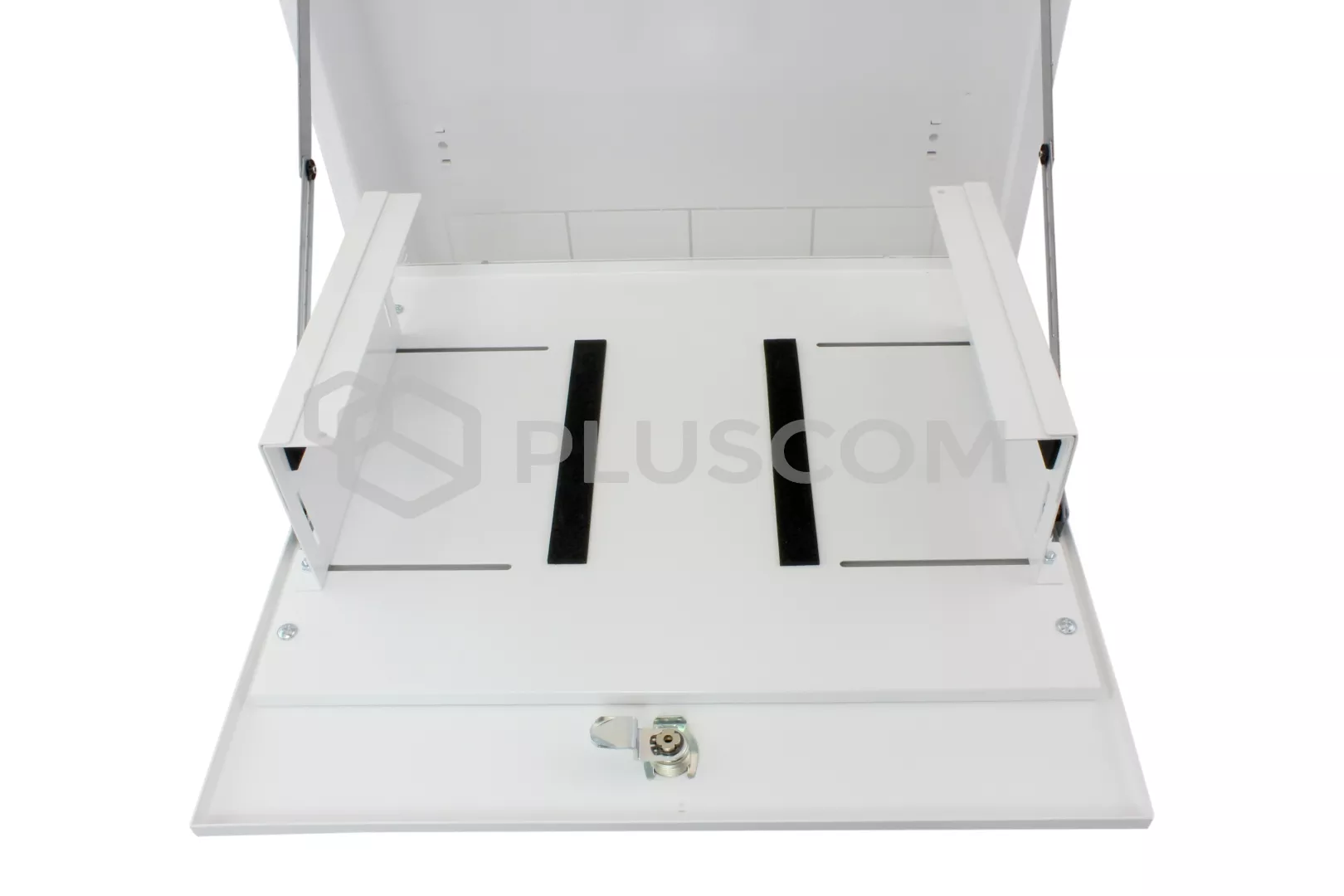

The enclosure is fitted with a special adjustable handle for installation of recorders with the following dimensions:
  • width from 145 mm to 345 mm
  • height: from 40 mm to 100 mm

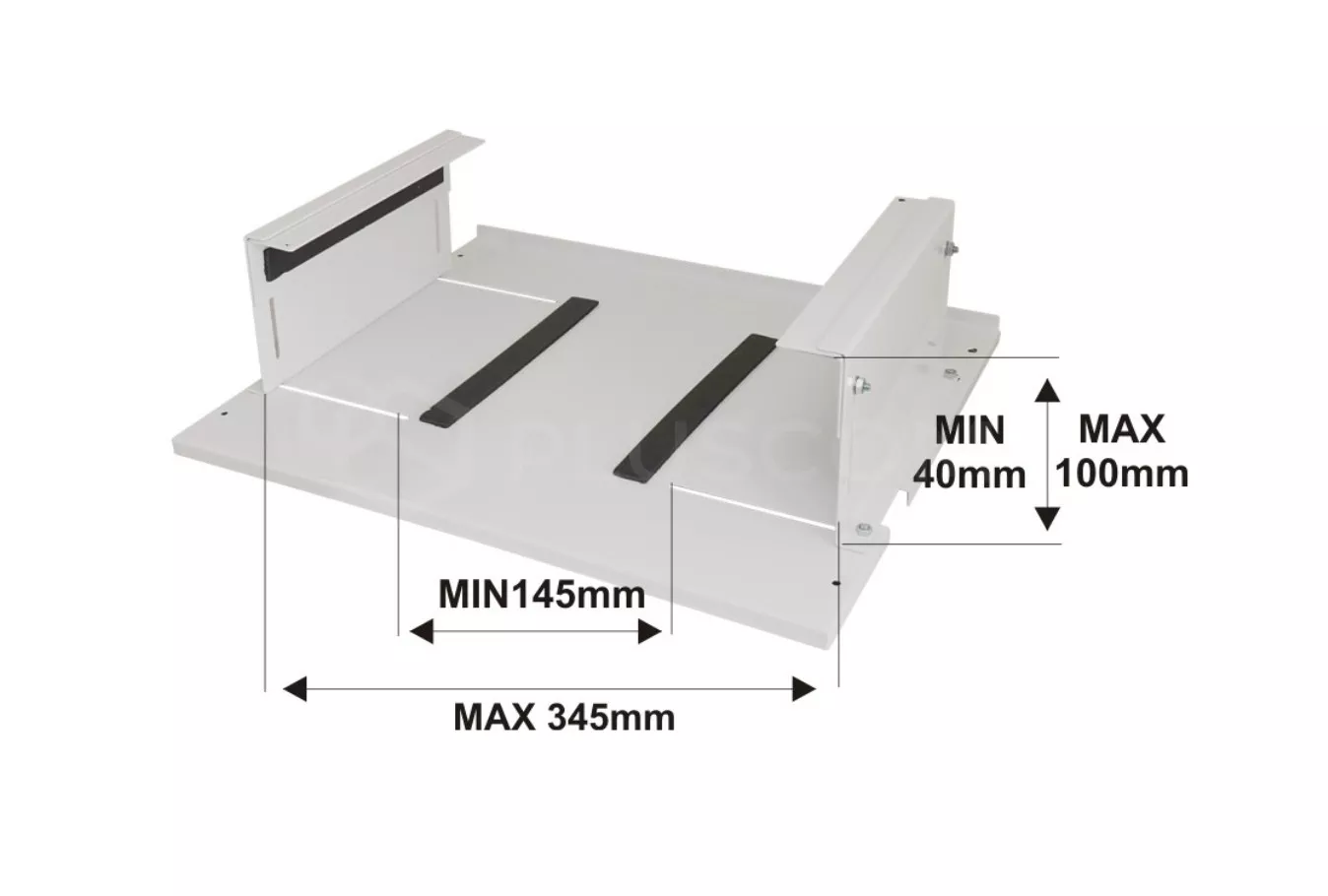

The adjustment range bracket:

The adjustment range bracket:


TECHNICAL PARAMETERS:

  • external dimensions: 435x500x130mm
  • internal dimensions: 385x495x110mm
  • the adjustment range of the mounting plate for the recorder
    • width: 145 - 345mm
    • height: 40 - 100 mm
  • net weight: 8,6kg
  • finish: sheet DC01, thickness 1mm, color RAL9005 - corrosion protection
  • antisabotage protection: 2x microswitch: opening and detachment of the enclosure,
  • locking: lock
  • application indoor
  • distance from the wall 8mm

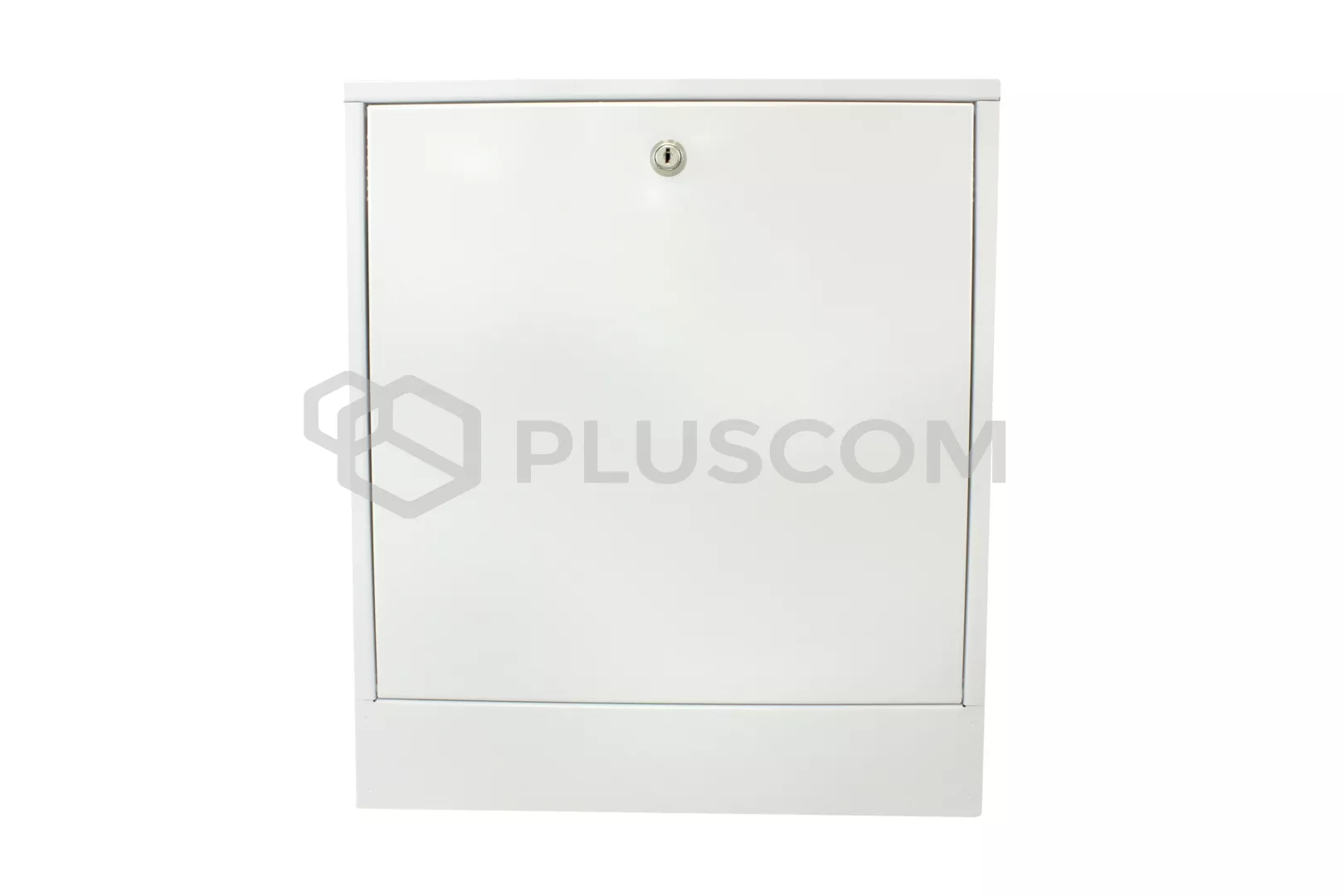

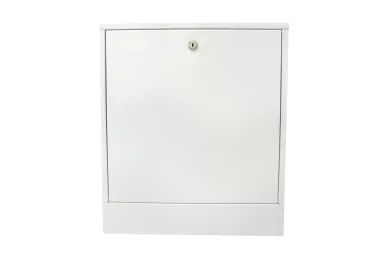

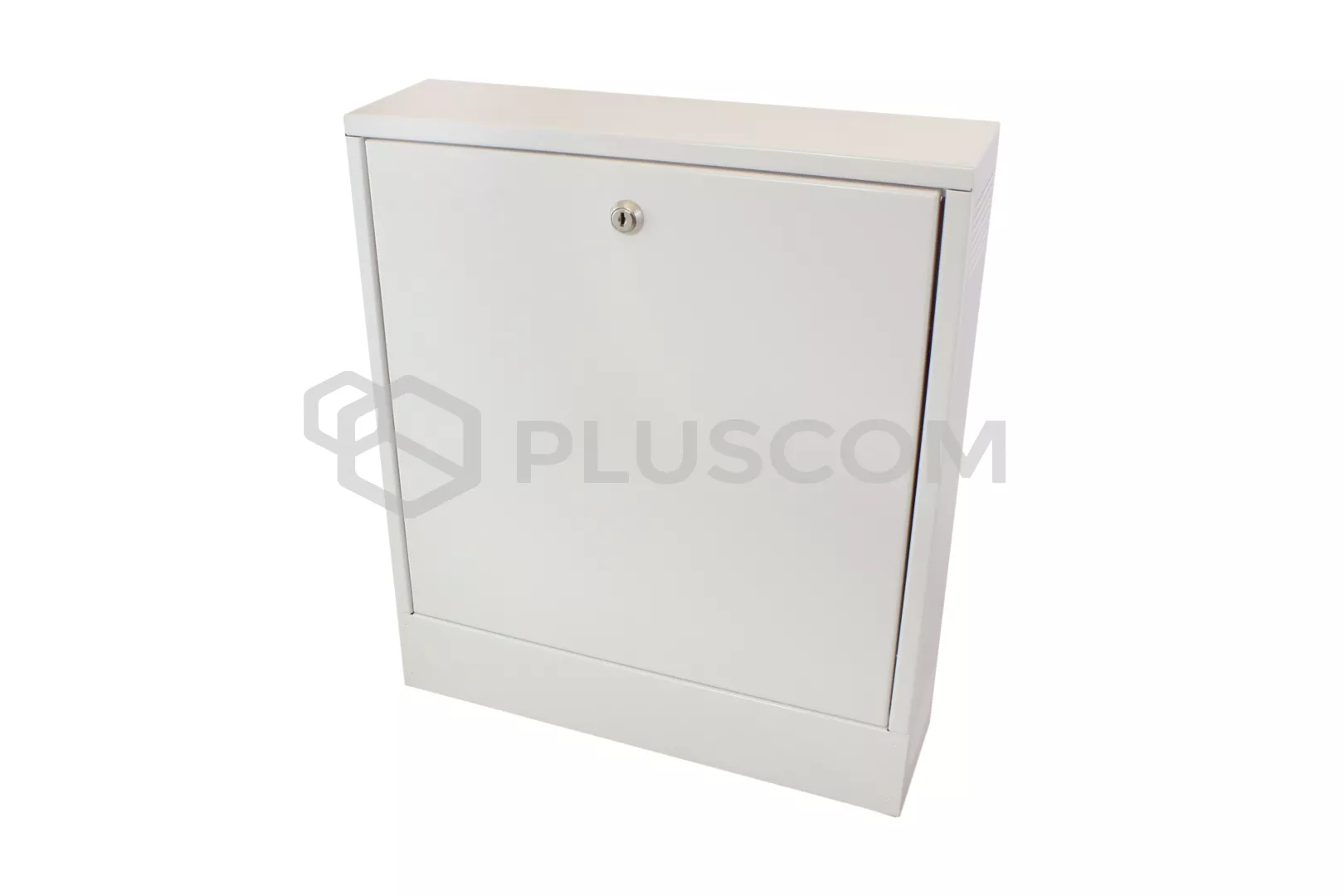

Front view:

Front view:

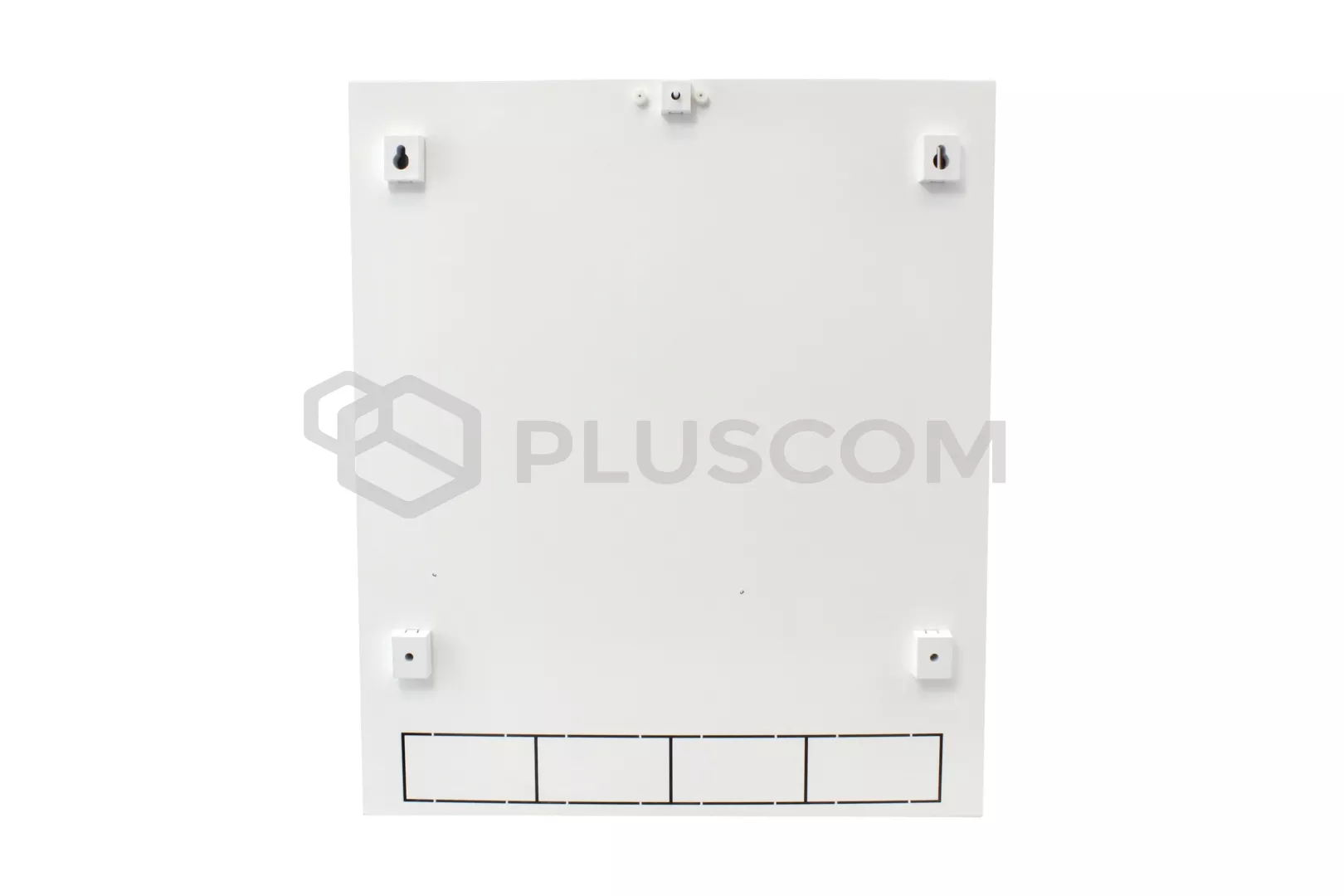

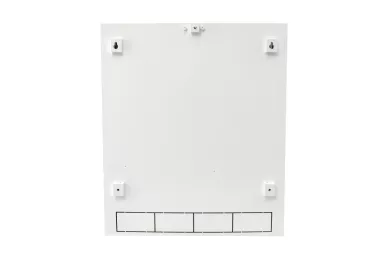

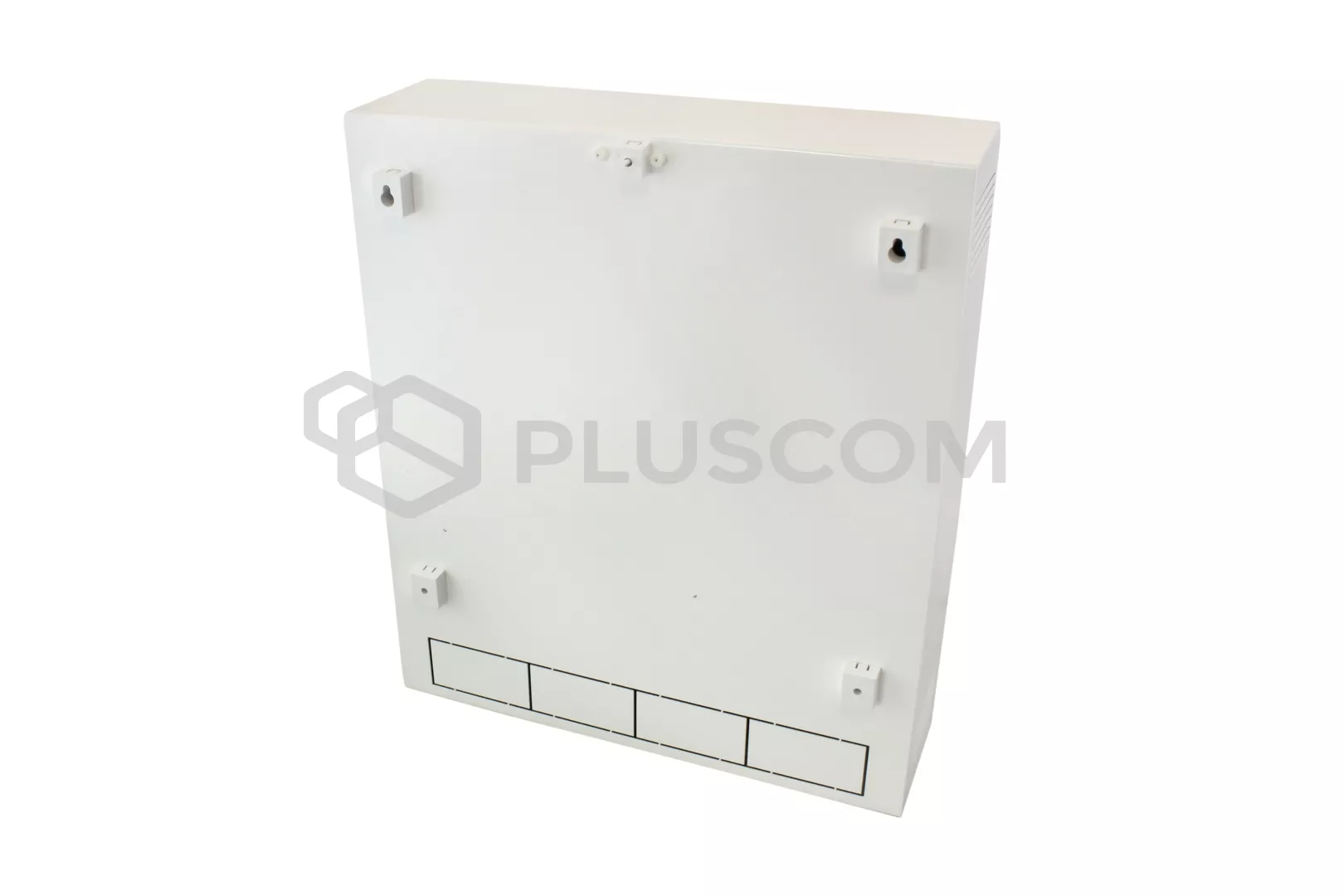

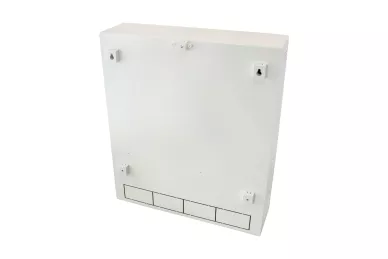

Rear view:

Rear view:

Download
Datasheet 0.32 MB
Manual 0.64 MB
